产品介绍

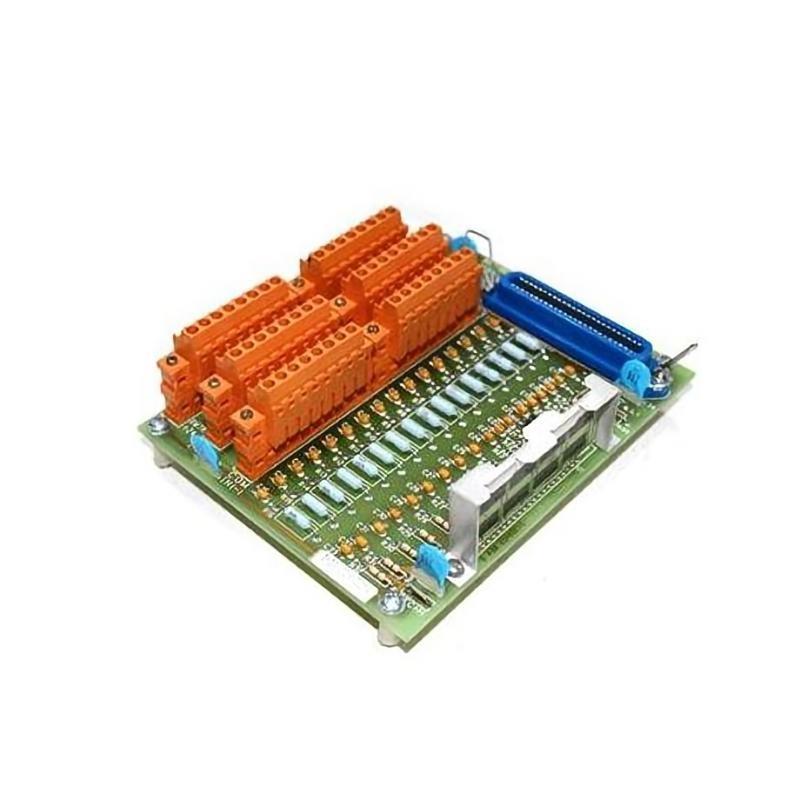

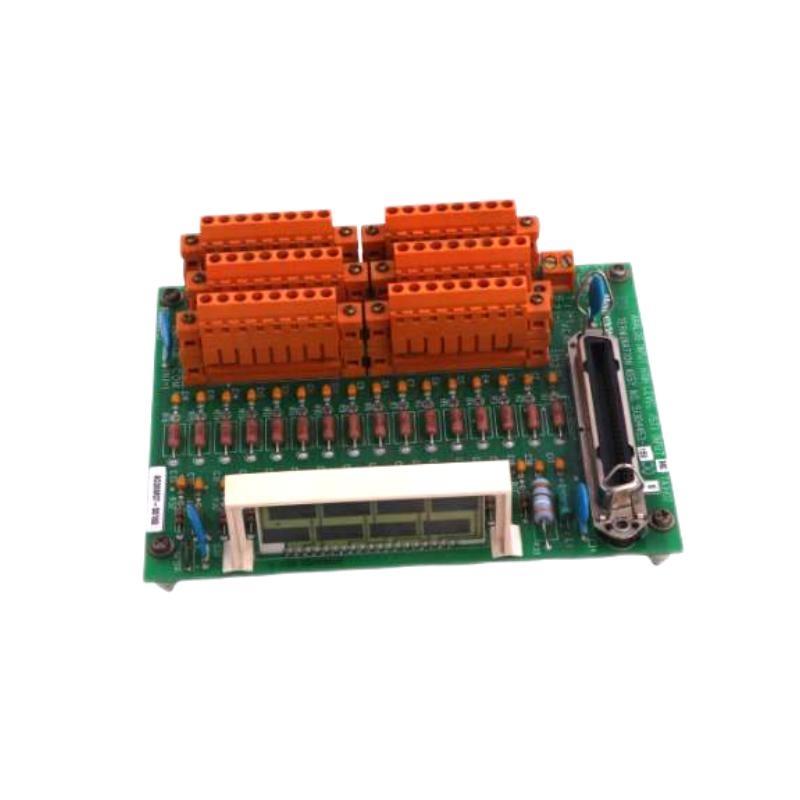

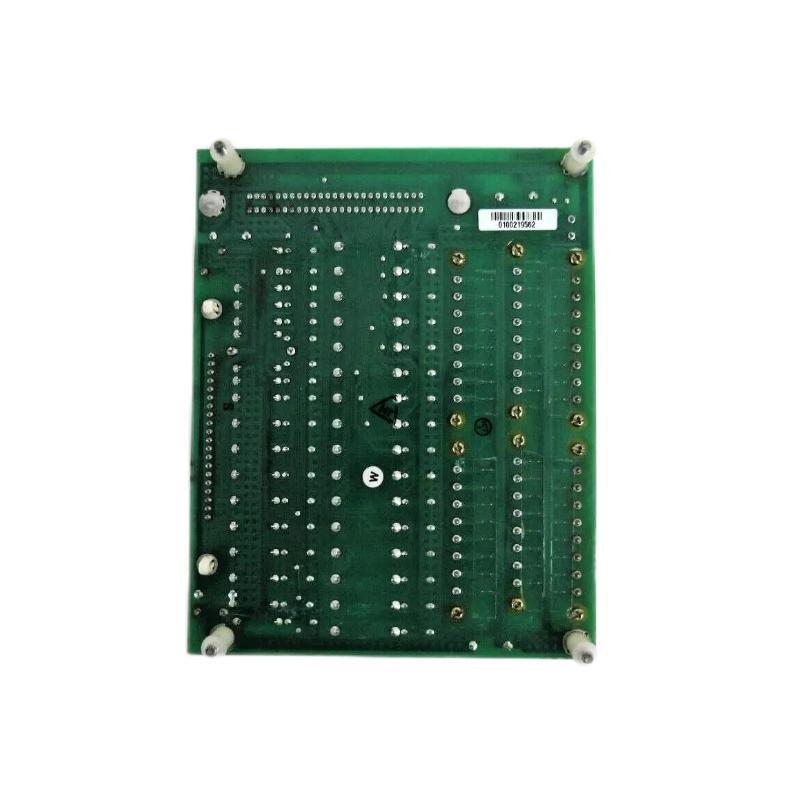

The Honeywell MC-TAIH02 51304453-150 High Level Analog Input Module is an essential component within Honeywell’s Experion Process Knowledge System (PKS) and TPS (TotalPlant Solution) system architecture. It is designed to handle high-level analog input signals with exceptional accuracy and reliability. Typically used in safety, control, and data acquisition applications, this module ensures consistent analog signal conversion into digital data for further processing by the controller.
This module is engineered with advanced diagnostics, electrical isolation, and robust construction to meet the demands / harsh industrial environments. It supports multiple analog signal ranges and provides precise readings for temperature, pressure, flow, and other process variables. With plug-and-play functionality and hot-swap capability, the MC-TAIH02 is both operator- and maintenance-friendly.
产品规格
| Parameter | Details |
|---|---|
| 型号 Number | MC-TAIH02 |
| Honeywell 零件号 | 51304453-150 |
| Product Type | High-Level Analog Input Module |
| Input Channels | 16 isolated channels |
| Signal Type | Voltage and current signals (0–20 mA, 4–20 mA, 0–5 V, 1–5 V, 0–10 V) |
| Input Resolution | 12-bit resolution per channel |
| Input Impedance | > 250 ohms (current), > 100k ohms (voltage) |
| Isolation | Channel-to-channel and channel-to-ground electrical isolation |
| Accuracy | ±0.1% / full scale |
| Scan Rate | Configurable, typically 10 ms to 100 ms per channel |
| Diagnostics | Open circuit detection, signal overrange/underrange, module status LEDs |
| Operating Voltage | Supplied via I/O chassis (typically 24 VDC) |
| Operating Temperature Range | -20°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Mounting | DIN rail or cabinet-mount on Honeywell I/O baseplate |
| Dimensions (H × W × D) | 120 x 100 x 40 mm |
| 重量 | 1 kg |
| Certifications | CE, UL, CSA, FM, ATEX compliant |
| System Compatibility | Honeywell Experion PKS, TDC 3000, TPS |
Product Applications
The Honeywell MC-TAIH02 module is widely used across various industrial sectors due to its flexible signal handling and precise analog conversion capabilities. Application areas include:
-
Oil & Gas Industry: For real-time pressure, temperature, and flow monitoring in upstream and downstream systems.
-
Power Generation: Used in thermal, hydro, and nuclear plants for process feedback and control loop input.
-
Chemical and Petrochemical Plants: Provides reliable analog input for continuous processing systems and safety interlocks.
-
Water and Wastewater Treatment: Ensures accurate data from flow, level, and turbidity sensors.
-
Pharmaceutical Manufacturing: 支持s GMP-compliant systems requiring accurate and traceable measurements.
-
Food & Beverage Production: Analog inputs from pH meters, pressure transmitters, and flow sensors for automated production lines.
Product Advantages
-
High Signal Accuracy: Delivers stable and accurate analog data conversion, ensuring better control system performance.
-
Multi-Signal Compatibility: Accepts a wide range / analog signal types without additional conditioning hardware.
-
Channel Isolation: Prevents signal interference, ground loops, and enhances system safety.
-
Compact Footprint: Slim design allows high-density I/O installation in limited cabinet spaces.
-
System Integration: Seamless compatibility with Honeywell’s control platforms for quick deployment.
-
Advanced Diagnostics: Built-in detection for signal errors, enhancing maintenance and troubleshooting efficiency.
-
Hot-Swap Capability: 支持s live replacement without system downtime, increasing overall plant availability.
-
Global Compliance: Certified to meet stringent industrial standards across global markets.
常见问题 (FAQ)
-
What types / signals can the MC-TAIH02 accept?
It supports both voltage and current analog signals, including 0–20 mA, 4–20 mA, 0–5 V, 1–5 V, and 0–10 V. -
Is the module compatible with Honeywell Experion PKS systems?
Yes, the MC-TAIH02 is fully compatible with Honeywell Experion PKS, TPS, and TDC 3000 systems. -
How many channels are available in this module?
It provides 16 isolated analog input channels per module. -
Does it support hot-swapping?
Yes, the module can be replaced or inserted without powering down the system (hot-swappable). -
Is channel-to-channel isolation available?
Yes, each channel is electrically isolated to prevent crosstalk and ensure signal integrity. -
What is the resolution / the analog inputs?
The module supports a 12-bit resolution per channel. -
Can this module be mounted on a DIN rail?
Yes, it can be DIN rail or cabinet-mounted using the standard Honeywell baseplate. -
Does the module /fer diagnostic functions?
It includes open circuit detection, over/under-range alarms, and LED indicators for module status. -
Is the MC-TAIH02 suitable for hazardous environments?
Yes, it is certified by UL, CSA, and meets ATEX requirements for use in industrial environments. -
What’s the weight and size / the module?
It weighs 1 kg and measures 120 x 100 x 40 mm.
Related 型号s from the Same Series or Similar Function
| 型号 Number | 描述 | Channels | Signal Type | Remarks |
|---|---|---|---|---|
| MC-TAIH03 | Enhanced Analog Input Module | 16 | High-level analog | Advanced version with better resolution |
| MC-TAMR03 | Analog Multiplexer Module | 16 | Analog | Multiplexes signals from multiple sources |
| MC-TDID12 | Digital Input Module | 16 | Digital | Used with analog modules in hybrid systems |
| MC-TAMT03 | Temperature Input Module | 8 | RTD / Thermocouple | Temperature-specific applications |
| MC-TAOY22 | Analog Output Module | 8 | Analog (4–20 mA) | Used for actuator or control outputs |
| MC-TAMT04 | Universal Temperature/Analog Input Module | 8 | Universal (T/C, RTD, AI) | Flexible for mixed-signal applications |
Popular Honeywell 型号s from 其他 Product Lines
| 型号 Number | Product Type | 描述 | System Compatibility | Key Feature |
|---|---|---|---|---|
| CC-PAIH01 | Analog Input Module | 16-channel HART/4–20 mA input module | Experion PKS C300 | HART-compatible, high-accuracy |
| CC-PDIL01 | Digital Input Module | 32-channel 24V DI module | C300 | High-density digital input |
| CC-PAOH01 | Analog Output Module | 8-channel 4–20 mA output | C300 | Loop powered, galvanic isolation |
| CC-TDIL01 | Digital Input Module | 16-channel TTL input | C200, C300 | Fast response for digital sensing |
| CC-TDOR01 | Digital Output Module | 16-channel Relay output | C200, C300 | Relay-based output control |
| HC900-CPU-0701 | Controller Module | Hybrid controller for batch and continuous process | HC900 system | Ethernet, PID, logic control |
