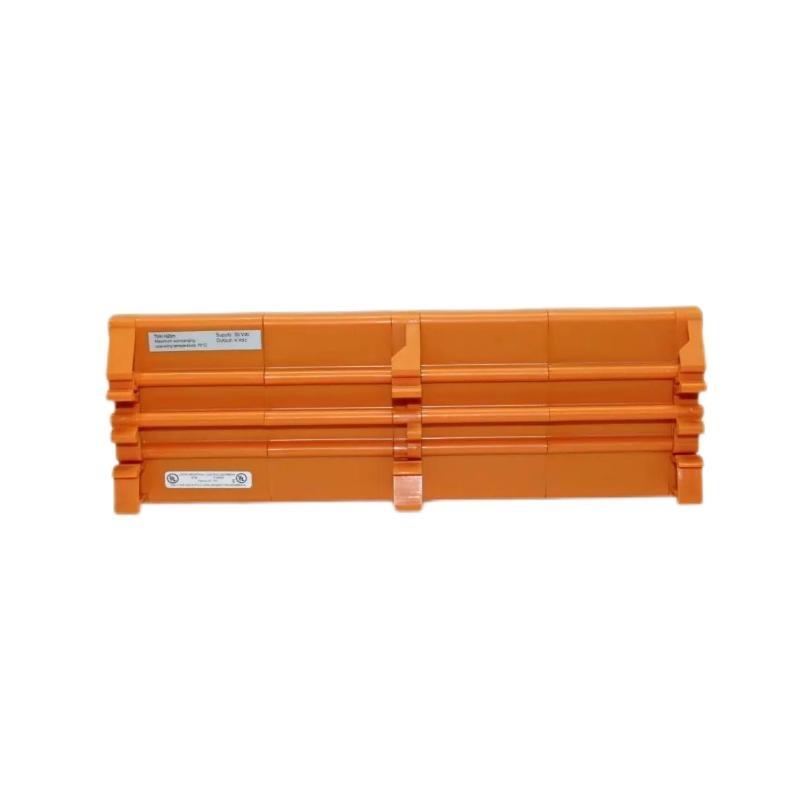

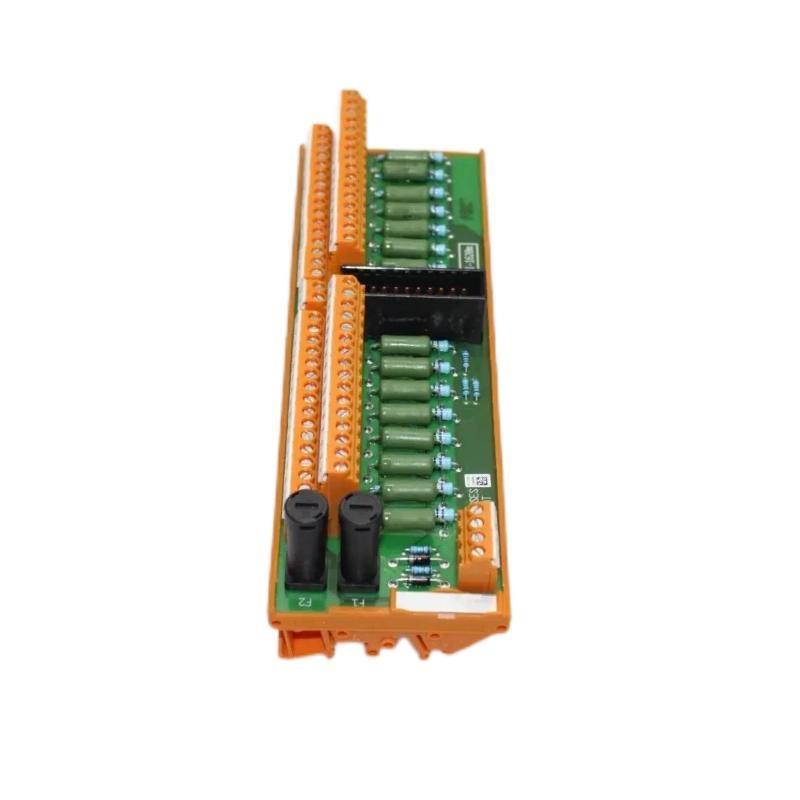

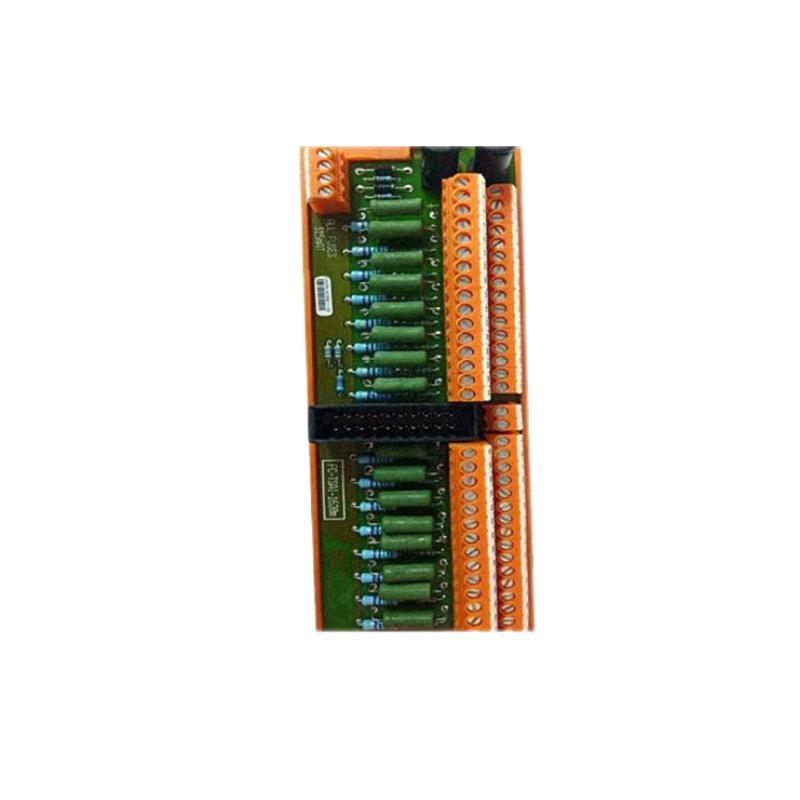

Product Overview
The Honeywell FS-TSAI-1620M is a high-performance safety analog input module designed specifically for Functional Test Automation (FTA) within safety instrumented systems (SIS). This module /fers precise and reliable analog input processing to ensure accurate signal acquisition from various field devices such as transmitters and sensors.
Built to meet the highest functional safety standards, the FS-TSAI-1620M supports applications that demand stringent safety integrity levels (SIL), providing operators and engineers with confidence in system reliability and safety. Its compact design and efficient signal conditioning capabilities make it suitable for complex automation and control environments where safety is paramount.
The module’s robust engineering ensures consistent operation even under harsh industrial conditions including temperature fluctuations, electromagnetic interference, and mechanical vibration.
Technical Specifications
| Parameter | Specification |
|---|---|
| 型号 Number | FS-TSAI-1620M |
| Module Type | Safety Analog Input Module (FTA) |
| Number / Channels | 16 analog inputs |
| Input Signal Type | 4-20 mA, 0-20 mA, voltage input support |
| Input Impedance | >250 Ω |
| Signal Resolution | 16-bit ADC |
| Accuracy | ±0.1% / full scale |
| Response Time | < 50 ms |
| Isolation | Channel-to-channel and system isolation |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions (W x H x D) | 210 x 70 x 60 mm |
| 重量 | 0.2 kg |
| Mounting | DIN rail or panel mount |
| Safety Certification | SIL 3, IEC 61508, CE, UL, CSA |
| Country / Origin | 单位ed 状态s |
Applications
The FS-TSAI-1620M is widely used in industrial sectors requiring strict safety monitoring and control. Key applications include:
-
Oil and Gas: Monitoring / pressure, temperature, and flow signals in safety shutdown systems.
-
Chemical Processing: Analog input monitoring for reactors, distillation columns, and safety interlock systems.
-
Power Generation: Measurement / critical analog signals in turbine control and emergency shutdown systems.
-
Pharmaceutical Manufacturing: Safety signal acquisition to maintain compliance and protect sensitive processes.
-
Water and Wastewater Treatment: Monitoring sensor data for safe operation / pumps, valves, and chemical dosing systems.
-
Industrial Automation: Safety-critical signal acquisition for automated processes requiring fail-safe operation.
Advantages
-
High Safety Integrity: Certified SIL 3 compliant, suitable for the most demanding safety systems.
-
Precision and Accuracy: Provides high-resolution 16-bit analog input processing for reliable data acquisition.
-
Robust Isolation: Ensures excellent isolation between channels and system, minimizing signal interference.
-
Flexible Input 支持: Compatible with various input signal types, including current and voltage signals.
-
Compact and Lightweight: Small form factor (210 x 70 x 60 mm) and light weight (0.2 kg) simplify installation in tight control cabinets.
-
Reliable Operation: Designed to operate in harsh industrial environments with temperature and humidity tolerance.
-
Easy Integration: Seamlessly integrates into Honeywell’s safety control systems and infrastructure.
常见问题 (FAQ)
Q1: How many analog input channels does the FS-TSAI-1620M support?
A1: It supports 16 analog input channels.
Q2: What types / input signals are compatible with this module?
A2: The module supports 4-20 mA, 0-20 mA, and voltage input signals.
Q3: What is the module’s accuracy level?
A3: The accuracy is ±0.1% / full scale.
Q4: Is the FS-TSAI-1620M certified for SIL 3 safety applications?
A4: Yes, it meets SIL 3 certification requirements.
Q5: What are the physical dimensions / this module?
A5: Dimensions are 210 x 70 x 60 mm.
Q6: What is the operating temperature range for the FS-TSAI-1620M?
A6: It operates between -20°C and +60°C.
Q7: Can this module be mounted on a DIN rail?
A7: Yes, it supports DIN rail and panel mounting.
Q8: What is the typical response time for signal acquisition?
A8: The response time is less than 50 milliseconds.
Q9: How much does the module weigh?
A9: The weight is approximately 0.2 kg.
Q10: Is the FS-TSAI-1620M compatible with Honeywell safety control systems?
A10: Yes, it is designed for seamless integration with Honeywell safety platforms.
Related 型号s (Same Series or Function)
| 型号 Number | 描述 |
|---|---|
| FS-TSAI-0410 | 4-channel safety analog input module |
| FS-TSAO-0220M | 2-channel safety analog output module |
| FS-TSDO-1624 | 16-channel safety digital output module |
| FS-TSDI-1624 | 16-channel safety digital input module |
| FS-TSHART-1620M | 16-channel HART-enabled analog input module |
| FS-SAI-0410 | 4-channel safety analog input module |
Popular Honeywell Modules (Same 品牌)
| 型号 Number | 描述 | Key Parameters |
|---|---|---|
| CC-TDI230 | 32-channel digital input module | 24 VDC, SIL 2/3 |
| CC-TDO210 | 16-channel digital output module | 24 VDC, SIL 2/3 |
| CC-PAIH01 | 8-channel analog input module | 4–20 mA, HART support |
| CC-PAOH01 | 8-channel analog output module | 4–20 mA, HART support |
| CC-PCF901 | Controller module for C300 systems | Dual Ethernet, high-speed processing |
| CC-TCNT01 | High-speed counter module | Up to 50 kHz input frequency |
