Product 描述

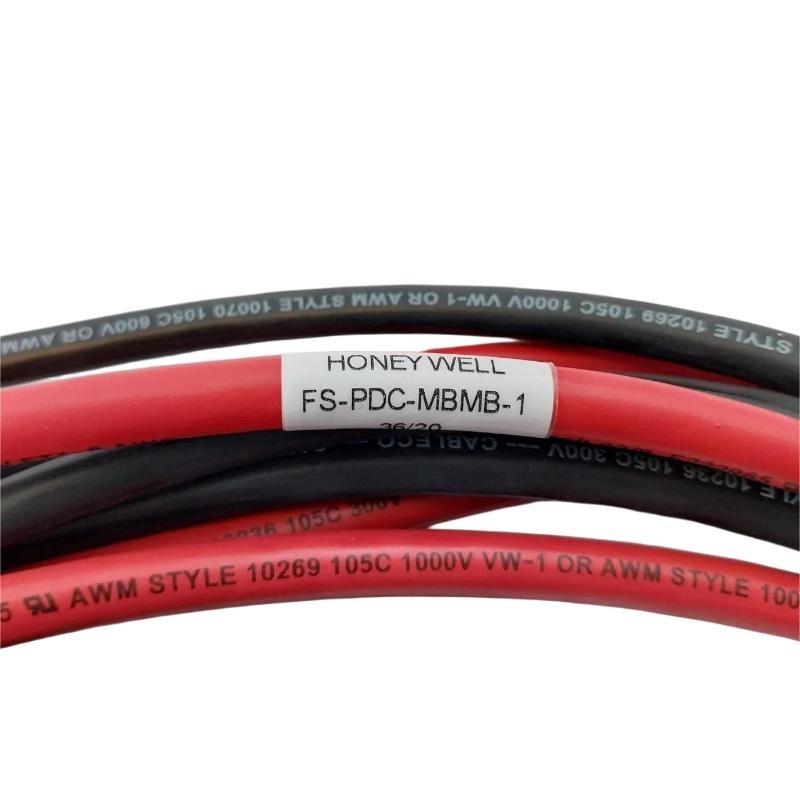

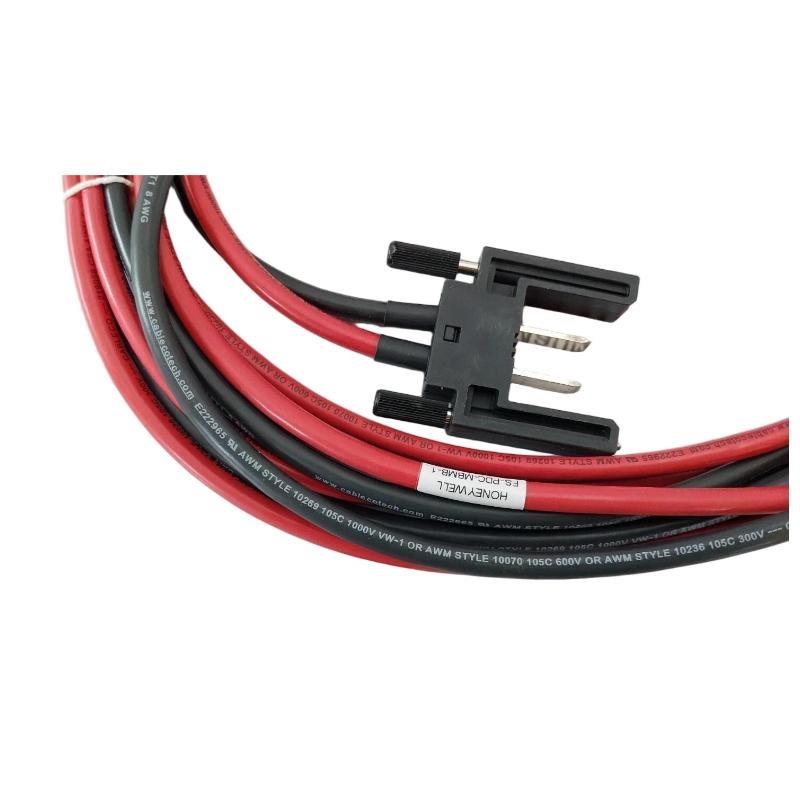

The Honeywell FS-PDC-MBMB-1 is a high-capacity power distribution cable designed to transfer 24Vdc or 48Vdc power between two mains power rails / type FS-MB-0001. It uses a robust, polarized connector with jackscrews for secure installation and supports heavy loads, including up to 100A when using two cables. This makes it suitable for critical industrial control applications.
Technical Specifications
| Parameter | Value |
|---|---|
| 型号 Number | FS-PDC-MBMB-1 |
| Power Rating | 55 A |
| Voltage | 24Vdc / 48Vdc |
| Cable Type | HV8-55-c (AWG 8) |
| Length | 3 m |

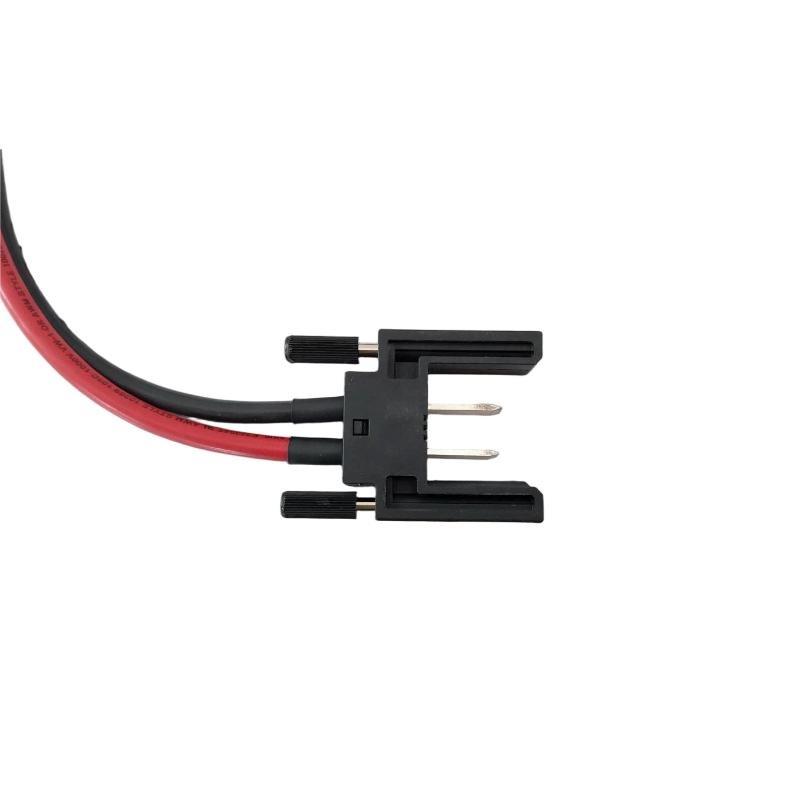

| Connector Type | 2-pole Jackscrew (D-TAB-200-JCK) |
| Pin Type | D-TAB-200-8-S |
| Max Temperature | 125°C (257°F) |
| Approvals | UL, CSA, FM pending |
| Packaging 重量 | 3 kg |
Applications
-
Power distribution between mains power rails in Safety Manager systems.
-
Industrial automation cabinets requiring high-current power interconnection.
-
Redundant power supply systems for mission-critical environments.
-
Large I/O rack configurations in process control.
Advantages
-
支持s high load currents up to 55A with a single cable.
-
Up to 100A when using two cables for redundancy.
-
Rugged connectors with secure locking screws for vibration-prone environments.
-
UL and CSA recognized for compliance and safety.
-
Easy to install in designated FS-MB-0001 rail positions.
常见问题 (FAQ)
Q1: What voltages does the FS-PDC-MBMB-1 support?
A1: It supports 24Vdc and 48Vdc power rails.
Q2: What is the maximum current rating?
A2: The cable is rated for up to 55A. Using two cables supports up to 100A.
Q3: How long is the cable?
A3: The cable length is 3 meters.
Q4: What type / connector does it use?
A4: It uses a 2-pole jackscrew connector (D-TAB-200-JCK).
Q5: Can it operate at high temperatures?
A5: Yes, it is rated for temperatures up to 125°C (257°F).
Q6: Is it UL approved?
A6: Yes, it is UL listed and CSA certified, with FM approval pending.
Q7: What is the recommended installation method for high loads?
A7: For loads over 30A, use two cables: one at the top and one at the bottom / the power rails.
Q8: What is the packaging weight?
A8: The packaged weight / the cable is 3 kg.
Q9: Is it compatible with any rail?
A9: No, it is designed specifically for FS-MB-0001 type power rails.
Q10: Does it require any special tools for installation?
A10: No special tools are required; the connector is secured using its integrated jackscrews.
Recommended Related 型号s (Same Series)
| 型号 | Length | Voltage | Current Rating | 重量 |
|---|---|---|---|---|
| FS-PDC-MB24-1 | 1.45 m | 24Vdc | 20A | 1.2 kg |
| FS-PDC-MB24-2 | 2.45 m | 24Vdc | 20A | 1.8 kg |
| FS-PDC-MB24-3 | 3.25 m | 24Vdc | 20A | 2.2 kg |
| FS-PDC-MB24-1P | 1.45 m | 24Vdc | 20A | 1.2 kg |
| FS-PDC-MB24-2P | 2.45 m | 24Vdc | 20A | 1.8 kg |
| FS-PDC-MB24-3P | 3.25 m | 24Vdc | 20A | 2.2 kg |
Popular Honeywell 型号s
| 型号 | 描述 | Length | Voltage | 重量 |
|---|---|---|---|---|
| FS-PDC-CP24 | Power cable for CP chassis | 1 m | 24Vdc | 0.8 kg |
| FS-PDC-CPSET | Power cable set for dual CP | 0.54/0.77 m | 24Vdc | 1 kg |
| FS-PDC-IOSET | IO chassis power cable set | 0.33–0.57 m | 24/48/110Vdc | 1.2 kg |
| FS-PDC-IOEP1 | IO power cable slot 1–6 | 0.64 m | 24/48/110Vdc | 0.6 kg |
| FS-PDC-IOEP2 | IO power cable slot 7–12 | 0.72 m | 24/48/110Vdc | 0.7 kg |
| FS-PDC-IOEP3 | IO power cable slot 13–18 | 0.80 m | 24/48/110Vdc | 0.8 kg |
