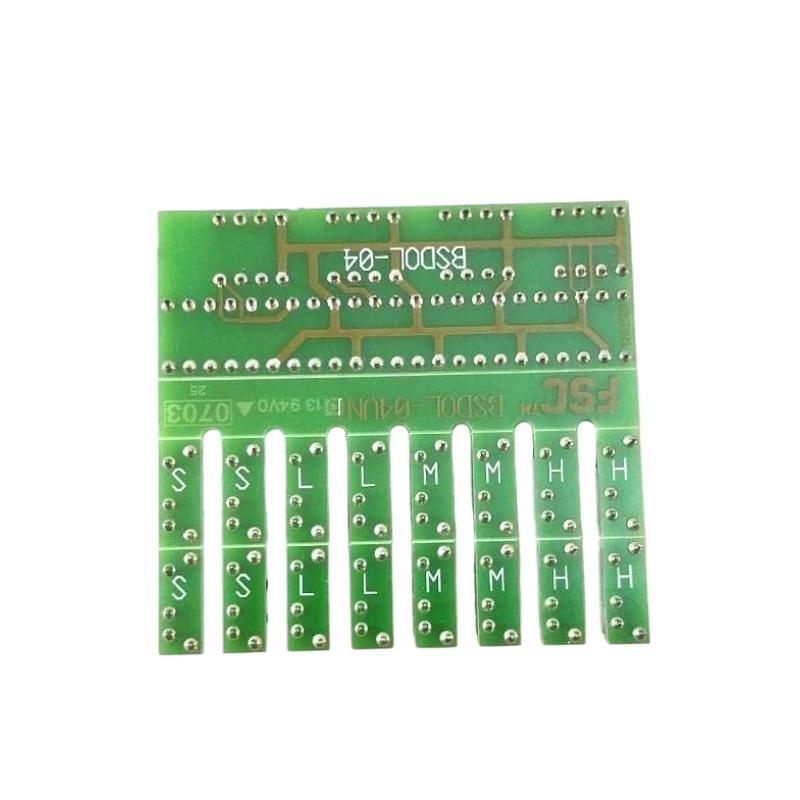

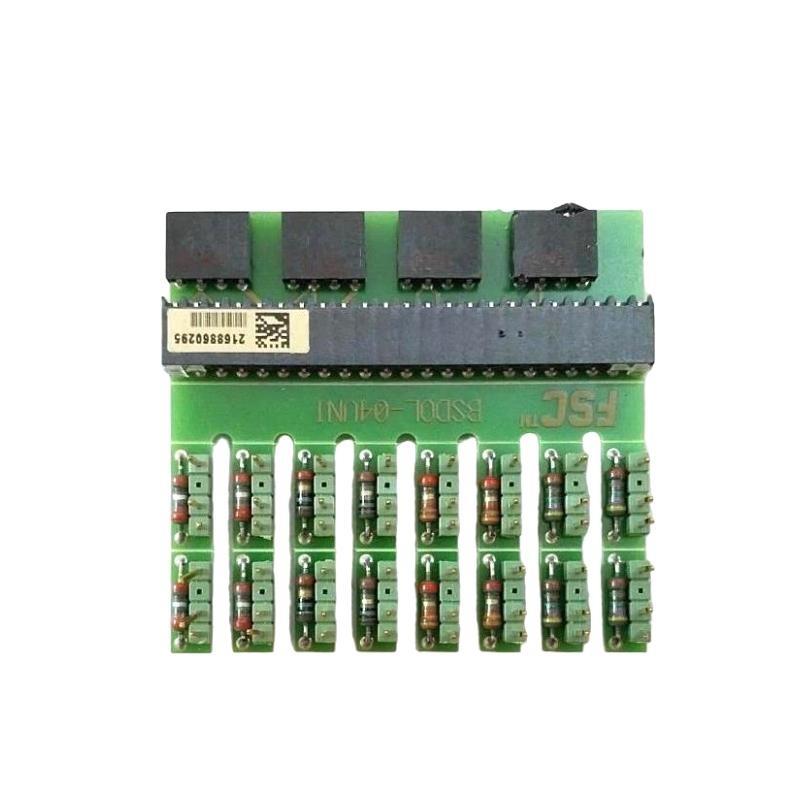

The Honeywell FS-BSDOL-04UNI is a precision Range-Setting Module Set designed for configuring and calibrating control and safety instrumentation within Honeywell automation systems. This module enables operators and engineers to define and adjust input ranges, signal scaling, and output calibration parameters, ensuring optimal system performance and accurate signal interpretation.
Built for industrial environments, the FS-BSDOL-04UNI features robust design, easy integration with Honeywell controllers, and compatibility with a wide range / input/output signals. It is widely used in process control, safety, and monitoring applications where precise measurement configuration is critical.
产品规格
| Parameter | 描述 |
|---|---|
| 型号 | Honeywell FS-BSDOL-04UNI |
| Type | Range-Setting Module Set |
| Function | Signal calibration and range configuration |
| 支持ed Signal Types | Analog (4–20 mA, 0–10 V), Digital |
| Accuracy | ±0.1% / full scale |
| Communication Interfaces | RUSIO, Serial |
| Integration | Compatible with Honeywell PLCs and I/O modules |
| Redundancy 支持 | Optional, system-dependent |
| Power Supply Requirement | 24 V DC nominal |
| Power Consumption | Typical < 10 W |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Diagnostics | Status LEDs, self-test routines |
| Installation Type | Rack-mounted or panel-mounted |
| Dimensions (W×H×D) | 58.5 × 54.5 × 12.5 mm |
| 重量 | 0.2 kg |
Product Applications
-
Process Control Systems: Provides precise calibration for analog and digital signals in industrial automation.
-
Safety Instrumented Systems: Ensures correct signal ranges for safety logic modules.
-
Oil & Gas Industry: Calibrates sensors and transmitters in refineries, pipelines, and /fshore platforms.
-
Power Generation: Adjusts instrumentation ranges for turbine and generator monitoring.
-
Chemical and Pharmaceutical Processing: Configures process measurement systems for accurate batch control.
-
Factory Automation: 支持s signal scaling for distributed I/O networks and PLCs.
Product Advantages
-
High Accuracy: Ensures precise signal range setting and calibration.
-
Versatile Signal 支持: Compatible with both analog and digital inputs and outputs.
-
Easy Integration: Works seamlessly with Honeywell controllers and I/O modules.
-
Built-in Diagnostics: LED indicators and self-test routines enhance system reliability.
-
Redundancy Ready: 支持s integration into redundant control and safety systems.
-
User-Friendly Configuration: Simplifies commissioning and maintenance / instrumentation.
-
Robust Industrial Design: Suitable for harsh operating conditions with wide temperature and humidity tolerance.
FAQ
-
What signal types are supported by the FS-BSDOL-04UNI?
It supports analog signals such as 4–20 mA and 0–10 V, as well as certain digital signal types. -
Can this module be used with Honeywell PLCs?
Yes, it is fully compatible with Honeywell PLCs and Honeywell I/O modules. -
What is the accuracy / the range-setting module?
The module provides ±0.1% / full-scale accuracy for signal calibration. -
Does it support redundant systems?
Yes, redundancy support is available depending on the system configuration. -
Which communication interfaces are available?
It provides RUSIO and serial communication interfaces for integration with control systems. -
Can this module adjust both input and output ranges?
Yes, it can configure both input scaling and output calibration for connected devices. -
Are there built-in diagnostics for the module?
Yes, it features LED status indicators and self-test routines to verify operation. -
What is the operating temperature range?
It is rated for operation between -20°C and +60°C. -
Is the module suitable for safety-critical applications?
Yes, it is designed to provide accurate calibration for safety-instrumented systems. -
What type / installation does it support?
It can be installed in rack-mounted or panel-mounted configurations.
