Product 描述

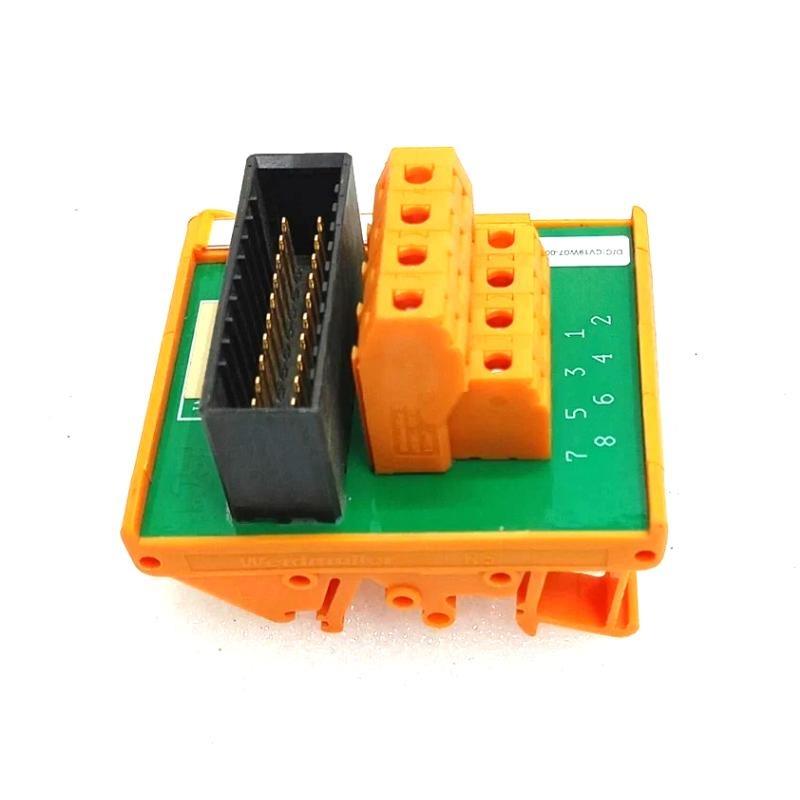

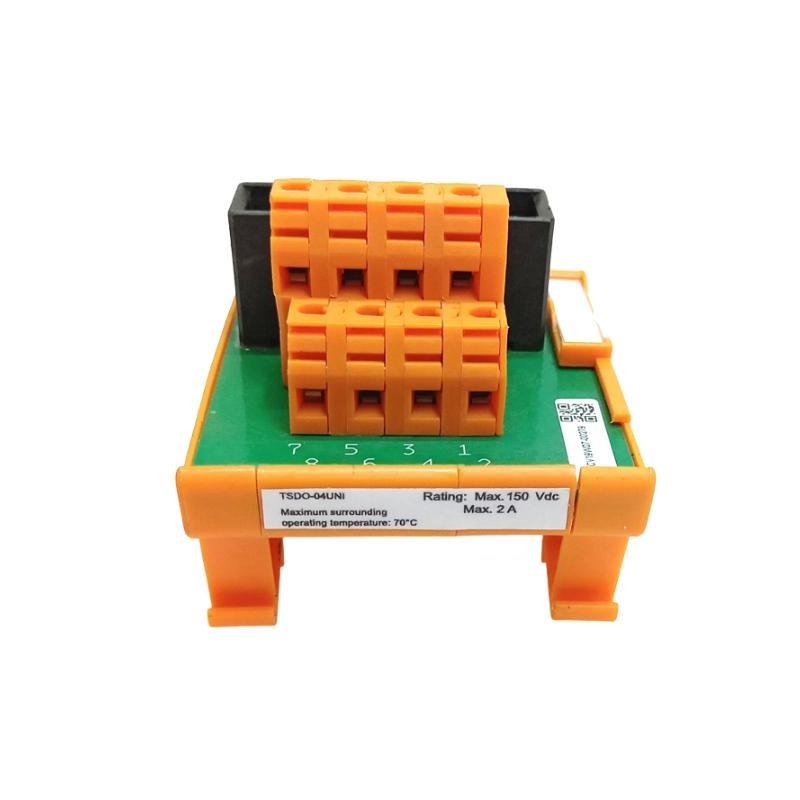

The Honeywell FC-TSDO-04UNI is a high-performance universal digital output module designed for use within Honeywell’s Safety Manager system. This module ensures the reliable execution / safety-critical outputs in demanding industrial environments. It is engineered for SIL-rated applications and provides flexibility in output signal types and configurations. The module supports diverse output types including standard digital outputs and externally powered outputs.
The FC-TSDO-04UNI combines rigorous safety integrity with modular, hot-swappable design characteristics, allowing for maintenance without system downtime. Its robust construction and fault-tolerant communication make it suitable for use in complex safety architectures, ensuring maximum operational reliability and system availability.
Technical Specifications
| Parameter | Value |
|---|---|
| Product 型号 | FC-TSDO-04UNI |
| 描述 | Universal Digital Output Module |
| System Compatibility | Honeywell Safety Manager |
| Output Channels | 4 Universal Digital Outputs |
| Output Type | Configurable (e.g., sourcing/sinking) |
| Safety Integrity Level | Up to SIL3 (IEC 61508 compliant) |
| Communication Interface | Redundant, fault-tolerant system bus |
| Hot-Swappable | Yes |
| Power Supply | Internal or External |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Protection Class | IP20 |
| Mounting Type | DIN rail |
| Dimensions (W × H × D) | 60 × 70 × 54 mm |
| 重量 | 0.23 kg |
Applications
The Honeywell FC-TSDO-04UNI is widely used in critical safety automation applications, including:
-
Petrochemical Plants – For managing emergency shutdown systems (ESD)
-
Power Generation – In turbine protection and safety interlocks
-
Oil & Gas Processing – For overpressure and fire/gas protection systems
-
Pharmaceutical Manufacturing – Ensuring safe and compliant batch process operations
-
Refineries – Controlling safety valves and interlocks
-
Pipeline Automation – For managing remote shut-/f valves and safety relays
Advantages
-
High Reliability – Suitable for SIL3 applications with redundant communication and diagnostics
-
Universal Flexibility – Configurable outputs for multiple load types
-
Modular Design – Facilitates easy replacement and scalability
-
Hot-Swappable – Maintenance without operational interruption
-
Enhanced Safety – Fully compliant with IEC 61508 safety standards
-
Diagnostic Capabilities – Built-in diagnostics to detect faults and improve system uptime
-
Compact Size – Ideal for space-constrained installations
常见问题 (FAQ)
Q1: What type / signals does the FC-TSDO-04UNI support?
A1: It supports universal digital output signals, configurable for various output types including sourcing and sinking.
Q2: Can the FC-TSDO-04UNI module be hot-swapped during operation?
A2: Yes, it supports hot-swapping, allowing for module replacement without shutting down the system.
Q3: Is this module suitable for SIL-rated applications?
A3: Yes, the module is certified for SIL3 applications per IEC 61508.
Q4: What is the maximum number / output channels in this module?
A4: The FC-TSDO-04UNI /fers 4 universal digital output channels.
Q5: Does the module include self-diagnostic features?
A5: Yes, it includes advanced diagnostics for fault detection and maintenance planning.
Q6: What communication protocol does it use with the Safety Manager?
A6: It uses Honeywell’s fault-tolerant, redundant system communication protocols.
Q7: Can the outputs be powered externally?
A7: Yes, the module supports both internal and external power configurations.
Q8: What is the typical use case in oil & gas facilities?
A8: It is typically used for controlling safety shut-/f valves and fire/gas system triggers.
Q9: What is the environmental operating range?
A9: It operates between -20°C to +60°C with up to 95% non-condensing humidity.
Q10: How is the module mounted in a system rack?
A10: It is DIN rail mounted within a Safety Manager chassis.
Related or Same-Series 型号s
| 型号 | 描述 | Channels | Dimensions (mm) | 重量 |
|---|---|---|---|---|
| FC-TSDO-16C | 16-Channel Digital Output Module | 16 | 60 × 70 × 54 | 0.25 kg |
| FC-TSDO-08C | 8-Channel Digital Output Module | 8 | 60 × 70 × 54 | 0.24 kg |
| FC-TSDI-16F | 16-Channel Digital Input Module | 16 | 60 × 70 × 54 | 0.23 kg |
| FC-TSRLY-08C | 8-Channel Relay Output Module | 8 | 60 × 70 × 54 | 0.27 kg |
| FC-TSRO-08C | 8-Channel Solid-状态 Relay Output Module | 8 | 60 × 70 × 54 | 0.26 kg |
| FC-TSDI-08F | 8-Channel Digital Input Module | 8 | 60 × 70 × 54 | 0.22 kg |
Popular Honeywell 型号s
| 型号 | 描述 | System | Dimensions (mm) | 重量 |
|---|---|---|---|---|
| FC-TPSU-2430 | Power Supply Module | Safety Manager | 100 × 140 × 54 | 0.45 kg |
| FC-PSU-UNI2450 | Universal PSU Module | Safety Manager | 100 × 140 × 54 | 0.50 kg |
| FC-TSDI-16F | 16-Channel Digital Input Module | Safety Manager | 60 × 70 × 54 | 0.23 kg |
| FC-TSRO-08C | Relay Output Module | Safety Manager | 60 × 70 × 54 | 0.26 kg |
| FC-TAIDB16 | Analog Input/Output Module | C300 | 90 × 70 × 54 | 0.24 kg |
| 8C-PCNT02 51454363-275 | Series 8 C300 Controller | Experion PKS C300 | 114 × 200 × 70 | 0.58 kg |
