Product 描述

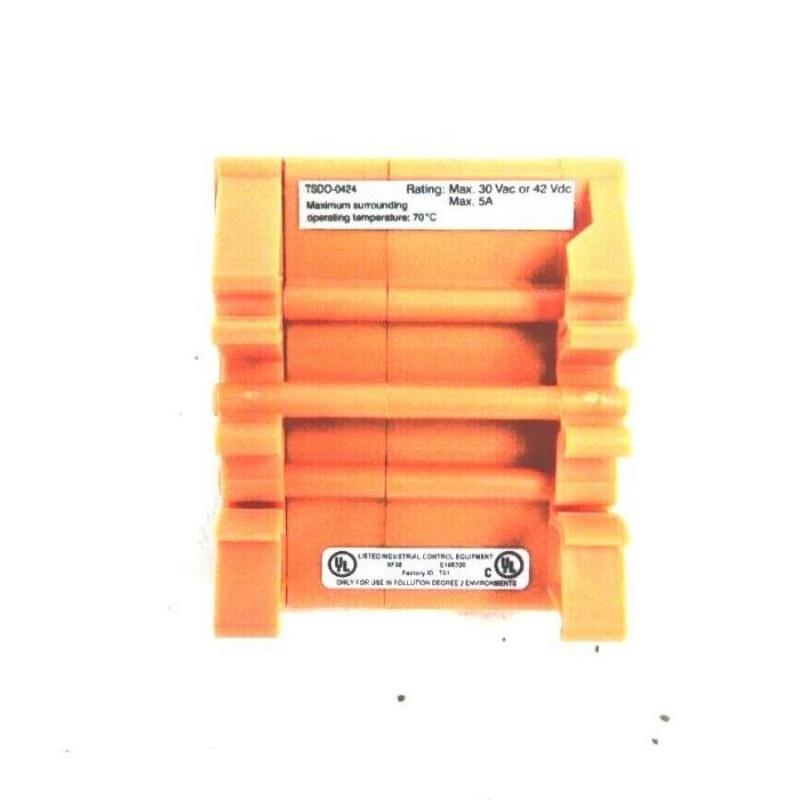

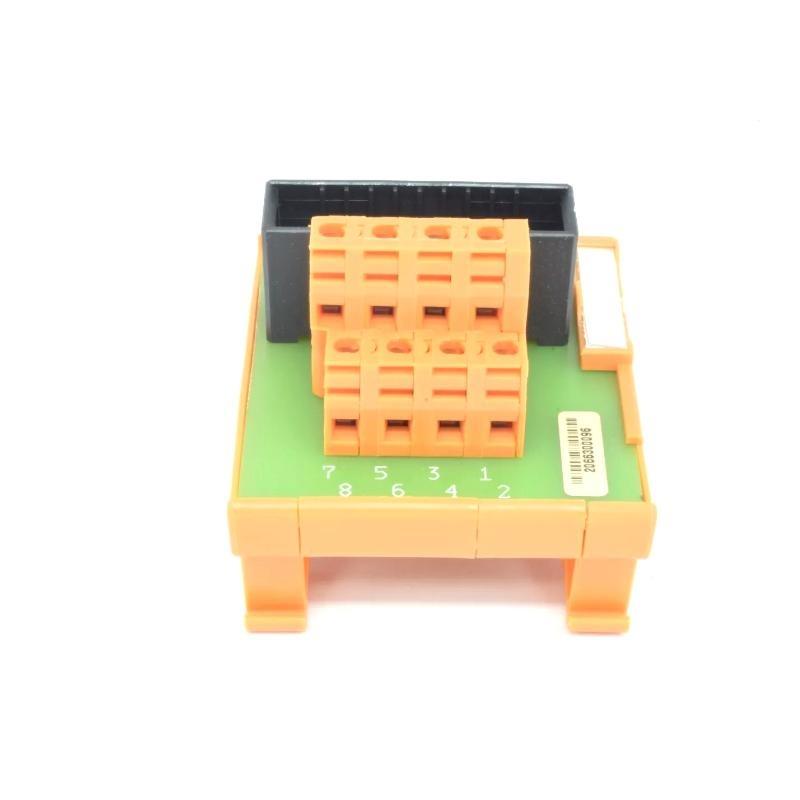

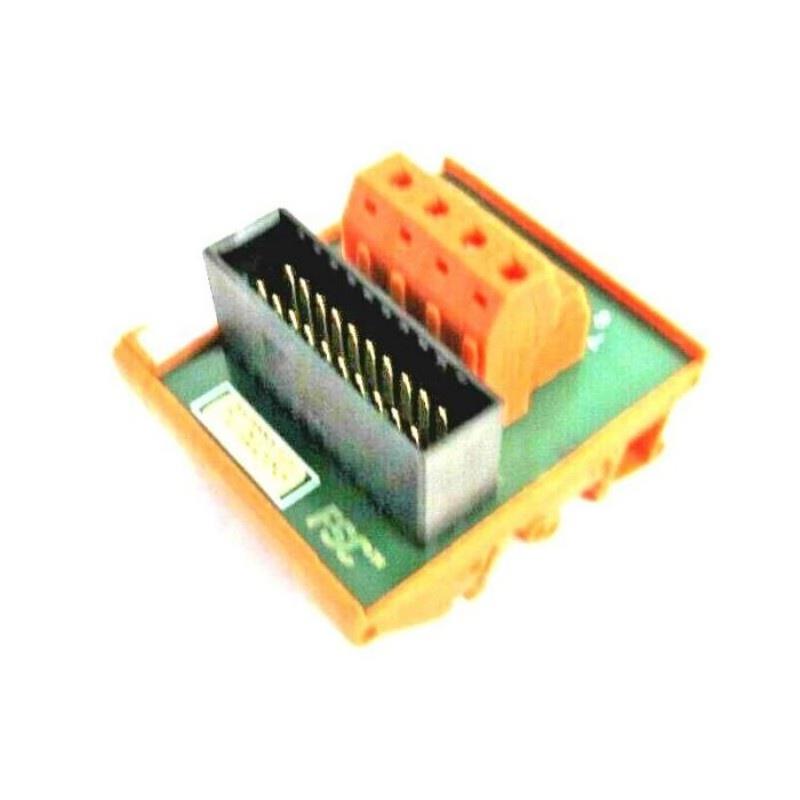

The Honeywell FC-TSDO-0424 is a Safe Digital Output Field Terminal Assembly (FTA) designed specifically for use with Honeywell’s Safety Manager systems. It provides a high-integrity and safe digital output interface for field devices. Each FTA is engineered to support safety-critical applications in process automation environments, ensuring reliable signal distribution to final control elements such as relays or actuators in safety instrumented systems (SIS).
Technical Specifications
| Parameter | 描述 |
|---|---|
| 型号 Number | FC-TSDO-0424 |
| 描述 | Safe Digital Output Field Terminal Assembly |
| Number / Channels | 24 Digital Outputs |
| Power Supply | 24 VDC (nominal) |
| Type | Digital Output |
| Compatibility | Honeywell Safety Manager |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Isolation | Channel-to-channel isolation |
| Mounting | DIN Rail |
| Field Connection Type | Screw Terminals |
| Certifications | SIL3, CE, ATEX |
| Dimensions (W x H x D) | 60 x 70 x 54 mm |
| 重量 | 0.36 kg |
Applications
-
Safety Instrumented Systems (SIS)
-
Emergency Shutdown Systems (ESD)
-
Burner Management Systems (BMS)
-
Fire and Gas Systems (F&G)
-
High-integrity Pressure Protection Systems (HIPPS)
-
Critical output signal interface for field actuators or relays
-
Petrochemical, oil & gas, power generation, and chemical processing plants
Advantages
-
Certified for use in SIL3 safety applications
-
Compact size optimizes panel space
-
Channel-to-channel isolation enhances fault tolerance
-
Designed specifically for high-integrity output interfacing
-
Quick and reliable field wiring with screw terminals
-
Seamless integration with Honeywell Safety Manager systems
-
High operational reliability in harsh industrial environments
常见问题 (FAQ)
Q1: What type / output does the FC-TSDO-0424 support?
A1: It supports 24 digital output channels, suitable for actuating field devices like relays or solenoids.
Q2: Is the FC-TSDO-0424 compatible with standard Honeywell systems?
A2: Yes, it is designed specifically for Honeywell Safety Manager systems.
Q3: Can this module be used in SIL3 applications?
A3: Yes, the module is certified for use in SIL3-rated safety applications.
Q4: What is the operating temperature range / this device?
A4: It operates within -20°C to +70°C.
Q5: How many outputs are available on the FTA?
A5: There are 24 individually isolated digital output channels.
Q6: What field connection type is supported?
A6: The device uses screw terminals for secure field wiring.
Q7: Is it DIN rail mountable?
A7: Yes, it supports standard DIN rail mounting.
Q8: What certifications does this module hold?
A8: It is certified for CE, ATEX, and SIL3 standards.
Q9: Is the module protected against temperature extremes during storage?
A9: Yes, it has a storage temperature range from -40°C to +85°C.
Q10: Can this module be used in harsh industrial environments?
A10: Yes, it is built to endure challenging industrial conditions.
Related 型号s (Same Series or Function)
| 型号 | 描述 | Channels | Dimensions (mm) | 重量 |
|---|---|---|---|---|
| FC-TSDI-1624 | Safe Digital Input FTA (16 Ch.) | 16 DI | 60 x 70 x 54 | 0.36 kg |
| FC-TSDI-0424 | Safe Digital Input FTA (24 Ch.) | 24 DI | 60 x 70 x 54 | 0.36 kg |
| FC-TSDO-1624 | Safe Digital Output FTA (16 Ch.) | 16 DO | 60 x 70 x 54 | 0.36 kg |
| FC-TSRO-0824 | Relay Output FTA (8 Ch.) | 8 Relay | 60 x 70 x 54 | 0.36 kg |
| FC-TSVO-1624 | Voltage Output FTA (16 Ch.) | 16 VO | 60 x 70 x 54 | 0.36 kg |
| FC-TSDI-0824 | Safe Digital Input FTA (8 Ch.) | 8 DI | 60 x 70 x 54 | 0.36 kg |
Popular Honeywell 型号s (Same 品牌)
| 型号 | 描述 | Type | Dimensions (mm) | 重量 |
|---|---|---|---|---|
| 8C-PAONA1 | Analog Output Module | AO Module | 50 x 70 x 54 | 0.35 kg |
| 8C-PCNT01 | C300 Controller Module | Controller | 100 x 120 x 70 | 0.65 kg |
| 8C-PDODA1 | Digital Output Module | DO Module | 50 x 70 x 54 | 0.36 kg |
| 8C-PAIHA1 | Analog Input with HART Module | AI HART Module | 50 x 70 x 54 | 0.36 kg |
| 8C-TDOD51 | Digital Output IOTA | IOTA | 60 x 70 x 54 | 0.36 kg |
| 8U-BXCB20-CN | Chassis Baseplate | Backplane | 260 x 120 x 25 | 0.85 kg |
