产品介绍

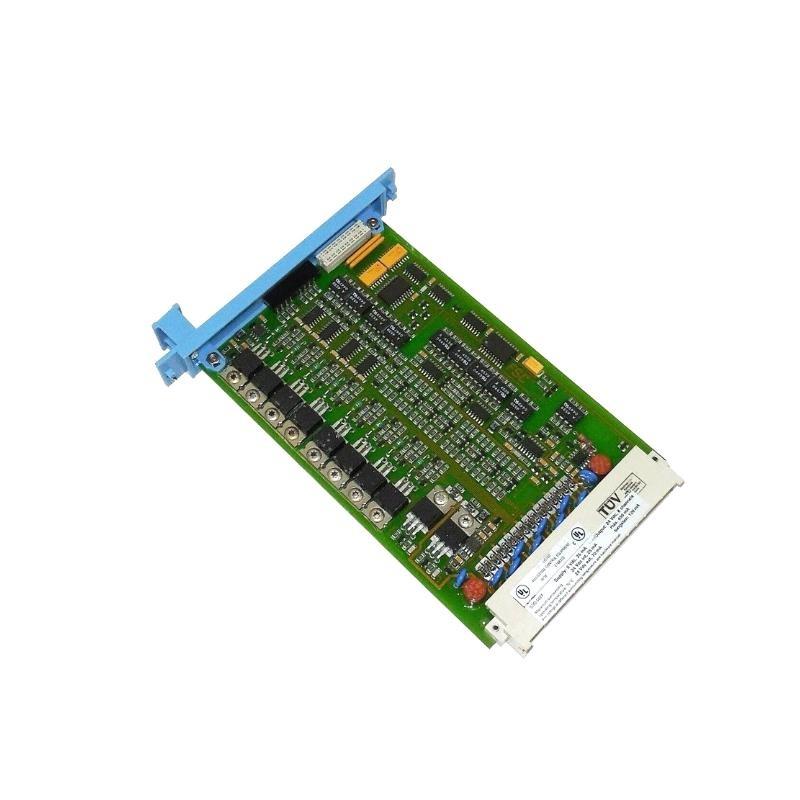

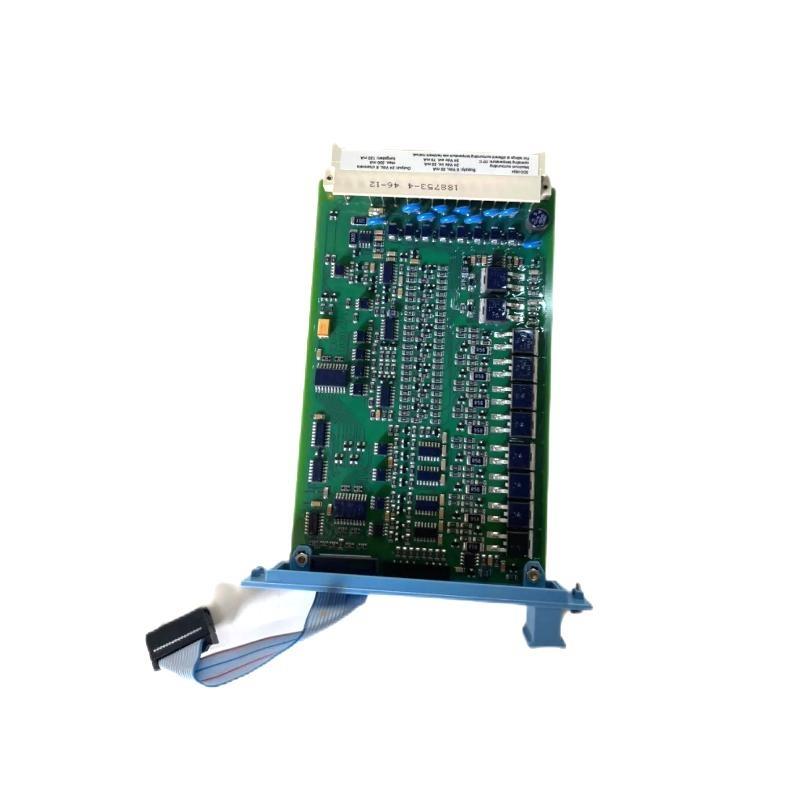

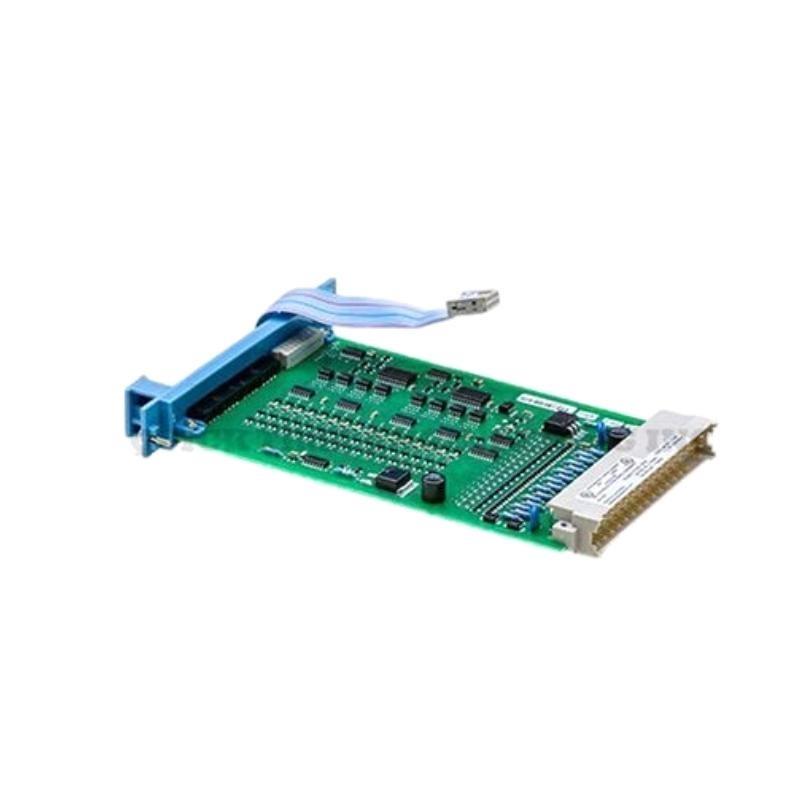

The Honeywell FC-SDO-1624 is a high-performance Safe Digital Output Module designed for use in Safety Instrumented Systems (SIS). As a critical component / the Honeywell Safety Manager or FSC (Fail Safe Controller) platform, this module is responsible for delivering 24V DC fail-safe digital output signals to field actuators such as solenoids, relays, and shutdown valves in high-integrity safety applications.
With 16 independently controlled digital output channels, the FC-SDO-1624 supports large-scale safety configurations while maintaining strict compliance with IEC 61508 SIL3 safety standards. It /fers advanced diagnostics, short-circuit protection, and feedback mechanisms to ensure operational integrity and reliability in mission-critical environments such as oil & gas plants, petrochemical refineries, power stations, and /fshore platforms.
This module reflects Honeywell’s commitment to dependable safety technology, combining robust design, powerful diagnostics, and tight system integration to provide users with a scalable, secure, and standards-compliant output solution.
Technical Specifications
| Parameter | 描述 |
|---|---|
| 型号 | FC-SDO-1624 |
| Type | Safe Digital Output Module |
| Output Channels | 16 channels |
| Output Voltage | Nominal 24V DC |
| Output Type | Sourcing, high-side |
| Channel Load Current | Up to 0.5 A per channel (continuous) |
| Total Output Capacity | Max 8 A shared across 16 channels |
| Protection Features | Short-circuit, open-load detection, feedback diagnostics |
| Diagnostics | Per-channel fault detection, field feedback monitoring |
| Response Time | <10 ms (typical) |
| Output Isolation | Channel-to-channel and channel-to-ground isolation |
| Power Supply | Via system backplane |
| Fail-Safe Operation | Configurable fail-safe (trip to safe state upon fault or loss / power) |
| Status Indicators | Front-panel LEDs for output and fault status |
| Safety Integrity Level | SIL3 (IEC 61508, TUV certified) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Vibration/Shock Resistance | IEC 60068 standard compliant |
| Cooling | Passive convection |
| Mounting | DIN rail or cabinet mounted via FSC backplane |
| Dimensions (H x W x D) | 100 × 160 × 20.32 mm |
| 重量 | 0.5 kg |
Applications
The Honeywell FC-SDO-1624 is specifically engineered for high-reliability industrial safety systems. Its main use cases include:
-
Emergency Shutdown Systems (ESD)
-
Fire & Gas Detection Systems (F&G)
-
Turbine Protection and Trip Systems
-
Compressor Anti-Surge Systems
-
Chemical Reactor Shutdown Sequences
-
Tank Farm Overfill Protection
-
Offshore Platform Safety Logic
-
Refinery Process 单位 Interlocks
-
Boiler & Burner Management Systems
-
Safety Control in Nuclear and Power Generation Plants
By /fering 16 independent output points, the FC-SDO-1624 allows engineers to design dense, centralized output architectures in large-scale SIS frameworks.
Product Advantages
-
High Output Density: With 16 output channels in a single module, the FC-SDO-1624 optimizes cabinet space and simplifies wiring.
-
SIL3 Certified: Full compliance with IEC 61508 and third-party (TÜV) certification guarantees reliable use in safety-critical environments.
-
Advanced Diagnostics: Built-in fault detection for open circuits, short-circuits, and feedback errors significantly enhances system visibility and maintenance.
-
Fail-Safe Logic: Configurable trip-to-safe behavior ensures immediate deactivation / outputs in case / module or system failure.
-
Channel Isolation: Prevents fault propagation, with isolated outputs to ensure continued operation / unaffected channels.
-
LED Status Indication: Front-facing LEDs clearly indicate each output’s operational or fault status at a glance.
-
System Integration: Seamlessly integrates with Honeywell Safety Manager and FSC platforms, enabling centralized safety management.
-
Durable Construction: With industrial-grade build quality, the module can withstand harsh conditions including temperature extremes and vibrations.
-
Long Service Life: Designed for long-term operation with minimal maintenance, reducing total cost / ownership.
-
Global Compatibility: Certified for global applications, meeting CE and international standards.
常见问题 (FAQ)
-
What is the purpose / the FC-SDO-1624?
It is used to send safe 24V DC output signals to activate field devices like shutdown valves or safety relays in critical systems. -
How many digital outputs does the module support?
It provides 16 individual digital output channels, each independently controlled. -
Is this module certified for SIL3 applications?
Yes. It is SIL3 certified according to IEC 61508 and TÜV standards. -
What is the maximum current per channel?
Each output channel can source up to 0.5 A continuously. -
Can the outputs be configured as fail-safe?
Yes. Each output can be set to trip to a predefined safe state upon fault detection or system power loss. -
Is this module hot-swappable?
序号 For safety, it should only be replaced when the system is de-energized or in maintenance mode. -
Which systems is it compatible with?
It is compatible with Honeywell Safety Manager and FSC safety systems. -
Does the module support diagnostics?
Yes, including feedback monitoring, open-load detection, and short-circuit protection on each channel. -
How is the module installed and powered?
It mounts onto the system’s backplane and draws power through the FSC baseplate interface. -
What are the operating conditions?
The module operates from -20°C to +70°C and withstands 5–95% relative humidity (non-condensing).
Recommended Related or Similar 型号s (Same Series or Functional Type)
| 型号 Number | 描述 | Channels | Function |
|---|---|---|---|
| FC-SDO-0424 | Safe Digital Output Module, 4 Channels | 4 | Low-density safety output |
| FC-SAI-1620 | Safe Analog Input Module | 16 | High-density analog input |
| FC-SDI-1624 | Safe Digital Input Module | 16 | High-density digital input |
| FC-RLY-0416 | Relay Output Module, Form C contacts | 4 relays | Output for high-current loads |
| FC-PSU-UNIV | Universal Redundant Power Supply Module | – | Power redundancy support |
| FC-DO-1624 | Standard (Non-Safe) Digital Output Module | 16 | Non-SIL output applications |
Recommended Popular Honeywell 型号s (Same 品牌, High Demand)
| 型号 Number | 描述 | Application | Platform |
|---|---|---|---|
| CC-PDIL01 | 24V DC Digital Input Module | Standard I/O input | C300 |
| CC-TAOX01 | Analog Output Module, 4–20 mA | Control output | Experion PKS |
| MC-PAIH03 | HART Analog Input Module | Field signal acquisition | TDC 3000 |
| CC-TDIL01 | Isolated Digital Input Module | Digital input acquisition | Experion C200/C300 |
| CC-PAOH01 | Analog Output Module with Redundancy 支持 | Analog signal control | C200/C300 |
| MU-TDOD12 | 24V DC Digital Output Module | Output for process control | TDC 3000 |
