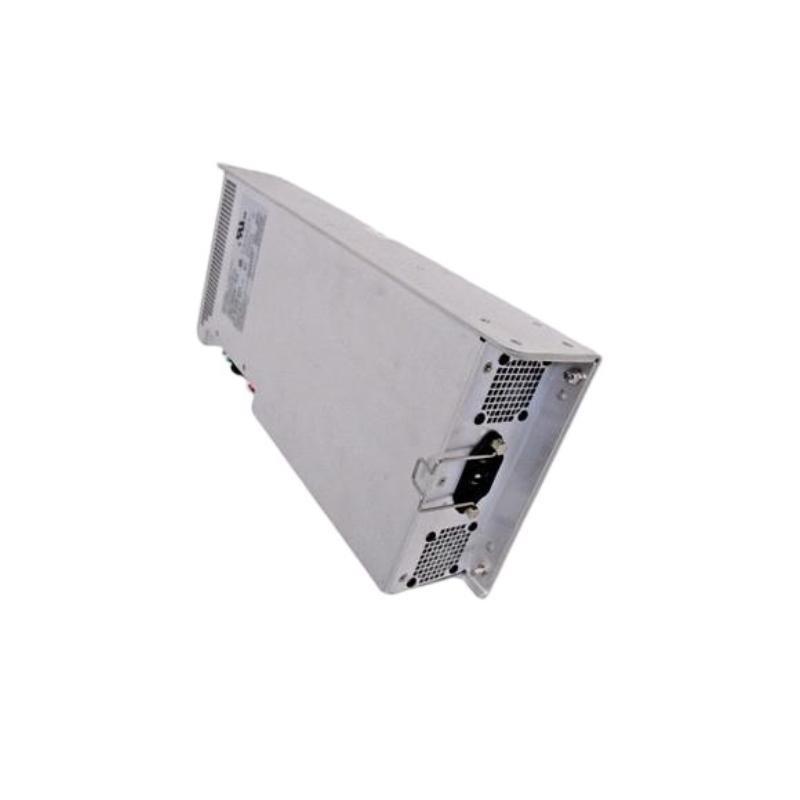

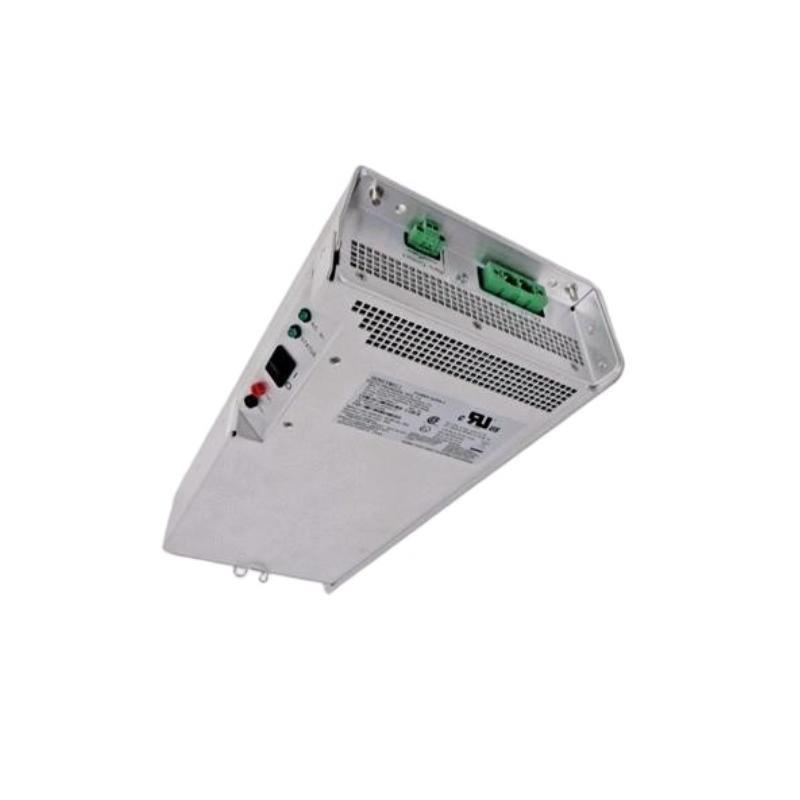

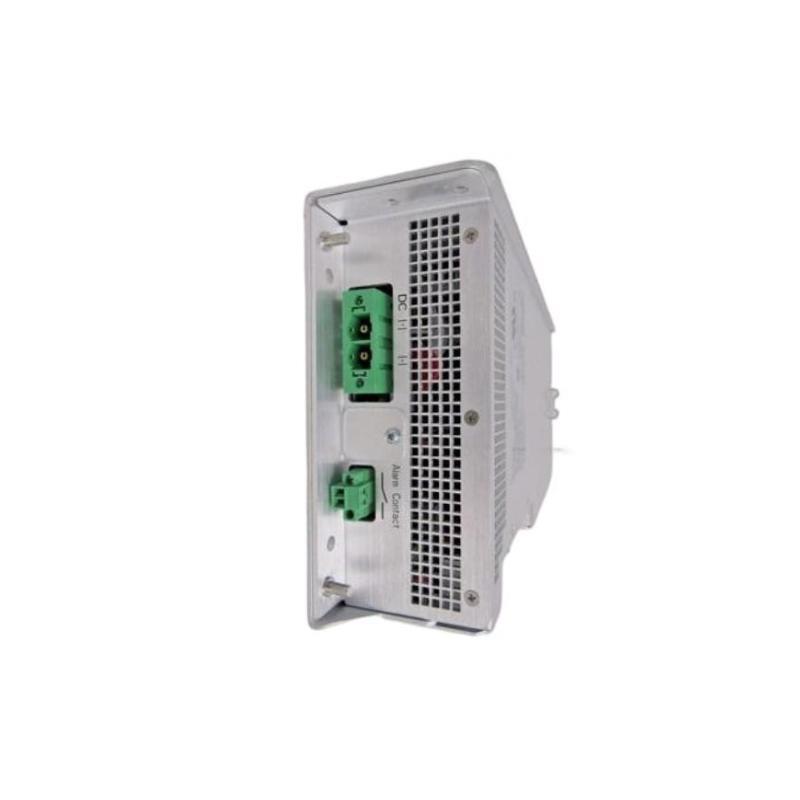

Product Overview
The Honeywell FC-PSUNI-2424 is a high-performance power supply module designed to provide reliable and regulated power to critical components within the Honeywell Safety Manager and Experion Process Knowledge System (PKS) environments. This universal power module delivers 24 VDC output from a wide input range and supports redundancy configurations to ensure uninterrupted operation / safety-critical systems. With robust construction and diagnostics features, it plays a vital role in industrial safety and control architectures.
Key Features
-
Universal power input (AC and DC supported)
-
Regulated 24 VDC output
-
Suitable for use in Safety Manager and PKS systems
-
Hot-swappable for high system availability
-
支持s power redundancy and load sharing
-
Built-in diagnostics and status indicators
-
Compact and DIN-rail mountable
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Power Module |
| 型号 Number | FC-PSUNI-2424 |
| 制造商 | Honeywell |
| Output Voltage | 24 VDC |
| Output Power | 100 W (typical) |
| Input Voltage Range | 85–264 VAC / 110–300 VDC |
| Input Frequency | 47–63 Hz |
| Efficiency | > 85% |
| Overload Protection | Yes (automatic recovery) |
| Short-Circuit Protection | Yes |
| Redundancy 支持 | Yes (parallel connection) |
| Status Indication | LED indicators for OK and fault |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Mounting | DIN rail |
| Dimensions | 370 × 159 × 67.3 mm |
| 重量 | 2.9 kg |
| Compliance | CE, UL, CSA, ATEX certified |
Industry Applications
-
Safety Instrumented Systems (SIS)
-
Emergency Shutdown Systems (ESD)
-
Burner Management Systems (BMS)
-
Distributed Control Systems (DCS)
-
Power Plants and Utilities
-
Oil & Gas Facilities
-
Chemical and Petrochemical Industries
Product Advantages
-
Universal Compatibility: Accepts a wide input voltage range, suitable for global installations
-
Reliable Performance: Provides steady 24 VDC output with high efficiency
-
Redundant Design: 支持s dual-module configurations for continuous operation
-
Diagnostics Capability: Enables quick fault detection and maintenance
-
Compact Form Factor: 保存s space in dense panel layouts
-
Field Replaceable: Hot-swappable without system shutdown
常见问题 (FAQ)
1. What is the output voltage / the FC-PSUNI-2424 module?
It provides a regulated 24 VDC output.
2. Can this power module be used in redundant configurations?
Yes, it supports redundancy and load sharing for high availability.
3. What type / systems is this module compatible with?
It is compatible with Honeywell Safety Manager and Experion PKS systems.
4. Is the module hot-swappable?
Yes, it can be replaced without shutting down the system.
5. Does it support both AC and DC input?
Yes, it accepts 85–264 VAC or 110–300 VDC input.
6. What are the protections built into this module?
It includes overload and short-circuit protection with automatic recovery.
7. What certifications does the FC-PSUNI-2424 carry?
It complies with CE, UL, CSA, and ATEX standards.
8. How is the module mounted?
It is designed for DIN rail mounting.
9. What are its dimensions?
The module measures 370mm × 159mm × 67.3 mm.
10. Is it suitable for industrial environments?
Yes, it is rugged and designed for use in demanding industrial settings.
