Product Overview

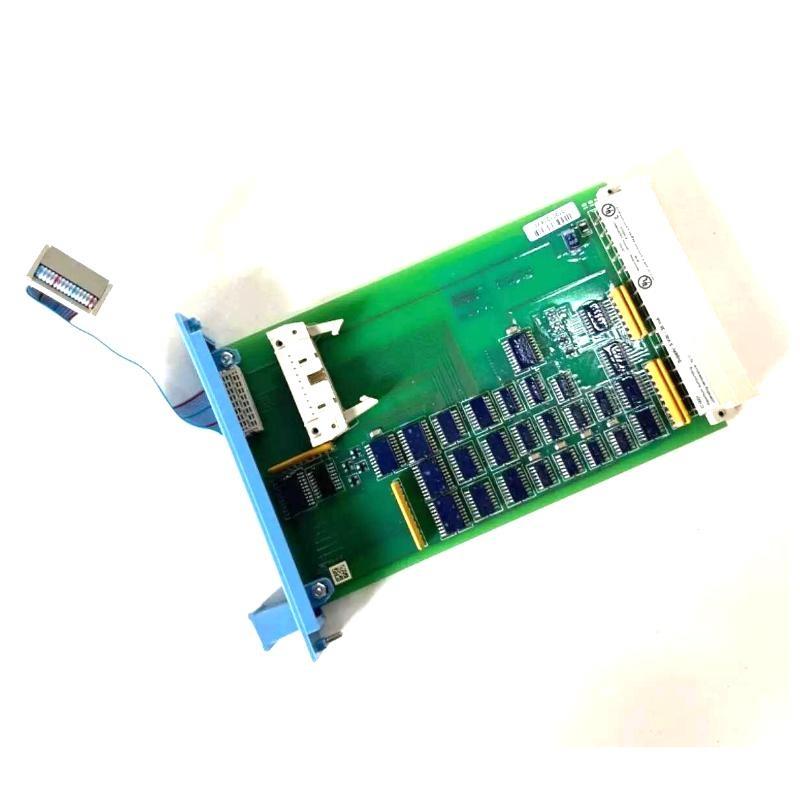

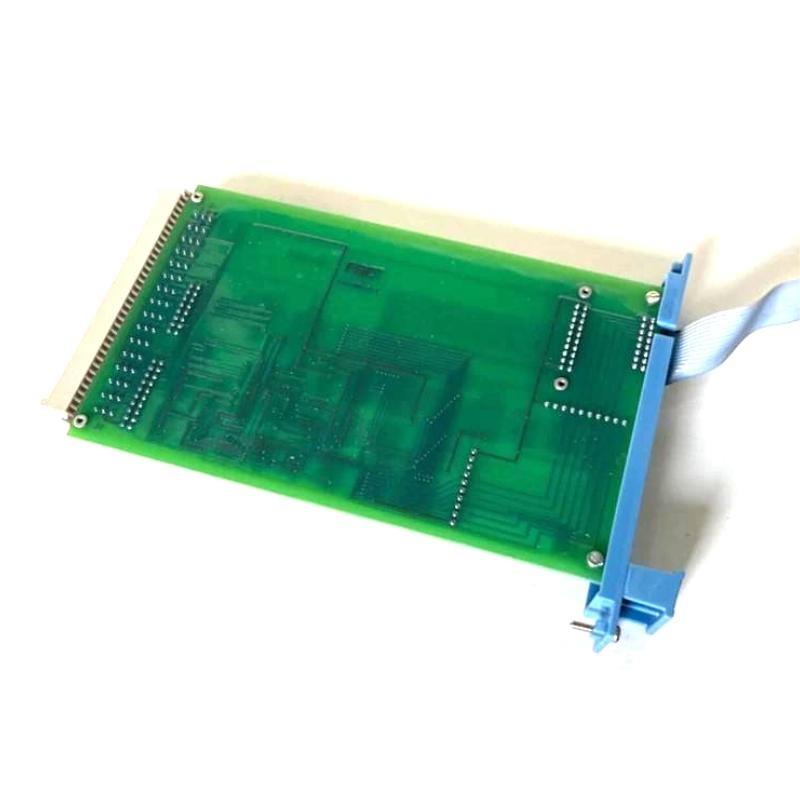

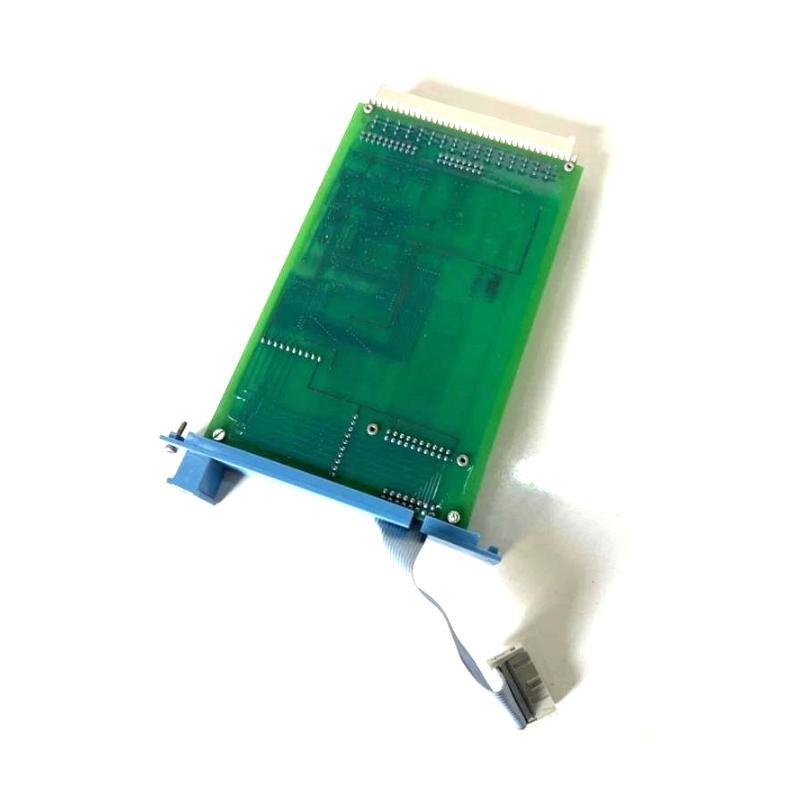

The Honeywell FC-IO-0001 is a highly reliable I/O Expansion Module designed for integration with Honeywell’s Safety Manager, Fail Safe Controller (FSC), or PlantScape/Experion PKS systems. This module provides flexible and scalable digital/analog input and output capabilities, enabling engineers to efficiently expand the I/O capacity / their process safety or control systems.
This 件 is built with Honeywell’s industry-proven safety and automation technology, allowing seamless integration within Safety Instrumented Systems (SIS) or basic process control systems (BPCS). It supports secure communication, high channel density, and is suitable for mission-critical applications in oil and gas, petrochemical, power generation, and other process industries.
Key Features
-
High-Density I/O Channels for digital and analog signals
-
Seamless Integration with Honeywell Safety Manager or Experion PKS platforms
-
Redundant Architecture 支持 for enhanced reliability and availability
-
Hot-Swappable Design reduces downtime during maintenance
-
Deterministic Communication over secure safety fieldbus or system backplane
-
DIN Rail Compatible housing for space-saving installation
-
Comprehensive Diagnostics for channel health, wiring integrity, and loop testing
-
Designed for Harsh Environments, with industrial temperature and humidity ratings
Technical Specifications
| Parameter | Specification |
|---|---|
| 型号 Number | FC-IO-0001 |
| Product Type | I/O Expansion Module |
| Compatible Systems | Honeywell Safety Manager, FSC, Experion PKS |
| 支持ed I/O Types | Digital Input/Output, Analog Input/Output |
| Channel Density | Varies by configuration, typically 16–32 channels |
| Redundancy 支持 | Yes, supported via dual I/O redundancy paths |
| Communication Protocol | Safety Fieldbus or proprietary Honeywell I/O link |
| Diagnostics | Channel status, line fault detection, loop integrity monitoring |
| Power Supply | 24 VDC (nominal), protected internal bus |
| Hot-Swappable | Yes |
| Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 5% to 95%, non-condensing |
| Shock Resistance | 15g, 11 ms, half-sine wave |
| Vibration Resistance | 1 mm peak-to-peak, 10–60 Hz |
| Dimensions | 133.4 x 20.3 x 280 mm |
| 重量 | 0.61 kg |
| Mounting | DIN rail or panel-mount (accessory dependent) |
| Certifications | CE, ATEX, SIL2/3 (IEC 61508), UL/CSA |
Industry Applications
-
Oil & Gas: For distributed safety systems in drilling, refining, and transport operations
-
Chemical & Petrochemical: Ensures safety interlocks and process control in hazardous zones
-
Power Generation: 支持s emergency shutdown systems in thermal and nuclear plants
-
Pharmaceutical Manufacturing: Automates process control while maintaining safety compliance
-
Water Treatment Facilities: Enables modular signal control in distributed pumping networks
-
Pulp & Paper: 支持s high-speed process response for batch and continuous processes
Product Advantages
-
Scalable Architecture: Easily adds I/O capacity without major infrastructure changes
-
Field-Proven Reliability: Designed for continuous operation in demanding industrial environments
-
Integrated Diagnostics: Speeds up fault isolation and minimizes system downtime
-
支持s Redundant and Non-Redundant Systems: Flexible configuration for any control strategy
-
Safety Integrity Compliance: Enables safe operation in Safety Instrumented Functions (SIF)
-
Space-Efficient Design: Compact pr/ile for control cabinets or distributed nodes
-
Simplified Maintenance: Hot-swap support allows maintenance without process interruption
常见问题 (FAQ)
-
Q: What is the Honeywell FC-IO-0001 used for?
A: It is used to expand I/O capability in safety and process control systems such as Honeywell Safety Manager or FSC. -
Q: How many channels does it support?
A: It typically supports 16 to 32 I/O channels, depending on configuration (DI, DO, AI, AO). -
Q: Can I use this module in a redundant setup?
A: Yes, it supports I/O and communication redundancy for enhanced system availability. -
Q: Is the module hot-swappable?
A: Yes, it can be replaced or added while the system is running, minimizing downtime. -
Q: Does it support both analog and digital signals?
A: Yes, the module can handle digital and analog input/output configurations. -
Q: Is it certified for safety-critical applications?
A: Yes, it is compliant with SIL2/3 safety standards (IEC 61508). -
Q: What diagnostics does it /fer?
A: It /fers line fault detection, open/short circuit monitoring, and loop testing. -
Q: What systems is it compatible with?
A: It is compatible with Honeywell Safety Manager, FSC, and Experion PKS. -
Q: What environment can it operate in?
A: It operates from -20°C to +60°C and up to 95% humidity, making it suitable for harsh industrial settings. -
Q: Is s/tware configuration required?
A: Yes, configuration is performed through Honeywell system s/tware tools like SM Toolkit or Control Builder.
Related or Similar Honeywell 型号s
| 型号 Number | 描述 |
|---|---|
| FC-PDIO-1624 | Mixed Digital I/O Module, 16 DI & 8 DO |
| FC-AIO-0820 | Analog Input/Output Module, 8 AI & 2 AO |
| FC-PSU-UNI24V | Universal 24V Power Supply Module |
| FC-TDIO51 | Digital Input/Output Interface Module |
| FC-DO-0824 | 8-Channel Digital Output Module |
| FC-AI-1620 | 16-Channel Analog Input Module |
Popular Honeywell Automation Modules
| 型号 Number | 描述 |
|---|---|
| CC-TDIL01 | Digital Input Module for C300 Systems |
| CC-PDOB01 | Digital Output Module |
| CC-PAIH01 | Analog Input Module |
| CC-TAIX11 | High-Density Analog Input Module |
| CC-PCNT01 | Pulse Counter Module for Flow & Event Capture |
| CC-TDOR01 | Relay Output Module |
