产品介绍

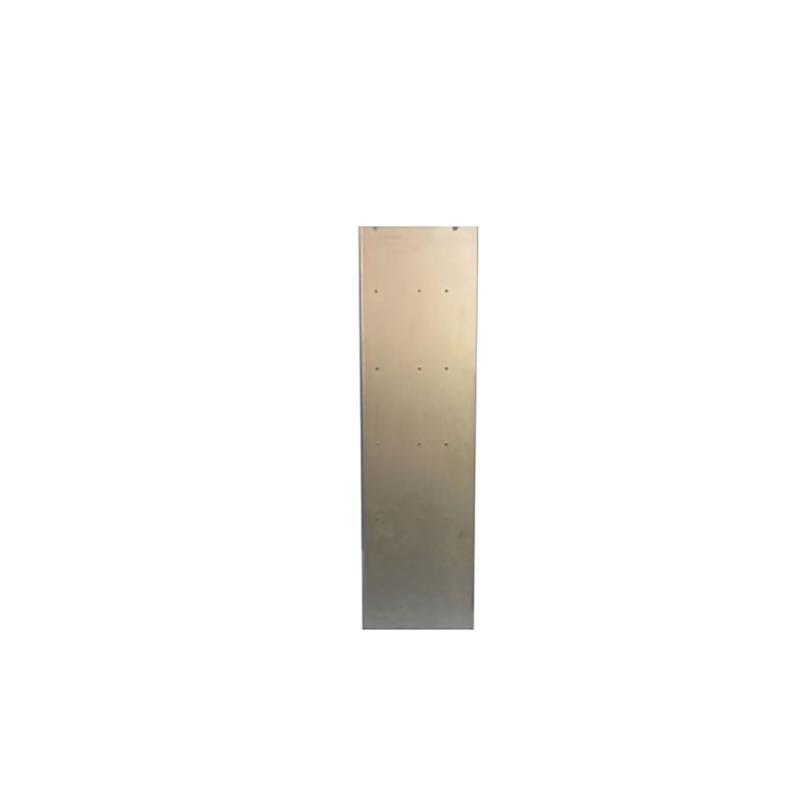

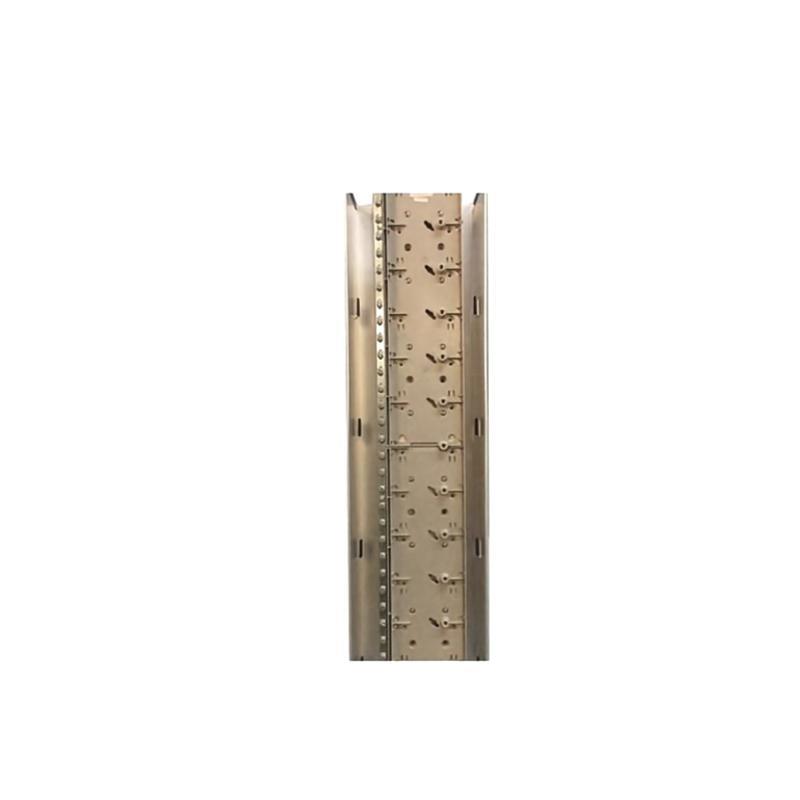

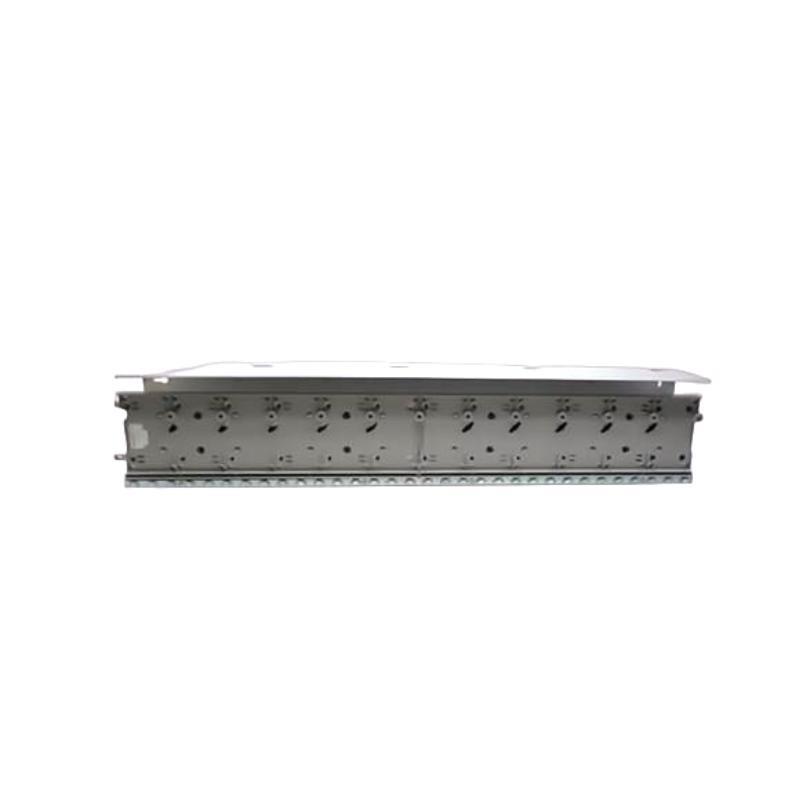

The Honeywell CC-MCAR01 Carrier Channel Assembly (part number 51403892-100) is a precision-engineered component designed for use in advanced control systems within industrial automation and process control environments. This assembly acts as a robust mechanical and electrical interface, facilitating secure mounting and reliable connectivity for Honeywell’s range / controllers and modules. Manufactured to meet stringent quality and durability standards, the CC-MCAR01 supports seamless integration into existing systems, enhancing overall equipment performance and serviceability.
产品规格
| Parameter | 描述 |
|---|---|
| 零件号 | 51403892-100 |
| Product Name | Carrier Channel Assembly (CC-MCAR01) |
| 制造商 | Honeywell |
| Dimensions (L x W x H) | 914.4 ×228.6 ×101.6 mm |
| 重量 | 9.07 kg |
| Material | High-grade aluminum alloy with corrosion-resistant finish |
| Mounting Style | DIN rail compatible with screw fasteners |
| Electrical Connectors | Standard Honeywell module interface connectors |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -50°C to +85°C |
| Compliance | RoHS compliant, CE certified |
Product Applications
-
Industrial Automation Control Racks
-
Distributed Control Systems (DCS)
-
Safety Instrumented Systems (SIS)
-
Process Control Panels in Oil & Gas, Petrochemical, and Power Plants
-
Manufacturing Execution Systems (MES) hardware assemblies
-
Replacement part in Honeywell Experion and other automation suites
The CC-MCAR01 is designed to provide mechanical stability and maintain electrical continuity for complex control systems operating in demanding industrial environments.
Product Advantages
-
Robust Build Quality: Constructed from durable aluminum alloy with a corrosion-resistant coating, ensuring long service life even in harsh industrial conditions.
-
Precision Engineering: Enables precise alignment and stable mounting / modules, minimizing vibrations and mechanical stress.
-
Compatibility: Fully compatible with Honeywell’s broad range / controller modules, enabling flexible system upgrades and maintenance.
-
Ease / Installation: Designed for quick installation on standard DIN rails with minimal tools required, reducing downtime during system upgrades or repairs.
-
Thermal Stability: Withstands a wide operating temperature range, maintaining structural integrity and connection reliability.
-
Regulatory Compliance: Meets international standards such as RoHS and CE, assuring users / safety and environmental responsibility.
-
Serviceability: Modular design simplifies troubleshooting and replacement without disturbing other system components.
常见问题 (FAQ)
-
Q: What is the primary function / the Honeywell CC-MCAR01 Carrier Channel Assembly?
A: It serves as a mechanical and electrical interface for mounting and connecting Honeywell control modules securely. -
Q: Is the CC-MCAR01 compatible with all Honeywell controller modules?
A: It is compatible with most Honeywell modules designed for DIN rail mounting but should be verified against specific model requirements. -
Q: What are the environmental limits for using this assembly?
A: It operates safely between -40°C and +70°C and can be stored between -50°C and +85°C. -
Q: How is the assembly mounted?
A: The assembly mounts onto standard DIN rails using screw fasteners for a secure fit. -
Q: Can the CC-MCAR01 be used in explosive or hazardous environments?
A: While the assembly itself is rugged, suitability for hazardous environments depends on the overall system certification; please consult Honeywell’s hazardous area documentation. -
Q: What is the material / the carrier channel?
A: It is made from a high-grade aluminum alloy with a corrosion-resistant finish. -
Q: Does the assembly include electrical connectors?
A: It includes standard interface connectors compatible with Honeywell modules but does not supply power or signal on its own. -
Q: How weigh is the CC-MCAR01?
A: It weighs 9.07 kg. -
Q: Is the assembly RoHS compliant?
A: Yes, it complies with RoHS directives and CE certification. -
Q: Can I order replacement parts for the CC-MCAR01?
A: Yes.
Recommended Related 型号s (Same Series or Functionally Similar)
| 型号 Number | 描述 | Dimensions (mm) | 重量 (kg) | Notes |
|---|---|---|---|---|
| CC-MCAR02 | Carrier Channel Assembly, 下一页 Gen | 260 x 55 x 32 | 0.85 | Improved mounting features |
| CC-MCAR01-EX | Explosion-pro/ variant | 250 x 50 x 35 | 0.9 | Certified for hazardous areas |
| CC-MCAR01-PRO | High-performance version | 255 x 60 x 30 | 0.82 | Enhanced thermal properties |
| CC-MCAR03 | Carrier Channel for extended modules | 300 x 50 x 35 | 1.0 | For larger controller modules |
| CC-MCAR01-S | Slim design assembly | 220 x 45 x 28 | 0.75 | Compact footprint version |
| CC-MCAR01-RACK | Rack mount version | 270 x 55 x 30 | 0.88 | Suitable for 19-inch racks |
Popular Honeywell 型号s (Same 品牌, Different Functions)
| 型号 Number | Product Type | Dimensions (mm) | 重量 (kg) | 描述 |
|---|---|---|---|---|
| HC900CPTK1 | Control System Processor | 190 x 150 x 50 | 1.2 | Compact process controller |
| HC900IOEX | I/O Expansion Module | 120 x 110 x 40 | 0.6 | Expands IO points |
| Experion PKS C300 | Process Control System Controller | 350 x 300 x 80 | 4.5 | Advanced DCS controller |
| ControlEdge HC900 | Hybrid Controller | 210 x 160 x 55 | 1.5 | Integrated control and safety |
| STT7000 | Temperature Transmitter | 120 x 80 x 40 | 0.7 | Field instrument |
| UDC3200 | Universal Digital Controller | 144 x 72 x 124 | 1.0 | Panel-mounted controller |
