产品介绍

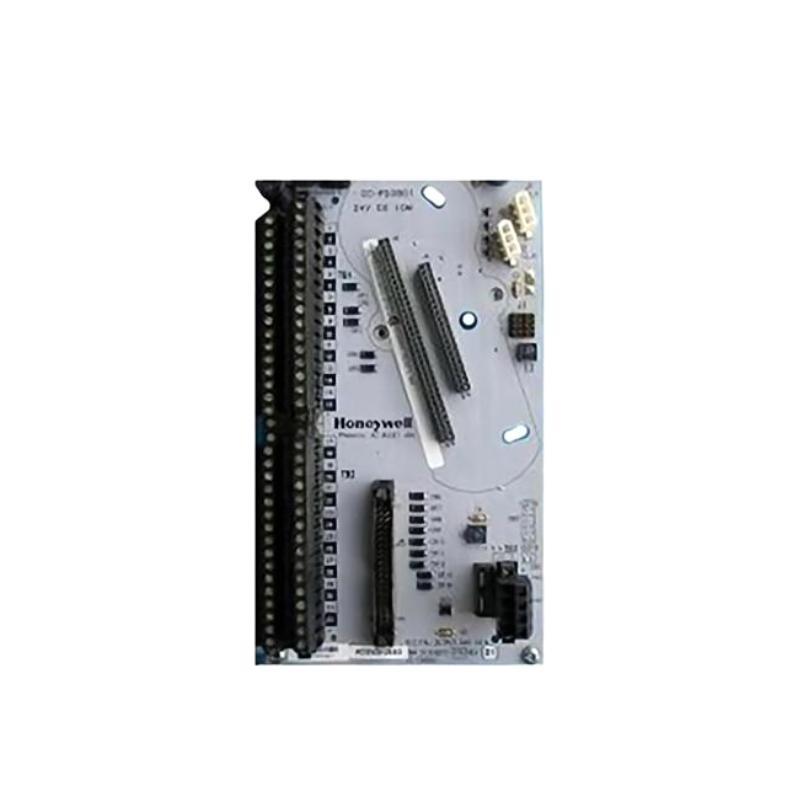

The Honeywell CC-GDIL11 (part number 51306315-175) is a Digital Input GI/IS IOTA (Input Output Termination Assembly) module designed to accommodate up to 32 high-level 24V DC digital input signals. It supports redundancy and allows for galvanically isolated inputs from various isolators, ensuring reliable and safe operation in industrial environments.
产品规格:
| Specification | Details |
|---|---|
| 零件号 | CC-GDIL11 |
| 制造商 | Honeywell |
| Product Type | Digital Input GI/IS IOTA Module |
| Input Channels | 32 |
| Input Voltage | 24V DC |
| 支持ed Isolators | MTL4516, MTL4517 , MTL4599 |
| Redundancy 支持 | Yes |
| Dimensions | 110 x 130 x 60 mm |
| 重量 | 0.45 kg |
| Operating Temperature Range | -20°C to +60°C |
| Isolation Voltage | 1500V AC |
| Power Consumption | 5W max |
Product Applications:
The CC-GDIL11 module is utilized in various industrial applications, including:
-
Process Control Systems: Integrates with control systems to monitor and manage industrial processes.
-
Building Automation: Facilitates the automation / building systems for enhanced efficiency.
-
Industrial Automation: Enables the automation / manufacturing and production lines.
-
Power Generation: Monitors and controls inputs in power generation facilities.
-
Oil and Gas Industry: Ensures safe and reliable operation in hazardous environments.
Product Advantages:
-
High Channel Density: Accommodates up to 32 input channels, allowing for efficient use / space and resources.
-
Redundancy 支持: Enhances system reliability by supporting redundant configurations.
-
Galvanic Isolation: Provides isolation between input signals, reducing the risk / interference and enhancing safety.
-
Compatibility with Multiple Isolators: 支持s various isolators, /fering flexibility in system design.
-
Compact and Lightweight Design: Facilitates easy installation and integration into existing systems.
Honeywell CC-GDIL11 – FAQ (常见问题)
-
What type / input signals does the CC-GDIL11 support?
The CC-GDIL11 is designed for high-level 24V DC digital input signals, typically sourced from galvanically isolated isolators. -
Can this module be used in redundant configurations?
Yes, the CC-GDIL11 supports full redundancy. This allows for parallel operation with a second module for increased system reliability. -
Which isolators are compatible with the CC-GDIL11?
It supports MTL4516 and MTL4517 isolators for input signal conditioning and fault detection. MTL4599 can be used as a dummy for unused channels. -
Is this module suitable for use in hazardous or classified areas?
Absolutely. When paired with the appropriate isolators, the CC-GDIL11 can be used to monitor field devices in hazardous zones. -
How many input channels are available on the CC-GDIL11?
This module /fers 32 input channels, allowing a high-density input configuration within compact space constraints. -
Is there galvanic isolation between channels or between field and system sides?
Yes, galvanic isolation is provided to separate input signals from the system side, protecting control electronics from field-side faults. -
What type / wiring or terminal connections are required?
The module uses standard IOTA wiring conventions. Terminal blocks are provided for each channel, and the isolators connect directly to the IOTA. -
How is diagnostics handled in this module?
When used with compatible isolators like MTL4517, the CC-GDIL11 can detect line faults, short circuits, or open conditions. LEDs indicate channel health. -
What is the expected installation environment for this product?
The module is rated for industrial environments, with an operating temperature range typically from -20°C to +60°C, and suitable for control cabinets or marshalling panels. -
Is there any special maintenance or calibration required?
Routine checks for terminal tightness and isolator health are recommended. The module itself does not require calibration or regular service under normal operation.
Related or Similar 型号s (Same Series / Function)
| 型号 Number | 描述 |
|---|---|
| CC-GDIL01 | Standard digital input IOTA module, non-redundant |
| CC-GDIL12 | Enhanced IOTA with high-density input capabilities |
| CC-GDIL21 | Digital input IOTA with advanced diagnostic support |
| CC-GDIL22 | High-density input IOTA with built-in redundancy |
| CC-GDIL31 | SIL2-certified digital input module for safety applications |
| CC-GDIL32 | Redundant SIL2-compliant input IOTA module |
| CC-PDOB11 | Digital output IOTA for parallel applications |
| CC-PAIH01 | Analog input IOTA module compatible with Experion systems |
Popular Honeywell 型号s (Same 品牌 – Frequently Used 产品)
| 型号 Number | 描述 |
|---|---|
| CC-PAOH01 | Analog Output Module used in C300 I/O architecture |
| CC-TAIX01 | Analog Input Module for temperature or current loop sensors |
| CC-PDIL01 | Digital Input Module, simplex version |
| CC-TDIL01 | Compact digital input module with channel diagnostics |
| CC-TDOB01 | Digital output IOTA, reliable for high-speed outputs |
| CC-PAIN01 | Analog Input IOTA used in process signal acquisition |
| CC-TCF901 | Foundation Fieldbus Communication Module for Honeywell Experion |
| CC-PUIA01 | Universal I/O Processor Module supporting flexible configuration |
