Product Overview

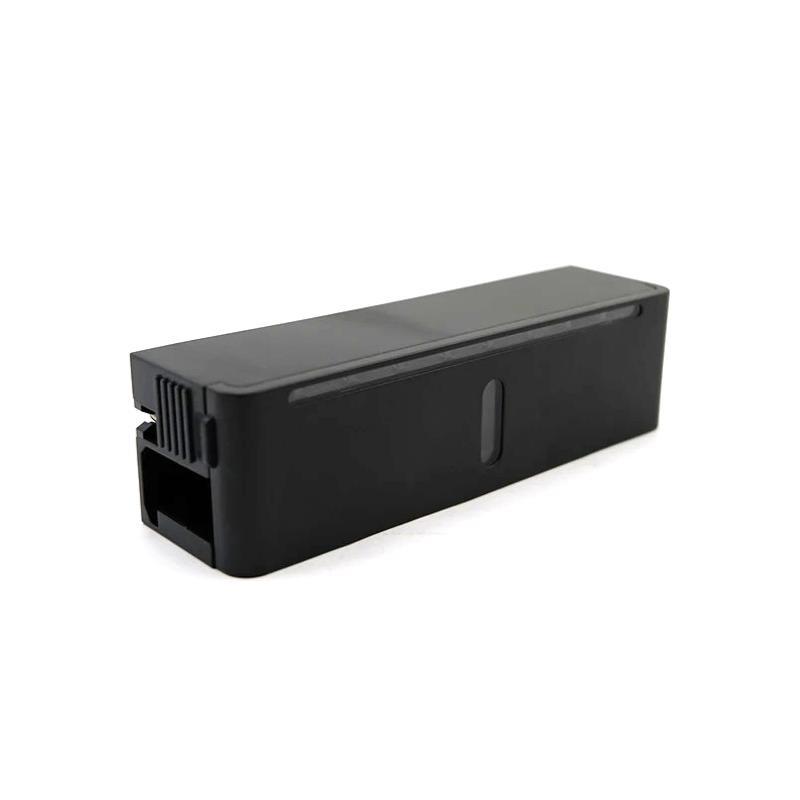

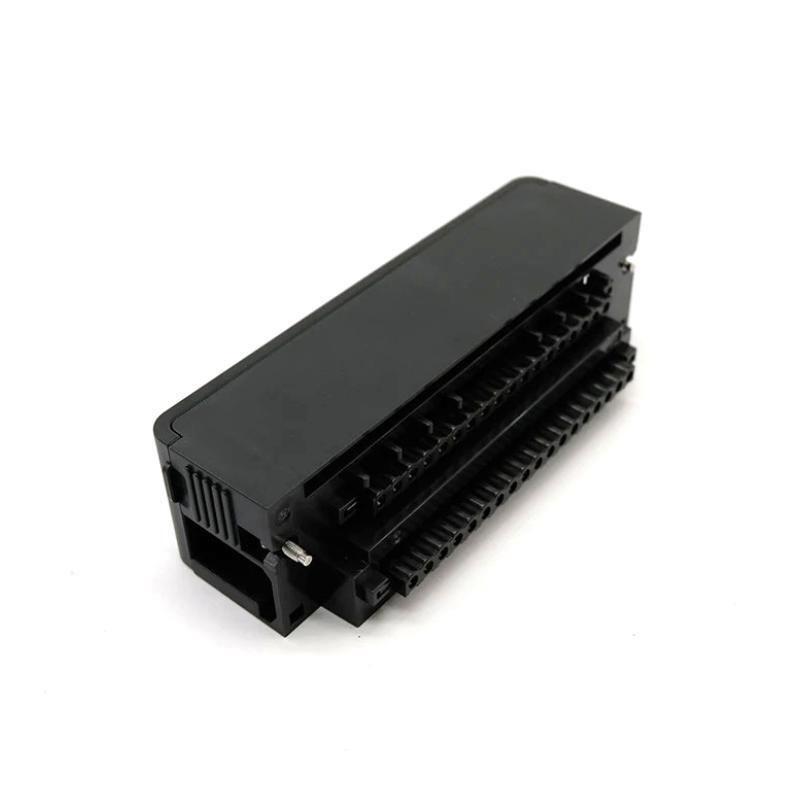

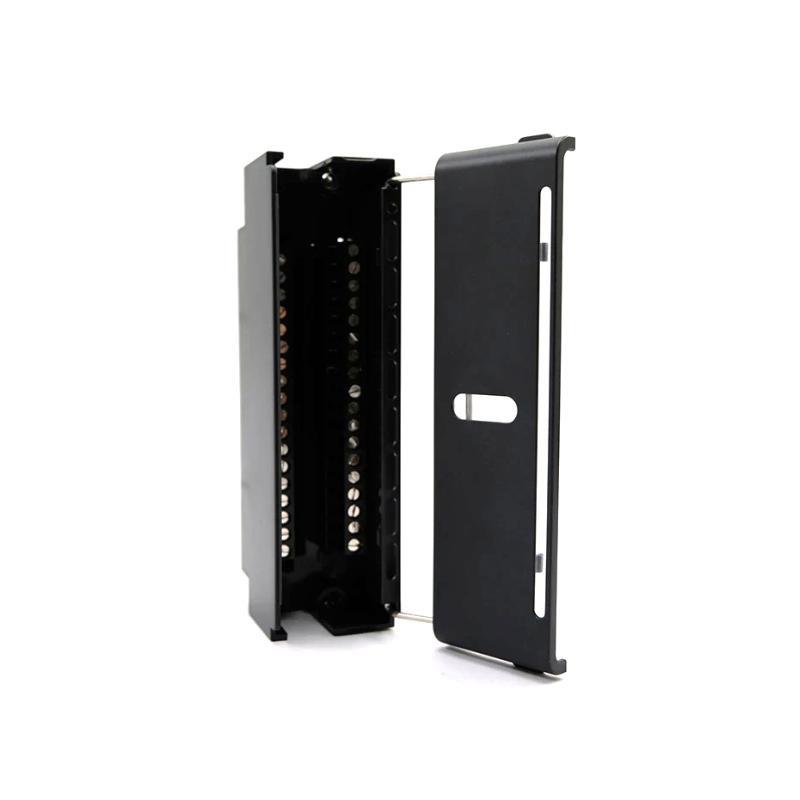

The Honeywell 900TCK-0200 is a 36-position Euro-style high-density terminal block designed for use with ControlEdge HC900 I/O modules. It provides efficient field wiring connections within industrial automation environments, supporting compact installations with high channel density.
Technical Specifications
| Parameter | Specification |
|---|---|
| 型号 | 900TCK-0200 |
| Type | Euro Style Terminal Block (36-position) |
| Compatibility | HC900 High-Density I/O Modules |
| Terminal Connection | Screw type |
| Terminal Count | 36 positions |
| Dimensions (L x W x H) | 111 × 33 × 36 mm |
| 重量 | 0.39 kg |
| Material | Industrial-grade plastic, gold-plated contacts |
| Mounting | DIN-rail |
| Voltage Handling | Low and high voltage separation compliant |
| Color Code | Red (high voltage), Black (low voltage) |
Applications
-
Process automation in chemical plants
-
Power generation and energy systems
-
Water treatment facilities
-
Pulp and paper industries
-
Pharmaceutical manufacturing
-
Batch and continuous process control systems
Product Advantages
-
Compact Design: 保存s panel space with a high-density terminal arrangement.
-
Easy Integration: Designed specifically for seamless use with HC900 I/O modules.
-
Time-Saving: Reduces field wiring errors and speeds up installation.
-
Reliability: Gold-plated contacts improve connection integrity and signal reliability.
-
Serviceability: 支持s hot-swapping and field power disconnect for safe maintenance.
常见问题 (FAQ)
Q1: What I/O modules are compatible with 900TCK-0200?
A1: It is compatible with 16 AI, 8/16 AO, and 32 DI/DO ControlEdge HC900 modules.
Q2: Is the terminal block suitable for high-voltage wiring?
A2: Yes, red terminal versions are intended for high-voltage wiring safety compliance.
Q3: Can this block be DIN-rail mounted?
A3: Yes, it is designed for standard 35mm DIN rail mounting.
Q4: Are gold-plated terminals standard on the 900TCK-0200?
A4: Yes, gold-plated contacts are standard to ensure superior signal quality.
Q5: How many wires can each terminal accept?
A5: Each terminal accepts one wire, typically 12–22 AWG gauge.
Q6: Does this terminal block support removable wiring under power?
A6: No, field power should be disconnected before removing the terminal block.
Q7: What is the main benefit / using a Euro-style terminal block?
A7: It /fers high contact reliability and space-saving in dense control panels.
Q8: What color coding is used for voltage distinction?
A8: Red is used for high-voltage terminals and black for low-voltage terminals.
Q9: Is the terminal block ROHS compliant?
A9: Yes, it complies with ROHS 2 directives.
Q10: Can I use this with redundant I/O configurations?
A10: Yes, it is fully compatible with HC900 redundant I/O setups.
Related ControlEdge HC900 型号s
| 型号 Number | 描述 | Dimensions (mm) | 重量 |
|---|---|---|---|
| 900B16-0001 | 16-pt Analog Output Module | 137 × 35.6 | 650g |
| 900G32-0101 | 32-pt Digital Input Module (DC) | 137 × 35.6 | 175g |
| 900A16-0103 | 16-pt High Level Analog Input Module | 137 × 35.6 | 397g |
| 900B08-0202 | 8-pt Analog Output Module | 137 × 35.6 | 400g |
| 900G03-0202 | 16-pt AC Digital Input Module | 137 × 35.6 | 210g |
| 900H32-0102 | 32-pt Digital Output Module (DC) | 137 × 35.6 | 180g |
Popular Honeywell HC900 Series 型号s
| 型号 Number | 描述 | Dimensions (mm) | 重量 |
|---|---|---|---|
| 900C50-0460 | ControlEdge HC900 CPU | 137 × 38.1 | 360g |
| 900P01-0301 | 120/240V AC Power Supply, 60W | 137 × 72.6 | 820g |
| 900A01-0202 | 8-pt Universal Analog Input Module | 137 × 35.6 | 210g |
| 900H01-0202 | 8-pt Relay Output Module | 137 × 35.6 | 425g |
| 900K01-0201 | 4-pt Pulse/Frequency Input Module | 137 × 35.6 | 360g |
| 900PSM-0200 | Power Status Module | 137 × 35.6 | 448g |
