Product 描述

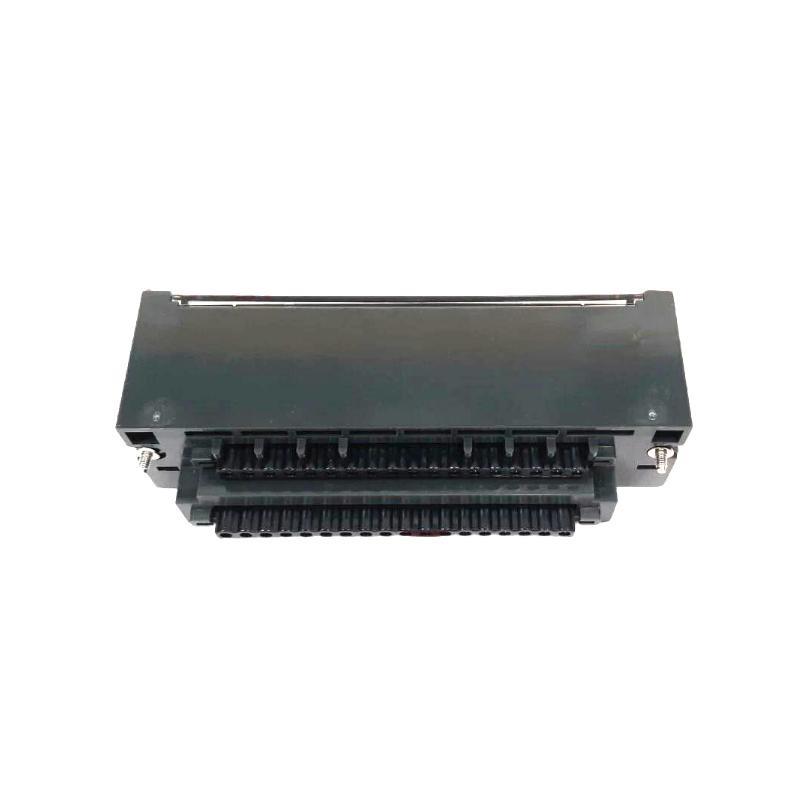

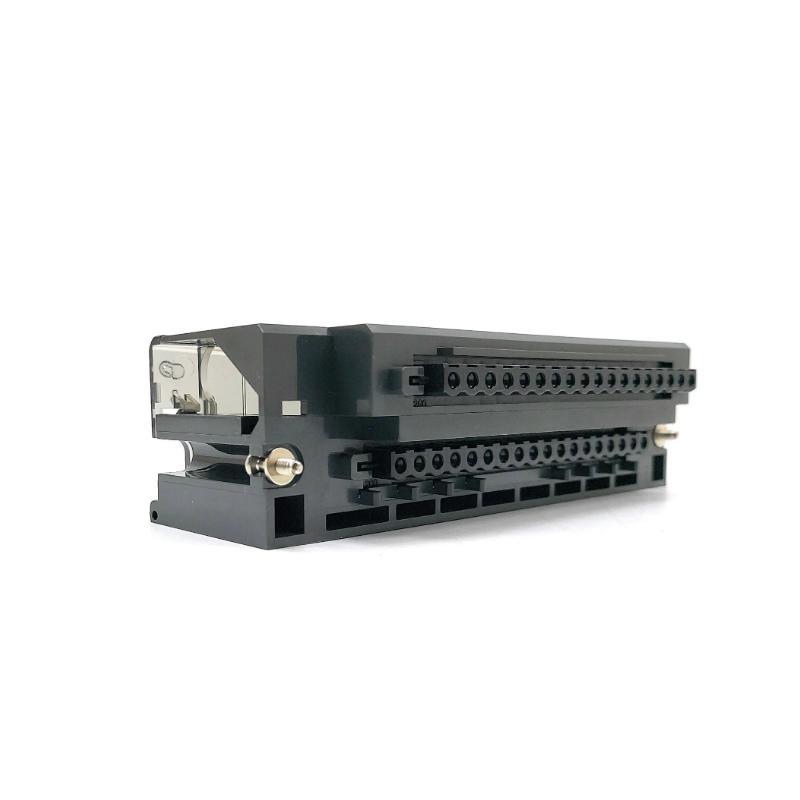

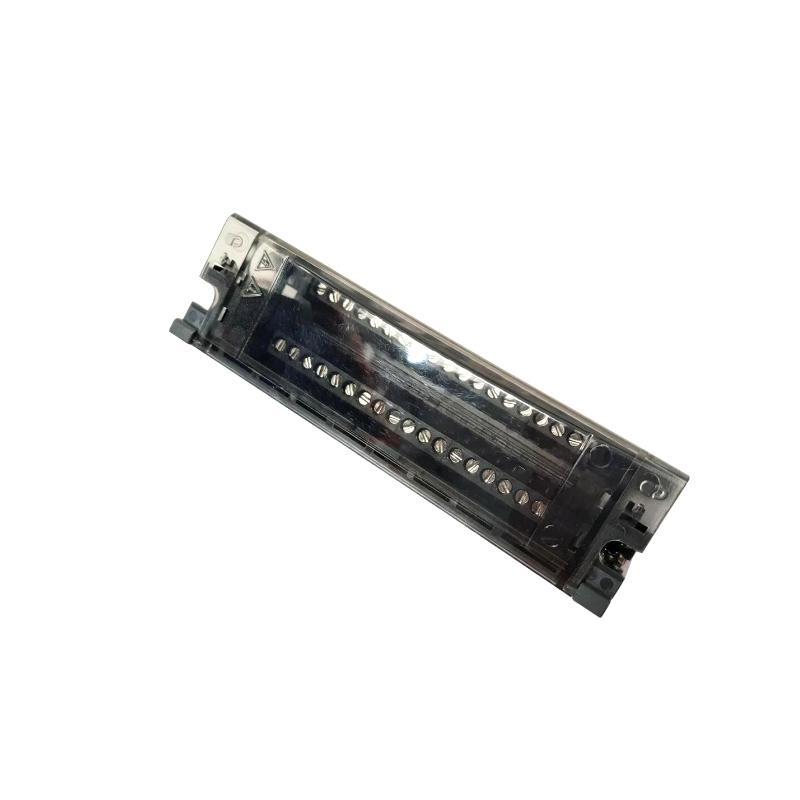

The Honeywell 900TCK-0001 is a Euro-style 36-position terminal block designed for low voltage signal termination. It is used in conjunction with analog I/O modules such as the 900B08-0202 (8-channel Analog Output) and 900B16-0101 (16-channel Analog Output). It facilitates organized, safe, and efficient field wiring, supporting precise and reliable connection in process control applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Product 型号 | 900TCK-0001 |
| Product Type | Euro-Style Terminal Block |
| Application | Low Voltage Analog I/O Termination |
| Number / Terminals | 36 Positions |
| Mounting Style | DIN Rail Mounted |
| Color Code | Black (low voltage use) |
| Material | Industrial grade, tin/gold plated |
| Dimensions (L×W×H) | 137 × 35.6 × 25 mm |
| 重量 | 0.21 kg |
| Compatibility | 900B08-0202, 900B16-0101 and others |
Applications
-
Industrial automation control systems
-
Process instrumentation signal wiring
-
Distributed I/O integration for analog output modules
-
Power plant and chemical plant signal conditioning
-
Seamless connection for Honeywell HC900 system modules
Advantages
-
Precision fit for Honeywell I/O analog modules ensures wiring reliability
-
DIN rail compatibility for quick installation and minimal panel space usage
-
Color-coded terminal blocks for enhanced safety (red for high voltage, black for low voltage)
-
Removable wiring under power allows safe maintenance and replacement
-
Euro-style block supports gold-plated contacts, improving conductivity and durability
常见问题 (FAQs)
Q1: What type / modules is the 900TCK-0001 compatible with?
A1: It is compatible with Honeywell ControlEdge HC900 analog output modules like 900B08-0202 and 900B16-0101.
Q2: Can this terminal block be mounted on any DIN rail?
A2: Yes, it is designed for standard 35mm DIN rail mounting.
Q3: Is the 900TCK-0001 suitable for high voltage applications?
A3: No, it is specifically designed for low voltage signal wiring; red terminal blocks are used for high voltage.
Q4: Does it come with built-in protection?
A4: It supports safe termination but does not include internal fuses; field-side protection is advised.
Q5: Is it removable under power?
A5: Yes, it supports module removal and installation under power with proper precautions.
Q6: What is the color coding significance?
A6: Black indicates low voltage usage; red terminal blocks (not for this model) indicate high voltage.
Q7: Can I use it for relay output wiring?
A7: No, this terminal block is optimized for analog signal termination, not relay output.
Q8: What wire sizes does it support?
A8: It typically supports 12-22 AWG wire size range.
Q9: Is the 900TCK-0001 RoHS compliant?
A9: Yes, it adheres to environmental standards applicable to the HC900 platform.
Q10: Is this block required for the 8 and 16 channel AO modules?
A10: Yes, it is required and specified for use with both 900B08 and 900B16 analog output modules.
Related 型号s in the Same Series
| 型号 | 描述 | Dimensions (mm) | 重量 |
|---|---|---|---|
| 900B08-0202 | 8-channel Analog Output Module | 137 × 35.6 × 25 | 0.40 kg |
| 900B16-0101 | 16-channel Analog Output Module | 137 × 35.6 × 25 | 0.41 kg |
| 900A01-0202 | 8-channel Analog Input (Universal) | 137 × 35.6 × 25 | 0.21 kg |
| 900A16-0103 | 16-channel High-Level Analog Input Module | 137 × 35.6 × 25 | 0.40 kg |
| 900G32-0101 | 32-point Digital Input Module (24VDC) | 137 × 35.6 × 25 | 0.18 kg |
| 900H01-0202 | 8-point Relay Output Module | 137 × 35.6 × 25 | 0.43 kg |
Popular Honeywell 型号s
| 型号 | 描述 | Dimensions (mm) | 重量 |
|---|---|---|---|
| 900C70-0460 | HC900 CPU Module | 137 × 38.1 × 25 | 0.40 kg |
| 900S75-0460 | Dual-port Scanner Module | 137 × 38.1 × 25 | 0.40 kg |
| 900P01-0301 | Power Supply 120/240VAC 60W | 137 × 72.6 × 25 | 0.82 kg |
| 900P24-0301 | Power Supply 24VDC 60W | 137 × 72.6 × 25 | 0.79 kg |
| 900K01-0201 | 4-Channel Pulse/Frequency I/O Module | 137 × 35.6 × 25 | 0.36 kg |
| 900G03-0202 | 16-point AC Digital Input Module | 137 × 35.6 × 25 | 0.21 kg |
