产品介绍

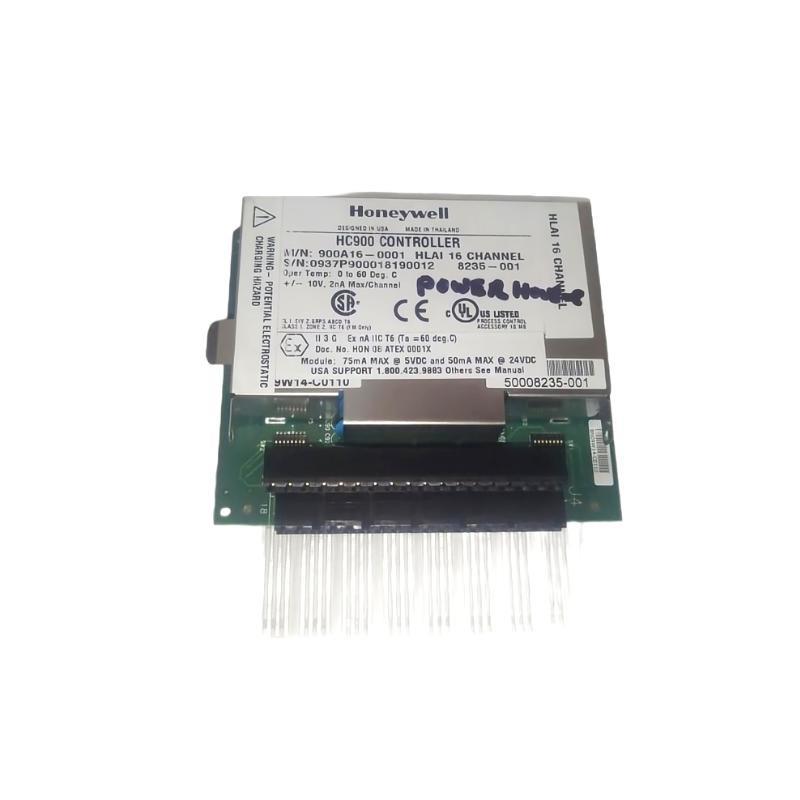

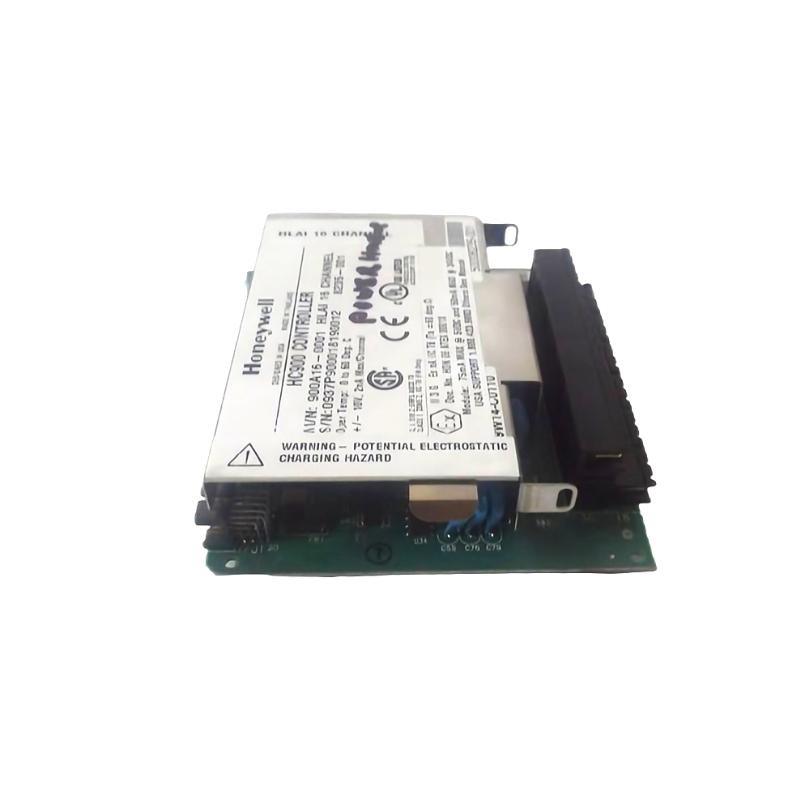

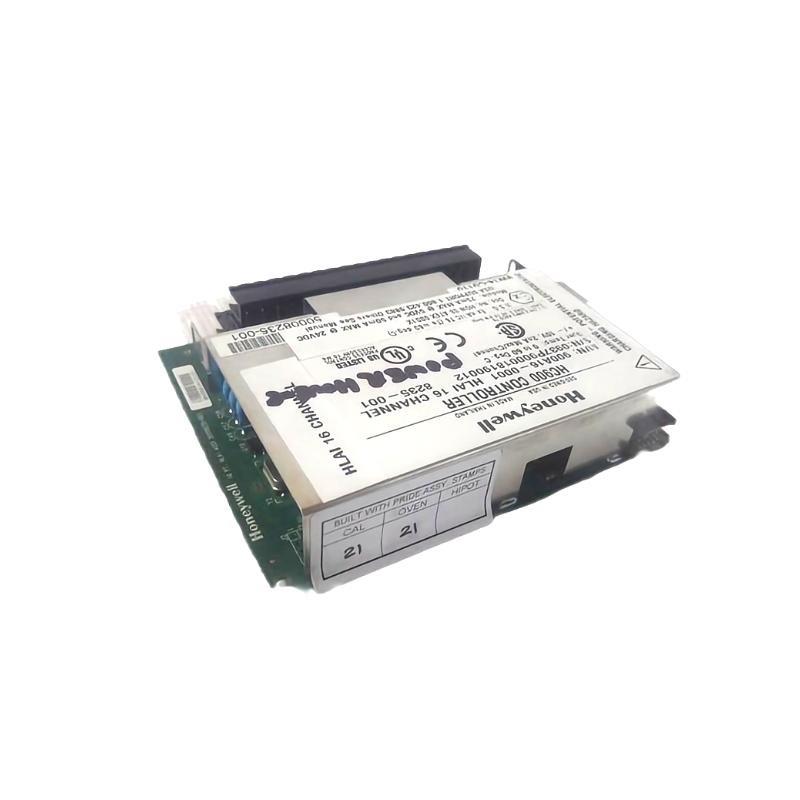

The Honeywell 900A16-0001 is a high-performance 16-channel Analog Input Module designed for demanding industrial process control environments. As part / the Experion® Process Knowledge System (PKS), it provides reliable and accurate measurement / analog signals from field instruments such as temperature transmitters, pressure sensors, and flow meters. Engineered with Honeywell’s renowned attention to quality and reliability, this module ensures seamless integration with Honeywell’s control systems, delivering consistent performance and operational efficiency in complex automation scenarios.
产品规格
| Parameter | 描述 |
|---|---|
| 型号 Number | 900A16-0001 |
| 制造商 | Honeywell |
| Type | Analog Input Module |
| Channels | 16 isolated channels |
| Input Signal Type | 4–20 mA DC (standard), other ranges configurable |
| Input Resistance | Typically 250 Ohms |
| Resolution | 16-bit |
| Accuracy | ±0.1% / span at 25°C |
| Scan Rate | Configurable, typical 10 ms/channel |
| Isolation | Channel-to-channel and channel-to-bus isolation |
| Power Supply | 24V DC nominal |
| Diagnostic Features | Signal quality diagnostics, open wire detection |
| Operating Temperature Range | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH non-condensing |
| Dimensions (H x W x D) | 137 x 35.6 mm |
| 重量 | 0.397 kg |
| Mounting Type | DIN rail or panel mount |
| Compatibility | Experion PKS and C300 Controller systems |
| Firmware | Upgradeable via Honeywell tools |
| Certifications | CE, UL, CSA, RoHS compliant |
Product Applications
The 900A16-0001 module is widely utilized in industrial automation systems where accurate analog data acquisition is crucial. Common application areas include:
-
Oil & Gas: Monitoring wellhead pressure and temperature.
-
Power Generation: Reading analog data from turbines and heat exchangers.
-
Chemical Processing: Real-time feedback from temperature and pH sensors.
-
Pharmaceuticals: 支持ing GxP compliance through reliable sensor readings.
-
Water & Wastewater Treatment: Monitoring flow, level, and turbidity signals.
-
Food & Beverage: Measuring temperature and pressure in hygienic processes.
Product Advantages
-
High Channel Density: 16 isolated channels in a single module, saving panel space.
-
Robust Signal Accuracy: High-resolution 16-bit conversion ensures precise readings.
-
Comprehensive Diagnostics: Integrated diagnostic capabilities for faster troubleshooting.
-
System Integration: Seamless operation with Experion PKS reduces configuration effort.
-
Industrial Durability: Designed for harsh environments with extended temperature and humidity ranges.
-
Flexibility: 支持s different analog signal types and user-defined ranges.
常见问题 (FAQ)
-
Q: What type / signals does the Honeywell 900A16-0001 support?
A: It supports standard 4–20 mA DC analog current signals, with configuration options for different ranges. -
Q: Can the module be mounted on any DIN rail?
A: Yes, it is compatible with standard DIN rail mounting, as well as panel mounting. -
Q: Does the module support hot-swap functionality?
A: No, power must be removed before replacing the module to prevent damage or data loss. -
Q: Is each channel isolated from others?
A: Yes, the module /fers full channel-to-channel isolation, which improves noise imm件y. -
Q: What diagnostic capabilities are built-in?
A: It includes open circuit detection, signal quality monitoring, and hardware fault indication. -
Q: What systems are compatible with the 900A16-0001?
A: It is designed to integrate with Honeywell Experion PKS and C300 Controller platforms. -
Q: Is firmware upgradable?
A: Yes, the module supports firmware upgrades via Honeywell system tools. -
Q: What is the power requirement for the module?
A: It operates on a 24V DC nominal power supply. -
Q: Does the module support redundant configuration?
A: Yes, it supports redundancy when used in a redundant controller environment. -
Q: What environmental conditions can it withstand?
A: Operating range is -20°C to +60°C, with up to 95% RH non-condensing humidity.
Recommended Related 型号s (Same Series or Function)
| 型号 Number | 描述 | Channels | Signal Type | Compatibility |
|---|---|---|---|---|
| 900A08-0001 | 8-Channel Analog Input Module | 8 | 4–20 mA | Experion PKS, C300 |
| 900C32-0001 | 32-Channel Digital Input Module | 32 | Digital | Experion PKS, C300 |
| 900P01-0101 | Pulse Input Module | 4 | Pulse | Experion PKS |
| 900RTD-0001 | 8-Channel RTD Input Module | 8 | RTD | Experion PKS, C300 |
| 900A04-0001 | 4-Channel High-Accuracy Analog Input Module | 4 | 4–20 mA | Experion PKS |
| 900R16-0001 | 16-Channel Relay Output Module | 16 | Relay | C300 Controller |
