产品介绍

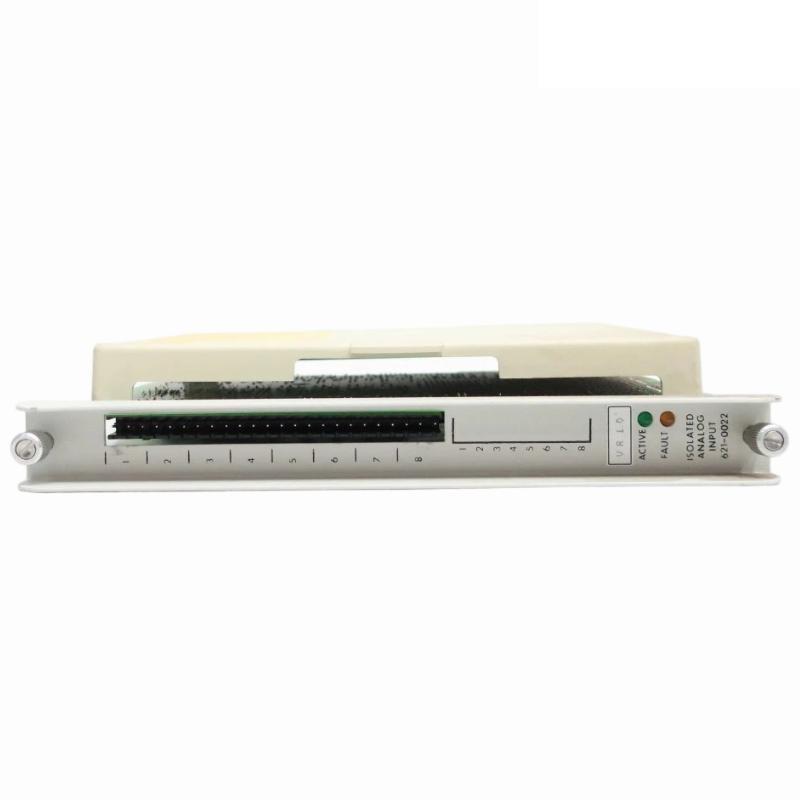

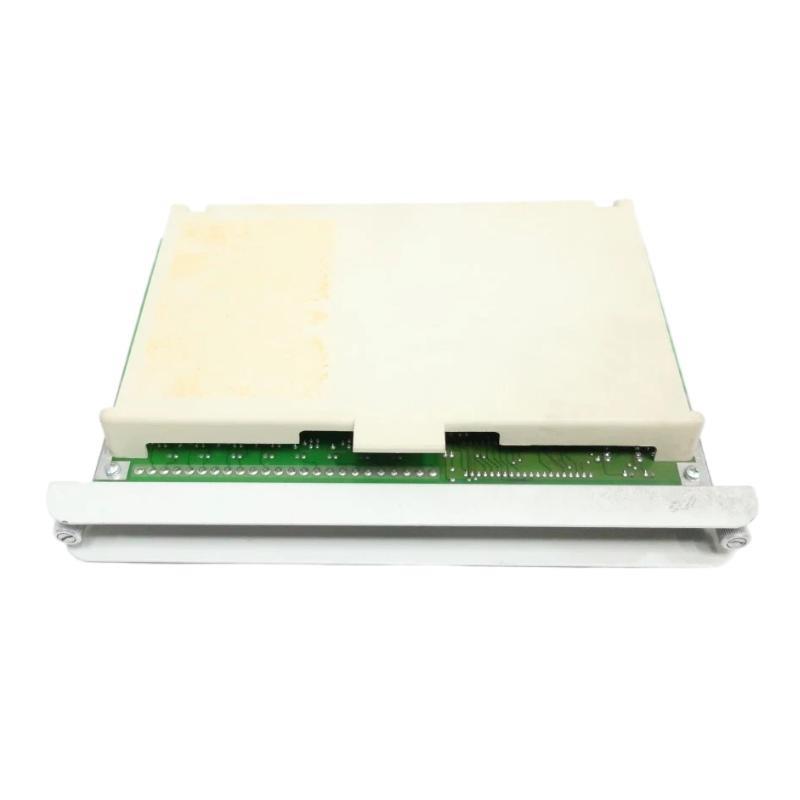

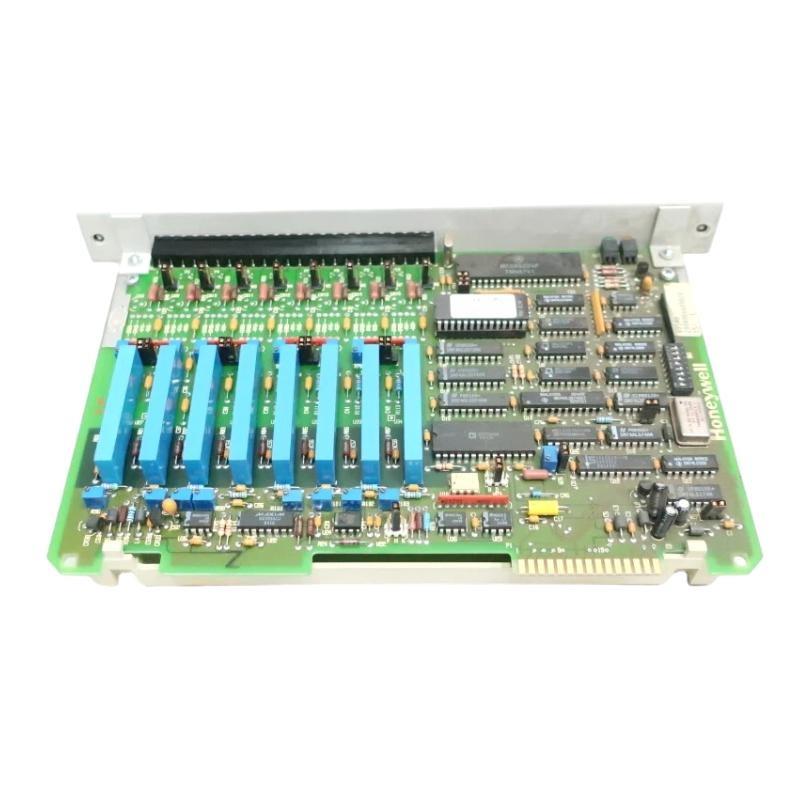

The Honeywell 621-0022 is a high-performance Isolated Analog Input Module designed for Honeywell’s TDC 2000/3000 and PlantScape control systems. As part / Honeywell’s robust control system architecture, this module plays a crucial role in process automation, /fering accurate and noise-resistant analog signal acquisition.
The 621-0022 module ensures safe and precise transmission / analog signals from field devices, such as pressure transmitters, temperature sensors, and flow meters, into the central control system. Its isolation capability prevents electrical interference, ensuring the integrity and reliability / data acquisition in critical industrial environments.
This module supports multiple analog signal types (e.g., 4–20 mA, 0–10 V) and is optimized for use in mission-critical applications such as chemical plants, oil & gas facilities, and energy production systems.
Technical Specifications
| Parameter | 描述 |
|---|---|
| 型号 Number | 621-0022 |
| Type | Isolated Analog Input Module |
| Signal Type | Analog (e.g., 4–20 mA, 0–10 V) |
| Number / Channels | 8 analog input channels |
| Input Isolation | Optical/electrical isolation per channel |
| Resolution | 12-bit or better (depends on system config) |
| Input Range | Configurable, typically ±10V or 0–20mA |
| Accuracy | ±0.1% / full scale |
| Power Consumption | Approx. 3W |
| Diagnostics | Internal diagnostics and fault detection |
| Operating Temperature Range | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature Range | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% RH, non-condensing |
| Mounting | DIN-rail or backplane slot |
| Dimensions (W x H x D) | 33 x 274 x 171 mm |
| 重量 | 0.68 kg |
| Compliance | CE, RoHS, ISA, UL certified |
Applications
The Honeywell 621-0022 module is engineered for critical industrial and manufacturing processes where reliable analog signal acquisition is required. Common application scenarios include:
-
Chemical and Petrochemical Plants
Reliable measurement / process variables like flow, temperature, and pressure. -
Oil and Gas Industry
Data acquisition from field instrumentation in upstream and downstream operations. -
Power Generation Plants
Monitoring / analog parameters in turbines, boilers, and generators. -
Water and Wastewater Management
Measuring levels, flow rates, and water quality indicators. -
Pharmaceutical Manufacturing
Accurate and isolated signal acquisition in cleanroom environments. -
Food & Beverage Processing
Monitoring temperature and pressure during critical process stages.
Key Advantages
-
Electrical Isolation
Each channel is isolated to eliminate ground loops and reduce noise, ensuring accurate readings. -
High Reliability
Designed for demanding industrial environments with robust diagnostics and fault detection. -
Flexible Signal 支持
Compatible with various analog signals (voltage and current), supporting diverse sensor types. -
Easy Integration
Seamless compatibility with 霍尼韦尔 systems like TDC 2000, TDC 3000, and PlantScape. -
Compact Design
Small footprint allows for efficient installation in tight cabinet spaces. -
Field-Proven Performance
Widely adopted in global industrial automation installations with proven long-term reliability.
常见问题 (FAQ)
-
What signal types does the 621-0022 support?
It supports both voltage (e.g., 0–10V) and current (e.g., 4–20mA) analog input signals. -
Is each input channel isolated?
Yes, each analog input channel features electrical isolation to prevent ground loops and noise. -
Can the 621-0022 be used in hazardous areas?
It should be used with proper intrinsic safety barriers or certified enclosures for hazardous zones. -
What Honeywell systems are compatible with this module?
It integrates seamlessly with Honeywell’s TDC 2000, TDC 3000, and PlantScape DCS platforms. -
Does it have onboard diagnostics?
Yes, the module includes fault detection and internal diagnostics to support maintenance. -
What is the typical accuracy / this module?
It /fers a typical accuracy / ±0.1% / full scale. -
How many channels does it provide?
The 621-0022 provides 8 isolated analog input channels. -
What installation options are available?
It can be mounted via DIN rail or inserted into a backplane slot. -
Is calibration required for each channel?
Factory calibration is provided, but periodic calibration may be required depending on process needs. -
What kind / isolation is used?
Typically, optical or transformer-based isolation techniques are used to ensure signal integrity.
Related 型号s (Same Series or Similar Functionality)
| 型号 | 描述 | Channels | Signal Type |
|---|---|---|---|
| 621-0021 | Analog Input Module, Non-Isolated | 8 | Voltage/Current |
| 621-0023 | Isolated Analog Output Module | 8 | Voltage/Current |
| 621-0016 | Digital Input Module | 16 | Binary |
| 621-0017 | Digital Output Module | 16 | Relay/Transistor |
| 621-9932 | 32-Channel Analog Multiplexer Module | 32 | Analog Switching |
| 620-0081 | Remote I/O Communication Interface | – | Communication Module |
