产品介绍

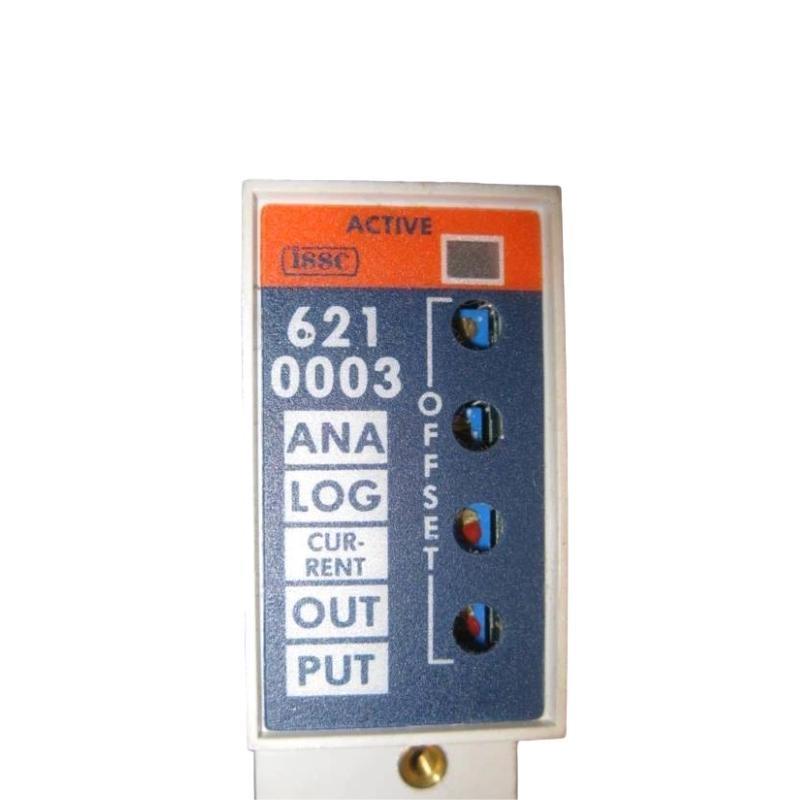

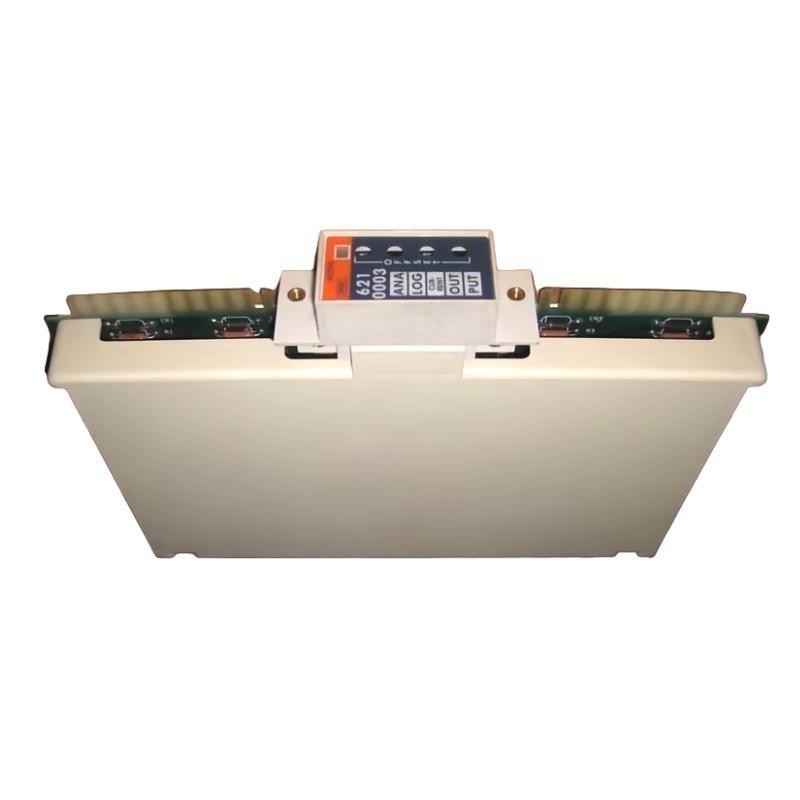

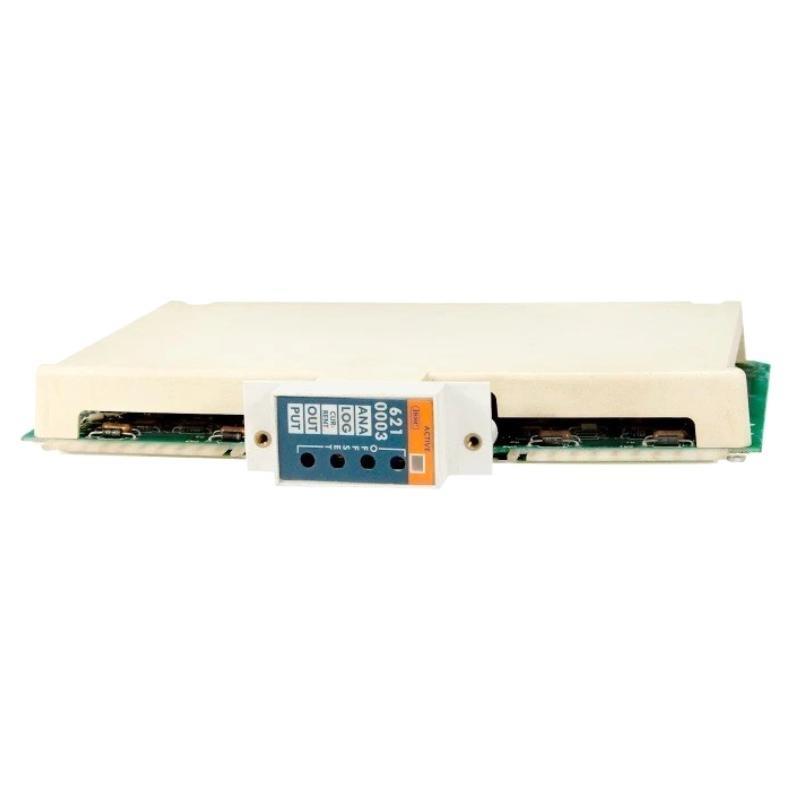

The Honeywell 621-0003 Analog Output Module is a high-performance industrial output interface designed for precision control in distributed control systems (DCS) and process automation environments. As part / Honeywell’s IPC 620 series, this module delivers accurate and reliable analog output signals to field devices such as actuators, valves, and control drives. Built with robust electronic circuitry, it ensures high signal stability and minimal drift over time, making it ideal for demanding industrial applications.
Its architecture supports multiple configurable output ranges, enabling flexible integration with various field instruments and process control requirements. It incorporates advanced filtering and isolation to minimize interference, ensuring smooth and accurate signal delivery. The module’s design prioritizes operational reliability, reducing downtime in mission-critical environments.
Product Parameters
| Parameter | Specification |
|---|---|
| 制造商 | Honeywell |
| Product 型号 | 621-0003 |
| Product Type | Analog Output Module |
| Number / Output Channels | 8 independent channels |
| Output Signal Types | 4–20 mA, 0–20 mA, 0–10 V, ±10 V (configurable) |
| Output Resolution | 12-bit or higher |
| Accuracy | ±0.1% / full scale |
| Isolation | Channel-to-channel and channel-to-system isolation |
| Update Rate | ≤ 10 ms per channel |
| Power Supply | Provided via system backplane |
| Operating Temperature Range | 0°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Compliance | CE, UL, and CSA certified |
| Dimensions | 230 × 40 × 160 mm |
| 重量 | 0.45 kg |
Product Applications
The Honeywell 621-0003 Analog Output Module is widely used in various process industries for real-time control and signal transmission to field devices. Typical applications include:
-
Process Control Systems – Driving control signals to valves, dampers, and actuators.
-
Power Generation – Output control to turbines, boiler feed systems, and auxiliary equipment.
-
Chemical and Petrochemical Plants – Accurate dosing and flow control operations.
-
Water and Wastewater Management – Pump speed control and dosing system actuation.
-
Oil & Gas – Remote wellhead and pipeline equipment control.
-
Manufacturing Automation – Precision control in batch production processes.
Product Advantages
-
High Accuracy and Stability – Ensures precise control over long-term operation.
-
Multiple Output Ranges – Flexible integration with different field devices.
-
Advanced Signal Isolation – Reduces noise interference for cleaner outputs.
-
Fast Update Rates – Enhances system responsiveness in dynamic environments.
-
Industrial-Grade Reliability – Rugged design suitable for harsh operating conditions.
-
Seamless Integration – Fully compatible with the Honeywell IPC 620 series control platform.
FAQ
-
How many channels does the 621-0003 provide?
It supports 8 fully independent analog output channels. -
Can the module output both voltage and current signals?
Yes, it supports multiple output types including voltage and current. -
Does the module provide channel-to-channel isolation?
Yes, each output channel is isolated from the others to reduce interference. -
What is the typical resolution / the outputs?
The module /fers 12-bit or higher resolution depending on configuration. -
Is the output range s/tware configurable?
Yes, output ranges can be configured via the control system s/tware. -
Can the module be used in high-vibration environments?
Yes, it meets industrial vibration and shock standards. -
What is the maximum load resistance for current output mode?
Typically up to 750 ohms depending on the configuration. -
Does the module require external power for outputs?
No, power is supplied through the backplane connection. -
Is there built-in fault detection for outputs?
Yes, it supports diagnostics for open circuit and short circuit conditions. -
Can the module be hot-swapped during operation?
No, the system should be powered down before replacing the module.
Recommended Related 型号s – Same Series or Similar
| 型号 | 描述 | Key Features |
|---|---|---|
| 621-0001 | Analog Input Module | High-accuracy multi-channel analog signal acquisition |
| 621-0002 | Digital Input Module | Fast and isolated digital signal detection |
| 621-0004 | Digital Output Module | Relay and transistor-based digital control outputs |
| 621-0005 | Mixed I/O Module | Combination / analog and digital channels in one module |
| 621-0007 | High-Speed Counter Module | High-frequency pulse counting and measurement |
| 621-0010 | Temperature Input Module | Multi-type thermocouple and RTD input capability |
Popular Honeywell 型号s – Same 品牌
| 型号 | 描述 | Key Features |
|---|---|---|
| 620-0057 | I/O Control Module | Centralized control for distributed I/O |
| 621-0012 | ASCII Communication Module | Serial ASCII-based device communication |
| 621-0009 | Simulator Input Module | Signal simulation for testing and commissioning |
| 621-0021 | Pulse Input Module | High-speed pulse and frequency measurement |
| CC-PUIO01 | Universal I/O Module | Flexible mixed-signal I/O for Experion systems |
| CC-TDIL01 | Digital Input Module | Rugged and isolated digital signal acquisition |
