产品介绍

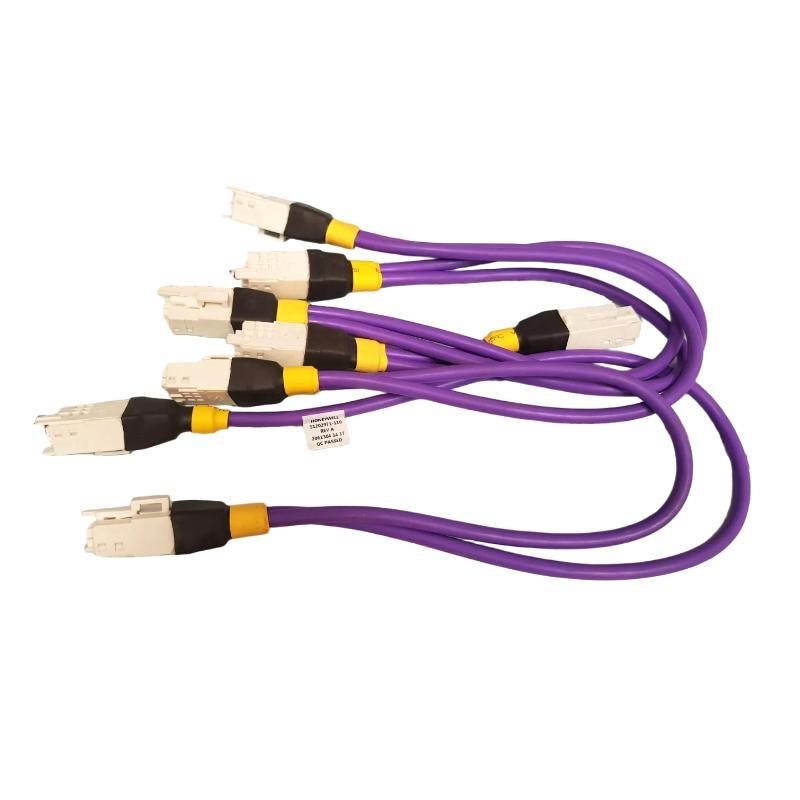

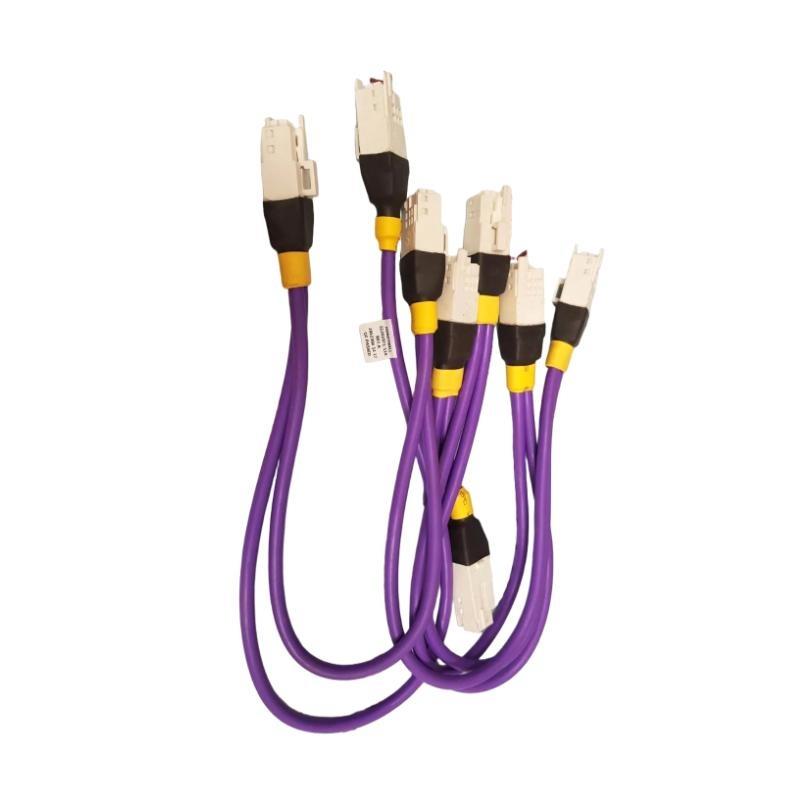

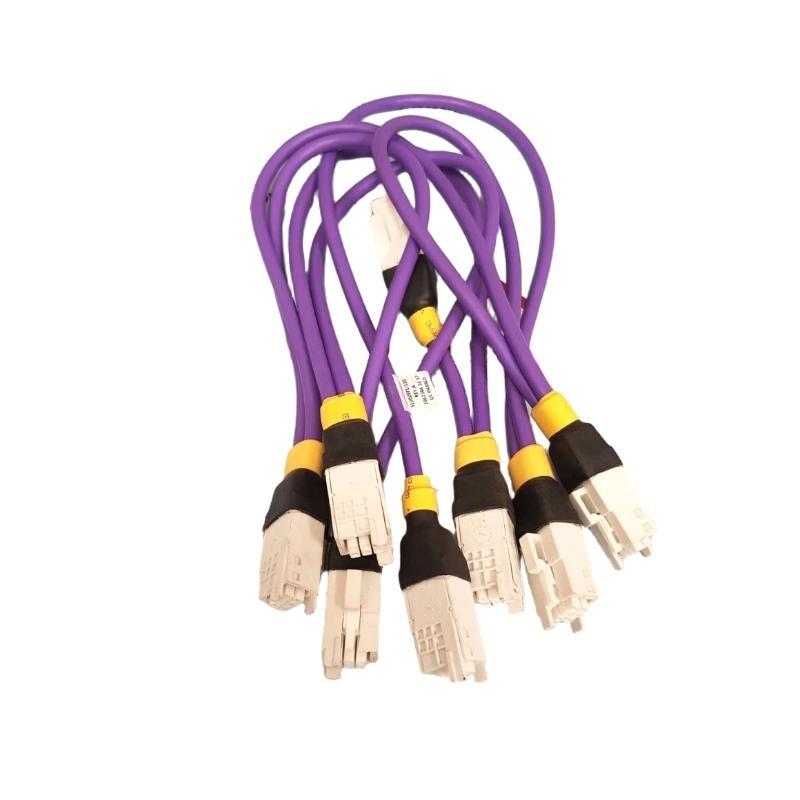

Honeywell’s 51202971-212 cable is a high-performance, industrial-grade cable designed for Honeywell distributed control system (DCS) environments. This cable, in a four-branch configuration , provides reliable, low-noise connections for I/O modules, controllers, and field devices. It plays a vital role in maintaining accurate data transmission in mission-critical process automation networks.
The 51202971-212 utilizes shielded multi-conductor technology to minimize electromagnetic interference (EMI), ensuring excellent signal integrity. EMI is common in industrial environments such as power plants, oil and gas facilities, and manufacturing plants. Its robust insulation and durable jacket ensure reliable operation in harsh conditions.
This cable is optimized for Honeywell Experion PKS and TDC 3000 systems, ensuring seamless integration with existing DCS infrastructure. Its 4-point configuration makes it ideal for applications requiring multiple connection points while maintaining a compact and manageable installation form factor.
产品规格
| scope | value |
|---|---|
| 型号 | Honeywell Cable |
| 零件号 | 51202971-212 |
| brand | Honeywell |
| Cable Type | Shielded multi-core industrial cable |
| Inlet cable | 4 drops |
| Conductor material | Tinned copper |
| Insulation | PVC/XLPE industrial-grade insulation |
| Shielding | Foil + Braided Shield |
| Voltage Rating | 300V |
| Impedance | 120 Ohms ± 10% |
| Capacitance | Low capacity for high-speed data integrity |
| Operating Temperature | -20°C to +80°C |
| Storage Temperature | -40°C to +85°C |
| Outer Jacket Color | Honeywell Standard |
| 重量 | 0.2 kg |
| Compliance | CE, UL, RoHS, IEC standards |
Applications
-
霍尼韦尔 Systems: Establishes reliable communication between I/O modules and controllers.
-
Process Automation: Ensures accurate data transfer in critical industrial networks.
-
Multi-Point Connections: The 4-drop configuration is ideal for compact distributed I/O setups.
-
Oil & Gas Facilities: Designed to perform in high-noise and hazardous refinery environments.
-
Power Generation: Provides stable control signal wiring for turbines, generators, and substations.
-
Manufacturing Automation: Facilitates data exchange in automated production lines and control panels.
Product Advantages
-
4-Drop Configuration: Efficiently connects multiple I/O points with minimal cabling complexity.
-
优秀 Signal Integrity: Shielded construction minimizes EMI and ensures consistent communication.
-
Industrial Reliability: Built to withstand harsh operational environments and temperature fluctuations.
-
Optimized for Honeywell Systems: Fully compatible with Experion PKS and TDC 3000 DCS platforms.
-
Low Capacitance Design: Maintains high-speed and accurate signal transmission with minimal loss.
-
Compact and Lightweight: At 0.2 kg, it allows easy installation and routing in control panels.
-
Compliance with Global Standards: Certified to CE, UL, and RoHS standards for safety and environmental requirements.
FAQ
-
What is the drop configuration / the Honeywell 51202971-212 cable?
It is designed with a 4-drop configuration for multi-point I/O connections. -
What type / conductor material does this cable use?
It uses high-quality tinned copper conductors for reliable conductivity and corrosion resistance. -
Does the cable include EMI protection?
Yes, it uses foil and braided shielding to minimize electromagnetic interference. -
Is the Honeywell 51202971-212 compatible with Experion PKS and TDC 3000 systems?
Yes, it is fully optimized for seamless integration with both 霍尼韦尔 platforms. -
Can this cable handle both analog and digital communication signals?
Yes, it is suitable for low-level analog and high-speed digital signal transmission. -
What is the impedance rating / the 51202971-212 cable?
It maintains a characteristic impedance / 120 Ohms ±10%, meeting industrial communication standards. -
Is this cable suitable for high EMI industrial environments?
Yes, its double shielded design provides excellent noise imm件y in harsh conditions. -
In what temperature range can the cable operate?
In continuous industrial applications, it can operate reliably between -20°C and +80°C. -
Is the Honeywell 51202971-212 RoHS and UL compliant?
Yes, it is compliant with CE, UL, RoHS and IEC standards, meeting global safety and environmental requirements. -
Does the lightweight design compromise durability?
序号 Although it weighs only 0.2 kg, it is designed to meet stringent industrial durability standards.
Related models from the same series
| 型号 | Cable Type | Main Features |
|---|---|---|
| 51202971-210 | Input/output connecting cables | 2-point configuration for small I/O setups |
| 51202971-211 | Input/output connecting cables | 3-point configuration for medium I/O connections |
| 51202971-213 | Input/output connecting cables | 6-point configuration for expanded I/O points |
| 51202971-214 | Input/output connecting cables | Heavy-duty shielding for high EMI areas |
| 51202971-215 | Input/output connecting cables | Optimized for redundant network architecture |
| 51202971-216 | Input/output connecting cables | Custom configurable to specific Honeywell systems |
Popular Honeywell 型号s
| 型号 | Function | Main Features | Application Focus |
|---|---|---|---|
| 51202971-110 | Input/output connecting cables | 6-point configuration for multi-point I/O | |
| 51202905-200 | Input/output connecting cables | Shielded design ensures stable DCS communication | |
| 51202902-100 | Industrial communication cables | Multi-conductor anti-electromagnetic interference design | Process Automation and DCS Systems |
| 51202789-901 | Violet Cable | Low-noise shielded signal cable | 霍尼韦尔 wiring |
| MU-TDOY22 51204162-125 | Digital Output FTA | 32-channel digital output interface | Process control and field wiring |
| MU-TSDM02 51303932-202 | Serial Device Interface | Dual-channel Modbus/RS-485 support | Serial communication integration |
