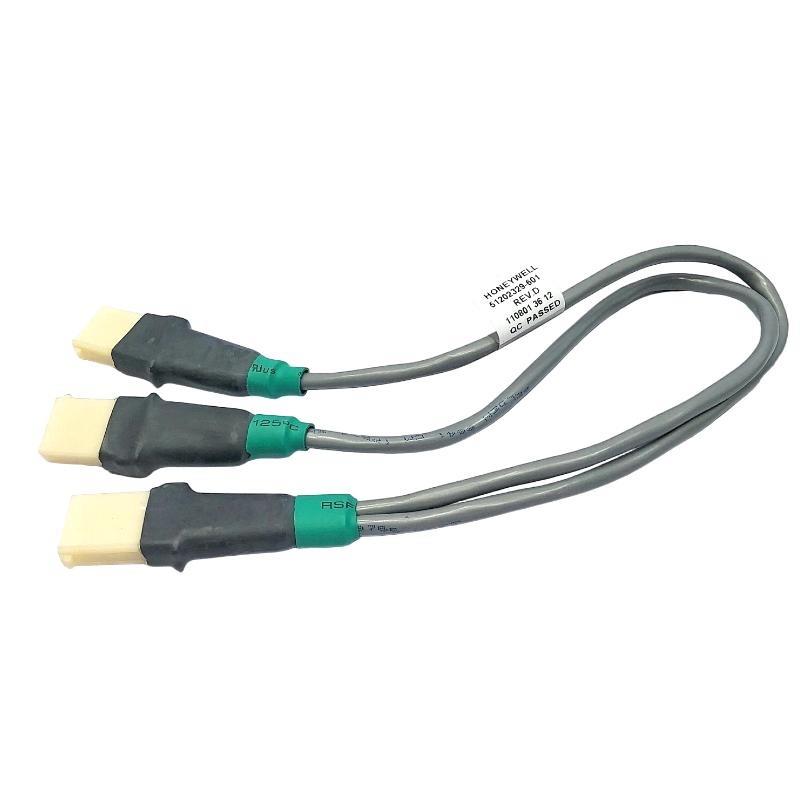

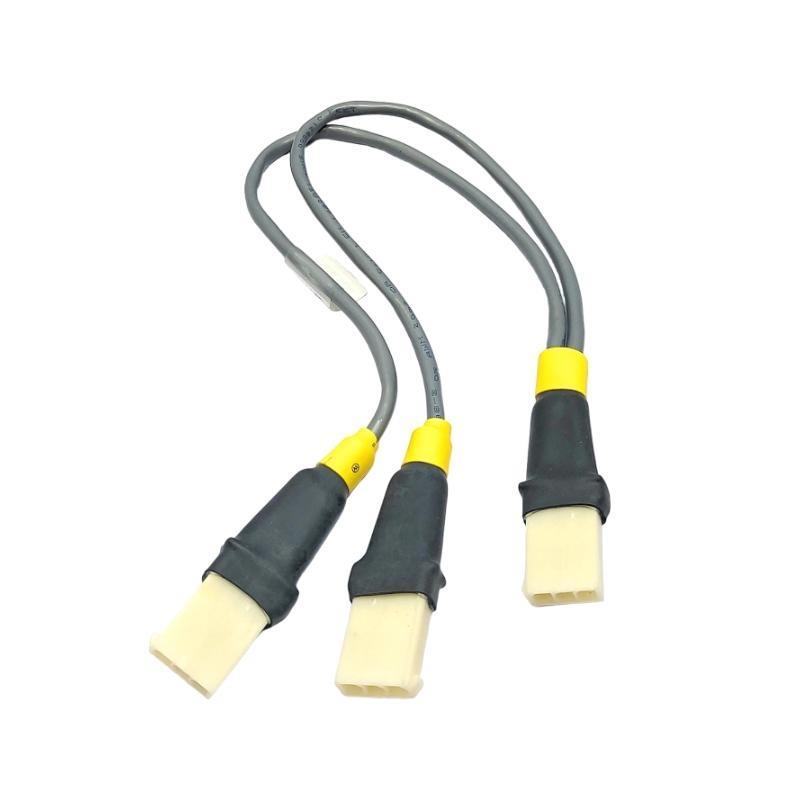

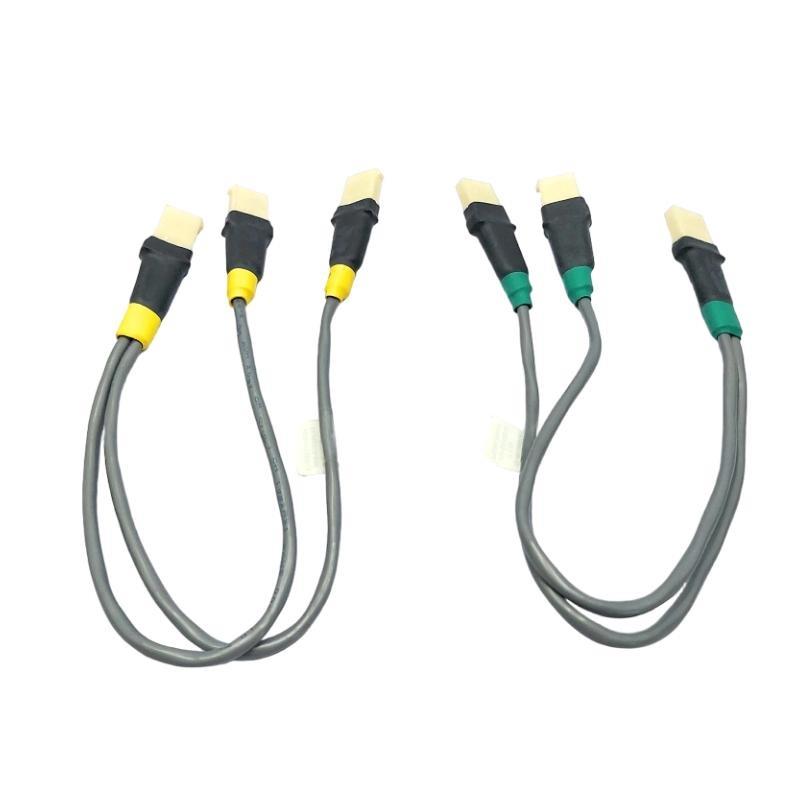

The Honeywell 51202329-601 Drop Cable is a durable, industrial-grade communication cable developed for use in Honeywell’s TDC 3000 distributed control systems. Unlike its violet counterparts, this version features a grey outer jacket, which may be designated for specific system segments or custom-configured network zones.
Designed to withstand the harsh conditions / industrial environments, this cable provides reliable signal transmission, superior electromagnetic shielding, and physical durability required for mission-critical process control networks. Its combination / foil and braid shielding ensures minimal interference even in electrically noisy environments such as oil refineries, chemical plants, and power generation facilities.
The 51202329-601 cable is engineered for long-term performance and is widely used in installations where high-quality data transfer and mechanical reliability are non-negotiable.
产品规格
| Parameter | Specification |
|---|---|
| 型号 Number | 51202329-601 |
| Product Type | Drop Cable |
| 制造商 | Honeywell |
| Jacket Color | Grey |
| Conductor Type | Twisted Pair, Tinned Copper |
| Conductor Size | 22 AWG |
| Shielding | Foil and Braided Shielding |
| Jacket Material | Industrial PVC |
| Insulation Material | Flame-retardant PVC |
| Rated Voltage | 300V |
| Impedance | 150 Ohms ±10% |
| Operating Temperature | -40°C to +85°C |
| Flame Retardancy | UL Listed Flame-Retardant |
| Certifications | UL, CSA, CE |
| Outer Diameter | 7.5 mm |
| Package 重量 | 3 kg |
| Drop Cable | 3 Drop |
| Application Compatibility | Honeywell TDC 3000, process automation cabling |
Applications
The Honeywell 51202329-601 Drop Cable is purpose-built for high-integrity industrial communication. Common applications include:
-
Honeywell TDC 3000 Distributed Control System
Establishes reliable links between controllers and I/O modules in critical process systems. -
Power Generation Plants
Ensures signal reliability in high-EMI and high-temperature environments typical / turbines and boilers. -
Oil & Gas Refineries
Operates efficiently in chemically aggressive environments, supporting real-time process monitoring and control. -
Chemical Processing Facilities
Transmits control signals with minimal interference in complex batch control systems. -
Factory Automation
Used in assembly lines and discrete manufacturing for controller-peripheral communication. -
Network Segment Cabling (Grey Color Coded)
Allows segmentation or zone separation in complex DCS installations for visual management.
Product Advantages
-
Industrial Strength Construction
Built with high-grade materials for durability in challenging field conditions, including vibration, heat, and moisture. -
Superior EMI Protection
The dual-layer shielding—aluminum foil and braided copper—ensures stable signal transmission in high-noise environments. -
Distinct Grey Jacket
Enables cable zoning and easy differentiation within large-scale industrial wiring infrastructure. -
Flexible and Easy to Install
The 7.5 mm outer diameter and flexible design allow smooth installation in cable trays, conduits, and tight enclosures. -
Long-Term Signal Integrity
Impedance-controlled design helps maintain data integrity over long distances without signal degradation. -
Regulatory Compliance
Certified for safety and performance under UL, CSA, and CE standards, with flame-retardant ratings for added protection.
常见问题 (FAQ)
1. What system is the Honeywell 51202329-601 cable designed for?
This cable is specifically intended for use with Honeywell TDC 3000 systems, ensuring robust communication between I/O components.
2. What is the jacket color and why is it grey?
The jacket is grey, which is sometimes used to segment or organize cabling by function or network area within a facility.
3. What kind / shielding does this cable provide?
It features both foil and braided shielding, delivering dual-layer EMI protection in industrial settings.
4. Can it be used in areas with exposure to oil or chemicals?
Yes. The PVC jacket is resistant to oil, solvents, and other industrial chemicals.
5. Is this cable suitable for both analog and digital signals?
Yes. It can support both types / signals, depending on the system configuration.
6. What are the temperature limitations?
It operates reliably within a range / -40°C to +85°C.
7. Can this cable be installed in confined spaces?
Yes. Its flexible construction and 7.5 mm diameter make it suitable for installations in tight or complex routes.
8. Is the cable flame-retardant?
Yes. It is UL flame-rated and suitable for safety-critical environments.
9. What are the conductors made /?
The conductors are made from tinned copper, which resists corrosion and provides excellent conductivity.
10. Is the cable compatible with other Honeywell components?
Yes. It integrates seamlessly with other Honeywell I/O modules, network nodes, and communication interfaces.
