Product Overview

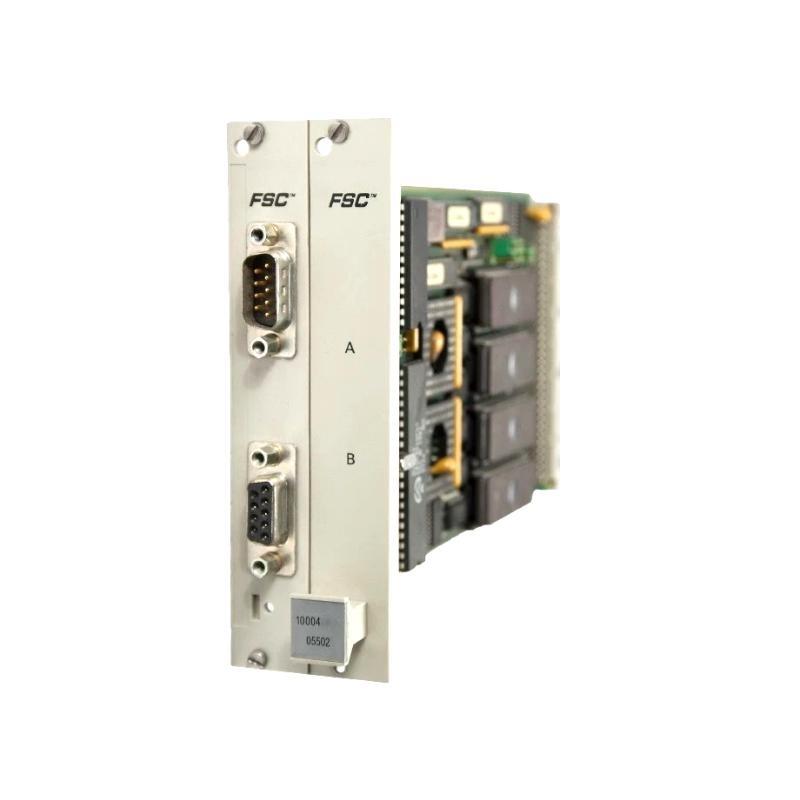

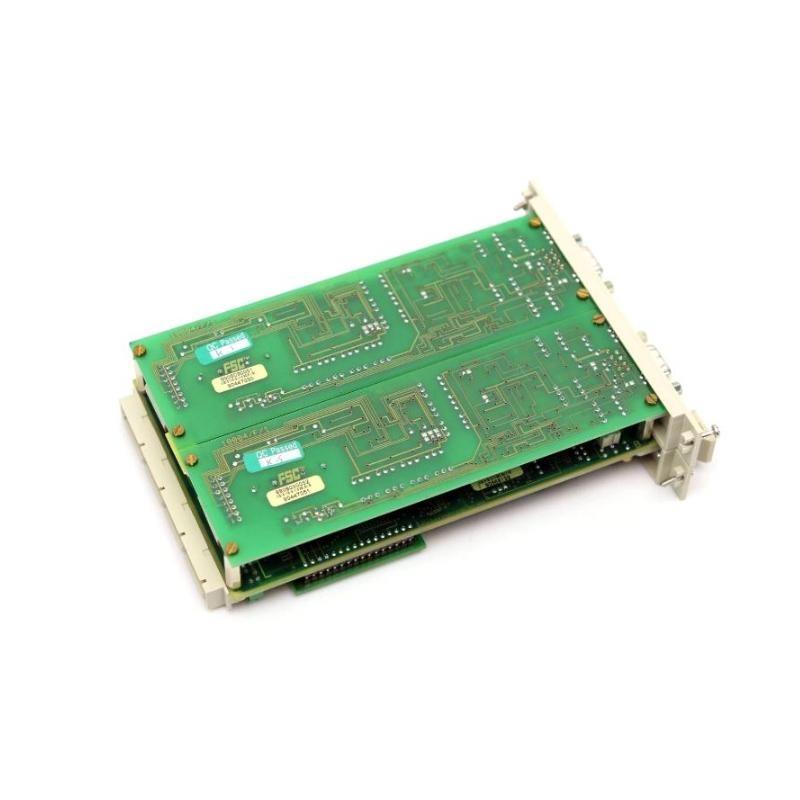

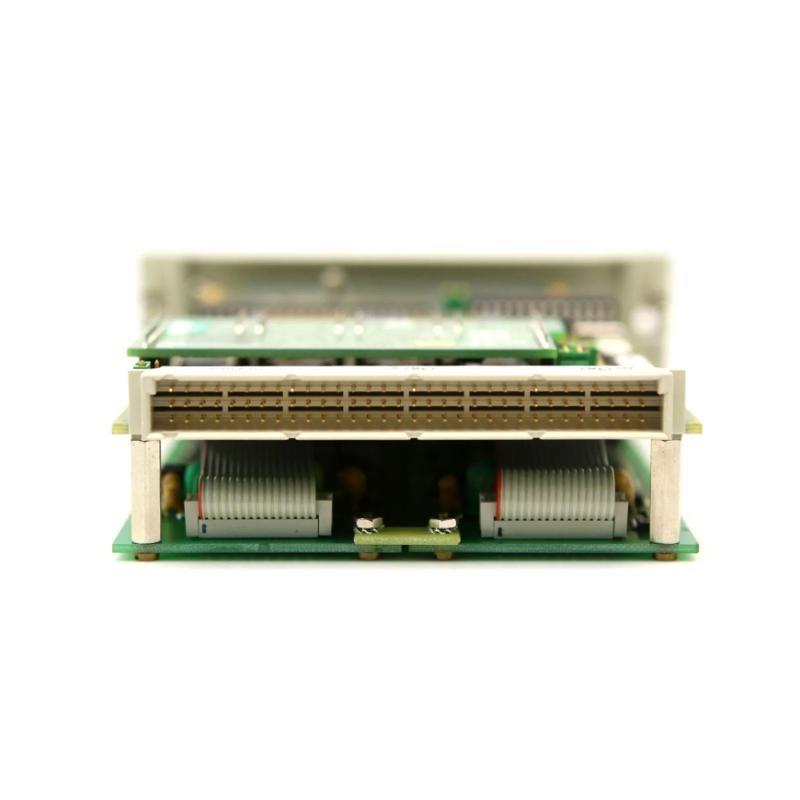

The Honeywell 10014/H/F is a communication module designed for the Fault Tolerant System (FSC), forming an essential part / process control safety solutions. This module facilitates the seamless communication between the FSC and other systems using standard industrial communication protocols. It ensures deterministic, safe, and reliable data exchange in critical applications such as emergency shutdown (ESD), burner management systems (BMS), and fire and gas systems (FGS).
Technical Specifications
| Parameter | Value |
|---|---|
| 型号 | 10014/H/F |
| Function | Communication Interface Module |
| System | Honeywell FSC (Fault Tolerant Control) |
| Protocol 支持 | FSC Serial Communication |
| Voltage Range | 18–32 VDC |
| Power Consumption | 3.5 W (typical) |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -40 to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions | 40 x 185 x 128 mm |
| 重量 | 0.36 kg |
Applications
-
Emergency Shutdown Systems (ESD)
-
Fire and Gas Detection Systems (FGS)
-
Burner Management Systems (BMS)
-
Process Safety Management in Refineries and Petrochemicals
-
Safety Systems in Power Generation
-
Offshore and Onshore Oil & Gas Platforms
Advantages
-
High Reliability: Ensures dependable communication for critical safety operations.
-
Deterministic Communication: Guarantees real-time response during process upsets.
-
FSC Integration: Seamlessly integrates with the Honeywell FSC platform.
-
Compact Design: 保存s space while /fering full communication capability.
-
Industry Proven: Widely deployed in hazardous and mission-critical environments.
-
Low Power Operation: Energy efficient for long-term usage.
常见问题 (FAQ)
Q1: What systems is the 10014/H/F module compatible with?
A1: It is designed for Honeywell’s Fault Tolerant Control (FSC) systems.
Q2: What is the power requirement for this module?
A2: The module operates at 18–32 VDC and typically consumes 3.5 W.
Q3: Can it be used in /fshore installations?
A3: Yes, it’s suitable for both /fshore and onshore applications.
Q4: What communication protocol does it support?
A4: It supports FSC serial communication protocols.
Q5: What is the typical operating temperature range?
A5: 0°C to 60°C.
Q6: Is the module suitable for fire and gas systems?
A6: Yes, it is /ten used in FGS applications.
Q7: How much does the module weigh?
A7: It weighs approximately 0.36 kg.
Q8: Can it be installed in high-humidity environments?
A8: Yes, it operates in up to 95% non-condensing humidity.
Q9: Does it /fer hot-swappable capability?
A9: No, power must be removed before installation/removal.
Q10: How compact is the device?
A10: The dimensions are 40 x 185 x 128 mm, ideal for rack-based systems.
Related 型号s from the Same Series
| 型号 | 描述 | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|
| 10008/1/1 | FSC Processor Module | 40 x 185 x 128 | 0.42 |
| 10012/1/2 | FSC Digital Input Module | 40 x 185 x 128 | 0.38 |
| 10013/2/1 | FSC Digital Output Module | 40 x 185 x 128 | 0.40 |
| 10014/1/1 | FSC Communication Module (Basic) | 40 x 185 x 128 | 0.36 |
| 10018/1/1 | FSC Analog Input Module | 40 x 185 x 128 | 0.41 |
| 10020/1/1 | FSC Power Supply Module | 40 x 185 x 128 | 0.50 |
Popular Honeywell 型号s
| 型号 | 描述 | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|
| 8C-PAIHA1 | Analog Input with HART Module | 40 x 228 x 130 | 0.42 |
| 8C-PCNT01 | C300 Controller | 40 x 260 x 130 | 0.54 |
| 8C-PAOHA1 | Analog Output with HART Module | 40 x 228 x 130 | 0.40 |
| 8C-PDILA1 | Digital Input Module | 40 x 228 x 130 | 0.38 |
| 8C-PDODA1 | Digital Output Module | 40 x 228 x 130 | 0.39 |
| FC-IO-0001 | Field Control I/O Expansion Module | 40 x 260 x 130 | 0.45 |
