Product Introduction

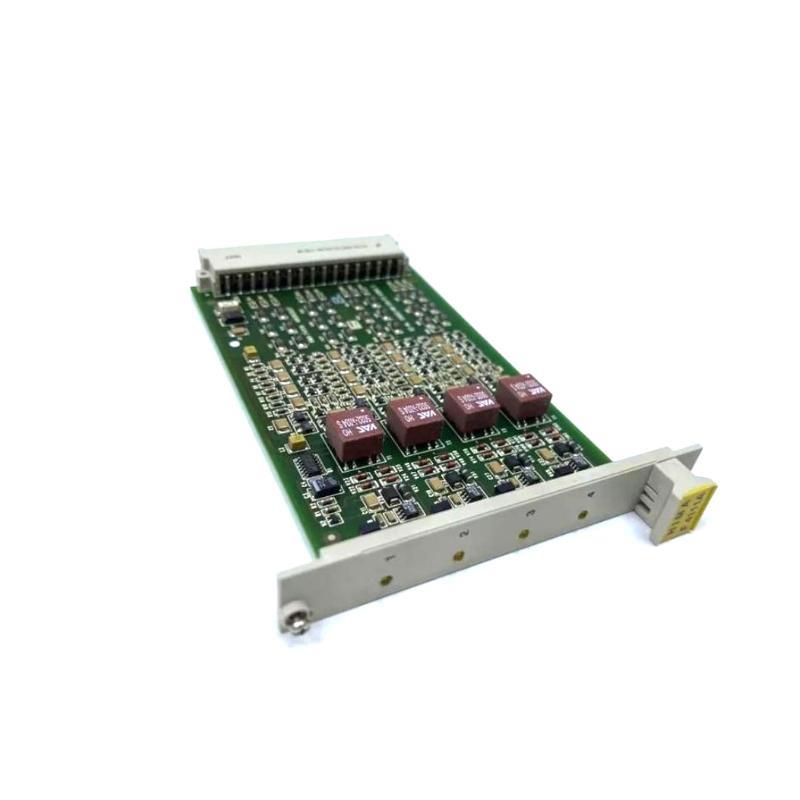

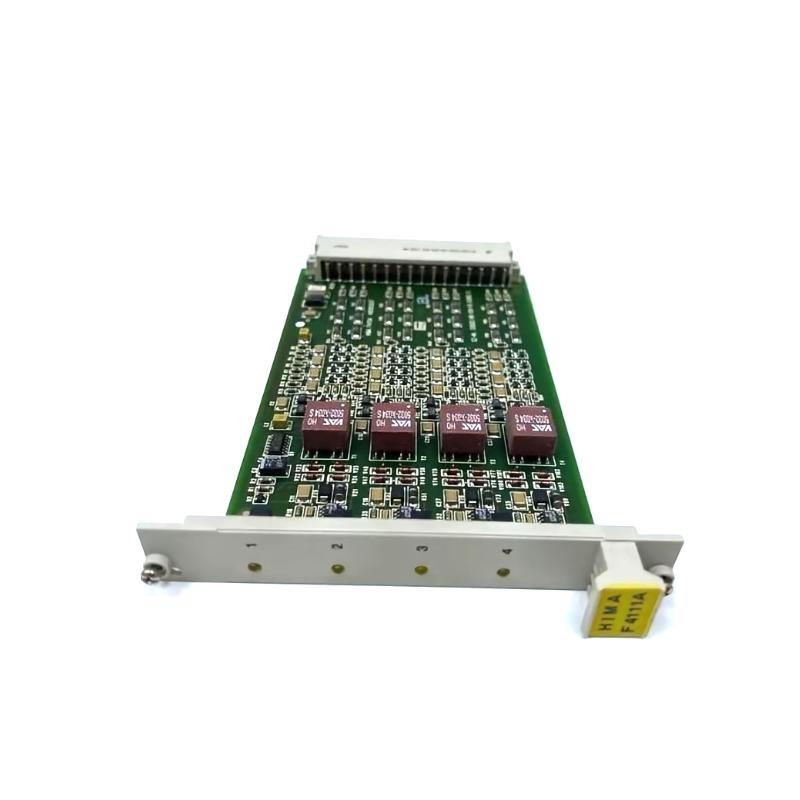

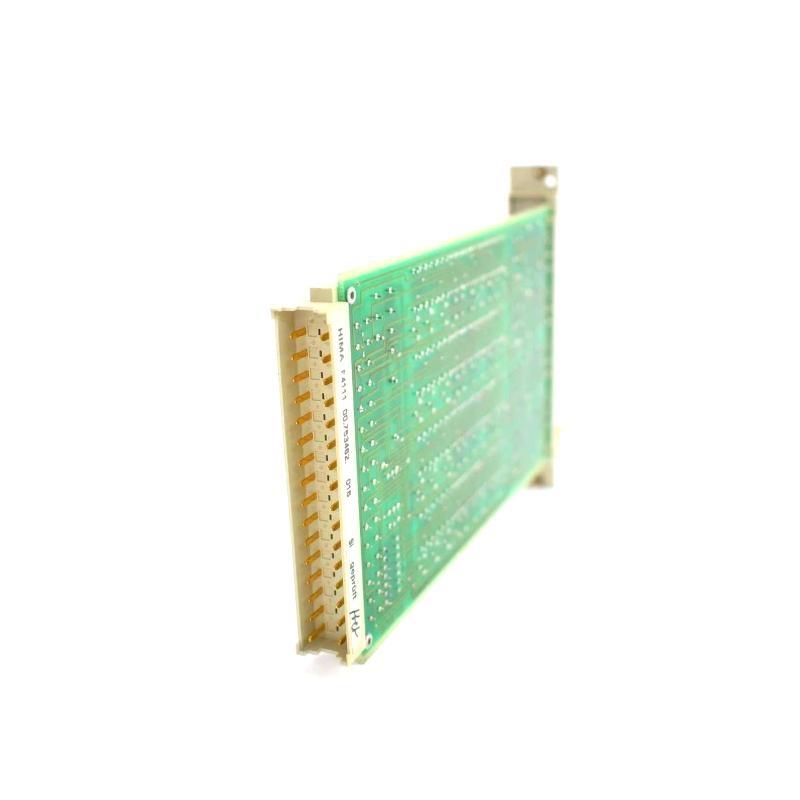

The HIMA F4111 is a high-reliability, safety-related I/O module designed for use within SIL-rated safety instrumented systems. With four independent input channels and integrated door monitoring, the F4111 is engineered for applications that demand strict compliance with safety standards such as IEC 61508 and EN 54. As part / HIMA’s renowned safety system platform, the module ensures reliable signal acquisition and safety shutdown performance in critical industrial environments.
The F4111 module operates within the HIMA HIMax or HIQuad X systems and is commonly used in process industries such as oil & gas, chemical, and power generation. Its robust design includes diagnostic features, galvanic isolation, and compliance with harsh environment standards, making it a preferred choice for high-integrity safety applications.
产品规格
| Parameter | Specification |
|---|---|
| 型号 Number | F4111 |
| Product Type | Safety-Related Four-Channel Input and Door Module |
| Channels | 4 Safety-Related Inputs |
| Door Monitoring | Integrated Door Monitoring |
| Safety Integrity Level (SIL) | SIL3 (in accordance with IEC 61508) |
| Diagnostic Features | Yes, full per-channel diagnostics |
| Galvanic Isolation | Yes, channel-to-channel and system isolation |
| Voltage Range | 18 – 30 V DC |
| Current Consumption | ≤ 100 mA |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 10% to 95% RH, non-condensing |
| Mounting Type | DIN rail |
| Dimensions (H x W x D) | 100 x 50 x 30 mm |
| 重量 | 0.159 kg |
| System Compatibility | HIMax, HIQuad X |
| Certification | CE, ATEX, IECEx, SIL3 |
| LED Indicators | Status, Error, Channel-specific indicators |
Product Applications
The HIMA F4111 is widely used in safety-critical environments where reliable input monitoring and safety logic execution are essential. Its key application sectors include:
-
Petrochemical Plants: Emergency Shutdown (ESD) systems, Fire & Gas detection systems.
-
Power Generation: Turbine control and overspeed protection systems.
-
Oil & Gas Platforms: Process interlock and blowout preventer systems.
-
Chemical Industry: Reactor safety, overpressure protection.
-
Water Treatment: Pump and valve interlock mechanisms.
-
Pharmaceuticals: Cleanroom environmental monitoring and alarm interlocks.
Product Advantages
-
Certified for SIL3 Applications: Ensures compliance with international functional safety standards.
-
Integrated Diagnostics: Advanced fault detection and status feedback reduce downtime and simplify maintenance.
-
Four Isolated Channels: Provides high availability and fault tolerance with independent input monitoring.
-
Built-in Door Monitoring: Enhances physical access control and safety.
-
Galvanic Isolation: Prevents cross-channel interference, ensuring signal integrity.
-
Robust Environmental Tolerance: Suitable for extreme temperatures and high humidity conditions.
-
System Integration: Seamless compatibility with HIMA HIMax and HIQuad X platforms.
-
Compact and Lightweight: Ideal for cabinet installation with limited space.
-
Field-Proven Reliability: Deployed in thousands / safety systems globally.
常见问题 (FAQ)
-
What is the main function / the HIMA F4111 module?
The F4111 is a four-channel input module designed for safety-related signal acquisition and door monitoring within SIL3 systems. -
Is the F4111 certified for use in functional safety applications?
Yes, it meets SIL3 requirements under IEC 61508, making it suitable for critical safety applications. -
Which HIMA systems is the F4111 compatible with?
It is compatible with HIMax and HIQuad X platforms. -
Can the F4111 operate in harsh environments?
Yes, it is built to handle temperatures from -20°C to +60°C and high humidity conditions. -
Does the F4111 support diagnostic feedback?
Absolutely. It provides per-channel diagnostics and system-level fault detection. -
What kind / inputs does the F4111 support?
The module supports digital safety inputs, typically from sensors, switches, or relays. -
Is galvanic isolation available between channels?
Yes, each channel is galvanically isolated to enhance signal integrity and prevent interference. -
How is door monitoring implemented in the module?
The F4111 includes integrated circuitry for detecting door status, /ten used for access control or cabinet integrity. -
Can the F4111 be hot-swapped?
Yes, like other HIMA modules, it supports hot-swapping within the system frame. -
What are the indicators on the module for?
The LEDs indicate channel status, faults, power supply condition, and general module health.
Related 型号s from the Same Series
| 型号 | 描述 | Channels | SIL Level | Compatibility |
|---|---|---|---|---|
| F3221 | Digital Input Module, 32 Channels | 32 | SIL3 | HIMax, HIQuad X |
| F3236 | Digital Output Module, 16 Channels | 16 | SIL3 | HIMax |
| F7126 | Analog Input Module, 8 Channels | 8 | SIL3 | HIMax, HIQuad X |
| F8627X | CPU/Controller Module for HIMax | – | SIL3 | HIMax |
| F6217 | Analog Output Module, 8 Channels | 8 | SIL3 | HIQuad X |
| F8650X | Power Supply and System Bus Module | – | SIL3 | HIMax |
