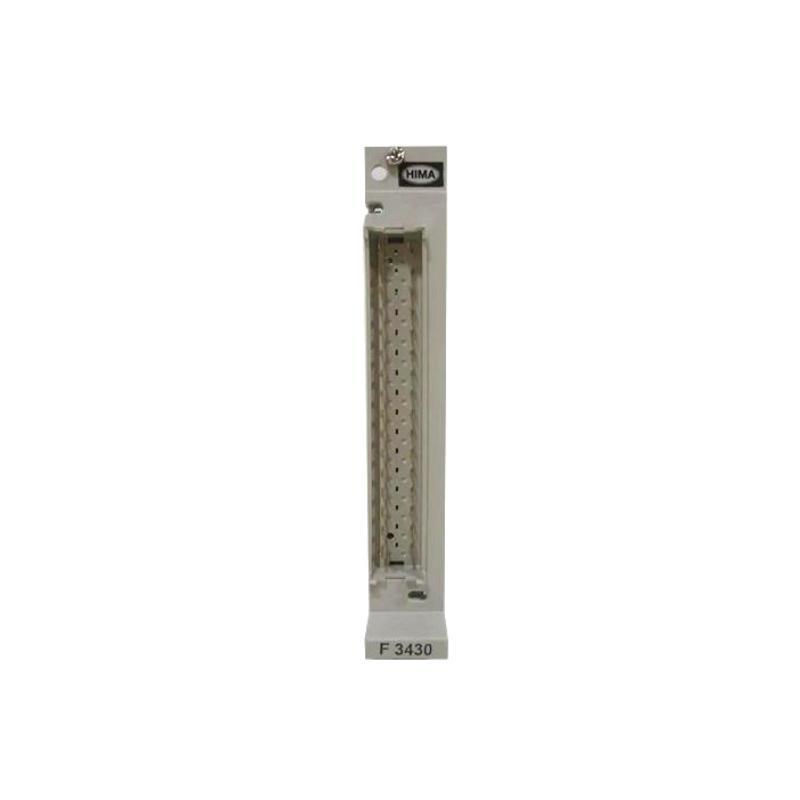

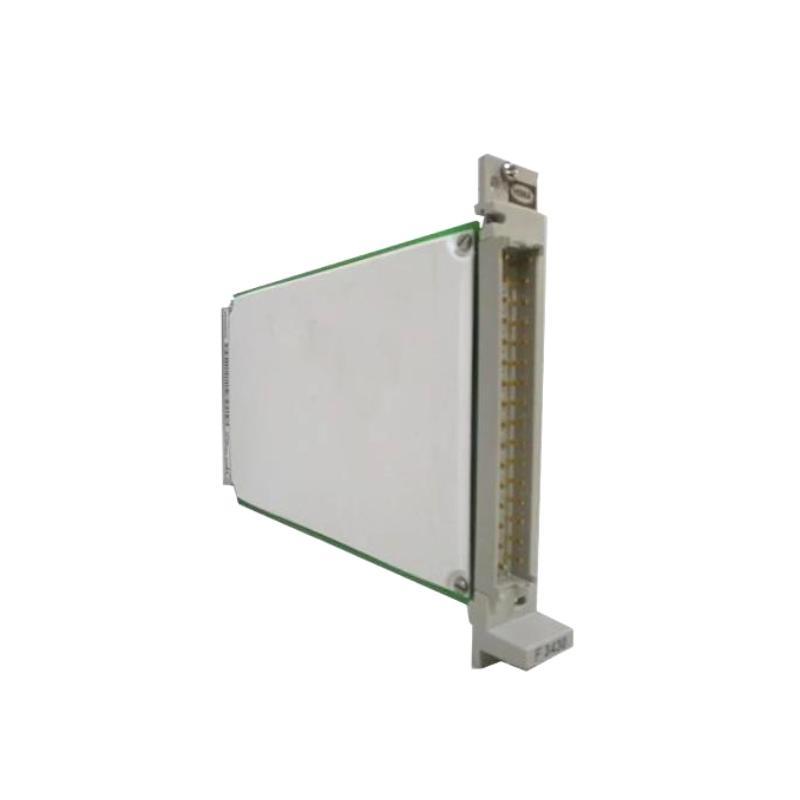

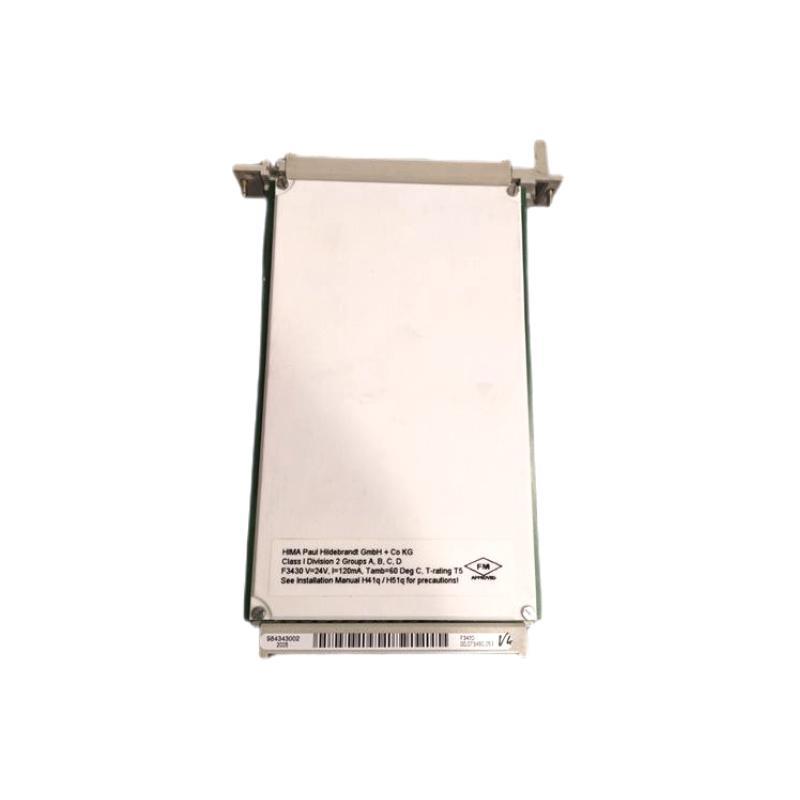

HIMA F3430 4-Fold Relay Module

Product Overview

The HIMA F3430 4-Fold Relay Module is a high-performance safety relay module designed for use in industrial automation and safety systems. This module plays a crucial role in switching, isolation, and signal amplification within critical applications, ensuring reliable and safe operation / safety-related circuits.

As part / HIMA’s HIMatrix and HIQuad safety product lines, the F3430 relay module is designed to function within programmable electronic systems that comply with international safety standards such as IEC 61508 (SIL 3). The F3430 module is frequently utilized in emergency shutdown systems (ESD), fire and gas detection systems (F&G), and burner management systems (BMS).

Equipped with four independent relay outputs, the F3430 is built to handle a variety / signal-switching tasks while maintaining electrical isolation between different circuits. Its robust DIN rail mountable design, compact size, and reliable operation make it a critical component in safety and automation solutions used in industries such as oil and gas, power generation, and chemical processing.

产品规格

The following table details the technical specifications / the HIMA F3430 4-Fold Relay Module:

Applications

The HIMA F3430 relay module is widely used across various industries for safety and automation applications. Some / its key applications include:

1. Emergency Shutdown Systems (ESD)

• Ensures immediate isolation / hazardous equipment in case / emergencies.

• Used in oil refineries, chemical plants, and gas processing facilities.

2. Fire & Gas Systems (F&G)

• Provides critical signal isolation and relay switching for fire detection and gas leak monitoring systems.

• Helps activate alarms, shutdown procedures, and safety mechanisms in case / fire or gas leaks.

3. Burner Management Systems (BMS)

• Ensures safe operation / industrial boilers, furnaces, and combustion systems.

• Used in power plants, petrochemical industries, and large industrial heating systems.

4. Railway and Transportation Safety

• Used in railway signaling and automated train control systems to manage electrical signals securely.

• Provides isolation and relay switching for mission-critical control circuits.

5. Machine Safety and Industrial Automation

• Ensures safe operation / industrial robots and automated machinery.

• Used in manufacturing plants where machine shutdowns are required in unsafe conditions.

Advantages

The HIMA F3430 4-Fold Relay Module /fers numerous benefits, making it an essential component in safety-critical applications:

High Safety Integrity (SIL 3 Certified)

• Designed according to IEC 61508 for use in safety-critical environments.

• Ensures compliance with international safety regulations.

Reliable Performance

• Features low response time (<10 ms) for fast and effective switching.

• Capable / handling high voltage and current loads for industrial applications.

Robust Isolation Protection

• Offers 2.5 kV isolation between input and output to prevent signal interference.

• Ensures safe signal transmission in electrically noisy environments.

Compact and Versatile Design

• Small form factor allows for easy integration into safety and automation cabinets.

• Compatible with DIN rail mounting for simple installation.

Wide Temperature Range

• Operates efficiently in extreme industrial environments (-25°C to +70°C).

• Can be stored in even harsher conditions (-40°C to +85°C).

Low Power Consumption

• Consumes only 2W / power, making it an energy-efficient solution.

Recent News Titles

“HIMA F3430: Advancing Safety in Industrial Automation”
 “New Relay Solutions from HIMA: Enhancing Reliability in ESD and F&G Systems”
 “How HIMA’s F3430 Relay Module Improves Machine and Process Safety”
 “HIMA Introduces High-Performance Relay Modules for Critical Applications”

常见问题 (FAQ)

1. What is the purpose / the HIMA F3430 relay module?

The F3430 relay module is designed for switching, isolation, and signal amplification in safety-critical applications such as ESD, F&G, and BMS systems.

2. What is the maximum voltage and current rating / the relay contacts?

The relay contacts can handle 250 VAC / 5 A or 30 VDC / 5 A, with a maximum switching capacity / 1,250 VA (AC) / 150 W (DC).

3. Is the F3430 relay module SIL-certified?

Yes, the module is SIL 3-certified according to IEC 61508, ensuring it meets high safety standards.

4. How is the F3430 relay module installed?

The module is designed for DIN rail mounting, making it easy to install in control panels and industrial cabinets.

5. What is the response time / the relay?

The module has a response time / less than 10 milliseconds, ensuring fast and reliable switching.

6. Can the F3430 module operate in extreme temperatures?

Yes, it operates within a temperature range / -25°C to +70°C and can be stored at -40°C to +85°C.

7. What industries use the HIMA F3430?

It is widely used in oil & gas, chemical processing, power generation, rail transportation, and industrial automation.

8. Does the F3430 have built-in diagnostic features?

Yes, it includes status LEDs and diagnostic feedback for easy troubleshooting.

9. What kind / regulatory approvals does the F3430 have?

The module complies with IEC 61508 (SIL 3), EN 50156, CE, and ATEX certifications.

10. How does the F3430 ensure electrical safety?

The module provides 2.5 kV isolation voltage between input and output, preventing electrical faults and interference.
