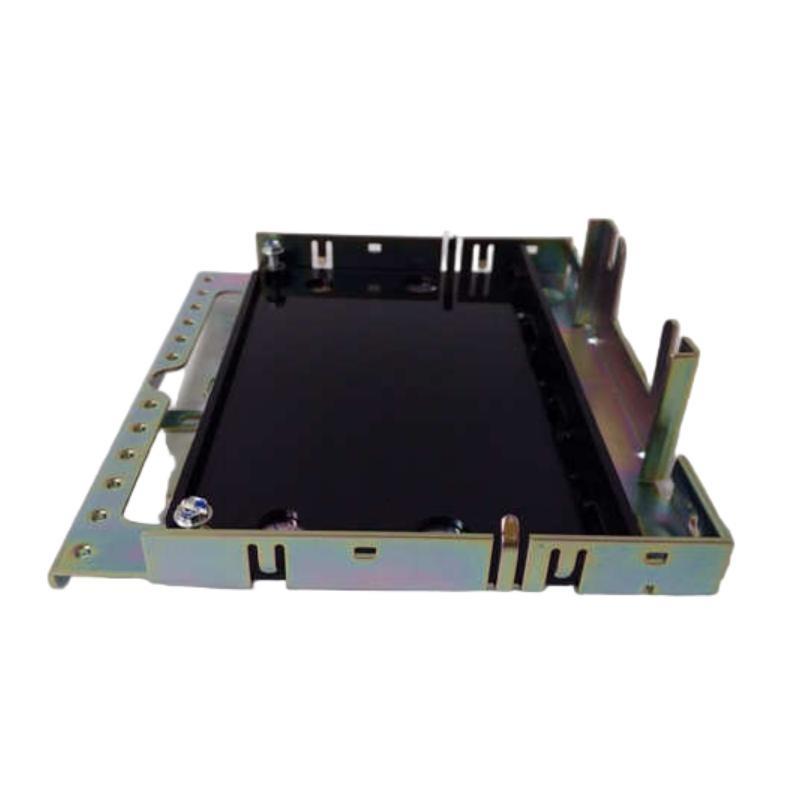

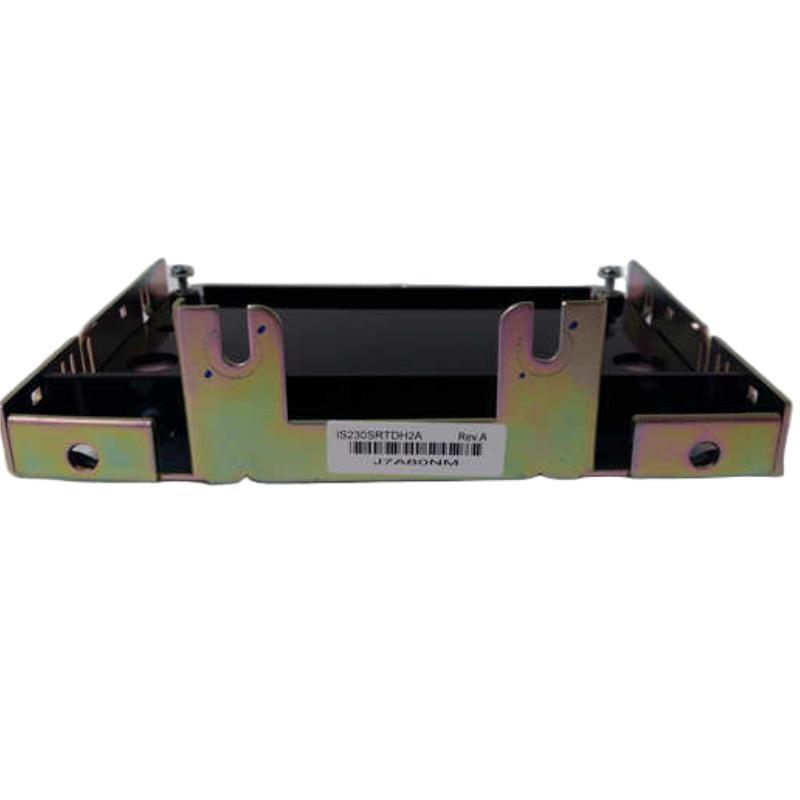

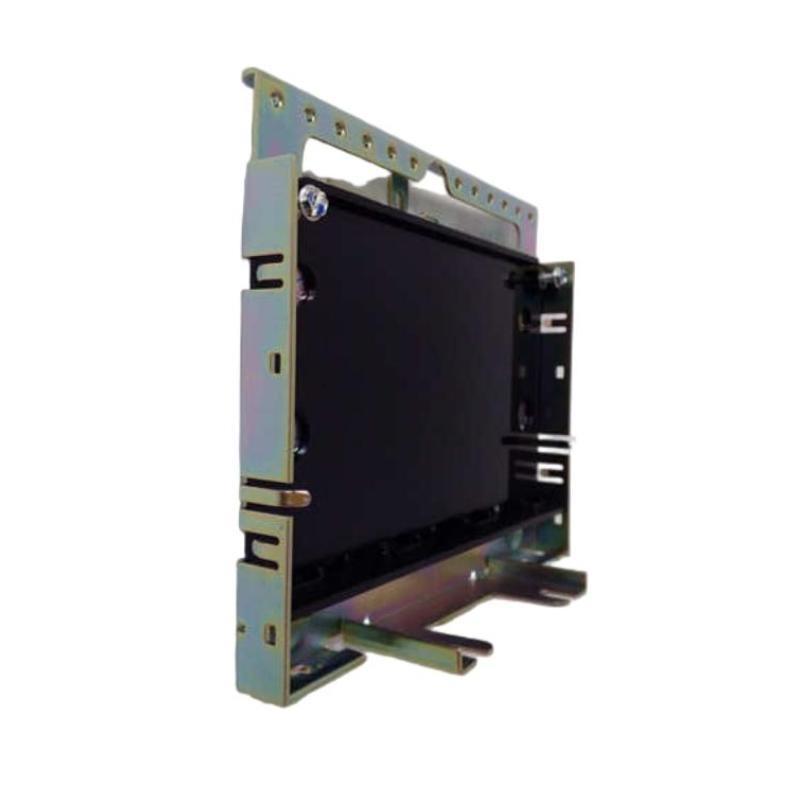

GE IS230SRTDH2A Detailed Product Overview
产品介绍
The GE IS230SRTDH2A is a high-reliability terminal board module, typically applied in GE Mark VIe distributed control systems. Designed with a focus on robust signal transmission and system safety, this model is integral in processing RTD (Resistance Temperature Detector) inputs. The IS230SRTDH2A module /fers multiple channels to accurately collect temperature data from industrial equipment, helping operators maintain optimal operating conditions and system stability.
Built under GE’s rigorous quality standards, this terminal board combines durability, consistent performance, and compatibility within complex industrial environments. Its design facilitates straightforward installation, reduced wiring complexity, and effective integration into larger turbine control systems or process control solutions.
Product Parameters
| Item | Specification |
|---|---|
| 型号 Number | IS230SRTDH2A |
| 制造商 | General Electric (GE) |
| Function | RTD Input Terminal Board |
| Number / Channels | Typically supports multiple RTD input points (e.g., 8 or more, depending on system config) |
| Input Type | Resistance Temperature Detector (RTD) |
| Operating Voltage | 24 V DC (nominal, varies by system integration) |
| Dimensions | 100x 132x 57mm |
| 重量 | 1.2 kg |
| Mounting Method | DIN rail or panel mounting |
| Environmental Rating | Industrial; temperature range typically -30 °C to +70 °C |
| Compliance | CE, RoHS (depending on production batch and market) |
Product Applications
The GE IS230SRTDH2A is widely used in:
-
Gas and steam turbine control systems
-
Power generation plants
-
Petrochemical facilities
-
Process automation and control
-
Heavy machinery temperature monitoring
-
Industrial HVAC systems requiring precision temperature sensing
Its primary role is converting RTD temperature signals into reliable data for the control system, ensuring that overheating, undercooling, or thermal drift are immediately detected and addressed.
Product Advantages
-
High accuracy: Provides precise RTD signal acquisition, crucial for sensitive industrial processes.
-
Strong compatibility: Seamless integration with Mark VIe and similar GE systems.
-
Compact design: 保存s valuable panel space and reduces installation complexity.
-
Reliability: Built to perform under harsh industrial conditions, with durable components and robust design.
-
Ease / maintenance: Clear labeling and modular structure support quick troubleshooting and replacement.
-
Reduced downtime: Improves system response to temperature anomalies, helping prevent costly equipment failures.
FAQ
Q1: What is the main use / the GE IS230SRTDH2A?
A1: It’s primarily used to interface RTD temperature sensors with GE Mark VIe control systems, converting analog temperature signals for precise monitoring.
Q2: Can it handle other sensor types?
A2: This model is specifically designed for RTD sensors; it does not directly process thermocouple or voltage inputs.
Q3: Is the module hot-swappable?
A3: In most configurations, replacing the terminal board requires system shutdown to maintain signal integrity and safety.
Q4: How do I install it?
A4: The IS230SRTDH2A mounts on a DIN rail or panel, connects to the system via pre-defined harnesses, and must be configured within the control system s/tware.
Q5: What kind / maintenance does it need?
A5: Periodic checks for loose wiring, dust accumulation, and corrosion; functionality verification during scheduled maintenance.
Q6: Is it certified for hazardous environments?
A6: It meets typical industrial standards; for classified areas, check the specific batch or request explosion-pro/ variants.
Q7: What temperature sensors are compatible?
A7: It works with standard industrial RTDs, such as Pt100 sensors, commonly used in process control.
Q8: What is the module’s lifespan?
A8: When properly installed and maintained, it can last well over 5 years, depending on operating conditions.
Q9: Does it support redundant configurations?
A9: Yes; it’s /ten used in redundant or fault-tolerant control architectures to increase reliability.
Q10: Where can I buy replacement parts?
A10: Through authorized GE distributors, industrial automation resellers, or trusted surplus equipment suppliers.
Recommended Related 型号s (Same Series / Function)
-
IS230SRTDH1A – RTD input, earlier version
-
IS230STTCH2A – Thermocouple terminal board
-
IS230STTCH1A – Single thermocouple version
-
IS230STURH2A – Analog input terminal board
-
IS230STURH1A – Compact analog input version
-
IS230TBAIH2C – Analog input high-density terminal board
Popular GE 型号s (Same 品牌)
| 型号 | 描述 | Dimensions (mm) | 重量 (kg) | Voltage |
|---|---|---|---|---|
| IS200STAIH2ADC | Analog input module | 240 × 110 × 40 | 0.42 | 24 V DC |
| IS200STTCH2A | Thermocouple terminal board | 260 × 120 × 40 | 0.45 | 24 V DC |
| IS200TRLYH1B | Relay output module | 250 × 110 × 40 | 0.40 | 24 V DC |
| IS230TBAIH2C | High-density analog input board | 260 × 120 × 40 | 0.48 | 24 V DC |
| IS200STURH2A | Universal analog input terminal board | 240 × 110 × 40 | 0.43 | 24 V DC |
| IS230SRTDH1A | 上一页 RTD input terminal board | 260 × 120 × 40 | 0.44 | 24 V DC |
| IS200TREGH1B | Trip relay output module | 250 × 110 × 40 | 0.41 | 24 V DC |
| IS200SPROH2A | Speed protection module | 250 × 110 × 40 | 0.46 | 24 V DC |
