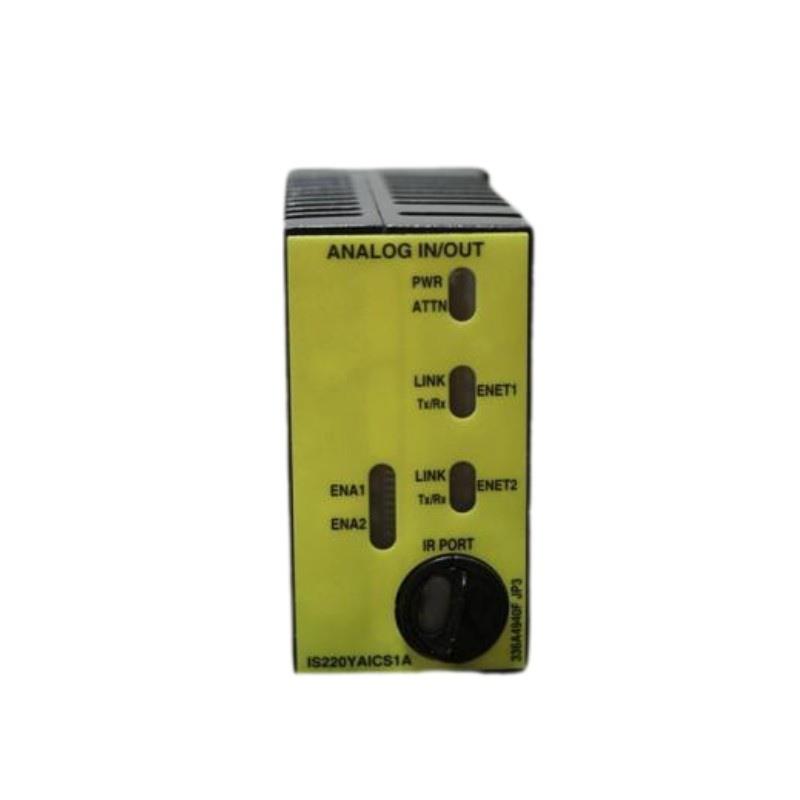

The GE IS220YAICS1A is a high-performance Analog Input/Output module designed for use within the GE Mark VIe control system. This I/O pack is responsible for interfacing with various analog signals in process automation and industrial control environments. It features high reliability, intelligent diagnostics, and seamless integration with Ethernet-based communications. The module supports a mix / analog input and output points, making it versatile for monitoring and controlling analog devices such as transmitters, actuators, and control valves.
The IS220YAICS1A is engineered to meet demanding industrial conditions, /fering hot-swap capability and embedded intelligence to simplify configuration and diagnostics. Its design ensures low-latency processing, signal accuracy, and compatibility with harsh environments, all crucial for critical process control operations.
Product Features
-
Dual analog input/output functionality
-
Integrated signal conditioning and cold junction compensation
-
Redundant Ethernet connectivity for high availability
-
Auto-sensing capability for field wiring diagnostics
-
Conformal coating for protection in corrosive environments
-
Hot-swap capable for minimal system downtime
-
Operates with the Mark VIe I/O processor for intelligent data handling
-
Built-in LED indicators for module and channel status
-
Uses standard DIN-rail mounting for easy installation
-
Compatible with multiple field signal types, including 4–20 mA and 0–10 V
Technical Specifications
| Parameter | Details |
|---|---|
| 型号 Number | IS220YAICS1A |
| Function | Analog I/O Module (Input & Output) |
| Input Channels | 8 Analog Inputs |
| Output Channels | 4 Analog Outputs |
| Input Range | 0–10 V, ±10 V, 4–20 mA |
| Output Range | 0–10 V, 4–20 mA |
| Power Supply | 28–30 VDC |
| Communication Protocol | Ethernet (Dual 100 Mbps, RJ-45) |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% non-condensing |
| Mounting Type | DIN-Rail or Baseplate Mounted |
| Enclosure Protection | IP20 |
| Dimensions | 140×210×50mm |
| 重量 | 1.2 kg |
| Certifications | CE, UL, ATEX (Zone 2), RoHS |
Applications
The GE IS220YAICS1A is ideally suited for:
-
Power generation plants (e.g., gas, steam, hydro)
-
Oil and gas process automation
-
Chemical and petrochemical facilities
-
Water and wastewater treatment
-
Manufacturing process control
-
Industrial energy systems and utilities
-
Distributed control systems (DCS) in critical applications
Product Advantages
-
Reliability: Designed to ensure maximum system uptime with hot-swap support and diagnostics.
-
Scalability: Easily integrates with various I/O configurations within GE’s Mark VIe platform.
-
Flexible I/O Handling: 支持s a broad range / analog signals for diverse control needs.
-
High Accuracy: Ensures precise data acquisition and control with minimal error margins.
-
Integrated Redundancy: Dual Ethernet ports support network fault tolerance.
-
Robust Design: Operates reliably in harsh industrial environments with extended temperature support.
-
Simplified Maintenance: LED indicators and auto-detection features streamline troubleshooting.
-
Reduced Downtime: Designed for quick replacement and easy configuration, minimizing production loss.
常见问题 (FAQs)
Q1: What types / analog signals does the IS220YAICS1A support?
A1: It supports voltage (0–10 V, ±10 V) and current (4–20 mA) input/output signals.
Q2: Can I use this module in hazardous environments?
A2: Yes, it is certified for use in ATEX Zone 2 hazardous environments.
Q3: Does the module support redundant network connections?
A3: Yes, it includes dual Ethernet ports for redundancy.
Q4: Can the IS220YAICS1A be hot-swapped during operation?
A4: Yes, the module is hot-swappable, reducing downtime during maintenance.
Q5: What control systems is this module compatible with?
A5: It is designed specifically for use with GE’s Mark VIe control system.
Q6: What diagnostic features does it /fer?
A6: It includes real-time diagnostics, auto-sensing for wiring issues, and onboard LED indicators.
Q7: What is the typical installation method?
A7: The module is DIN-rail or baseplate mounted for flexible installation.
Q8: Does it have built-in signal conditioning?
A8: Yes, it includes signal conditioning and cold junction compensation.
Q9: What power supply does it require?
A9: It operates on 28–30 VDC supplied power.
Q10: Is the module RoHS compliant?
A10: Yes, the IS220YAICS1A is RoHS compliant for environmental safety.
Recommended Related 型号s (Same Series)
| 型号 | 描述 | I/O Type | Application |
|---|---|---|---|
| IS220PAICH1A | Analog Input Pack | 16 AI | Signal acquisition and control |
| IS220PDAIH1A | High-Density Analog Input Pack | 32 AI | Process measurement |
| IS220PDOAH1A | Analog Output Pack | 8 AO | Analog actuator control |
| IS220PAOCH1A | Combination Analog I/O Pack | 8 AI / 4 AO | General-purpose analog I/O |
| IS220PPROH1A | RTD/Resistance Input Module | 10 RTD | Temperature and resistance measurement |
| IS220PRTDH1A | RTD Module | 6 RTD | Thermal monitoring |
Popular GE 型号s (Same 品牌)
| 型号 | 描述 | Function | Dimensions (mm) |
|---|---|---|---|
| IC698CPE030 | RX7i CPU Module | Control Processor | 130 x 120 x 70 |
| IC695ETM001 | Ethernet Interface Module | Communication Module | 115 x 100 x 55 |
| IC693PWR330 | Power Supply Module | Power Supply | 105 x 110 x 65 |
| IC200ALG320 | Versamax Analog Input Module | 8 AI | 120 x 85 x 50 |
| IC670CHS002 | Genius I/O Terminal Base | Backplane Connector | 135 x 90 x 70 |
| IS200VCRCH1BBC | Control Assembly | I/O/Relay Interface | 140 x 100 x 75 |
