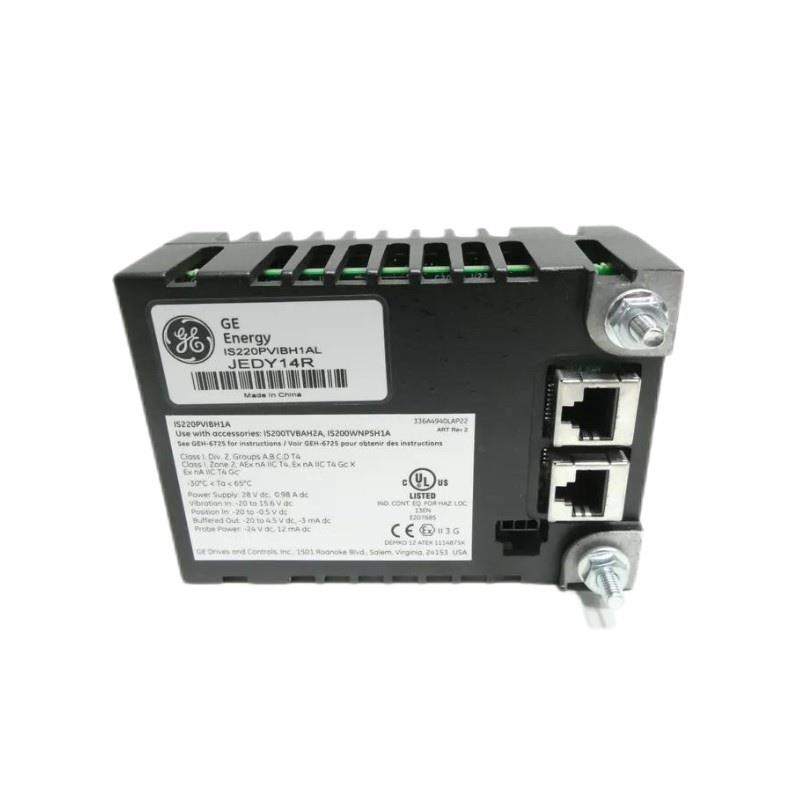

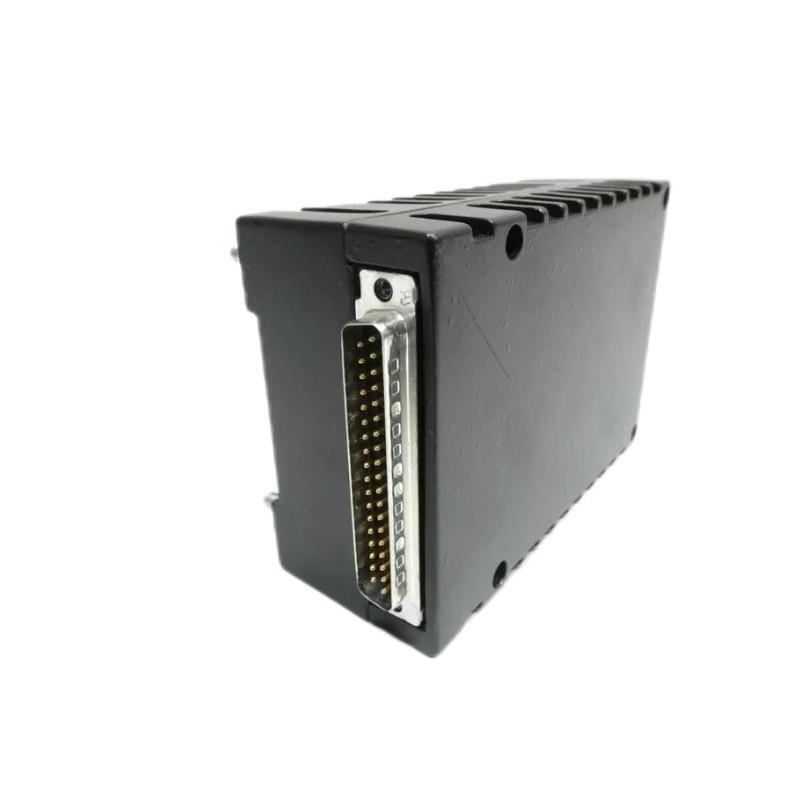

The GE IS220PVIBH1A is a Vibration Monitoring Input/Output (I/O) module designed for integration within GE’s Mark VIe and Mark VIeS control systems. Developed for high-performance industrial applications, this module is utilized primarily for real-time condition monitoring / rotating machinery. It provides advanced vibration detection, signal conditioning, and status diagnostics in demanding environments. Its robust construction and seamless compatibility with Bently Nevada and GE monitoring systems make it a critical component in predictive maintenance strategies.
Product Features
-
High-speed data acquisition and signal processing
-
Direct interface with vibration sensors (accelerometers, velocity, proximity probes)
-
Hot-swappable and field-replaceable design
-
Secure integration with Mark VIe/VieS I/O packs
-
支持s condition-based maintenance strategies
-
LED indicators for status and fault diagnostics
-
Embedded signal conditioning for enhanced accuracy
-
Rugged design for industrial environments
-
Communication over Ethernet-based IONet
Technical Specifications
| Parameter | Details |
|---|---|
| 型号 Number | IS220PVIBH1A |
| Product Type | Vibration Monitoring I/O Module |
| Compatible System | GE Mark VIe / Mark VIeS |
| Input Channels | 8 dynamic vibration inputs |
| Input Signal Types | Acceleration, velocity, displacement |
| Sensor Power Supply | 24 VDC (via internal sensor supply) |
| Communication Protocol | Ethernet (IONet) |
| Environmental Protection | Conformal coating |
| Operating Temperature | -40°C to +70°C |
| Humidity Range | 5% to 95% non-condensing |
| Mounting Type | DIN rail or panel mounting |
| Hot-Swappable | Yes |
| Diagnostic LEDs | Yes |
| Voltage Range | 18–32 VDC |
| Dimensions | 82.6 x 41.9 x 121mm |
| 重量 | 0.5 kg |
Applications
The GE IS220PVIBH1A is ideal for use in a wide range / industrial and critical infrastructure environments where machinery condition monitoring is essential. Key applications include:
-
Turbomachinery vibration monitoring
-
Predictive maintenance in power generation plants
-
Industrial compressors and pumps
-
Oil & gas rotating equipment
-
Manufacturing and mining equipment diagnostics
-
Integration in Bently Nevada and Mark VIe monitoring systems
Product Advantages
-
Enhanced Reliability: Designed for mission-critical systems with secure and consistent monitoring capabilities.
-
Plug-and-Play Integration: Easily integrates into existing Mark VIe control platforms.
-
Reduced Downtime: 支持s condition-based maintenance, reducing unexpected machinery failures.
-
Robust Construction: Withstands harsh industrial environments with wide operating temperature range.
-
High Data Accuracy: Advanced signal processing and built-in filtering provide precise vibration data.
-
Cost-Efficiency: Prevents expensive damage through early detection / equipment faults.
常见问题 (FAQs)
Q1: What types / sensors are compatible with IS220PVIBH1A?
A1: It supports standard industrial vibration sensors such as accelerometers, velocity sensors, and proximity probes.
Q2: Can this module be used in SIL-rated systems?
A2: Yes, it is compatible with GE’s Mark VIeS safety systems, suitable for SIL 2/3 environments.
Q3: Is the IS220PVIBH1A hot-swappable during operation?
A3: Yes, it can be hot-swapped without system shutdown, minimizing downtime.
Q4: What is the maximum operating temperature for this module?
A4: The module can operate reliably in temperatures up to +70°C.
Q5: Does it provide real-time vibration analysis?
A5: Yes, it provides high-speed data acquisition suitable for real-time condition monitoring.
Q6: How is it mounted in a system?
A6: It can be mounted on a DIN rail or directly onto a panel.
Q7: What protocol is used for communication?
A7: It uses Ethernet-based IONet for real-time communication with the control system.
Q8: Is this module compatible with other GE I/O packs?
A8: Yes, it seamlessly integrates with other GE Mark VIe/VieS I/O modules.
Q9: What happens in case / sensor failure?
A9: Built-in diagnostics will detect sensor failures and indicate them via status LEDs.
Q10: Can it be used in outdoor or harsh industrial settings?
A10: Yes, the module features conformal coating and robust housing for use in demanding environments.
Related or Same-Series 型号s
| 型号 | 描述 |
|---|---|
| IS220PDIOH1A | Discrete Input/Output module |
| IS220PAICH1A | Analog Input module |
| IS220PAOCH1A | Analog Output module |
| IS220PPRCH1A | RTD/TC Input module |
| IS220PPDAH1A | Pulse Rate Input module |

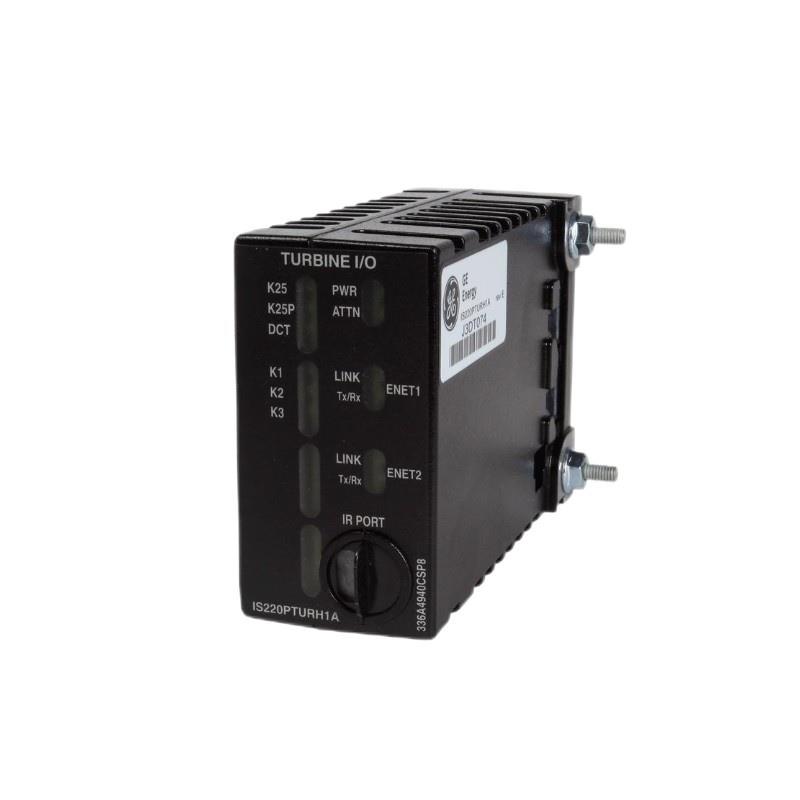

| IS220PTURH1B | Turbine Control Module |
