产品介绍

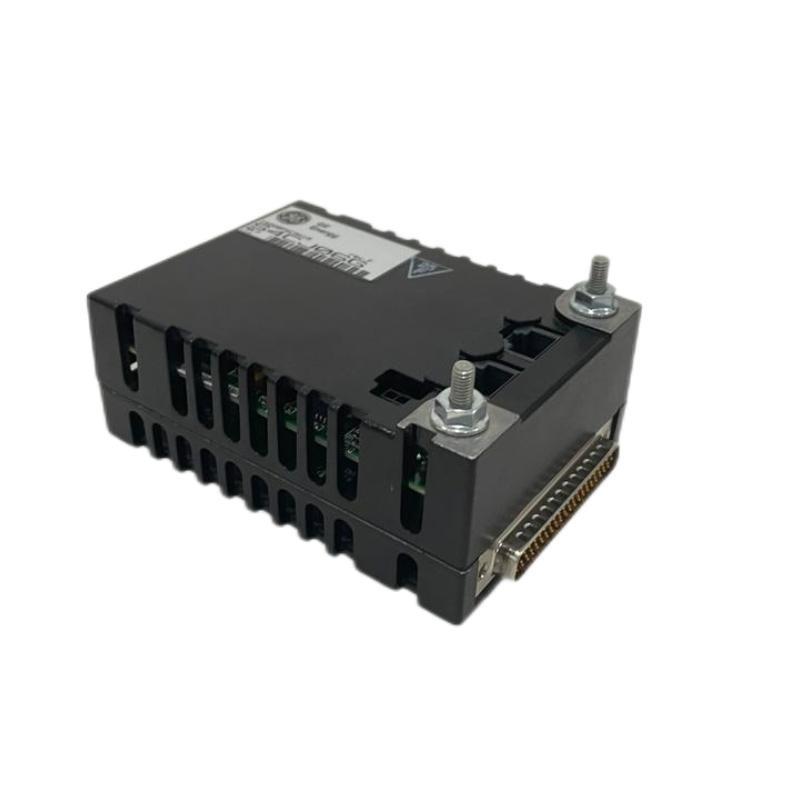

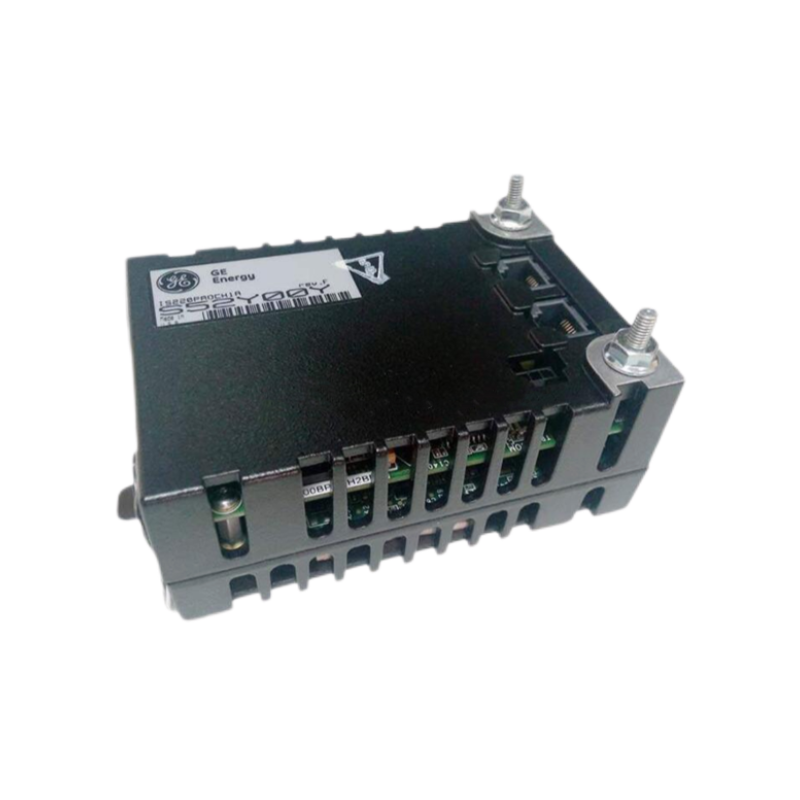

The GE IS220PSCAH1A is a Power Supply Control Assembly (PSCA) module designed for use in GE’s Mark VIe control system, a part / the company’s advanced turbine control solutions. The IS220PSCAH1A module provides regulated low-voltage power and monitoring functions to connected I/O modules, ensuring safe and stable operation in demanding industrial environments. It serves a dual function—both as a regulated power supply and a protective interface for system components.
This model is widely used in high-performance and safety-critical systems such as gas and steam turbines, where consistent power and system protection are essential. It supports system diagnostics, overload protection, and hot-swap functionality, contributing to reduced downtime and improved reliability.
Technical Specifications
| Parameter | Details |
|---|---|
| 型号 Number | IS220PSCAH1A |
| 制造商 | General Electric (GE) |
| Product Type | Power Supply Control Assembly Module |
| System Compatibility | Mark VIe Control System |
| Input Voltage | 28–32 VDC (Nominal 30 VDC) |
| Output Voltage | 3.3 VDC, 5 VDC, ±15 VDC (regulated) |
| Output Power | 150 W (typical total combined output) |
| Hot-Swappable | Yes |
| Protection Features | Overcurrent, Short Circuit, Thermal Shutdown |
| Operating Temperature | –30°C to +65°C |
| Storage Temperature | –40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Certifications | CE, UL, RoHS |
| Mounting | DIN Rail or Panel Mount |
| Communication 支持 | 支持s system diagnostics via IONet |
| Dimensions | 160 × 160 × 120 mm |
| 重量 | 0.8 kg |
Product Applications
The IS220PSCAH1A is primarily used in:
-
Gas and Steam Turbine Control Systems
-
Boiler and Generator Management
-
Power Plant Automation Systems
-
Petrochemical and Refinery Control
-
Industrial Process Control
-
Redundant or Safety-Critical Power Supply Systems
This module supports both standalone and networked system configurations, contributing to modular and scalable power control architectures.
Product Advantages
-
Dual Role Functionality: Combines power supply and interface module in one, reducing component count.
-
High Reliability: Engineered for continuous operation under harsh industrial conditions.
-
Diagnostic Capability: Integrated with system health monitoring and reporting.
-
Modular Design: 支持s quick installation and maintenance with hot-swap capability.
-
System Compatibility: Fully compatible with GE’s Mark VIe control architecture.
-
Compact & Lightweight: Space-saving design suitable for confined cabinets.
-
Comprehensive Protection: Protects downstream modules with overvoltage and current limiting.
-
Certified & Safe: Meets international standards for industrial use.
常见问题 (FAQ)
Q1: What is the function / IS220PSCAH1A in the control system?
A1: It acts as a power supply and interface for I/O modules, providing regulated voltages and system diagnostics.
Q2: Can the IS220PSCAH1A be hot-swapped during operation?
A2: Yes, it supports hot-swapping, allowing maintenance without system shutdown.
Q3: Is the module compatible with Mark VI systems?
A3: No, IS220PSCAH1A is specifically designed for Mark VIe systems, not legacy Mark VI.
Q4: What voltages does it output?
A4: It provides multiple regulated outputs: 3.3V, 5V, and ±15V DC.
Q5: How is the module mounted?
A5: It can be mounted on a DIN rail or directly onto a panel, depending on the enclosure design.
Q6: What happens if there’s an overload or short circuit?
A6: Built-in protection shuts down the output safely to prevent damage.
Q7: Can this module be used in high-temperature environments?
A7: Yes, it operates reliably from –30°C to +65°C ambient temperature.
Q8: Does the IS220PSCAH1A support any kind / remote diagnostics?
A8: Yes, it integrates with the IONet network for system monitoring and diagnostics.
Q9: What’s the physical size / this module?
A9: The dimensions are 160 × 160 × 120 mm.
Q10: Is it available with international compliance certifications?
A10: Yes, it is CE-marked, UL-certified, and RoHS-compliant.
Recommended Related 型号s (Same Series or Similar Function)
-
IS220PSVOH1A – Voltage Output Module for analog signals
-
IS220PDIAH1A – Discrete Input Module for Mark VIe systems
-
IS220PDAAH1A – Analog Input Module with current/voltage options
-
IS220PTURH1B – Turbine Interface Module for proximity probe input
-
IS220PPROS1B – IONet Ethernet Interface Module
-
IS220PRTDH1B – RTD Input Module for temperature sensing
其他 Popular GE 型号s (Same 品牌)
| 型号 | Type | Dimensions (mm) | 重量 | System |
|---|---|---|---|---|
| IS200STAIH2AC | Analog Input Terminal Board | 190 x 170 x 45 | 0.7 kg | Mark VIe |
| IS200TRLYH1B | Relay Output Module | 210 x 180 x 50 | 1.0 kg | Mark VIe |
| IS200VCRCH1B | VME Communication Module | 220 x 180 x 60 | 1.1 kg | Mark VI |
| IS200WROBH1A | Discrete Output Terminal Board | 200 x 150 x 40 | 0.8 kg | Mark VIe |
| IS220UCSAH1A | Controller Module (CPU) | 250 x 210 x 60 | 1.3 kg | Mark VIe |
| IS215ACLEH1A | Application Control Layer Module | 230 x 170 x 55 | 1.2 kg | EX2100 |
