Product 描述

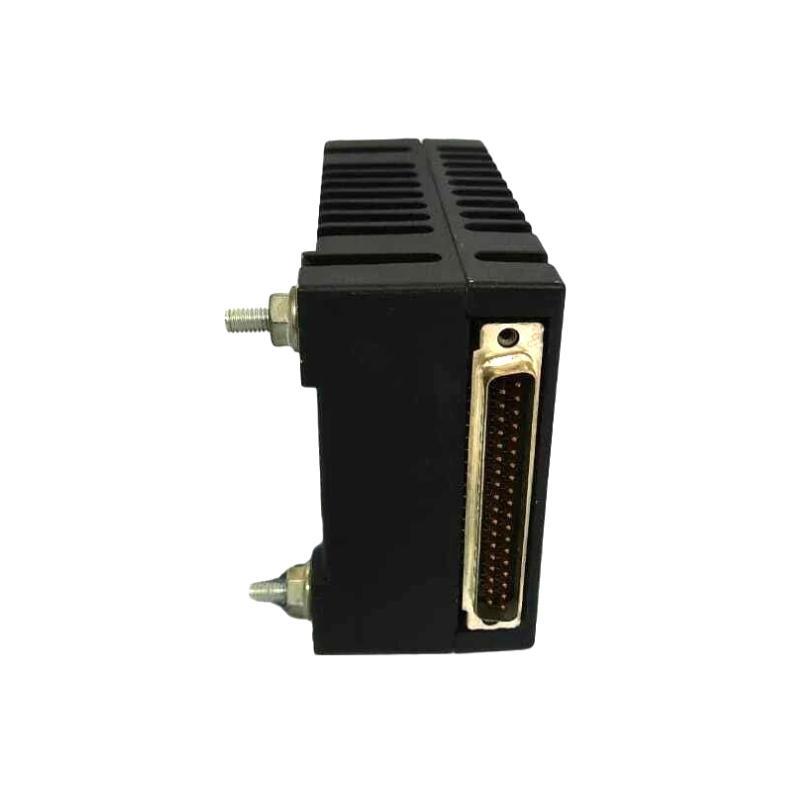

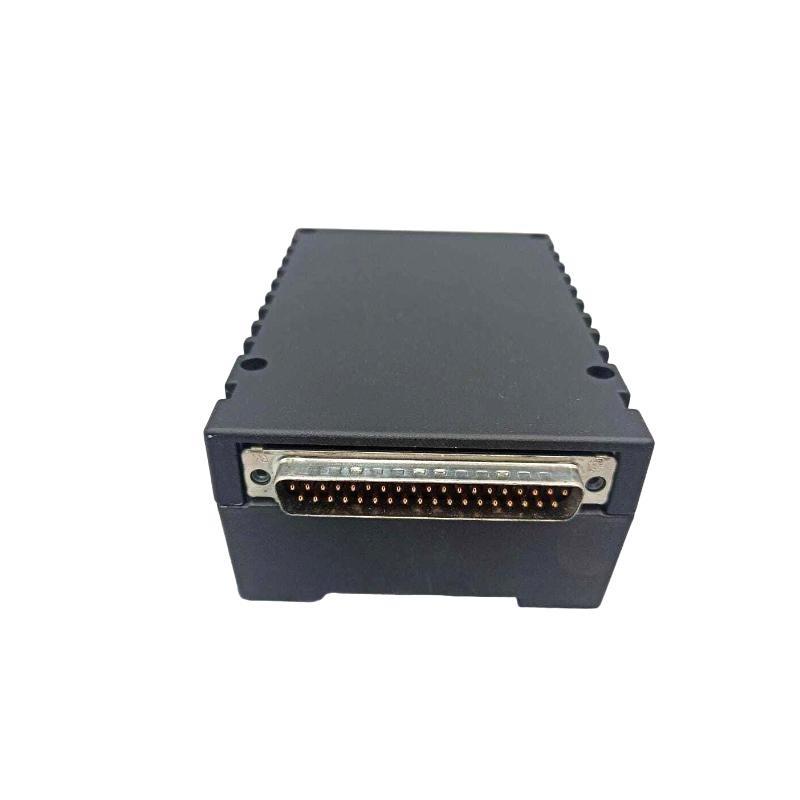

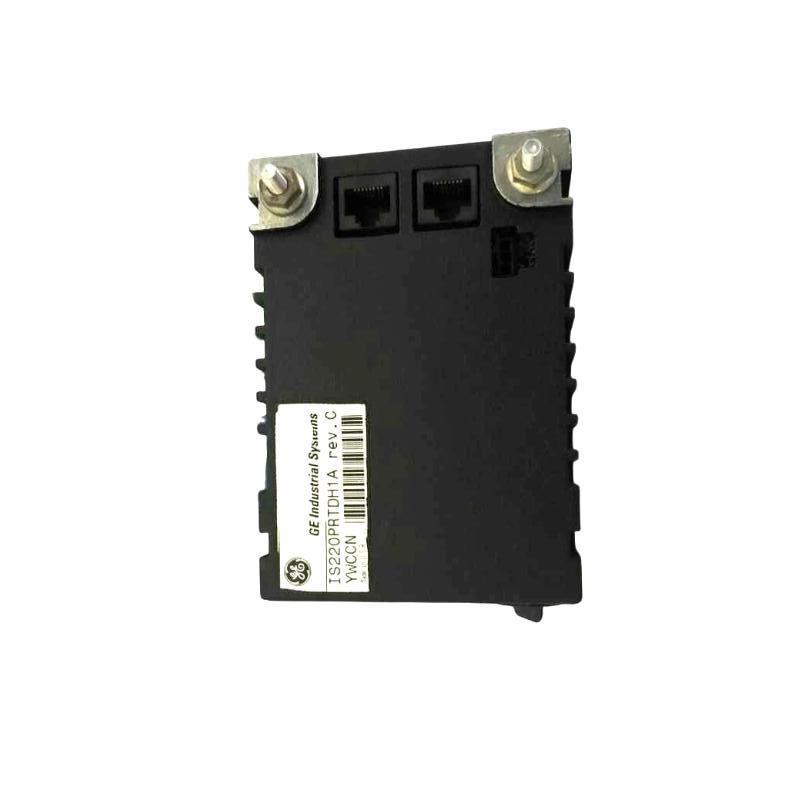

GE IS220PRTDH1A is a Resistance Temperature Device (RTD) input module from the Mark VIe control series. It is designed to provide high-accuracy temperature sensing capabilities for industrial automation and turbine control systems.
Technical Specifications
| Parameter | 描述 |
|---|---|
| 型号 | IS220PRTDH1A |
| Series | Mark VIe |
| Function | RTD Input Module |
| Input Type | 2-, 3-, or 4-wire RTD |
| 支持ed RTD Types | Pt100, Cu10, Ni120, etc. |
| Input Channels | 6 channels |
| Resolution | 16-bit |
| Accuracy | ±0.1% / span |
| Isolation | Channel-to-channel and to ground |
| Operating Temperature | –30°C to +65°C |
| Storage Temperature | –40°C to +85°C |
| Dimensions (W×H×D) | 128 × 82 × 60 mm |
| 重量 | 0.38 kg |
| Mounting | DIN rail or panel mount |
| Interface | I/O Pack with Ethernet connection |
| Redundancy | 支持ed |
Applications
-
Gas and steam turbine temperature monitoring
-
Process automation systems
-
Industrial control panels
-
Oil and gas temperature acquisition
-
Boiler and compressor monitoring
Advantages
-
High input accuracy for precise temperature readings
-
支持s multiple RTD types and wiring configurations
-
Electrical isolation enhances safety and reduces interference
-
Easily integrates into Mark VIe control systems
-
Compact design for space-constrained installations
-
支持s redundant architecture for reliability
常见问题 (FAQ)
Q1: What types / RTDs are compatible with IS220PRTDH1A?
A1: It supports Pt100, Cu10, Ni120, and other common RTDs.
Q2: How many channels does this module provide?
A2: The module /fers 6 RTD input channels.
Q3: Is this module isolated?
A3: Yes, it provides channel-to-channel and channel-to-ground isolation.
Q4: What is the input resolution?
A4: The input resolution is 16-bit for accurate readings.
Q5: Can it be used in high-temperature environments?
A5: It operates in temperatures from –30°C to +65°C.
Q6: What kind / mounting does it support?
A6: It can be mounted on a DIN rail or a control panel.
Q7: Does this module support redundancy?
A7: Yes, it supports redundant operation for high availability.
Q8: What is the weight / this module?
A8: It weighs 0.38 kg.
Q9: Is it compatible with Ethernet-based I/O Packs?
A9: Yes, it interfaces through Ethernet-enabled I/O Packs.
Q10: Can it be used in turbine applications?
A10: Yes, it is commonly used for gas and steam turbine temperature monitoring.
Related or Same-Series 型号s
| 型号 | 描述 | Dimensions (mm) | 重量 |
|---|---|---|---|
| IS220PAICH1A | Analog Input Module | 128 × 82 × 60 | 0.38 kg |
| IS220PDOAH1A | Discrete Output Module | 128 × 82 × 60 | 0.40 kg |
| IS220PDSAH1A | Discrete Input Module | 128 × 82 × 60 | 0.36 kg |
| IS220PTCCH1A | Thermocouple Input Module | 128 × 82 × 60 | 0.38 kg |
| IS220PAOCH1A | Analog Output Module | 128 × 82 × 60 | 0.38 kg |
| IS220PPRFH1B | RTD Processor with Feedback Module | 128 × 82 × 60 | 0.39 kg |
Popular GE Mark VIe Series 型号s
| 型号 | 描述 | Dimensions (mm) | 重量 |
|---|---|---|---|
| IS200STAIH2ACB | Analog Input Terminal Board | 130 × 85 × 60 | 0.42 kg |
| IS200STTCH2A | Thermocouple Terminal Board | 128 × 82 × 60 | 0.40 kg |
| IS220UCSAH1A | Controller Processor Module | 130 × 85 × 70 | 0.50 kg |
| IS215UCVEM01B | VME Processor Controller | 160 × 100 × 80 | 0.65 kg |
| IS200VCRCH1B | VME Communication Module | 160 × 100 × 60 | 0.58 kg |
| IS220YDIAS1A | Discrete Input Module | 128 × 82 × 60 | 0.37 kg |
