产品介绍

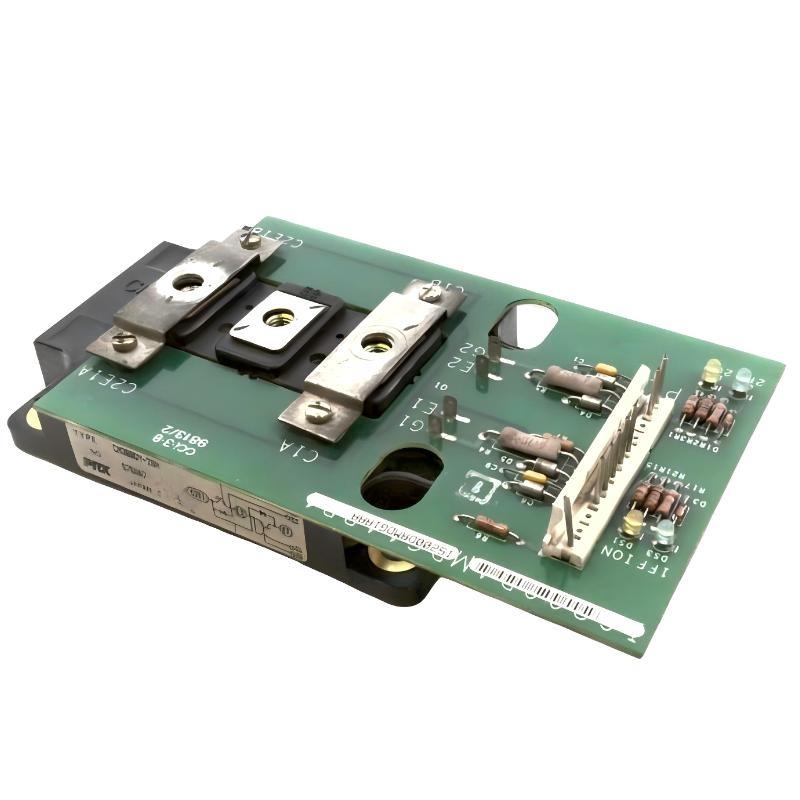

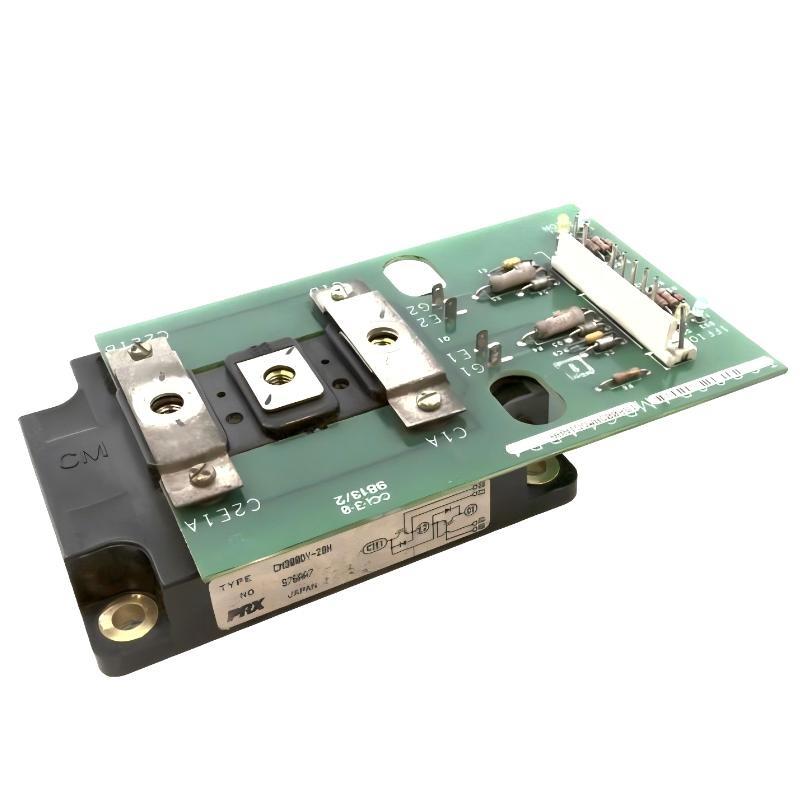

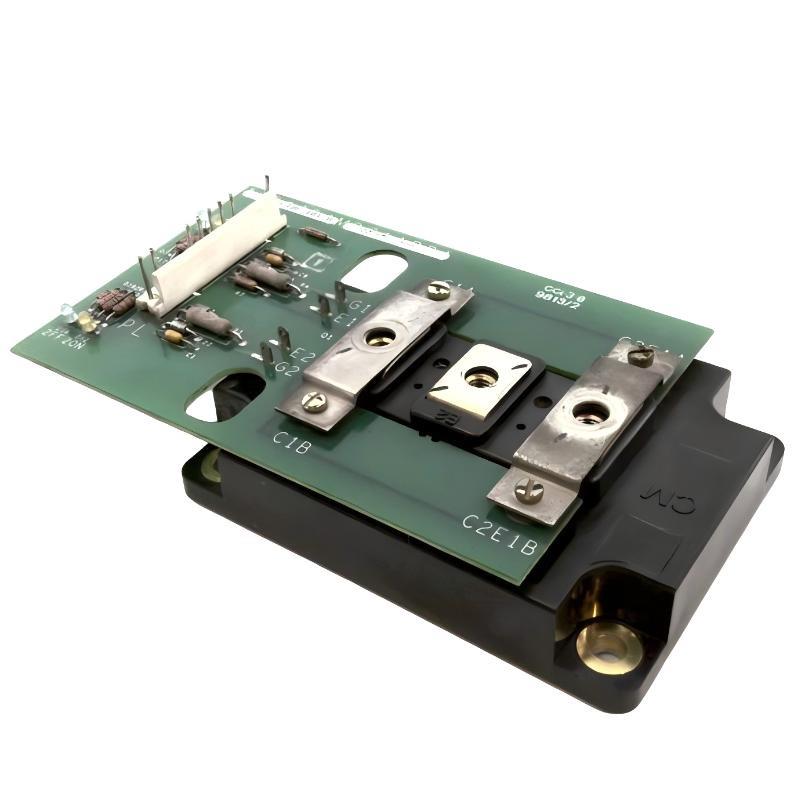

The GE IS200DAMDG1A is a Gate Driver Board designed for controlling high-power semiconductor devices such as IGBTs and MOSFETs in industrial automation and power electronics applications. It provides precise gate drive signals to ensure fast switching, protection, and efficient operation / power modules.
This board is compact and robust, making it suitable for integration into inverter systems, motor drives, and distributed control architectures. Its fast response, electrical isolation, and protective features make it ideal for demanding industrial environments.
The IS200DAMDG1A is widely used in variable speed drives, power converters, renewable energy systems, and industrial motor control where reliable gate control and switching protection are critical.
产品规格
| Parameter | Specification |
|---|---|
| 型号 | IS200DAMDG1A |
| Type | Gate Driver Board |
| Component Name | Gate Driver Board |
| Function | Provides gate drive for IGBTs/MOSFETs |
| Input Signals 支持ed | Logic-level PWM signals |
| Output Signals | Isolated gate drive outputs |
| Drive Voltage | ±15 V to ±20 V typical |
| Switching Frequency | Up to 20 kHz |
| Isolation | Electrically isolated channels |
| Protection Features | Overvoltage, undervoltage, short circuit, overcurrent |
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Mounting Style | Panel or PCB mounting |
| Dimensions | 110 × 90 × 30 mm |
| 重量 | 0.85 kg |
Applications
The IS200DAMDG1A board is used in industrial and power electronics applications that require precise gate control:
-
Variable Speed Drives – controlling IGBT/MOSFET gates for motor speed regulation.
-
Power Converters – ensuring reliable switching in AC/DC and DC/AC converters.
-
Renewable Energy Systems – gate driving for photovoltaic inverters and wind power converters.
-
Industrial Motor Control – precise switching / power devices in large motors.
-
High-Power Switching Systems – fast and safe operation / IGBTs/MOSFETs in industrial applications.
Advantages
Key benefits / the IS200DAMDG1A include:
-
Precise Gate Drive – ensures accurate timing for high-power semiconductor switching.
-
Electrical Isolation – protects control circuits from high-voltage power devices.
-
Fast Switching 支持 – capable / driving devices up to 20 kHz.
-
Robust Protection – overvoltage, undervoltage, short-circuit, and overcurrent safeguards.
-
Compact and Lightweight – easy integration into panels and PCBs.
-
Wide Operating Temperature – stable operation from -10°C to 60°C.
-
支持s Logic-Level Inputs – compatible with PWM and other control signals.
-
Maintenance Friendly – simple installation and replacement.
