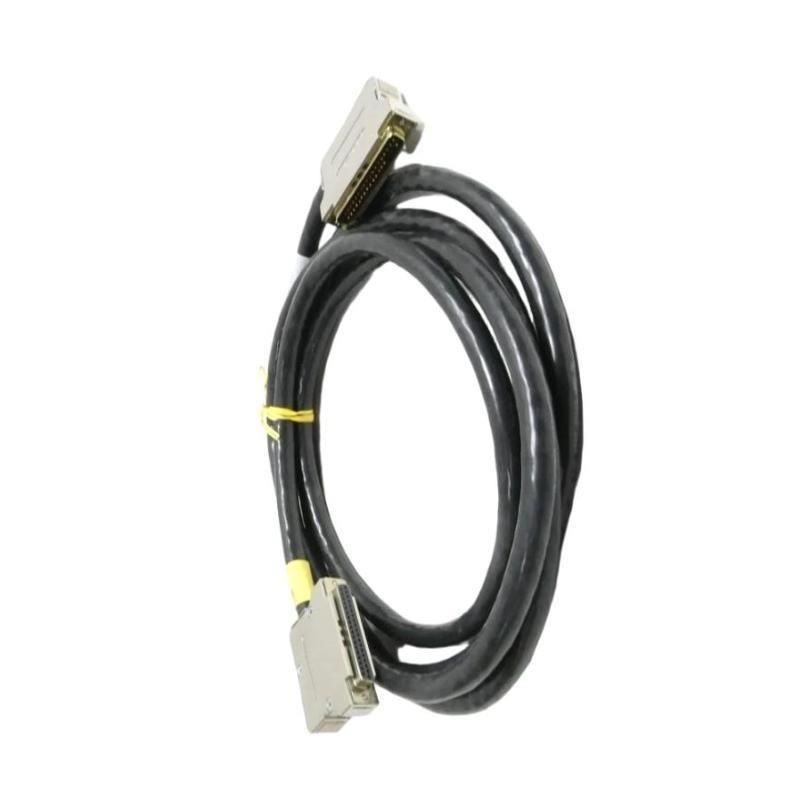

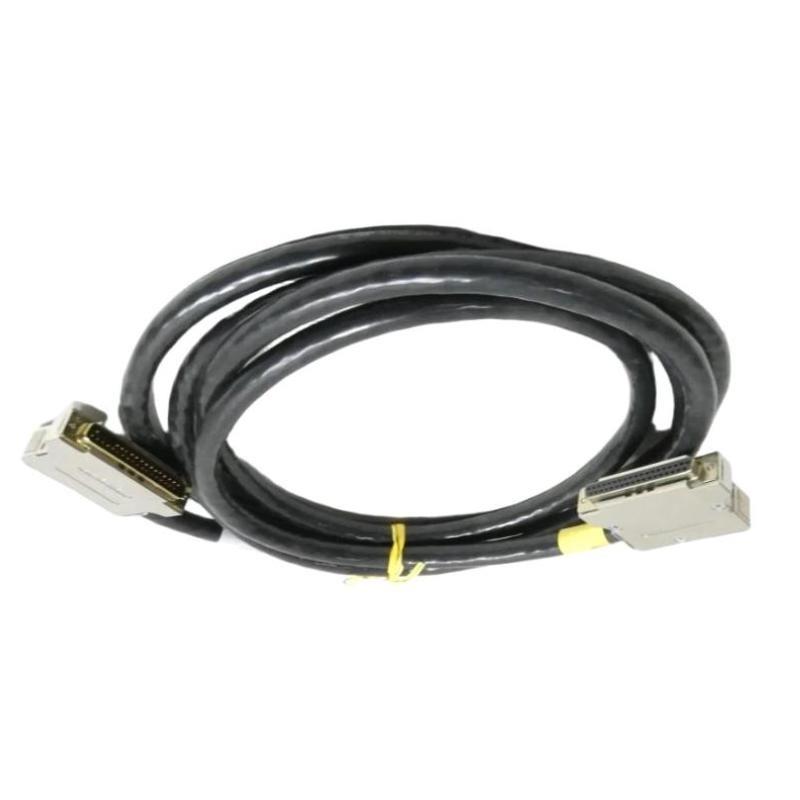

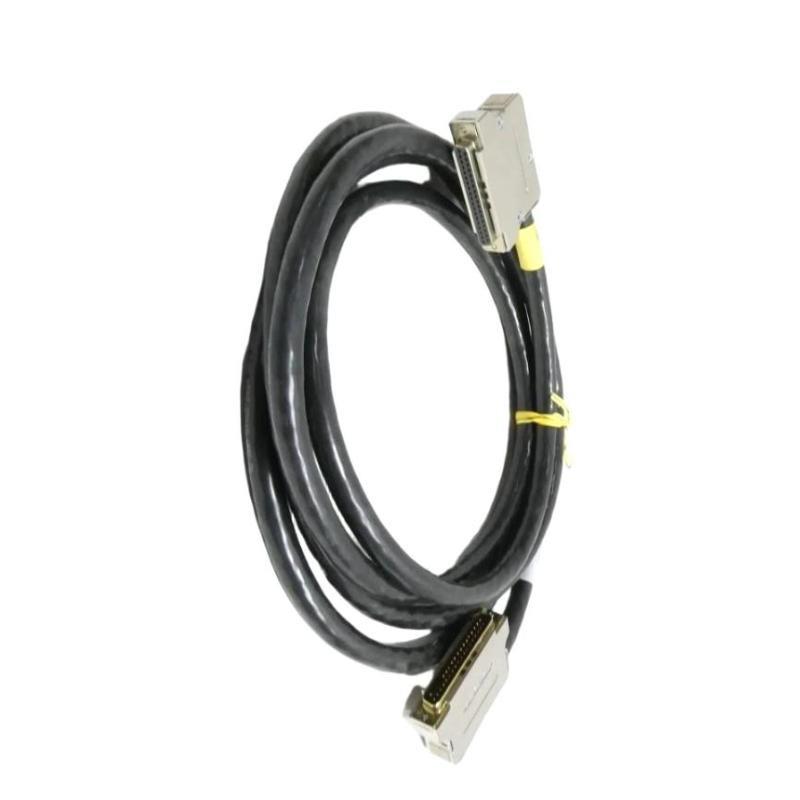

The GE IC697CBL700 Power Supply Extension Cable is a high-quality extension cable designed to support the GE Fanuc Series 90-70 PLC power supply systems. It enables flexible installation / PLC racks and power modules by extending the distance between the power supply and the connected modules without compromising electrical performance or signal integrity.
This extension cable is engineered to provide reliable power transmission under industrial operating conditions. It supports full load currents / the Series 90-70 power supply, ensuring stable voltage delivery and operational reliability across connected modules. The IC697CBL700 is especially useful in large installations where standard cable lengths may not reach all required locations, allowing flexible layout / control panels and racks.
Technical Specifications
| Parameter | Specification |
|---|---|
| 型号 Number | IC697CBL700 |
| Type | Power Supply Extension Cable |
| Compatible Systems | GE Series 90-70 PLC Power Modules |
| Cable Type | Shielded multi-core cable |
| Rated Voltage | 125 VDC |
| Maximum Current | 10 A |
| Operating Temperature | 0°C to 60°C |
| Relative Humidity | 5% to 95% non-condensing |
| Connector Type | Series 90-70 power supply standard connector |
| Cable Length | Optional (customizable) |
| 运输 重量 | 3 kg |
| Environmental Protection | Industrial grade insulation and jacket |
| Mounting | Flexible routing between PLC racks and power modules |
Applications
The IC697CBL700 extension cable is widely used in industrial automation where flexible and reliable power connections are required. Typical applications include:
-
Extended PLC Installations: Connecting power supplies to remote racks or modules in large control panels.
-
Redundant Power Systems: Providing flexible connection paths for backup or redundant power configurations.
-
Energy Management Systems: Routing power efficiently in distributed PLC networks across factories or process plants.
-
Automated Manufacturing Lines: Ensuring reliable power delivery to all PLC modules controlling assembly or conveyor systems.
-
Process Control Applications: Delivering stable power to distributed control systems in chemical, petrochemical, and refining plants.
Advantages
-
Flexible Length Options: Customizable cable lengths allow for versatile panel layouts and remote module placement.
-
Reliable Power Transmission: Maintains stable voltage and current to Series 90-70 modules under full load.
-
Industrial Durability: Shielded cable with robust insulation resists interference, vibration, and standard industrial conditions.
-
Easy Installation: Compatible connectors simplify connection to Series 90-70 power supplies.
-
支持s System Expansion: Enables future expansion / PLC racks without needing new power supply hardware.
-
Reduced Downtime: High-quality cable construction ensures consistent performance and reduces the risk / power interruptions.
FAQ
-
What is the primary function / the IC697CBL700 cable?
It extends the distance between the Series 90-70 PLC power supply and connected modules, ensuring stable power delivery. -
What is the maximum current this extension cable can carry?
The cable is rated to carry up to 10 A / current without voltage drop or overheating. -
Is the cable compatible with all Series 90-70 power modules?
Yes, it is designed to work with standard Series 90-70 PLC power supplies and modules. -
What is the operating temperature range for this cable?
It operates reliably between 0°C and 60°C under normal industrial conditions. -
Can the cable be routed in tight or confined spaces?
Yes, the flexible design and shielded insulation allow routing in confined panel spaces or around obstacles. -
Does the cable provide any environmental protection?
The cable features industrial-grade insulation and shielding, protecting against interference, dust, and vibration. -
Can the cable length be customized?
Yes, the IC697CBL700 is available in optional lengths to meet specific installation requirements. -
What type / connector does the cable use?
It uses standard Series 90-70 power supply connectors for secure and reliable connections. -
Is the cable suitable for high-vibration industrial environments?
Yes, its shielded and reinforced design ensures consistent performance even in environments with mechanical vibration. -
Can this cable be used in redundant power configurations?
Yes, it supports redundant or backup power setups by providing flexible routing between multiple power supplies and PLC racks.
Related 型号s (Same Series / Similar Type)
| 型号 Number | Type | Key Feature | 重量 |
|---|---|---|---|
| IC697CBL701 | Power Supply Extension Cable | Optional lengths up to 5 meters | 2.8 kg |
| IC697CBL702 | Power Supply Extension Cable | Shielded multi-core, up to 10 A | 3.1 kg |
| IC697CBL703 | Power Supply Extension Cable | High flexibility for tight installations | 2.9 kg |
| IC697CBL704 | Power Supply Extension Cable | Reinforced jacket for industrial use | 3.2 kg |
| IC697CBL705 | Power Supply Extension Cable | 支持s Series 90-70 redundant power | 3.0 kg |
| IC697CBL706 | Power Supply Extension Cable | Customizable length and connectors | 3.3 kg |
Popular 型号s (Same 品牌)
| 型号 Number | Type | Key Feature | 重量 |
|---|---|---|---|
| IC697PWR710 | Power Supply Module | 120/240 VAC input, 50 W | 1.2 kg |
| IC697CBL700 | Power Supply Extension Cable | Flexible cable for PLC racks | 3 kg |
| IC697BEM763 | Drive Interface Module | DLAN/DLAN+ drive communication | 0.79 kg |
| IC697BEM771 | Bus Controller Module | Central DLAN/DLAN+ communication hub | 0.85 kg |
| IC697CPU780 | CPU Module | High-performance PLC CPU | 0.9 kg |
| IC697BEM710 | Bus Transmitter Module | Interfaces PLC with remote I/O systems | 0.85 kg |
