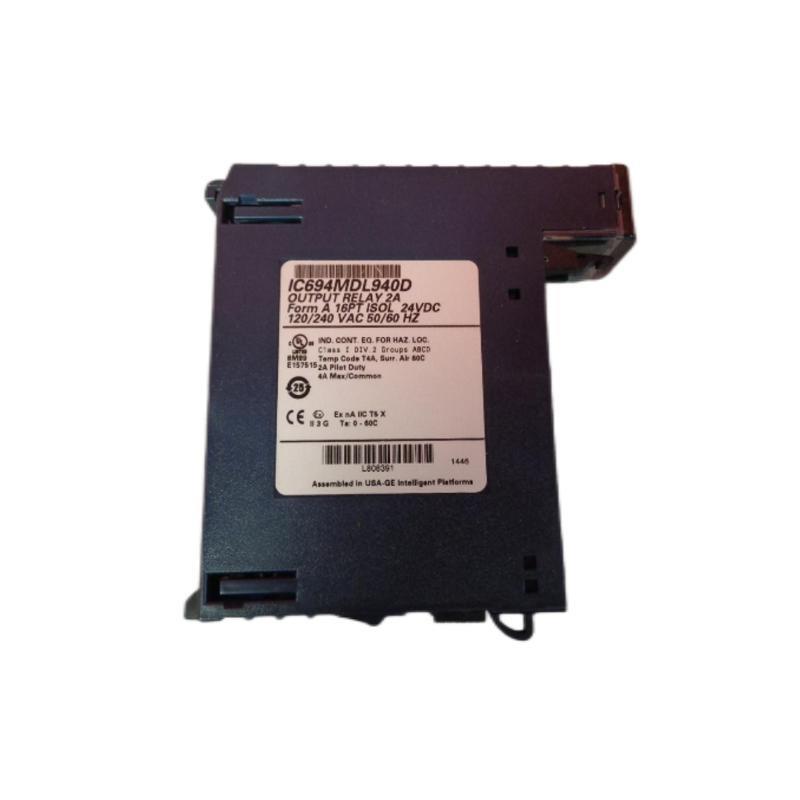

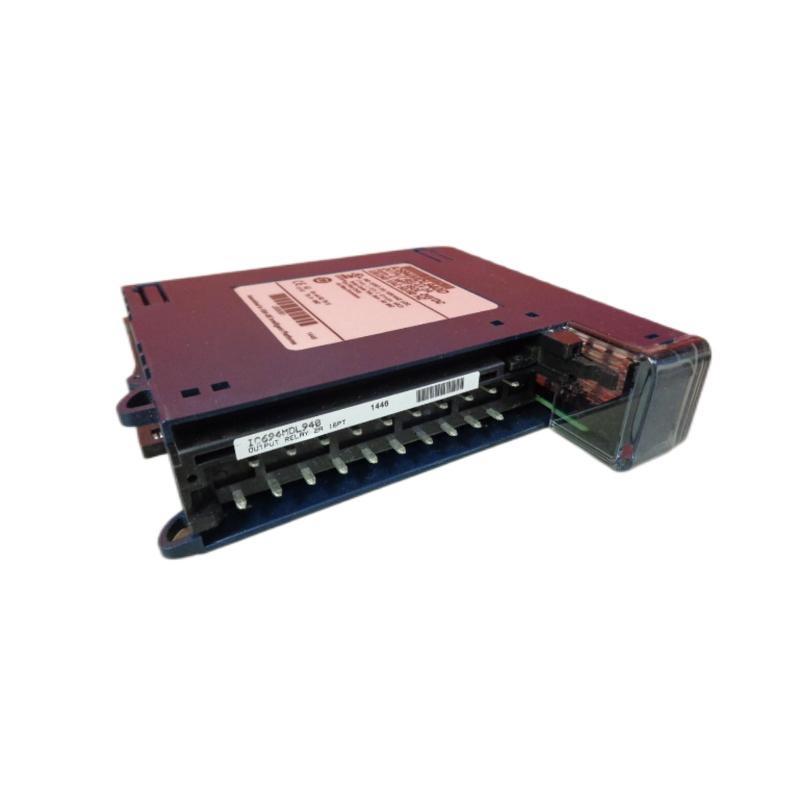

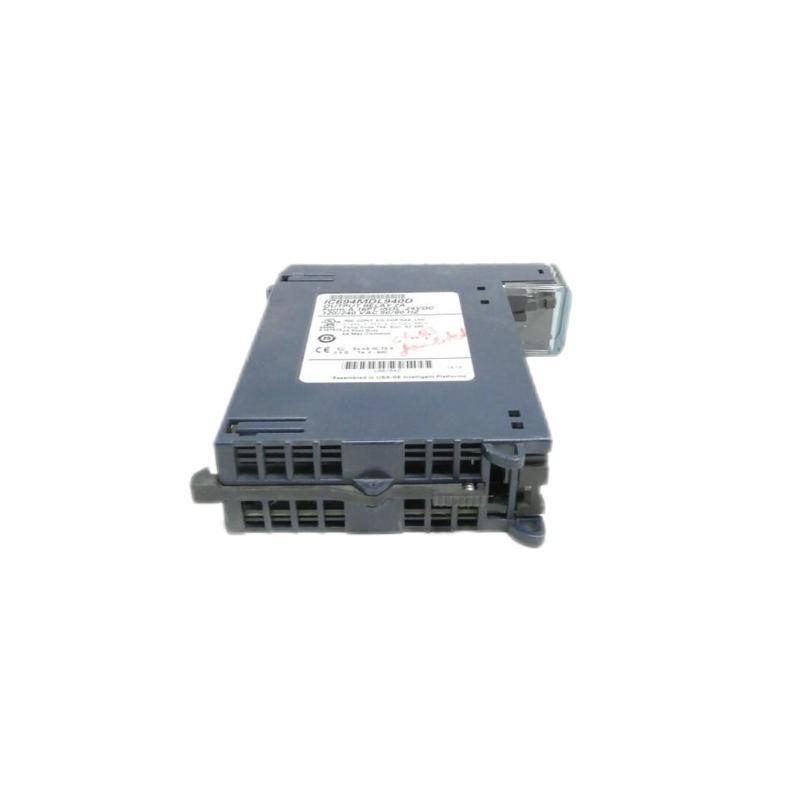

GE IC694MDL940D Product Overview
The GE IC694MDL940D is an input/output module designed for use in industrial automation systems. It forms part / the GE Fanuc 90-30 PLC series and serves as a critical component for digital signal processing and control. This module interfaces digital inputs with a Programmable Logic Controller (PLC), ensuring efficient operation / the system. The IC694MDL940D is designed to work with high reliability in diverse industrial environments, /fering seamless integration with other GE control systems and components.
Product Parameters
The following table provides the key specifications / the GE IC694MDL940D module:
| Specification | Details |
|---|---|
| 型号 Number | IC694MDL940D |
| Type | Digital Output Module |
| Input/Output | 24V DC, 8 points |
| Voltage Rating | 24V DC |
| Current Rating | 0.5 A per channel |
| Power Consumption | 4W |
| Dimensions | 34 x 145 x 140 mm |
| 重量 | 0.2 kg |
| Mounting | DIN Rail or panel mount |
| Operating Temperature | 0°C to 60°C |
| Humidity | 5% to 95% non-condensing |
| Enclosure | IP20 (Protection Class) |
Applications
The GE IC694MDL940D module is designed for various industrial applications, particularly in automation and control systems. It is widely used in:
-
Manufacturing Automation: Automating machinery and production lines.
-
Building Management Systems: Controlling lighting, HVAC systems, and other building services.
-
Energy Management: Monitoring and controlling energy usage.
-
Transportation Systems: Managing control signals for transit systems and equipment.
-
Process Control: For managing processes in industries like chemical, food processing, and oil and gas.
Product Advantages
-
High Reliability: The GE IC694MDL940D is engineered for long-lasting performance, ensuring minimal downtime and maintenance requirements in industrial environments.
-
Compact Design: Its small size allows for easy integration into existing systems without taking up too much space.
-
Wide Operating Range: The module can function effectively across a broad temperature and humidity range, making it suitable for diverse industrial environments.
-
Easy Integration: Designed to work seamlessly with other GE Fanuc components, this module simplifies the process / building or expanding automation systems.
-
Versatility: Suitable for a range / industrial applications, from simple machine control to complex process automation.
-
Cost-Effective: Provides excellent performance at an affordable price point, /fering good value for industrial users.
常见问题 (FAQ)
-
What is the operating voltage / the IC694MDL940D?
-
The module operates on a 24V DC supply.
-
-
How many output channels does this module have?
-
The IC694MDL940D has 8 output channels.
-
-
What is the maximum current per channel?
-
Each output channel supports a maximum / 0.5A.
-
-
Is the module compatible with other GE Fanuc products?
-
Yes, it is designed for easy integration with other GE Fanuc components.
-
-
What is the temperature range for the module’s operation?
-
The module operates within a temperature range / 0°C to 60°C.
-
-
Can the IC694MDL940D be mounted on a DIN rail?
-
Yes, it can be mounted on a DIN rail or directly onto a panel.
-
-
What is the power consumption / this module?
-
The module consumes 4 watts / power during operation.
-
-
Is the IC694MDL940D suitable for high-humidity environments?
-
Yes, it is designed to function in environments with 5% to 95% non-condensing humidity.
-
-
What is the module’s weight?
-
The weight / the IC694MDL940D is 0.2 kg .
-
-
What is the protection rating / this module?
-
The module has an IP20 protection rating, suitable for indoor use.
-
Recommended Related 型号s
Below are 6 recommended models from the same series or related models that may be useful in your industrial automation setup:
| 型号 | 描述 | Specifications |
|---|---|---|
| IC694MDL640 | Digital Output Module (16 Points) | 24V DC, 16 outputs, IP20 |
| IC694MDL740 | Relay Output Module (8 Points) | 24V DC, 8 outputs, 2A max |
| IC694MDL760 | Relay Output Module (16 Points) | 24V DC, 16 outputs, 2A max |
| IC694MDL930 | High-Speed Digital Output Module | 24V DC, 16 outputs, 1A max |
| IC694MDL850 | High-Speed Digital Input Module | 24V DC, 16 inputs |
| IC694MDL940 | 8-Point Digital Output Module | 24V DC, 8 outputs, IP20 |
Popular GE 型号s (with specifications)
Here are 6 popular GE models, /ten used in industrial applications:
| 型号 | 描述 | Voltage | Inputs/Outputs | Current | Dimensions | 重量 |
|---|---|---|---|---|---|---|
| IC694CPU360 | Central Processing 单位 | 5V DC | 1 | 100 mA | 100 mm x 75 mm x 50 mm | 0.4 kg |
| IC693PWR321 | Power Supply | 24V DC | 1 | 5A | 160 mm x 120 mm x 60 mm | 1.0 kg |
| IC694PWR030 | Power Supply Module | 24V DC | 1 | 5A | 150 mm x 90 mm x 45 mm | 0.9 kg |
| IC693MDL931 | High-Speed Digital Input Module | 24V DC | 16 | 2A per channel | 140 mm x 75 mm x 45 mm | 0.5 kg |
| IC693MDL646 | 16-Point Digital Output Module | 24V DC | 16 | 1A per channel | 160 mm x 100 mm x 50 mm | 0.8 kg |
| IC693ALG223 | Analog Input Module | 24V DC | 8 | 0-20 mA | 140 mm x 80 mm x 60 mm | 0.7 kg |
