产品介绍

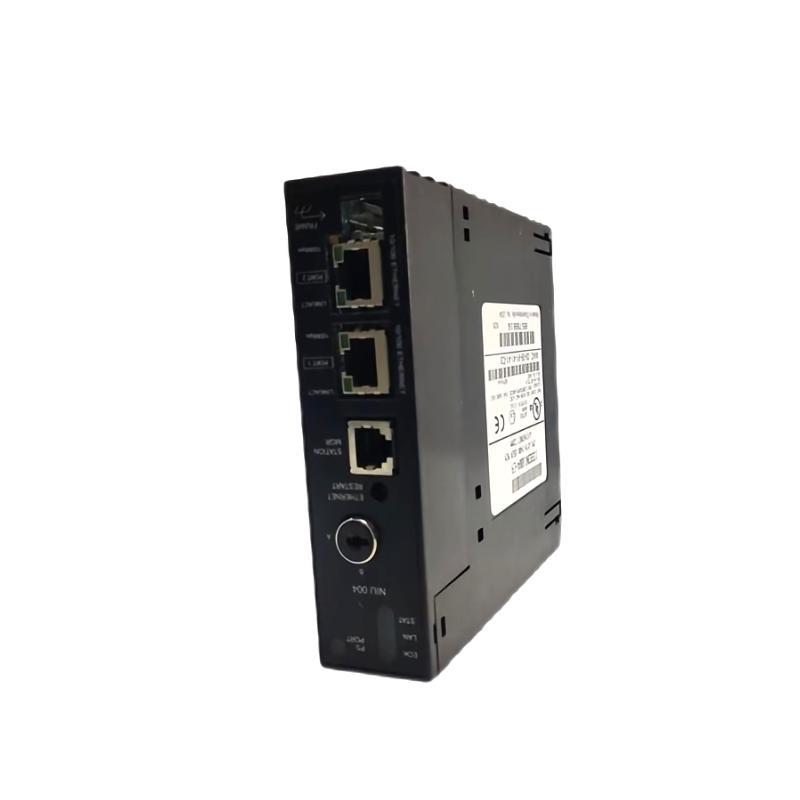

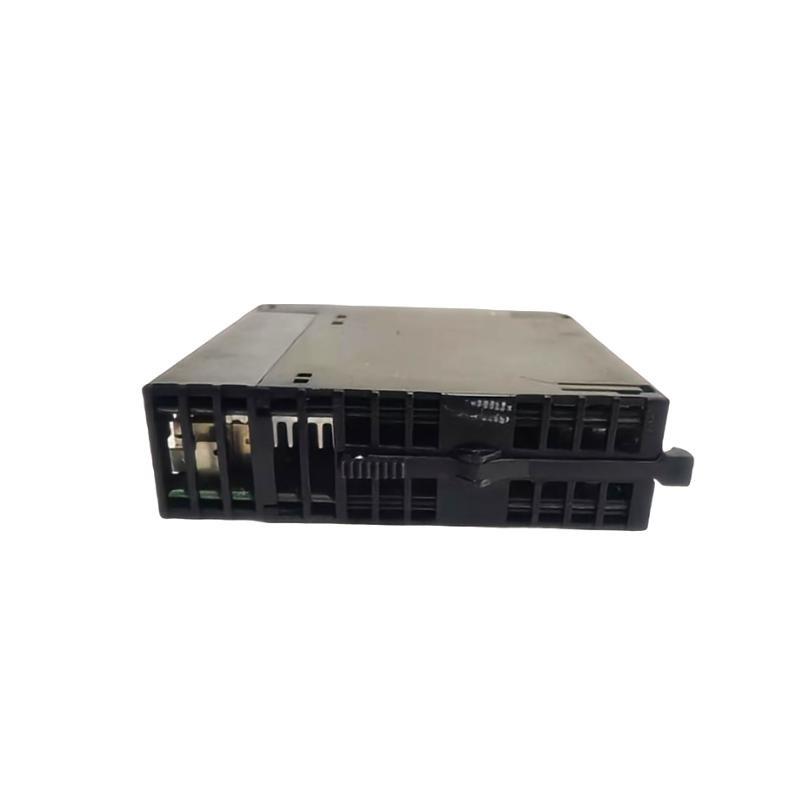

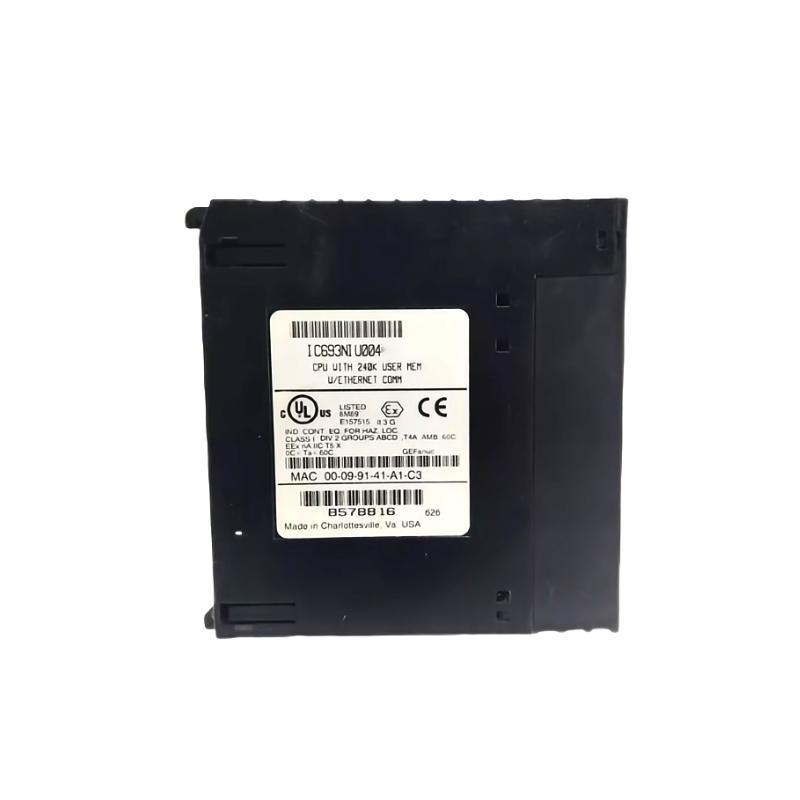

The GE IC693NIU004 Ethernet Network Interface 单位 is a versatile and high-performance communication module designed for the GE Series 90-30 PLC system. Its primary role is to provide seamless Ethernet connectivity between the PLC and various industrial networks, control systems, and enterprise applications.
The IC693NIU004 acts as a network gateway, allowing the connected PLC to operate as a remote I/O or intelligent node within distributed architectures. It supports a broad range / industrial protocols, including Ethernet Global Data (EGD), SRTP, and Modbus TCP/IP, enabling real-time communication with other controllers, HMIs, SCADA systems, and enterprise networks.
Designed for robust industrial environments, the IC693NIU004 /fers reliable, deterministic performance with low latency and high throughput. The module simplifies network integration while improving the scalability and flexibility / industrial automation systems.
产品规格
| Parameter | Specification |
|---|---|
| 型号 Number | IC693NIU004 |
| Product Type | Ethernet Network Interface 单位 |
| Compatible PLC | GE Fanuc Series 90-30 PLC |
| Ethernet Interface | 10/100 Mbps, RJ-45 port |
| 支持ed Protocols | Ethernet Global Data (EGD), SRTP, Modbus TCP/IP |
| IP Address Assignment | Static or DHCP |
| Communication Mode | Full duplex, auto-negotiation |
| Backplane Interface | High-speed connection to PLC backplane |
| Data Transfer Rate | Deterministic, optimized for real-time |
| Operating Voltage | 5 VDC (provided from PLC backplane) |
| Power Consumption | 500 mA at 5 VDC |
| Operating Temperature Range | 0°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (H x W x D) | 210 ×188 × 262 mm |
| 重量 | 0.35 kg |
| Mounting Method | Installed in Series 90-30 PLC rack |
| Certifications | UL, CSA, CE, RoHS |
| Diagnostics | LED status indicators for link, activity, and fault |
| Firmware Upgradable | Yes |
Applications
-
Industrial Automation Networks: Provides Ethernet connectivity for GE Series 90-30 PLC systems.
-
Distributed Control Systems (DCS): Integrates remote PLCs and intelligent nodes into large control networks.
-
Supervisory Control and Data Acquisition (SCADA): Facilitates communication between PLCs and SCADA workstations.
-
Remote I/O Systems: Enables Series 90-30 PLC to function as a distributed I/O node over Ethernet.
-
Machine Control: Connects individual machines to plantwide networks for coordinated operation.
-
OEM Applications: Provides flexible networking for machine builders and system integrators.
-
Process Automation: Links PLCs to MES and ERP systems for real-time production data reporting.
-
Energy Management Systems: Enables integration / power control equipment into facility networks.
Product Advantages
-
High-speed Ethernet Connectivity: 10/100 Mbps interface ensures fast data exchange across industrial networks.
-
Protocol Flexibility: 支持s multiple protocols including EGD, SRTP, and Modbus TCP/IP for broad interoperability.
-
Seamless Integration: Easily integrates into existing Series 90-30 PLC racks without the need for external hardware.
-
Reliable and Deterministic Performance: Designed for low latency and high reliability in time-critical applications.
-
Enhanced Diagnostics: Built-in LED indicators and advanced fault reporting simplify troubleshooting.
-
Firmware Upgradable: 支持s field firmware updates for feature enhancements and bug fixes.
-
Reduced System Complexity: Eliminates the need for third-party gateways or communication bridges.
-
Scalable: Facilitates easy expansion / control networks as plant needs grow.
-
Robust Construction: Industrial-grade design ensures reliable operation in harsh environments.
-
Industry Proven: Widely deployed in industrial automation, energy, and manufacturing sectors worldwide.
常见问题 (FAQ)
-
What is the main purpose / the IC693NIU004 module?
It provides Ethernet connectivity and communication between GE Series 90-30 PLCs and industrial networks. -
What Ethernet speeds does it support?
It supports 10 Mbps and 100 Mbps Ethernet with auto-negotiation. -
What protocols are supported by the IC693NIU004?
The module supports Ethernet Global Data (EGD), SRTP, and Modbus TCP/IP. -
Is this module compatible with all Series 90-30 PLC racks?
Yes, it is fully compatible with all Series 90-30 PLC systems. -
Can the module operate in remote I/O applications?
Yes, it enables the PLC to function as a remote I/O node within distributed systems. -
Does the module support DHCP?
Yes, IP addresses can be assigned statically or via DHCP. -
How is the module installed?
It installs directly into a slot in the Series 90-30 PLC rack. -
Can the firmware be upgraded?
Yes, the firmware is field-upgradable via Ethernet. -
What industries use this module?
It is used in oil & gas, power generation, manufacturing, automotive, water treatment, and other process industries. -
Does it provide diagnostic features?
Yes, it /fers LED indicators and built-in diagnostics for troubleshooting.
Recommended Related 型号s (Same Series or Similar)
| 型号 Number | 描述 | Notes |
|---|---|---|
| IC693NIU005 | Enhanced Ethernet Network Interface 单位 | Higher feature version |
| IC693CHS397 | Series 90-30 5-Slot Base | For mounting NIU modules |
| IC693CPU374 | CPU374 Plus Ethernet PLC CPU | Integrated Ethernet & CPU |
| IC693CMM321 | Genius Communications Module | Genius I/O network interface |
| IC693CMM311 | FIP Communications Module | For FIP fieldbus networking |
| IC693CMM302 | PROFIBUS Master Module | PROFIBUS-DP network interface |
Popular GE Automation 型号s (Same 品牌)
| 型号 Number | 描述 | Application |
|---|---|---|
| IC695CPE330 | RX3i CPU with Ethernet | High-speed PAC with built-in Ethernet |
| IC695NIU001 | RX3i Network Interface 单位 | Ethernet-based remote I/O |
| IC695PBM300 | RX3i PROFIBUS Master Module | PROFIBUS-DP communications |
| IC695ETM001 | RX3i Ethernet Module | High-speed Ethernet interface |
| IC697CPU772 | Series 90-70 CPU | Large memory CPU for advanced control |
| IC200ERM002 | VersaMax Ethernet Remote I/O Master | Ethernet remote I/O master |
