产品介绍

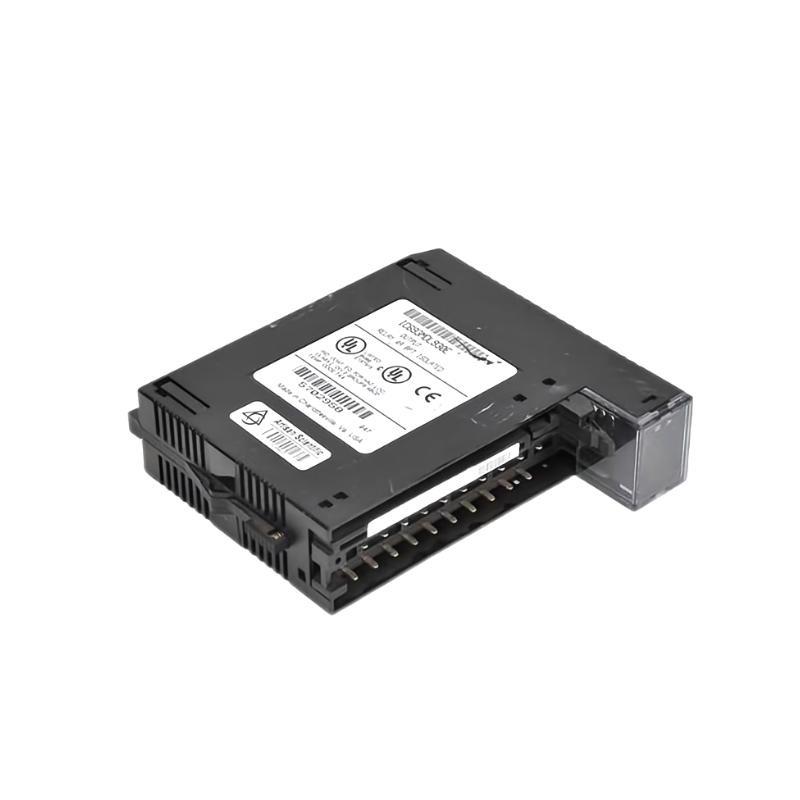

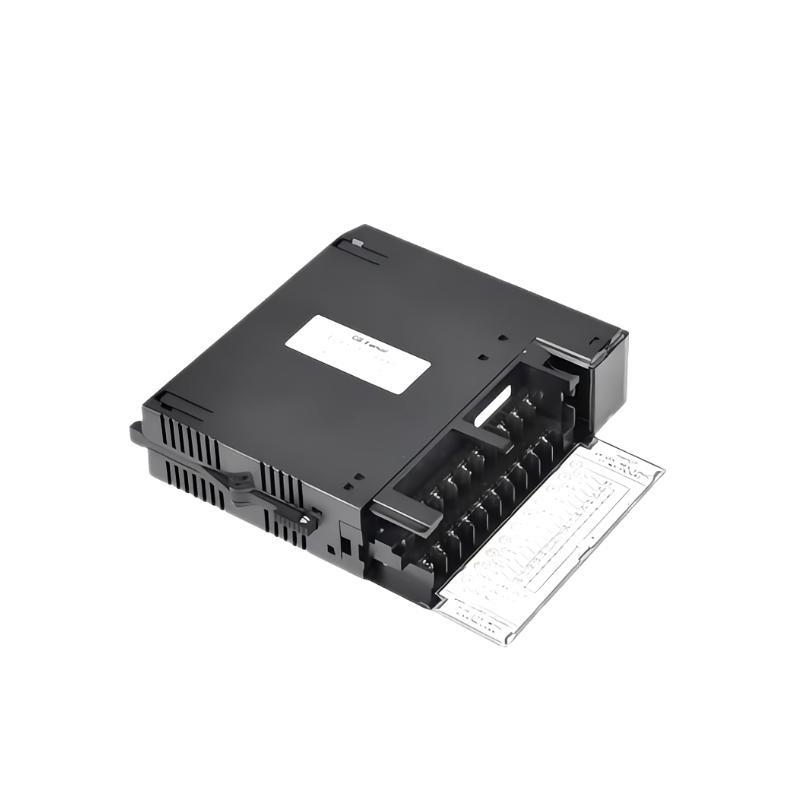

The GE IC693MDL930 is an 8-point Isolated Relay Output Module designed for use with the GE Series 90-30 PLC system. Engineered to /fer maximum flexibility and electrical isolation, the module provides eight individually isolated, Form C (normally open and normally closed) relay outputs. It is used for switching AC or DC loads, making it suitable for a wide variety / industrial automation tasks.
Each output on the IC693MDL930 is isolated from the others, which allows the user to connect each output to different voltage levels or ground references. This feature makes the module especially useful in control applications requiring diverse loads and electrical separations. It’s ideal for driving indicators, solenoids, small motors, and other discrete devices.
产品规格
| Parameter | Details |
|---|---|
| 型号 Number | IC693MDL930 |
| Product Type | Isolated Relay Output Module |
| Series | GE Series 90-30 |
| Number / Output Points | 8 |
| Output Type | Relay – Form C (SPDT) |
| Isolation | Individually isolated channels |
| Operating Voltage Range | 5–30 VDC / 5–250 VAC |
| Maximum Load (Per Output) | 2 A at 30 VDC or 2 A at 250 VAC |
| Switching Power | 60 W (DC) / 125 VA (AC) |
| 联系我们 Life (Mechanical) | 10 million operations |
| 联系我们 Life (Electrical) | 100,000 operations at rated load |
| Response Time (Operate/Release) | <15 ms / <15 ms |
| On/Off Indication | LED per output channel |
| Backplane Current Consumption | 200 mA (5 VDC) |
| Terminal Type | Screw-type removable terminal block |
| Mounting | Standard PLC baseplate |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (H x W x D) | 89 x 107 x 188 mm |
| 重量 | 0.45 kg |
| Certifications | UL, CSA, CE |
Product Applications
The IC693MDL930 is tailored for a wide range / automation environments and can be deployed across numerous industries. Key applications include:
-
Factory Automation: Control / actuators, relays, alarms, and indicator lamps.
-
Process Control Systems: Driving solenoid valves, contactors, and interlock circuits.
-
Power Plants: Load control and system interlocks for turbine auxiliary systems.
-
Water Treatment Facilities: Operation / pumps, level switches, and alert systems.
-
Packaging Lines: Control / timing relays and stepper motor activation.
-
Building Automation: Switching / HVAC relays, light control, and alarm indicators.
Its isolated architecture makes it a suitable choice for systems requiring signal protection, interference imm件y, or interconnection to mixed-voltage systems.
Product Advantages
-
Channel-to-Channel Isolation: Each output is isolated from others, enabling safe interfacing with devices operating at different voltages or grounds.
-
Versatile Voltage 支持: Capable / switching both AC and DC loads, accommodating a wide variety / field devices.
-
Mechanical Relay Outputs: Ensures no leakage current when open – ideal for true OFF states.
-
Long Life & High Reliability: Built for over 10 million mechanical operations and over 100,000 electrical operations at rated load.
-
LED Status Indicators: One LED per channel for real-time status monitoring and easy diagnostics.
-
Wide Load Compatibility: 支持s low-voltage DC circuits as well as high-voltage AC applications up to 250 VAC.
-
Secure Terminal Connections: Screw terminal blocks allow robust and maintenance-friendly wiring.
-
Compact Form Factor: Easily fits into standard 90-30 racks with minimal space requirements.
常见问题 (FAQ)
-
Q: How many relay outputs are available in the IC693MDL930?
A: There are 8 isolated relay outputs. -
Q: Can each output be connected to a different voltage level?
A: Yes, all outputs are channel-to-channel isolated, allowing separate voltage or ground references. -
Q: Is this module suitable for both AC and DC loads?
A: Yes, it supports both AC (up to 250 VAC) and DC (up to 30 VDC) loads. -
Q: What is the maximum current capacity per relay?
A: Each relay can handle up to 2 A at rated voltage. -
Q: What type / relays are used in this module?
A: Form C (SPDT – Single Pole Double Throw) mechanical relays. -
Q: Is the module hot-swappable in a running system?
A: No, the module should be inserted or removed only when the system is powered down. -
Q: How is output status indicated?
A: Each channel has a corresponding LED that lights up when the relay is energized. -
Q: What kind / terminal connections are used?
A: Screw-type removable terminal blocks for easy wiring and replacement. -
Q: Can the module handle inductive loads?
A: Yes, but it is recommended to use snubber circuits or suppression diodes for inductive loads. -
Q: What PLC systems is this module compatible with?
A: It is designed for GE Fanuc Series 90-30 PLC systems.
Related 型号s (Same Series / Similar Functionality)
| 型号 | 描述 | Type | Channels | Output Type |
|---|---|---|---|---|
| IC693MDL930 | Isolated Relay Output Module | Relay Output | 8 | Form C (SPDT) |
| IC693MDL740 | Relay Output Module | Relay Output | 8 | Form A (NO) |
| IC693MDL645 | 24VDC Positive Logic Output Module | Solid 状态 Output | 16 | Sourcing |
| IC693MDL734 | 125VDC Relay Output Module | Relay Output | 8 | High Voltage Switching |
| IC693MDL752 | Isolated Output Module (Relay) | Relay Output | 4 | Form C (SPDT) |
| IC693MDL350 | Isolated 120VAC Output Module | Relay Output | 8 | AC Load Switching |
Popular GE 型号s (Same 品牌)
| 型号 | 描述 | System Compatibility | Function |
|---|---|---|---|
| IC693CPU374 | CPU Module with Ethernet | Series 90-30 | CPU with Ethernet 支持 |
| IC695CHS012 | 12-slot Universal Backplane | RX3i | Modular Backplane |
| IC693ALG223 | Analog Output Module (4-20mA) | Series 90-30 | Analog Output |
| IC695PSA140 | Power Supply Module | RX3i | 40W Universal PS |
| IC693MDL645 | 24VDC Positive Logic Output Module | Series 90-30 | Solid 状态 Output |
| IC694MDL754 | 24VDC Isolated Input Module | RX3i | Digital Input (16-point) |
