产品介绍

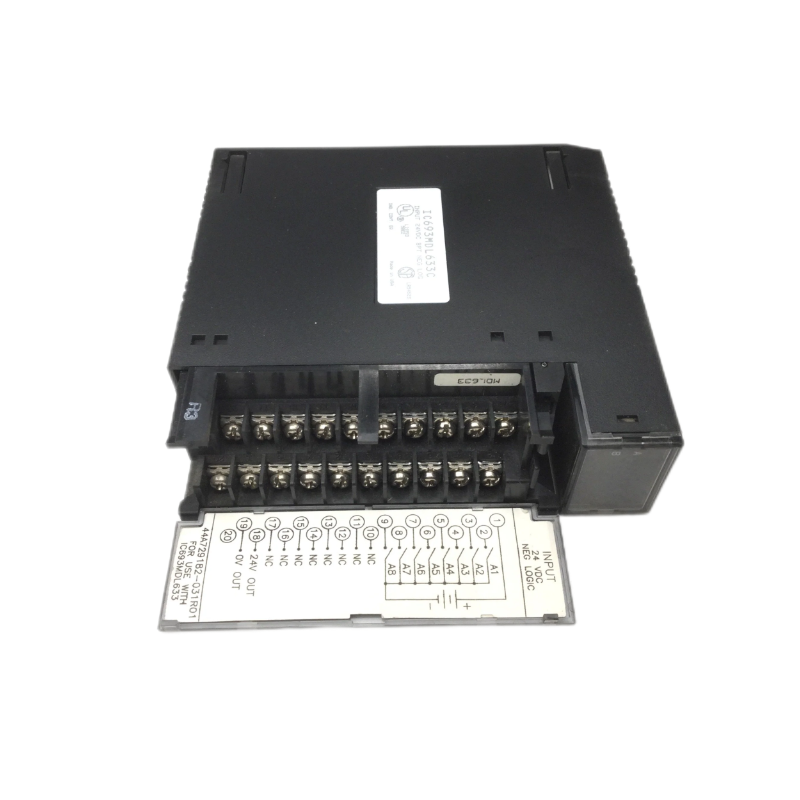

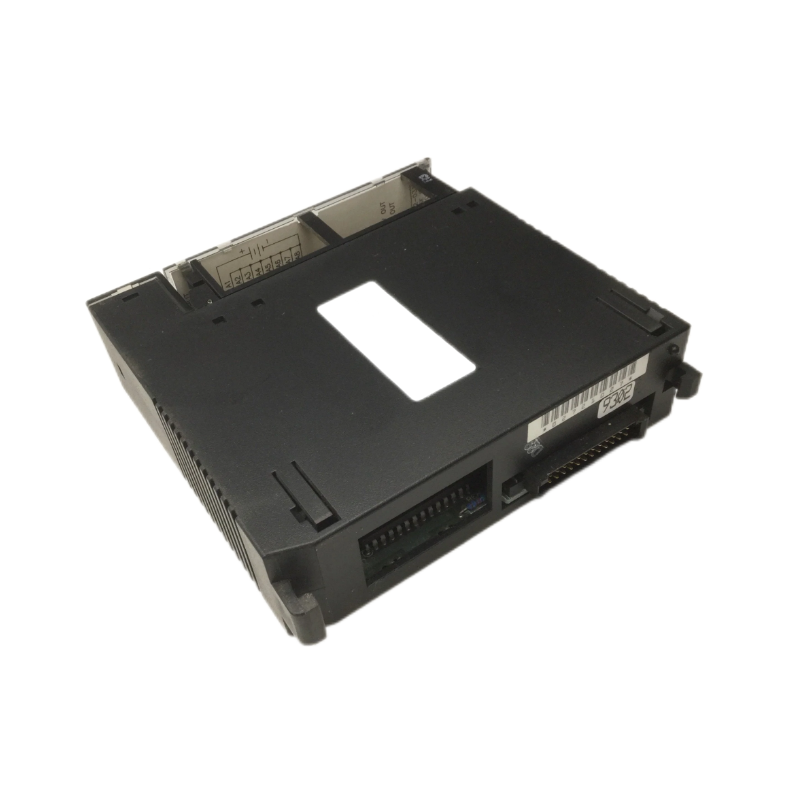

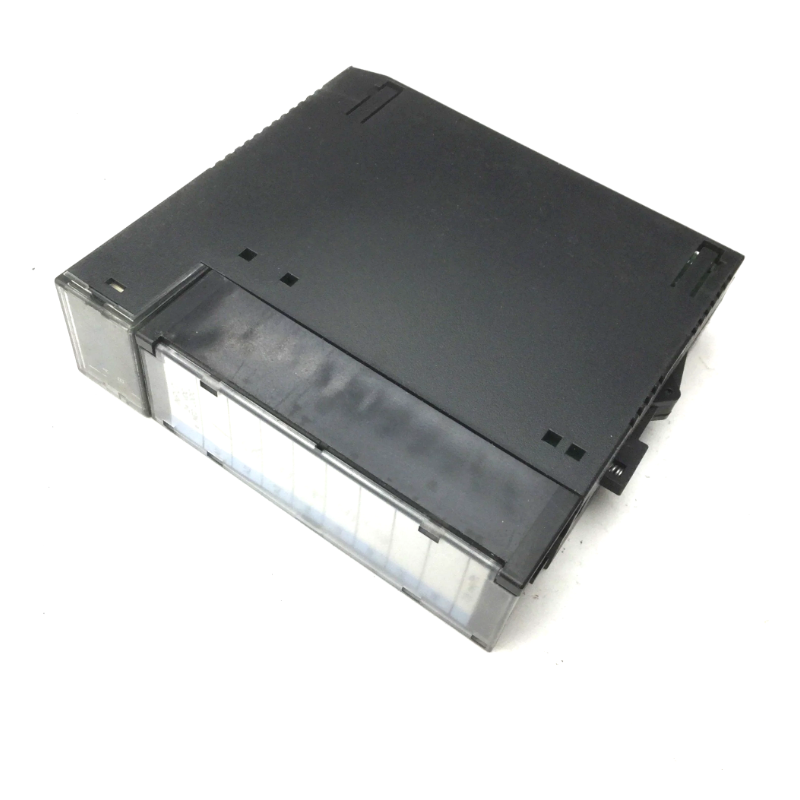

The GE IC693MDL633 is a high-performance digital input module designed for use with GE Fanuc Series 90-30 PLCs. This module is part / the VersaMax series, known for its reliability and flexibility in industrial automation applications. It provides 32-point DC input channels, enabling efficient monitoring and control / various industrial processes. The module is designed for easy integration into existing systems and is widely used in manufacturing, energy, and process control industries.
Product Parameters
| Parameter | Specification |
|---|---|
| 型号 Number | IC693MDL633 |
| Type | 32-point DC Digital Input Module |
| Input Voltage | 24V DC (Sink/Source) |
| Input Current | 4 mA per point (typical) |
| Isolation Voltage | 1500V AC (channel to bus) |
| Response Time | 1 ms (ON to OFF), 3 ms (OFF to ON) |
| Operating Temp. | -20°C to 60°C (-4°F to 140°F) |
| Storage Temp. | -40°C to 85°C (-40°F to 185°F) |
| Humidity Range | 5% to 95% (non-condensing) |
| Dimensions | 128 x 60 x 25mm |
| 重量 | 0.3kg |
| Compatibility | GE Series 90-30 PLCs |
Product Applications
The IC693MDL633 is widely used in industrial automation systems for:
-
Machine Control – Monitoring sensors, switches, and relays.
-
Process Automation – Input signal acquisition in chemical and food processing.
-
Energy Management – Status monitoring in power distribution systems.
-
Manufacturing Lines – Detecting part presence or conveyor belt status.
-
HVAC Systems – Monitoring safety interlocks and alarms.
Product Advantages
-
High Channel Density – 32 inputs in a compact module save space.
-
Fast Response Time – Ensures real-time control in critical applications.
-
Wide Voltage Compatibility – Works with 24V DC industrial standards.
-
Robust Isolation – 1500V AC isolation protects against electrical noise.
-
Easy Installation – Plug-and-play with Series 90-30 PLCs.
-
Durability – Operates in harsh industrial environments.
常见问题 (FAQ)
-
What is the input voltage range for IC693MDL633?
The module operates at 24V DC. -
Can this module be used with non-GE PLCs?
No, it is designed exclusively for GE Series 90-30 PLCs. -
What is the maximum current per input?
Each input draws approximately 4 mA. -
Is the module hot-swappable?
No, power must be turned /f before installation/removal. -
What is the isolation voltage between channels?
1500V AC for channel-to-bus isolation. -
Does it support sinking or sourcing inputs?
Yes, it supports both configurations. -
What is the operating temperature range?
-20°C to 60°C (-4°F to 140°F). -
How many points does the module have?
32 digital input points. -
Can it handle AC inputs?
No, it is designed for DC inputs only. -
What is the module’s response time?
1 ms (ON to OFF) and 3 ms (OFF to ON).
Recommended Related & Popular 型号s
| Related 型号s (Same Series) | 描述 |
|---|---|
| IC693MDL634 | 32-point DC Digital Output Module |
| IC693MDL645 | 16-point AC Digital Input Module |
| IC693MDL655 | 8-point Relay Output Module |
| IC693MDL731 | 16-point Analog Input Module |
| IC693MDL752 | 4-channel Analog Output Module |
| IC693MDL940 | High-Speed Counter Module |
| Popular GE 型号s | 描述 |
|---|---|
| IC695CPU315 | RX3i High-Performance CPU Module |
| IC694ALG220 | Analog Input/Output Module (VersaMax) |
| IC697CPX928 | Series 90-70 CPU Module |
| IC698CRE030 | RX7i Redundant CPU Module |
| IC670CHS002 | High-Density Digital Input Module |
| IC200MDD840 | Digital Input Module (VersaMax Nano) |
