Product Overview

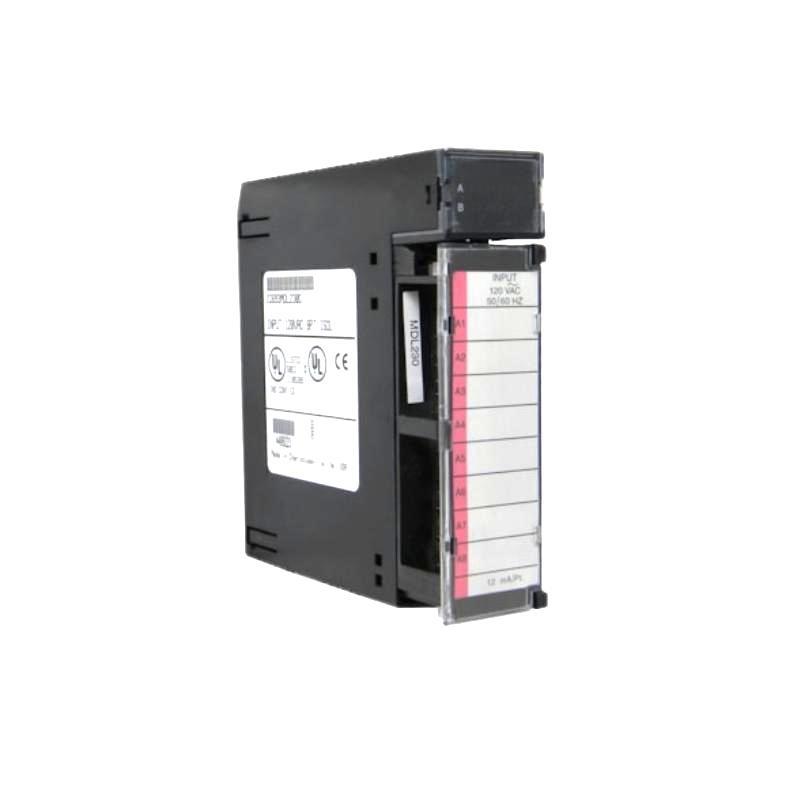

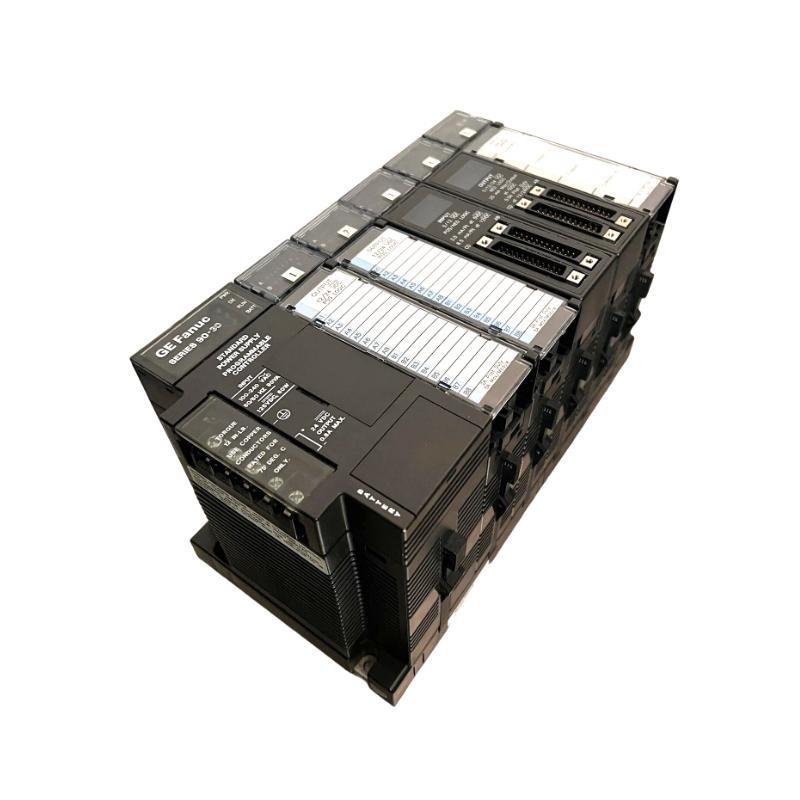

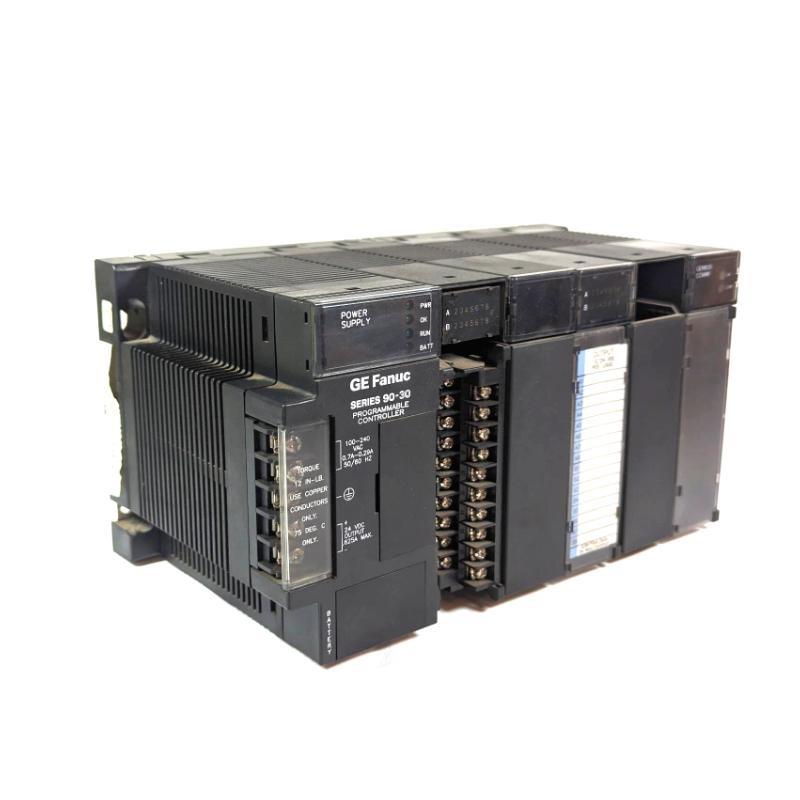

The GE IC693MDL250 is a 120 VAC Isolated Input Module used in GE’s PACSystems RX3i and Series 90-30 PLC systems. It is designed to interface discrete input devices like limit switches, push buttons, and proximity sensors with the PLC, converting 120 VAC signals into logic-level signals that the CPU can process.
Technical Specifications
| Parameter | Details |
|---|---|
| Module Type | Discrete Input |
| Number / Inputs | 16 (Individually isolated) |
| Input Voltage | 120 VAC nominal |
| Voltage Range | 75 to 132 VAC, 47–63 Hz |
| Input Current | 10 mA (typical) at rated voltage |
| Input Isolation | 1500 V RMS (input-to-backplane) |
| Between Inputs Isolation | 500 V RMS |
| On-状态 Voltage | 75–132 VAC |
| Off-状态 Voltage | 0–25 VAC |
| On-状态 Current | 6–15 mA |
| Off-状态 Current | ≤3 mA |
| Input Impedance | 10 kΩ (typical) |
| Input Delay (filter time) | 20 ms (typical) |
| Proximity Compatible | Yes |
| Current from 5V Bus | 0.35 A |
| Dimensions | 142 x 30 x 132 mm |
| 重量 | 0.3 kg |
Applications
-
Factory automation systems
-
Motor and process control
-
Discrete input data acquisition
-
Machine safety interlock monitoring
-
Packaging and material handling systems
Product Advantages
-
Individually isolated inputs enhance system reliability and fault isolation
-
Wide input voltage tolerance ensures stable operation under industrial conditions
-
Compatible with PACSystems RX3i and Series 90-30 platforms
-
支持s AC input from a variety / industrial sensors and switches
-
Designed for high noise imm件y in harsh environments
FAQs
Q1: What is the input voltage range / the IC693MDL250?
A1: 75 to 132 VAC at 47–63 Hz.
Q2: How many input points does this module support?
A2: It supports 16 individually isolated input points.
Q3: Can the IC693MDL250 detect proximity switches?
A3: Yes, it is compatible with proximity switches.
Q4: Is the IC693MDL250 suitable for high-noise environments?
A4: Yes, it features 1500 V RMS isolation to protect against electrical noise.
Q5: Does this module support hot-swapping?
A5: No, the module does not support hot-swap functionality.
Q6: What is the typical input delay time for this module?
A6: Approximately 20 milliseconds.
Q7: Can it be used with a 24 VAC signal?
A7: No, it is designed specifically for 120 VAC input signals.
Q8: What is the required backplane power consumption?
A8: 0.35 A from the 5V bus.
Q9: What types / controllers are compatible with this module?
A9: It is compatible with GE PACSystems RX3i and Series 90-30 controllers.
Q10: What is the module’s size and weight?
A10: It measures 142 x 30 x 132 mm and weighs 0.3 kg.
Related 型号s in the Same Series
| 型号 | 描述 | Input Type | Voltage | Inputs | Dimensions (mm) | 重量 |
|---|---|---|---|---|---|---|
| IC693MDL240 | AC Input Module | Discrete | 120 VAC | 16 | 142 x 30 x 132 | 0.3 kg |
| IC693MDL241 | AC Input Module | Discrete | 240 VAC | 16 | 142 x 30 x 132 | 0.3 kg |
| IC693MDL645 | DC Input Module | Discrete | 24 VDC | 32 | 142 x 30 x 132 | 0.3 kg |
| IC693MDL634 | Relay Output Module | Discrete | 5–30 VDC | 12 | 142 x 30 x 132 | 0.3 kg |
| IC693MDL930 | Isolated Relay Output Module | Discrete | 120/240 VAC | 16 | 142 x 30 x 132 | 0.3 kg |
| IC693MDL752 | DC Output Module (Negative Logic) | Discrete | 24/48 VDC | 32 | 142 x 30 x 132 | 0.3 kg |
Popular GE Fanuc 型号s
| 型号 | 描述 | Type | Voltage | Channels | Dimensions (mm) | 重量 |
|---|---|---|---|---|---|---|
| IC693CPU374 | CPU with Ethernet Interface | Controller | — | — | 142 x 40 x 132 | 0.4 kg |
| IC693CHS391 | 10-Slot Base with Expansion Port | Base Rack | — | 10 slots | 290 x 160 x 132 | 0.5 kg |
| IC693ALG220 | Analog Input Module | Analog Input | ±10 VDC | 4 | 142 x 30 x 132 | 0.3 kg |
| IC693ALG223 | Analog Output Module | Analog Output | 0–10 VDC | 2 | 142 x 30 x 132 | 0.3 kg |
| IC693MDL645 | 24 VDC Input Module | Discrete Input | 24 VDC | 32 | 142 x 30 x 132 | 0.3 kg |
| IC693PBM200 | Pr/ibus Master Module | Communication | — | — | 142 x 30 x 132 | 0.3 kg |
