产品介绍

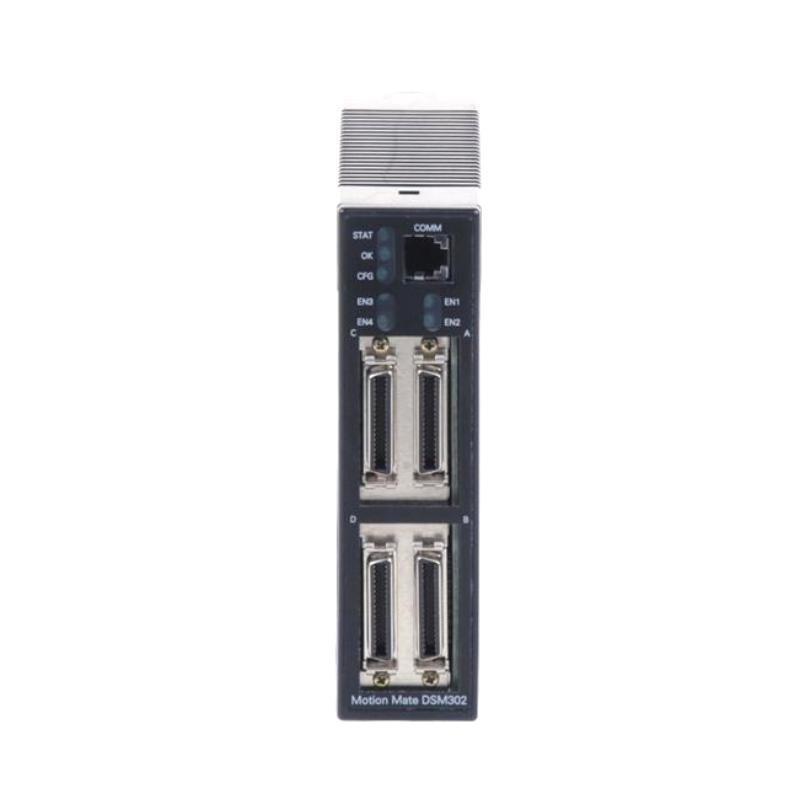

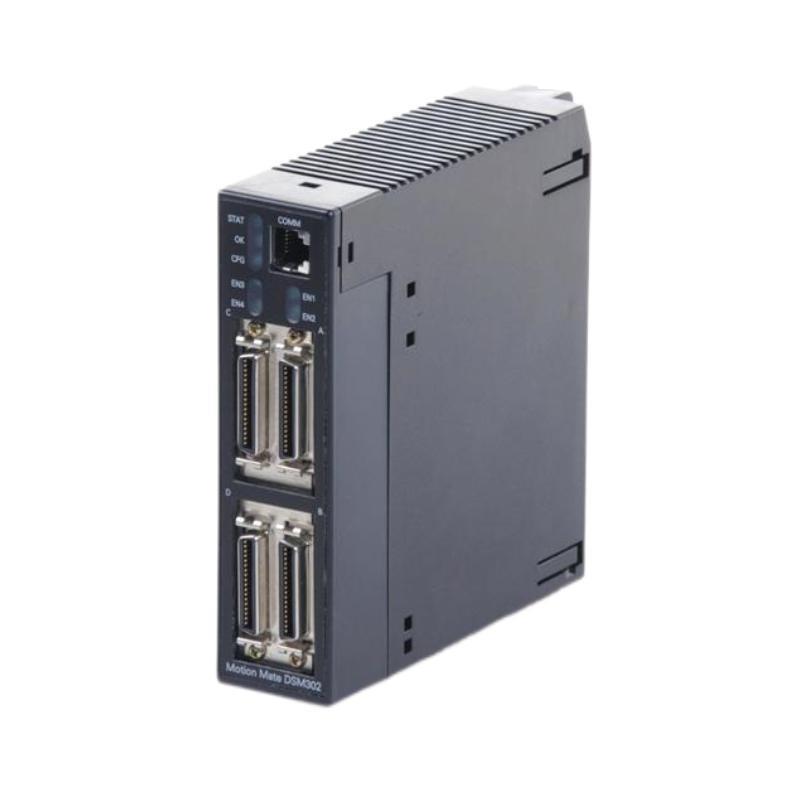

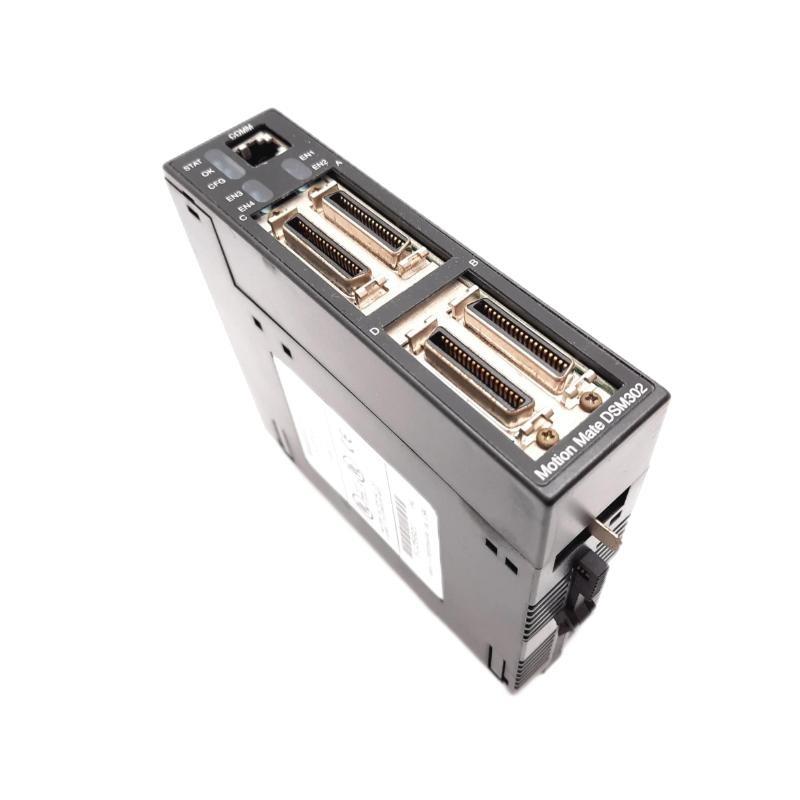

The GE IC693DSM302 Two-Axis Motion Control Module is an advanced motion control solution designed for use with the GE Fanuc Series 90-30 Programmable Logic Controller (PLC) platform. It provides precision control / two independent servo axes, allowing the automation / complex mechanical processes with high levels / accuracy and repeatability.
The IC693DSM302 is capable / executing sophisticated motion control pr/iles such as linear, circular interpolation, and continuous path control. It supports high-speed communication with servo amplifiers and motors, and seamlessly integrates with GE Pr/icy Machine Edition and VersaPro s/tware for easy configuration and programming.
Thanks to its flexible design, robust performance, and easy integration into existing control systems, the IC693DSM302 is widely used in diverse industrial sectors, including automotive manufacturing, robotics, packaging, textiles, and precision assembly lines.
产品规格
| Parameter | Specification |
|---|---|
| 型号 Number | IC693DSM302 |
| Product Type | Two-Axis Servo Motion Control Module |
| Number / Controlled Axes | 2 independent axes |
| Control Resolution | 32-bit for position, velocity, and torque |
| 支持ed Motors | Servo motors |
| Encoder Feedback Input | Incremental encoder or resolver |
| Position Control Modes | Absolute, Incremental, Homing, Jogging |
| 支持ed Motion Pr/iles | Linear, Circular, Trapezoidal, S-curve |
| Interpolation | Linear and Circular |
| Max Pulse Frequency | 500 kHz per channel |
| Communication Interface | Series 90-30 backplane bus |
| Servo Amplifier Interface | Digital pulse and direction outputs |
| Power Supply | 5 V DC from backplane |
| Current Draw | 0.35 A @ 5 V DC |
| Diagnostic Indicators | Axis Status, Error, Ready, Communication |
| S/tware Compatibility | Pr/icy Machine Edition, VersaPro |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions | 100 x 38 x 80 mm |
| 重量 | 0.39 kg |
| Mounting | Standard Series 90-30 PLC rack mounting |
| Environmental Rating | IP20 |
Applications
The GE IC693DSM302 Two-Axis Motion Control Module is ideal for a wide variety / industrial applications that require precision motion control:
-
CNC machines and machining centers
-
Robotics systems (including pick-and-place arms)
-
Automated packaging machinery
-
Conveyor systems with positioning tasks
-
Electronic component assembly equipment
-
Textile machinery with synchronized movements
-
High-speed labeling machines
-
Semiconductor manufacturing tools
-
Palletizing and depalletizing systems
-
Glass processing and cutting machines
By providing advanced motion control and flexibility, the IC693DSM302 enhances productivity and ensures consistent product quality across many manufacturing processes.
Advantages
-
Precision and Accuracy: 32-bit control resolution ensures high-precision positioning and speed regulation.
-
Dual Axis Capability: Simultaneous control / two servo axes, reducing hardware costs and simplifying integration.
-
Wide Motor Compatibility: 支持s various servo motor brands through open pulse/direction interfaces.
-
Advanced Motion Pr/iles: Capable / handling complex paths and interpolation for sophisticated mechanical tasks.
-
Real-Time Diagnostics: LED indicators and s/tware-based tools help detect and troubleshoot issues quickly.
-
Ease / Programming: Compatible with GE Pr/icy Machine Edition and VersaPro for fast and intuitive motion programming.
-
Compact Design: Space-saving module fits directly into the GE Series 90-30 PLC rack.
-
Reliable and Durable: Engineered for operation in harsh industrial environments with wide temperature tolerance.
-
Simplified Maintenance: Built-in diagnostics and modular design facilitate quick maintenance and replacement.
-
Cost-Effective Integration: Avoids the need for external motion controllers or third-party solutions.
常见问题 (FAQ)
-
What type / motors can be used with the IC693DSM302?
The module supports servo motors with digital pulse and direction control interfaces. -
How many axes can the module control?
It controls two independent motion axes. -
Does it support interpolation?
Yes, it supports both linear and circular interpolation. -
What feedback devices are supported?
The module accepts incremental encoder or resolver feedback. -
What is the maximum pulse frequency output?
500 kHz per axis. -
Is it compatible with Series 90-30 PLC systems?
Yes, it integrates directly with the GE Fanuc Series 90-30 PLC platform. -
What s/tware is used to configure the module?
It is configured using GE Pr/icy Machine Edition or VersaPro. -
What is the physical size / the IC693DSM302?
100 x 38 x 80 mm, 0.39 kg. -
Can it be used in high-speed applications?
Yes, it supports up to 500 kHz output per channel, ideal for high-speed motion. -
Does the module provide diagnostic indicators?
Yes, it includes LEDs for axis status, errors, and communication.
Related 型号s (Same Series or Related)
| 型号 Number | Product Type | Number / Axes | Notes |
|---|---|---|---|
| IC693DSM314 | Two-Axis Servo Motion Module | 2 | Enhanced version for servo control |
| IC693APU300 | High-Speed Counter Module | N/A | Position and speed feedback |
| IC693DSM324 | Four-Axis Servo Motion Module | 4 | Multi-axis motion control |
| IC693CMM311 | Genius Communication Module | N/A | Fieldbus integration |
| IC693CMM321 | Ethernet Interface Module | N/A | Adds Ethernet connectivity |
| IC693BEM331 | Genius Bus Controller Module | N/A | Distributed I/O and motion |
Popular GE Automation 型号s (Same 品牌)
| 型号 Number | Device Type | Application Area | Notes |
|---|---|---|---|
| IC695CPU320 | PACSystems RX3i CPU | Factory and process automation | High-performance controller |
| IC693CPU374 | Series 90-30 CPU | General automation | Advanced 90-30 PLC CPU |
| IC695ETM001 | Ethernet Interface Module | Industrial networking | Enables RX3i Ethernet networks |
| IC695PSA140 | RX3i Power Supply Module | PLC system power | 120/240 V AC power supply |
| IC200MDL650 | VersaMax Input Module | Discrete input applications | 120 V AC input module |
| IC695ALG442 | RX3i Analog Output Module | Analog process control | 4-channel analog output |
