Product Overview

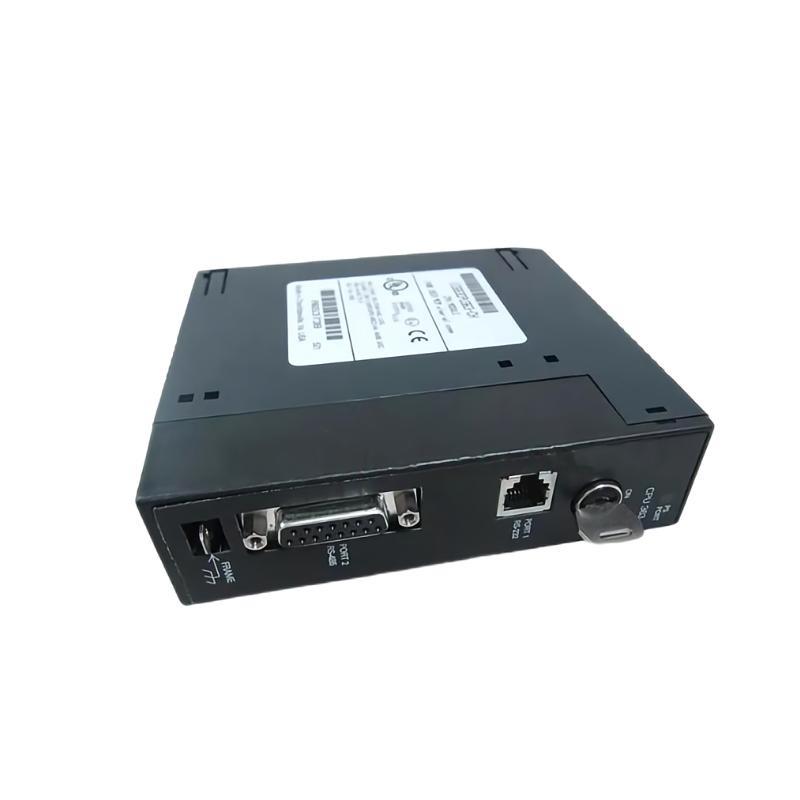

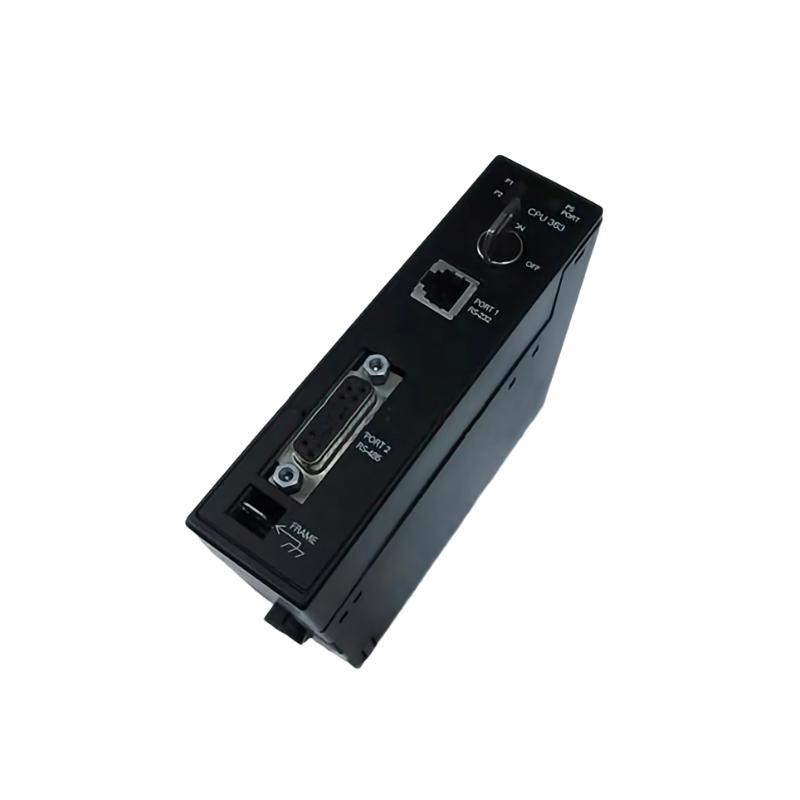

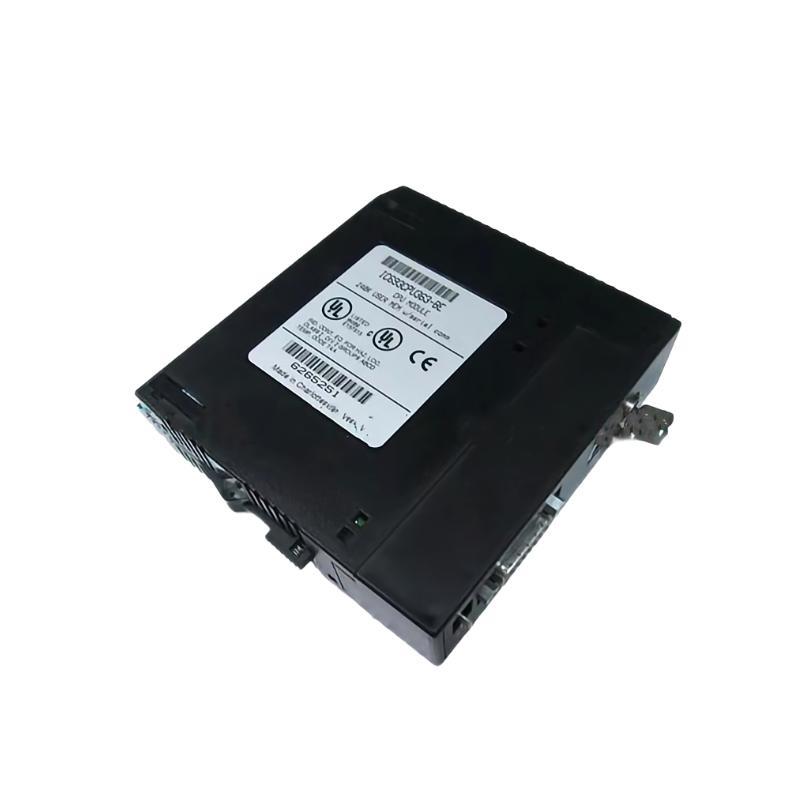

The GE IC693CPU363 is a high-performance CPU module belonging to the Series 90-30 programmable logic controller (PLC) family by GE Fanuc (now GE Automation & Controls). Known for its reliability, flexibility, and integration capabilities, this compact single-slot CPU is designed to meet the requirements / a wide range / industrial automation applications.
The IC693CPU363 /fers powerful processing capabilities and supports up to 240 I/O points locally, while also accommodating expansion modules and various communication options. It is widely used in factory automation, process control, and machine control systems, thanks to its robust design and consistent performance.
产品规格
| Parameter | Details |
|---|---|
| 制造商 | GE Fanuc (GE Automation & Controls) |
| Product 型号 | IC693CPU363 |
| Product Type | Single-Slot CPU Module |
| Processor Type | Embedded CPU with high-speed processing |
| User Memory | 240 KB total (Logic, Register, and Config memory combined) |
| I/O Capacity (Local) | Up to 240 I/O points |
| I/O Expansion | Yes, with remote and expansion I/O racks |
| Number / Slots Used | 1 |
| Programming S/tware | Pr/icy Machine Edition (Logic Developer – PLC) |
| Programming 语言s | Relay Ladder Logic (RLL), Structured Text |
| Battery-Backed RAM | Yes |
| Real-Time Clock | Built-in, battery-backed |
| Communication Ports | One RS-232/RS-485 Serial Port, One Ethernet Port |
| Protocol 支持 | SNP, Modbus RTU, TCP/IP, Ethernet Global Data (EGD) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Power Requirements | +5VDC @ 890mA (typical) |
| Mounting | Rack-mounted |
| Dimensions (HxWxD) | 100 x 38 x 80 mm |
| 重量 | 0.5 kg |
| Certifications | UL, CE, CSA compliant |
Applications
The IC693CPU363 CPU module is well-suited for applications across multiple industrial sectors, including:
-
Manufacturing Automation: For sequential control / production lines and machinery.
-
Packaging Machines: Managing multi-axis control and packaging sequence logic.
-
Water Treatment Plants: For process monitoring, valve control, and feedback logic.
-
Material Handling Systems: Including conveyors, sorters, and robotic interfaces.
-
Building Automation: HVAC systems, lighting controls, and access management.
-
Process Control: Oil & gas, pharmaceuticals, and chemical manufacturing.
Its scalability and robust communications make it ideal for both small-scale and distributed automation systems.
Product Advantages
-
Compact Single-Slot Design: 保存s space while maintaining high performance.
-
Integrated Ethernet Port: Enables modern connectivity and remote diagnostics.
-
Expandable Architecture: Compatible with a wide variety / Series 90-30 I/O and specialty modules.
-
Flexible Programming Options: 支持s both Ladder Logic and advanced instructions.
-
Reliable Operation: Proven performance in harsh and demanding industrial environments.
-
Cost-Effective: Offers a high level / functionality at a competitive price point.
-
Real-Time Clock: Ensures accurate time-stamping for time-sensitive applications.
-
Long Product Lifecycle: 支持ed by GE’s extended product availability and support network.
常见问题 (FAQ)
-
Q: What programming s/tware is compatible with IC693CPU363?
A: The module is programmed using GE’s Pr/icy Machine Edition – Logic Developer PLC s/tware. -
Q: Does the IC693CPU363 support Ethernet communication?
A: Yes, it features an integrated Ethernet port supporting TCP/IP and EGD protocols. -
Q: How many I/O points can it handle locally?
A: It supports up to 240 local I/O points, and additional points via expansion. -
Q: Can I use structured text to program this module?
A: While Relay Ladder Logic (RLL) is primary, Pr/icy ME allows limited structured programming. -
Q: Is it possible to connect this module to SCADA systems?
A: Yes, the Ethernet and serial ports allow connection to SCADA/HMI using Modbus or GE protocols. -
Q: Is there a built-in battery for memory retention?
A: Yes, the module includes a battery-backed RAM and a real-time clock. -
Q: Can I install it on any Series 90-30 baseplate?
A: It can be installed in any slot on a Series 90-30 baseplate, except slot 0 which is reserved for power supply. -
Q: Does this module support redundancy?
A: No, the IC693CPU363 does not support redundant CPU configurations. -
Q: What is the difference between IC693CPU363 and IC693CPU364?
A: The CPU364 has more memory and advanced Ethernet capabilities compared to the CPU363. -
Q: How long is the typical lifecycle / the module?
A: These modules are designed for long-term industrial use, /ten exceeding 10 years in operation with proper maintenance.
Related or Same-Series 型号s
| 型号 | 描述 | User Memory | Communication |
|---|---|---|---|
| IC693CPU311 | Basic CPU Module, Entry-Level | 12 KB | RS-232 Serial |
| IC693CPU313 | Enhanced Basic CPU with More Memory | 24 KB | RS-232 Serial |
| IC693CPU323 | Mid-Range CPU with Expanded I/O | 24 KB | RS-232/RS-485 |
| IC693CPU331 | Advanced CPU with Built-In Real-Time Clock | 32 KB | RS-232/RS-485 |
| IC693CPU350 | High-Capacity CPU, Greater Application Range | 48 KB | RS-232, Ethernet (Optional) |
| IC693CPU364 | High-End CPU with Advanced Ethernet and Larger RAM | 512 KB | RS-232, Ethernet |
