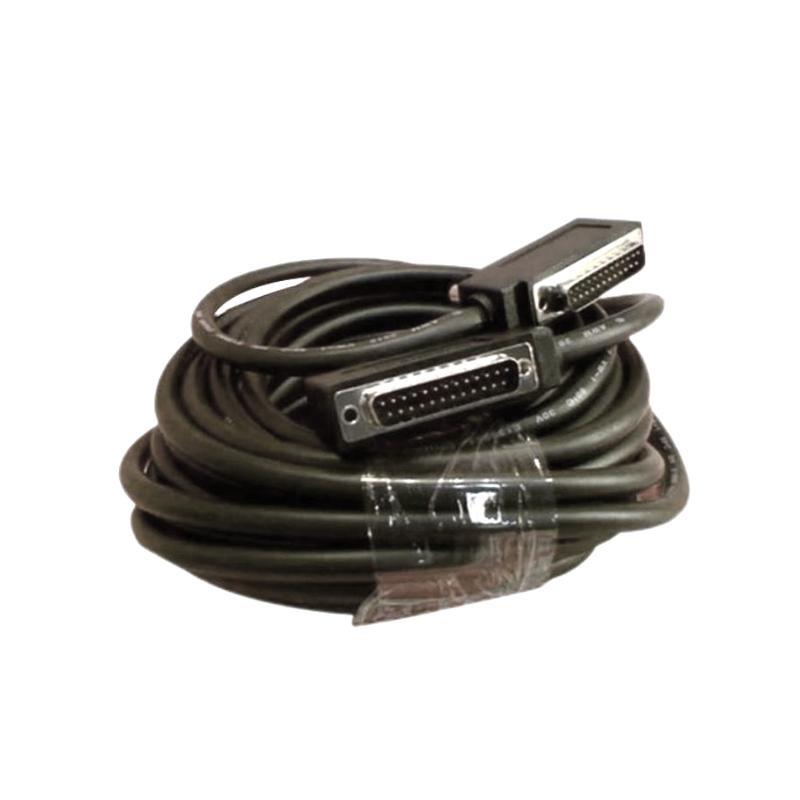

The GE IC693CBL313 is a high-quality I/O Rack Expansion Cable designed for use within the GE Fanuc Series 90-30 Programmable Logic Controller (PLC) system. This specific model is a 1-meter (3.3 ft) expansion cable that facilitates communication between a main PLC rack and a remote or expansion I/O rack, allowing the system to scale across multiple physical racks without signal degradation or performance loss.
The IC693CBL313 provides a stable electrical connection, enabling uninterrupted data transmission between connected modules. With its shielded design and durable construction, it ensures low interference, reliable signal integrity, and long service life, even in industrial environments where electromagnetic noise is common.
Engineered specifically for industrial automation systems, this cable plays a critical role in expanding the PLC’s capabilities, making it essential for systems where modular scalability and distributed I/O are key.
Technical Specifications
| Parameter | Details |
|---|---|
| 型号 Number | IC693CBL313 |
| Product Type | I/O Rack Expansion Cable |
| Cable Type | Shielded, multi-conductor, industrial-grade |
| Connector Type | Custom GE Fanuc expansion connectors |
| Compatible Series | GE Fanuc Series 90-30 |
| Usage | Expansion between CPU rack and remote I/O rack |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Tolerance | 5% to 95% non-condensing |
| Certifications | UL, CSA, CE |
| Construction | PVC outer jacket, copper conductors, foil and braid shielding |
| Cable Length | 8 meters |
| 重量 | 0.88 kg |
Applications
-
Automated manufacturing systems
-
Material handling and robotics
-
Packaging lines
-
Water treatment and utilities
-
Petrochemical and refinery automation
-
Food and beverage processing
-
OEM machinery with modular I/O setups
Product Advantages
-
Reliable Communication: Ensures error-free data transmission between main and expansion racks.
-
Robust Construction: Industrial-grade shielding and insulation protect from EMI and mechanical damage.
-
Plug-and-Play Design: Simplified installation with pre-terminated connectors, requiring no field assembly.
-
Enhanced Flexibility: Allows scalable system architecture, ideal for complex automation layouts.
-
System Compatibility: Fully supports the Series 90-30 PLC systems, ensuring optimal performance.
-
Compact and Lightweight: Takes minimal space while delivering high-speed data integrity.
-
Durability: Designed for long-term use in challenging industrial environments.
-
Certified Compliance: Meets UL, CSA, and CE standards for safety and performance.
常见问题 (FAQ)
-
What is the primary function / the IC693CBL313 cable?
It connects a GE Fanuc Series 90-30 CPU rack to a remote or expansion I/O rack for signal and data transfer. -
Is the IC693CBL313 compatible with all Series 90-30 modules?
Yes, it is designed specifically for the Series 90-30 system and works with standard and expansion racks. -
Can this cable be extended or joined with another cable?
No, it is not recommended to join cables; only factory-length cables should be used to ensure integrity. -
What is the maximum supported length?
The IC693CBL313 is 8 meters long. -
Is this cable hot-swappable?
序号 The system should be powered down before connecting or disconnecting the cable. -
Does it require a specific orientation or port?
Yes, the cable must be connected to the designated expansion ports as per the Series 90-30 manual. -
Can I use this with Series 90-70 or RX3i systems?
No, it is intended only for the Series 90-30 PLCs. -
What is the lifespan / the cable in industrial environments?
With proper installation, the cable can last over 10 years under normal industrial conditions. -
How is the cable protected from interference?
It features foil and braid shielding to reduce EMI and RFI interference in high-noise environments. -
Does the cable come with mounting or support accessories?
No, mounting accessories are typically provided separately or integrated into the rack enclosure.
Recommended Related 型号s (Same Series / Function)
| 型号 | 描述 | Length | Application |
|---|---|---|---|
| IC693CBL314 | I/O Rack Expansion Cable (15 ft) | 4.5 meters | Longer-distance expansion |
| IC693CBL316 | Remote I/O Expansion Cable (22 ft) | 6.7 meters | Maximum distance expansion |
| IC693ACC307 | Power Supply Extension Cable | 2 meters | Remote rack power supply connection |
| IC693CBL301 | RS-232 Programming Cable | 1.8 meters | PLC programming and diagnostics |
| IC693ACC310 | I/O Cable Adapter for Expansion | – | Modular connection conversion |
| IC693CBL308 | Serial Communication Cable (90-30 series) | 1.5 meters | Serial data link between modules |
