产品介绍

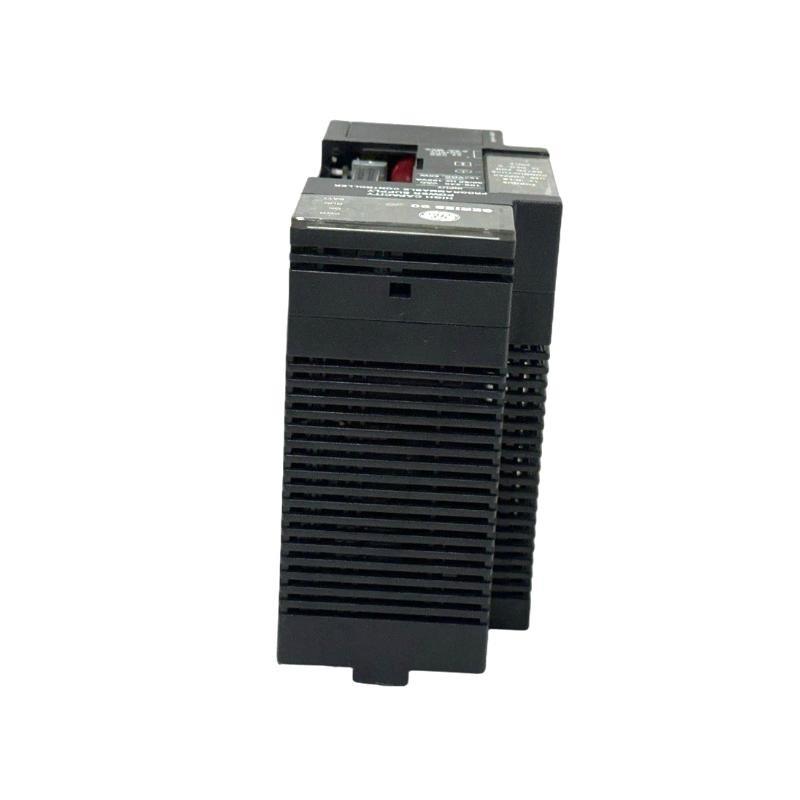

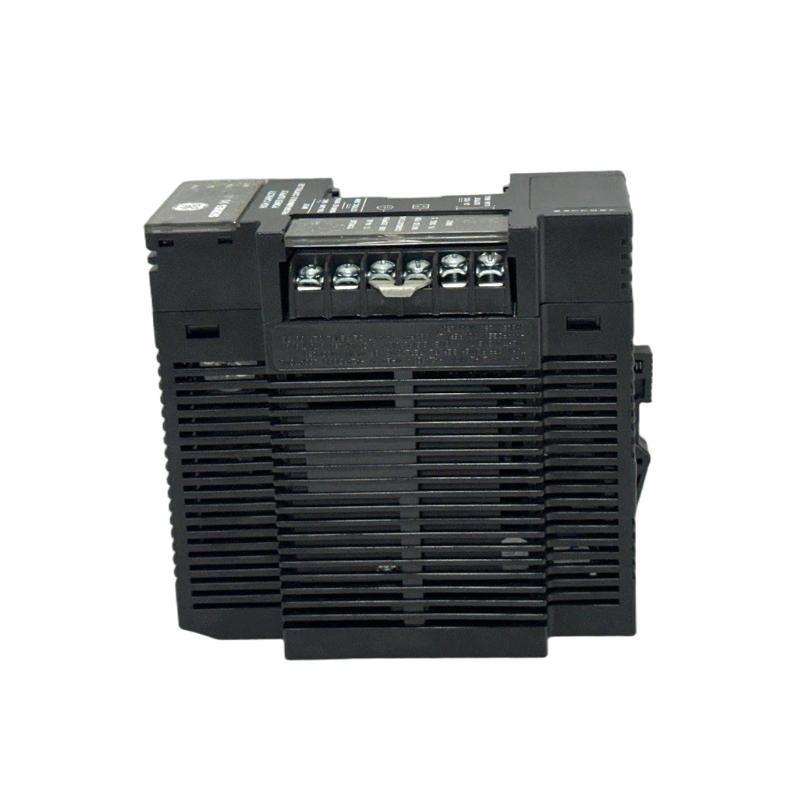

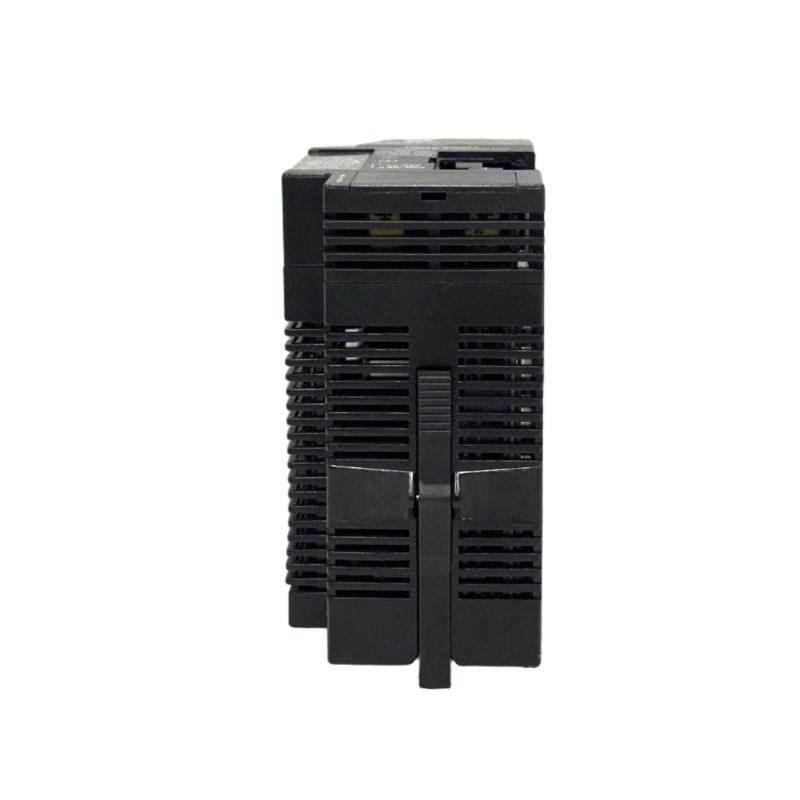

The GE IC690PRS010 Power Supply Module is a high-performance, industrial-grade power supply designed to provide reliable DC power to GE Fanuc IC600 and RX3i PLC systems. It ensures stable operation / CPUs, I/O modules, and communication modules, protecting critical automation equipment from voltage fluctuations and power interruptions. The IC690PRS010 is widely used in industrial automation environments where consistent power delivery is essential for process continuity and safety.
Engineered for durability, the module can handle demanding operational conditions, including high ambient temperatures, electrical noise, and transient surges. It supports both single and redundant power supply configurations, making it suitable for mission-critical applications in manufacturing, chemical processing, energy production, and other industrial sectors.
Technical Specifications
| Parameter | Details |
|---|---|
| 型号 Number | IC690PRS010 |
| Type | Power Supply Module |
| Input Voltage Range | 100–240 VAC |
| Output Voltage | 5 VDC / 24 VDC (dual output) |
| Output Current | 5 VDC: 5 A / 24 VDC: 4 A |
| Ripple & Noise | <50 mV |
| Efficiency | >85% |
| Power Factor | >0.9 |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | –40 °C to 85 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Isolation Voltage | 1500 VAC input to output |
| Dimensions (W × H × D) | 200 × 50 × 120 mm |
| 重量 | 1.1 kg |
| Certification | UL, CE, CSA |
| Mounting | Standard DIN rail or rack mounting |
Applications
The IC690PRS010 module is used in a variety / industrial automation scenarios:
-
PLC System Power Supply: Provides stable DC power to IC600 and RX3i PLC modules.
-
Process Control: Ensures uninterrupted operation / controllers in chemical plants, refineries, and manufacturing facilities.
-
Industrial Automation: Powers multiple I/O modules, communication modules, and CPUs reliably.
-
Redundant Systems: 支持s dual-redundant power supply configurations to enhance system reliability.
-
Maintenance and Upgrades: Ideal for field upgrades or replacement / existing power modules without system downtime.
Advantages
-
High Reliability: Designed for continuous operation in demanding industrial environments.
-
Dual Output: Provides 5 VDC and 24 VDC outputs to support multiple module types.
-
Wide Input Voltage Range: Maintains stable operation under fluctuating AC supply conditions.
-
High Efficiency: Operates above 85% efficiency, reducing energy loss and heat generation.
-
Robust Protection: Includes overload, overvoltage, and short-circuit protection to safeguard connected modules.
-
Easy Installation: 支持s DIN rail or rack mounting for flexible system integration.
-
Low Ripple and Noise: Ensures stable operation / sensitive PLC and I/O modules.
FAQ
1. What is the primary function / the IC690PRS010 module?
It converts AC input voltage to regulated DC outputs to supply power to GE PLC modules.
2. Which PLC series are compatible with this power supply?
It is compatible with IC600 and RX3i series controllers.
3. What output voltages does the IC690PRS010 provide?
The module provides dual outputs: 5 VDC at 5 A and 24 VDC at 4 A.
4. What input voltage range does the module support?
The module operates with AC input voltages from 100 to 240 VAC.
5. Does the module have built-in protection features?
Yes, it includes overload, overvoltage, and short-circuit protection.
6. Can it be used in redundant power supply configurations?
Yes, it supports dual-redundant power supply setups for critical systems.
7. What is the efficiency / this power supply module?
The module operates at over 85% efficiency.
8. How does it ensure stable operation for sensitive modules?
It delivers low ripple and noise (<50 mV) to maintain stable operation / connected modules.
9. What mounting options are available for the IC690PRS010?
It supports both standard DIN rail and rack mounting for easy installation.
10. What is the recommended operating temperature for this module?
The module operates reliably between 0 °C and 60 °C.
Related GE 型号s (Same Series or Function)
| 型号 | 描述 |
|---|---|
| IC690PRM120 | Dual output power supply for IC600/RX3i |
| IC690PRM100 | Standard power supply module |
| IC690PRS020 | High-capacity power supply module |
| IC693PWR321 | Redundant power supply for RX3i series |
| IC693PWR330 | Dual output power module for critical systems |
| IC693PWR300 | Compact DIN rail mountable power supply module |
Popular GE 型号s
| 型号 | 描述 |
|---|---|
| IC693CPU374 | RX3i CPU Module with advanced processing |
| IC693MDL940 | Digital I/O Module for RX3i series |
| IC693ALG220 | Analog Input Module |
| IC693APU300 | Auxiliary Power Supply 单位 for RX3i |
| IC693CMM311 | Communication Module for Ethernet and Serial |
| IC693BEM331 | Bus Expansion Module for RX3i series |
