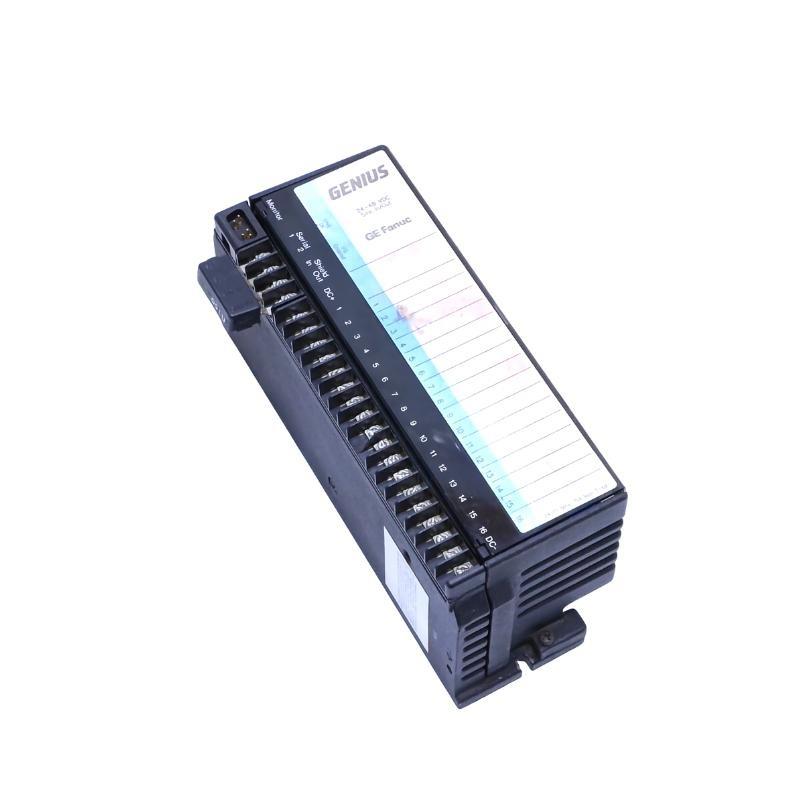

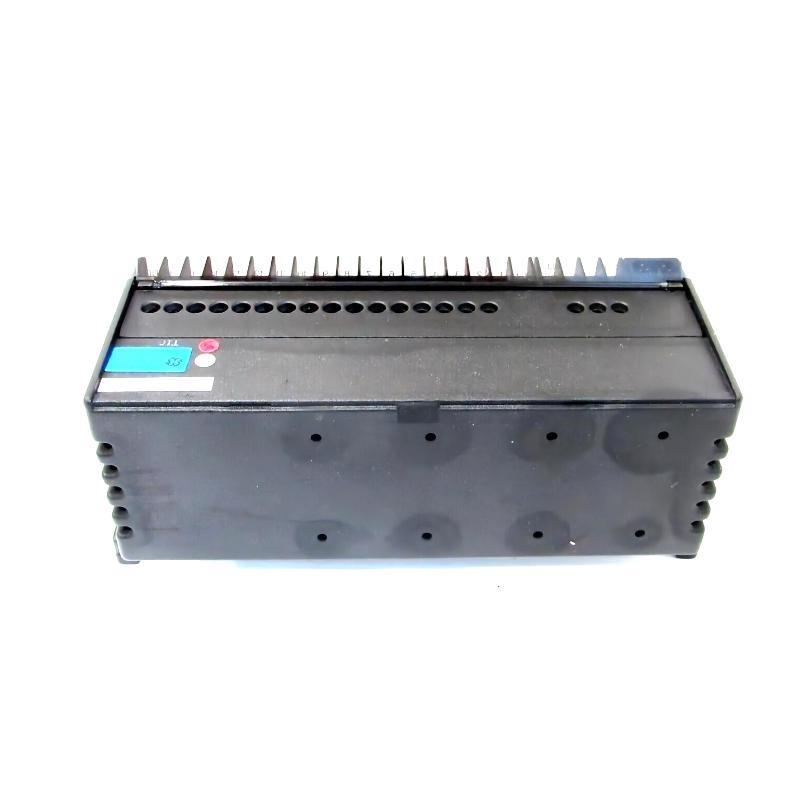

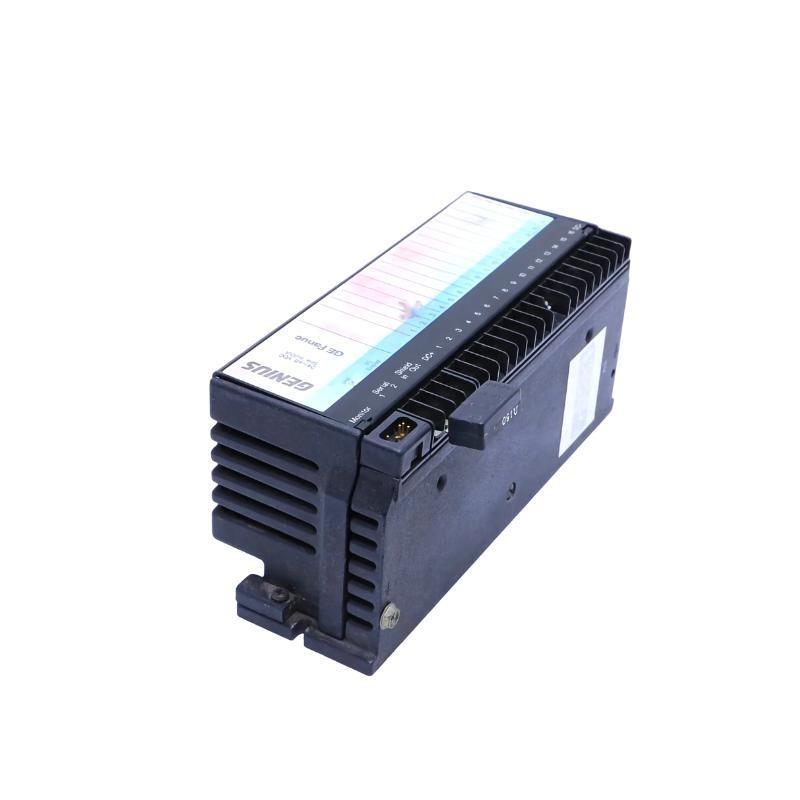

The GE IC660ELD021 is an Electronic Assembly for I/O Blocks from the Genius I/O family, designed to work in robust and high-reliability industrial environments. Developed by GE Fanuc, a trusted name in industrial automation, this module acts as an essential interface between field input/output devices and the control system. It is typically used in conjunction with terminal assemblies to form a complete Genius I/O block.
The IC660ELD021 specifically supports sink/source discrete inputs, making it ideal for monitoring field signals from switches, sensors, or other logic devices. With built-in diagnostics, fault detection, and flexible configuration, it ensures reliability and reduces system downtime.
产品规格
| Parameter | Details |
|---|---|
| 制造商 | GE Fanuc Automation |
| Product Series | Genius I/O Series |
| 型号 Number | IC660ELD021 |
| Function | Electronic Assembly for I/O Block |
| Input Type | Discrete (Sink/Source Compatible) |
| Number / Inputs | 16 |
| Isolation | Optically Isolated |
| Input Voltage Range | 0–32V DC (Nominal: 24V DC) |
| Input Current | 7 mA typical @ 24V DC |
| Diagnostics | Open/Short circuit, Overvoltage protection |
| LED Indicators | Per point status indication |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 100°C (-40°F to 212°F) |
| Humidity | 5% to 95% non-condensing |
| Mounting | Direct mount on terminal block |
| Enclosure Type | Open type device, must be installed in enclosure |
| Dimensions (H×W×D) | 224.4 x 88.9 x 100 mm |
| 重量 | 1.8 kg |
Applications
The GE IC660ELD021 is widely used in industrial and manufacturing environments, particularly in:
-
Factory Automation: For integrating machinery sensors, pushbuttons, and relay status into PLC systems.
-
Material Handling Systems: Monitoring limit switches, solenoids, and contactors.
-
Water Treatment Plants: Capturing signal feedback from flow meters and valve actuators.
-
Energy Sector: Collecting data from field switches in substations or turbine control systems.
-
Food & Beverage Processing Lines: Monitoring packaging and conveyor sensors.
Product Advantages
-
Robust Industrial Design: Built for harsh environments with high vibration and temperature variation.
-
Flexible Input Options: Compatible with both sourcing and sinking inputs, increasing wiring flexibility.
-
Modular Construction: Can be easily replaced or upgraded without rewiring the terminal block.
-
Comprehensive Diagnostics: Helps reduce troubleshooting time and increases uptime.
-
LED Indicators: Quick visual confirmation / individual input status.
-
Part / Genius I/O Network: Seamless integration with GE 发那科s and other automation components.
常见问题 (FAQ)
-
Q: Is IC660ELD021 compatible with both sourcing and sinking inputs?
A: Yes, it supports both sourcing and sinking discrete input devices. -
Q: Does this product require a specific terminal assembly?
A: Yes, it must be paired with a compatible GE Genius terminal block for full operation. -
Q: Can this I/O block be hot-swapped during operation?
A: No, it must be powered down before removal or installation for safety and protection. -
Q: Is it suitable for outdoor installations?
A: It is not rated for outdoor use unless placed inside a weatherpro/ enclosure. -
Q: What type / field devices can be connected to this module?
A: It supports switches, proximity sensors, relay contacts, and other discrete input devices. -
Q: Does this product /fer short-circuit protection?
A: Yes, it features built-in diagnostics including short-circuit detection. -
Q: What is the lifespan / the IC660ELD021?
A: With proper installation, it typically lasts 10+ years in industrial environments. -
Q: Are firmware upgrades required for this module?
A: No firmware upgrades are needed; it functions as a hardware-only I/O module. -
Q: Is the IC660ELD021 backward compatible with older Genius blocks?
A: Yes, it maintains backward compatibility with earlier Genius I/O systems. -
Q: Can it be used in safety-critical systems?
A: While reliable, it is not SIL-rated. For safety applications, use certified safety modules.
