Product Overview

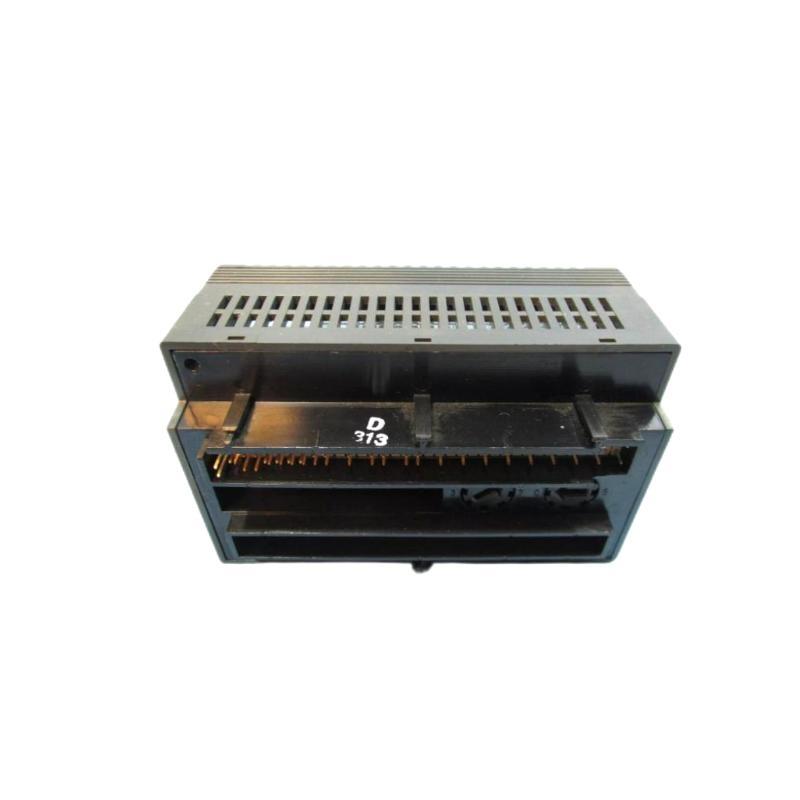

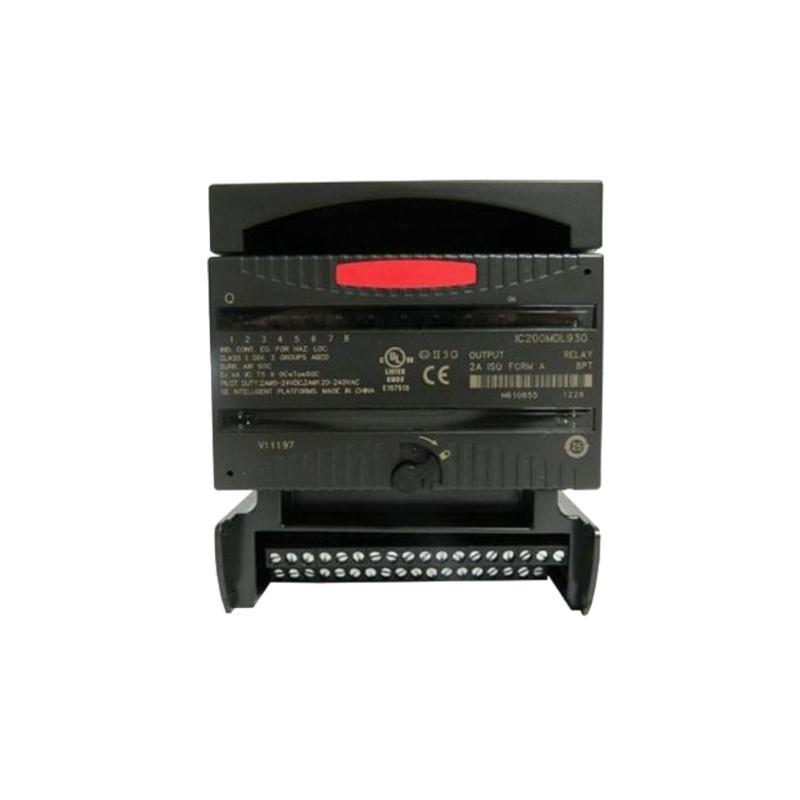

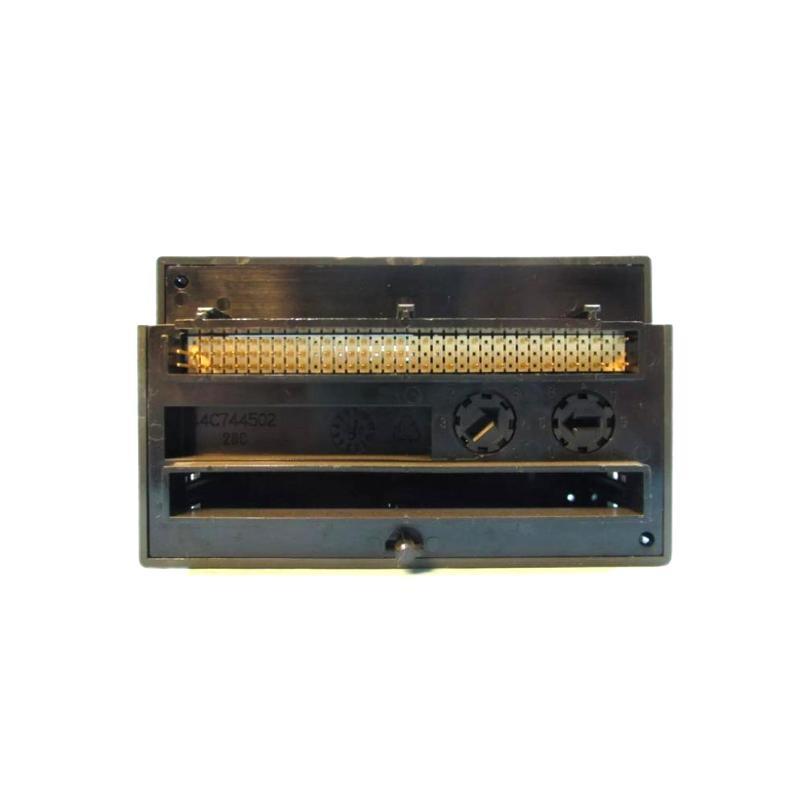

The GE IC200MDL930B is an 8-point relay output module within the VersaMax I/O series, originally developed by GE Intelligent Platforms and now under Emerson Automation. This module features eight individually isolated Form A (normally open) relay outputs, suitable for controlling a variety / AC and DC loads. It is designed for seamless integration with VersaMax control systems, providing reliable and flexible output capabilities for industrial automation applications.
Technical Specifications
| Parameter | Details |
|---|---|
| 型号 Number | IC200MDL930B |
| 制造商 | Emerson (formerly GE Intelligent Platforms) |
| Series | VersaMax |
| Output Type | Relay (Form A, Normally Open) |
| Number / Outputs | 8 individually isolated points |
| Output Voltage Range | 0–125 VDC; 0–265 VAC (47–63 Hz) |
| Nominal Output Voltage | 5/24/125 VDC; 120/240 VAC |
| Output Current Rating | 2.0 A max per point (resistive load) |
| Minimum Load Current | 10 mA per point |
| Switching Frequency | 20 cycles per minute (inductive load) |
| Relay Type | Fixed coil, moving armature |
| 联系我们 Material | Silver alloy |
| On/Off Response Time | 10 ms max |
| Isolation Voltage | 250 VAC continuous; 1500 VAC for 1 minute (user input to logic and frame) |
| Backplane Current Consumption | 245 mA max (all outputs energized) |
| LED Indicators | Individual green LEDs for each output; one green OK LED for module status |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions (H x W x D) | 110 x 66.8 x 50 mm |
| 重量 | 0.24 kg |
| Certifications | CE, cULus, RoHS compliant |
| Mounting | DIN rail or panel mount via carrier base (IC200CHSxxx) |
| Compatibility | VersaMax CPUs, Network Interface 单位s (NIUs), and other VersaMax modules |
Applications
The IC200MDL930B module is versatile and suitable for various industrial applications, including:
-
Manufacturing Automation: Controlling actuators, solenoids, and indicator lamps.
-
Process Control Systems: Managing pumps, valves, and other discrete devices.
-
Building Automation: Operating HVAC systems, lighting controls, and security systems.
-
Energy Management: Switching relays in power distribution and monitoring systems.
-
Transportation Systems: Controlling signals and barriers in railway and traffic systems.
-
Water and Wastewater Treatment: Managing pumps, mixers, and other equipment.
Product Advantages
-
Individual Isolation: Each output is electrically isolated, enhancing system reliability and safety.
-
Flexible Voltage 支持: Compatible with a wide range / AC and DC voltages, accommodating diverse load requirements.
-
Robust Construction: Designed to withstand industrial environments with high durability.
-
Compact Design: Space-saving form factor suitable for installations with limited space.
-
Easy Integration: Seamless compatibility with VersaMax systems simplifies system design and expansion.
-
Diagnostic Indicators: LED indicators provide clear status information for each output and the module itself.
常见问题 (FAQ)
-
What is the function / the IC200MDL930B module?
It provides eight relay outputs for controlling external devices in an automation system. -
Are the outputs individually isolated?
Yes, each output is electrically isolated from the others. -
What types / loads can it control?
It can control both AC and DC loads, such as motors, solenoids, and lamps. -
Does it require an external power supply for the outputs?
Yes, the module’s outputs are dry contacts and need an external power source for the load. -
What is the maximum current per output point?
Each output can handle up to 2.0 A for resistive loads. -
Is the module hot-swappable?
No, the module should be installed or replaced with the system powered down. -
What is the switching frequency for inductive loads?
The maximum recommended switching frequency is 20 cycles per minute for inductive loads. -
Are there any internal protection features?
The module does not have internal fuses or snubbers; external protection is recommended. -
What is the response time for the outputs?
The typical on//f response time is 10 milliseconds. -
Can it be used in hazardous locations?
The module is not rated for hazardous locations; consult the manufacturer for suitable alternatives.
Related 型号s from the VersaMax Series
| 型号 Number | 描述 | Number / Outputs | Output Type | Application |
|---|---|---|---|---|
| IC200MDL940B | 16-Point Relay Output Module | 16 | Relay (Form A) | Higher density relay outputs for industrial control systems. |
| IC200MDL760 | 16-Point Relay Output Module | 16 | Relay (Form A) | Suitable for controlling larger numbers / devices with relay outputs. |
| IC200MDL750 | 32-Point Discrete Output Module | 32 | Transistor | Ideal for systems requiring multiple discrete outputs, typically for DC loads. |
| IC200MDL241 | 16-Point Discrete Output Module | 16 | Transistor | Negative logic DC outputs, perfect for signal processing. |
| IC200MDL730 | 8-Point Relay Output Module | 8 | Relay (Form A) | Compact version / the IC200MDL930B for smaller applications. |
| IC200MDL730B | 8-Point Relay Output Module | 8 | Relay (Form A) | Similar to IC200MDL930B, designed for basic I/O control. |
Popular Emerson (GE) 型号s
| 型号 Number | 描述 | Type | Application |
|---|---|---|---|
| IC200CPU001 | VersaMax CPU Module | CPU | Central processing 件 for VersaMax, essential for control systems. |
| IC200PWR001 | VersaMax Power Supply | Power Supply | Provides power to the VersaMax I/O modules. |
| IC200CHS010 | VersaMax High-Speed Serial Communication Module | Communication Module | Used for high-speed communication between modules in automation systems. |
| IC200ACC303 | VersaMax Expansion Rack | Expansion Rack | Allows for the addition / more I/O modules in a VersaMax system. |
| IC200MDL950 | 16-Point Discrete Output Module | Discrete Output | For controlling digital devices such as sensors and actuators. |
| IC200MDL660 | 16-Point Digital Input Module | Digital Input | Designed for capturing digital input signals from external devices. |
