产品介绍

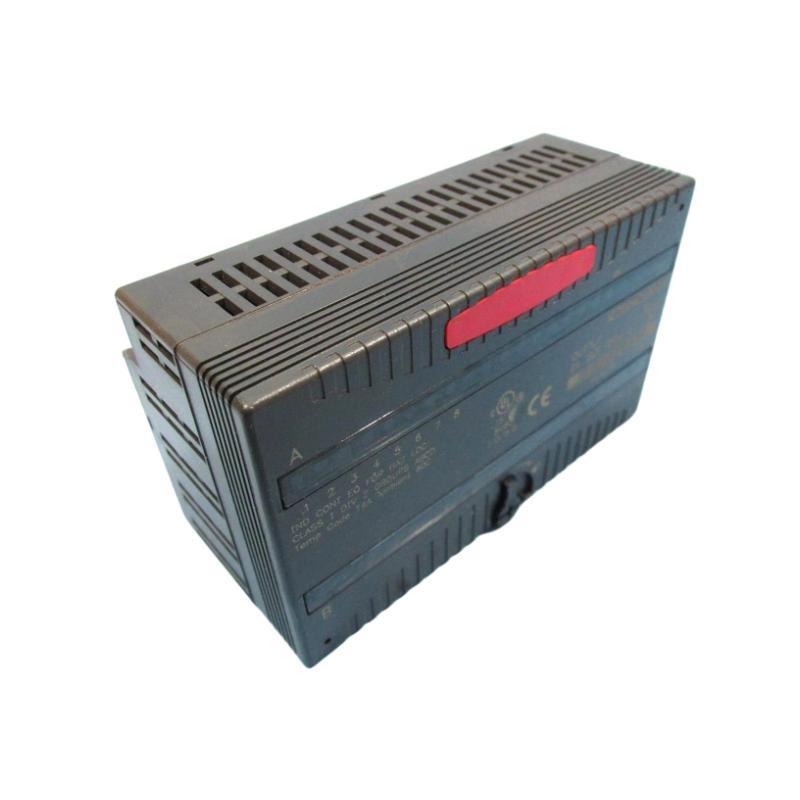

The GE IC200MDL930 VersaMax Relay Output Module is a high-performance output module designed to provide relay outputs for the VersaMax PLC system. It is engineered to interface with control systems and provide reliable switching for various industrial applications, such as controlling motors, lights, and other high-power devices. The IC200MDL930 is specifically used for systems that require dry contact relay outputs, where the relay can either open or close the circuit depending on the output signal from the VersaMax controller.
This module allows for seamless integration into VersaMax PLC systems, providing 8 relay output points. Each relay can handle high current switching for industrial machinery or actuators. It is commonly used in automation and control systems that require electrical isolation between control circuits and field devices. The IC200MDL930 is equipped with status indicators for each relay, making troubleshooting and system monitoring easier for operators.
产品规格
| Specification | Details |
|---|---|
| 型号 | IC200MDL930 |
| Module Type | Relay Output Module |
| Number / Outputs | 8 Outputs |
| Output Type | Dry 联系我们 Relay |
| Rated Output Current | 2 A per Relay |
| Relay Type | SPDT (Single Pole, Double Throw) |
| Mounting Type | DIN Rail |
| Dimensions | 110 x 66.8 x 50 mm |
| 重量 | 0.24 kg |
| Operating Voltage | 24 VDC |
| Relay Switching Capacity | 30 VDC / 1A |
| Status Indicators | Yes, for each relay output |
| Operating Temperature Range | -20°C to 60°C |
Product Applications
The GE IC200MDL930 VersaMax Relay Output Module is widely used in industrial automation systems that require dry contact relay outputs. Its applications include:
-
Motor Control: The module is /ten used for controlling motors in HVAC systems, pumps, and other machinery, enabling the relay to turn these devices on or /f based on system requirements.
-
Lighting Control: In building automation systems, it is used to control lighting systems, switching them on or /f in response to various conditions or inputs.
-
Alarm Systems: The relay outputs are suitable for use in alarm systems, enabling remote activation / sirens or warning lights when alarms are triggered.
-
Actuator Control: The module is used for controlling actuators in systems like valves or dampers in process control systems, where reliable switching is required for proper operation.
-
Industrial Automation: It is also used for machine control systems, where various devices or equipment need to be switched on and /f in coordination with the PLC.
Product Advantages
-
High Current Switching: The IC200MDL930 is capable / handling 2A per relay, making it ideal for controlling high-power devices like motors and large actuators.
-
Electrical Isolation: The dry contact relay outputs provide electrical isolation between the control system and field devices, protecting sensitive electronics from potential damage.
-
Compact Design: With its compact dimensions (110 x 66.8 x 50 mm), the IC200MDL930 can be easily integrated into space-constrained environments, such as industrial control panels.
-
LED Status Indicators: Each relay is equipped with an LED status indicator, providing clear feedback for system monitoring and troubleshooting.
-
Versatile Applications: This module can be used in a wide variety / applications, from motor and actuator control to alarm systems and building automation, making it a versatile addition to the VersaMax PLC system.
-
Wide Temperature Range: With an operating temperature range / -20°C to 60°C, the IC200MDL930 can function reliably in both extreme hot and cold industrial environments.
FAQ
1. How many relay outputs does the IC200MDL930 module provide?
The IC200MDL930 provides a total / 8 relay outputs, each capable / switching 2 A per relay.
2. What is the type / relay used in the IC200MDL930?
The IC200MDL930 uses SPDT (Single Pole, Double Throw) relays, suitable for switching various industrial devices.
3. What is the switching capacity / the relays on the IC200MDL930?
Each relay on the IC200MDL930 has a switching capacity / 30 VDC / 1A.
4. How are the relay outputs on the IC200MDL930 controlled?
The relay outputs on the IC200MDL930 are controlled via the VersaMax PLC system, which sends a signal to switch the relay on or /f.
5. Does the IC200MDL930 support high-power devices?
Yes, the IC200MDL930 is capable / switching high-power devices such as motors, lighting systems, and actuators, with a rated output current / 2 A per relay.
6. Can the IC200MDL930 module be used for controlling low-voltage devices?
Yes, the IC200MDL930 can be used to control low-voltage devices by switching the connected dry contact relay outputs.
7. What are the mounting options for the IC200MDL930?
The IC200MDL930 can be easily mounted on a DIN rail, allowing for quick and secure installation in control panels.
8. Can the IC200MDL930 be used for both digital and analog control?
The IC200MDL930 is designed specifically for digital control through its dry contact relay outputs, and it does not support analog control.
9. How does the IC200MDL930 provide feedback on the status / the relays?
The IC200MDL930 is equipped with LED status indicators for each relay, allowing for easy monitoring and troubleshooting / the module.
10. What is the operating voltage required for the IC200MDL930?
The IC200MDL930 requires a 24 VDC power supply for proper operation.
Recommended 型号s from the Same Series or 相关产品
| 型号 | 描述 |
|---|---|
| IC200MDL931 | VersaMax Relay Output Module with higher capacity relays |
| IC200MDL932 | Relay output module with extended functionality |
| IC200MDL933 | Relay output module with additional isolation features |
| IC200MDL934 | Module for controlling larger systems with higher current capacity |
| IC200MDL935 | Extended relay output module for distributed control |
| IC200MDL936 | Enhanced relay output module with advanced diagnostics |
Popular 型号s from GE
| 型号 | 描述 |
|---|---|
| IC200UDR001 | VersaMax Micro Controller Processor |
| IC200UDR120 | VersaMax Micro Controller with integrated I/O |
| IC200UEM001 | VersaMax Micro Ethernet Module |
| IC200UEX222 | VersaMax Expansion Module |
| IC200UDR020 | VersaMax Micro Controller with high-speed processing |
| IC200UEI008 | VersaMax Micro Expansion Module with analog input |
