产品介绍

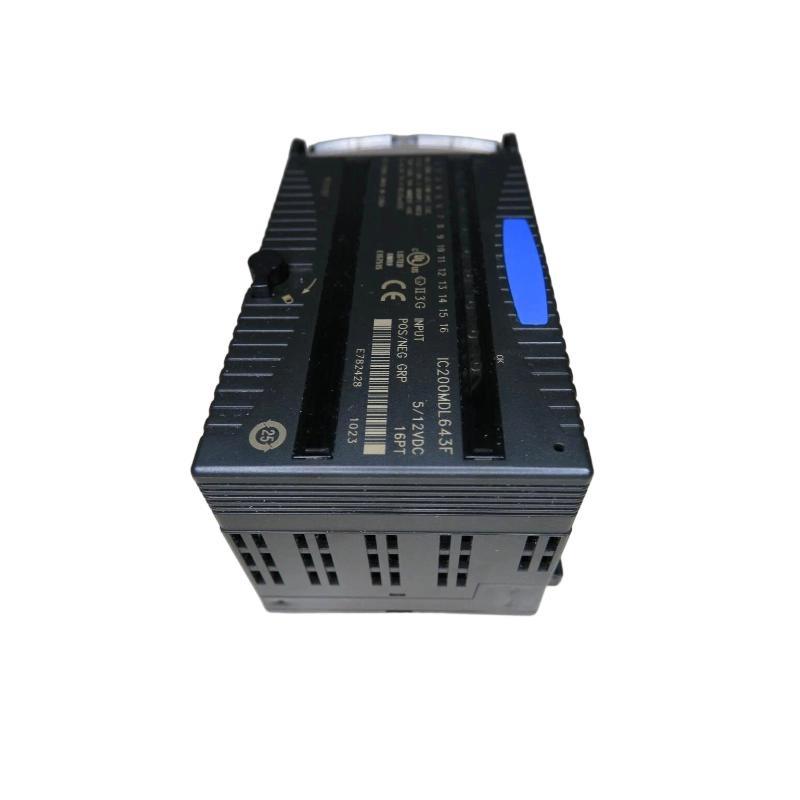

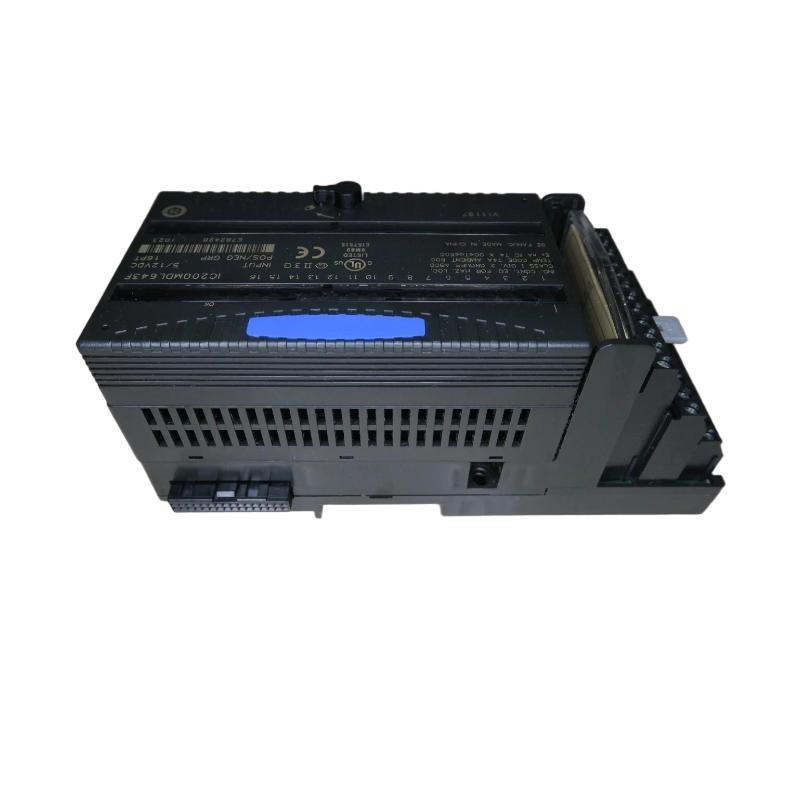

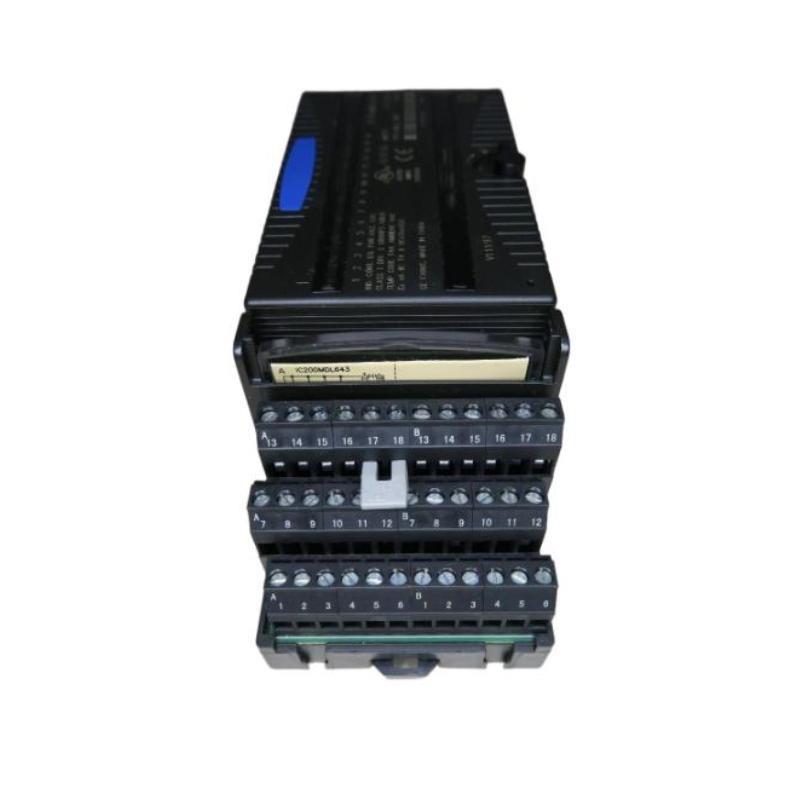

The GE IC200MDL643 VersaMax Discrete Input Module is designed to provide reliable digital input capabilities for VersaMax PLC systems. This module is specifically engineered for use in industrial automation applications, where it is used to receive digital signals from field devices such as sensors, limit switches, proximity sensors, and other equipment that requires discrete inputs.
With 8 input points in total, the IC200MDL643 module can handle signals from devices that generate on//f or binary outputs. It /fers optical isolation for each input, ensuring that external interference or faults do not affect the PLC system. Designed for easy installation, this module is typically mounted on DIN rails, making it suitable for both small-scale and large-scale control systems. The IC200MDL643 is used in industries such as manufacturing, process control, packaging, and automation systems, where it is essential to capture digital signals from field devices for further processing.
产品规格
| Specification | Details |
|---|---|
| 型号 | IC200MDL643 |
| Module Type | Discrete Input Module |
| Number / Inputs | 8 Inputs |
| Input Type | Digital (Discrete) |
| Input Voltage | 24 VDC |
| Mounting Type | DIN Rail |
| Dimensions | 110 x 66.8 x 50 mm |
| 重量 | 1.36 kg |
| Optical Isolation | Yes |
| Operating Temperature Range | -20°C to 60°C |
| Status Indicators | Yes, for each input |
Product Applications
The GE IC200MDL643 VersaMax Discrete Input Module is versatile and can be employed in various industrial environments that require the processing / binary input signals. Common applications include:
-
Sensor Monitoring: The module is used for reading inputs from proximity sensors, limit switches, and temperature switches, providing feedback to the control system for further processing.
-
Conveyor Systems: It can be employed in conveyor control systems to monitor position or speed sensors, enabling precise control over the movement / goods.
-
Safety and Alarm Systems: The module is /ten used in safety systems to read inputs from emergency stops, safety interlocks, and fire alarm systems, helping ensure that the system operates only under safe conditions.
-
Packaging Machinery: The IC200MDL643 module is /ten deployed in packaging lines, where it captures signals from sensors that detect the position / products, allowing for precise and automated control.
-
Process Control: In process control systems, it can capture status signals from devices such as level sensors and pressure switches, enabling operators to monitor and adjust control processes based on real-time data.
Product Advantages
-
Optical Isolation: Each input on the IC200MDL643 module is optically isolated, ensuring that external voltage spikes, faults, or interference do not affect the operation / the PLC system. This makes the module more robust and reliable in harsh industrial environments.
-
Compact Design: With a size / 110 x 66.8 x 50 mm, the module has a compact form factor, making it easy to install in small enclosures or panels with limited space.
-
High-Performance Input Handling: The module can handle 8 digital input points, allowing it to efficiently capture signals from a wide range / field devices in industrial automation systems.
-
Versatile Integration: The IC200MDL643 integrates seamlessly with other VersaMax modules, /fering flexibility in system design and allowing for expansion as required.
-
Easy Installation: The module is designed for DIN rail mounting, which simplifies installation and enhances the organization / control panels and industrial systems.
-
Wide Temperature Range: It can operate in a wide range / environmental conditions, with a temperature range from -20°C to 60°C, making it suitable for a variety / industrial applications.
FAQ
1. How many input points does the IC200MDL643 module provide?
The IC200MDL643 provides a total / 8 discrete input points.
2. What type / input signals can the IC200MDL643 module process?
The module is designed to process digital (discrete) input signals, which include on//f or binary signals from devices like sensors and limit switches.
3. Does the IC200MDL643 module provide any protection against electrical interference?
Yes, the IC200MDL643 module includes optical isolation for each input, helping to protect the module from voltage spikes and electrical interference.
4. What is the operating voltage for the IC200MDL643 module?
The IC200MDL643 operates with a 24 VDC power supply.
5. Can the IC200MDL643 module be used with any other PLC systems?
The IC200MDL643 module is designed to be used with the VersaMax PLC system and may not be compatible with other PLC systems unless they support similar I/O configurations.
6. Is the IC200MDL643 module suitable for harsh industrial environments?
Yes, the module has a wide operating temperature range / -20°C to 60°C, making it suitable for use in challenging industrial conditions.
7. How is the IC200MDL643 module mounted?
The IC200MDL643 module is mounted on a DIN rail, which provides secure and organized installation in control panels.
8. Does the IC200MDL643 module provide status feedback for the inputs?
Yes, the module is equipped with status indicators for each input, which help operators monitor the operational state / the connected field devices.
9. How is the module powered?
The IC200MDL643 module is powered by a 24 VDC input, which is typically supplied by the VersaMax PLC system or an external power source.
10. What types / sensors can be connected to the IC200MDL643 module?
The module can be used to connect a variety / digital sensors, including proximity sensors, limit switches, and temperature switches, among others.
Recommended 型号s from the Same Series or 相关产品
| 型号 | 描述 |
|---|---|
| IC200MDL644 | VersaMax Discrete Input Module with more input points |
| IC200MDL645 | Digital input module for high-speed applications |
| IC200MDL646 | Versatile input module with additional features |
| IC200MDL647 | Discrete input module with enhanced diagnostics |
| IC200MDL648 | Input module with integrated relay outputs |
| IC200MDL649 | Extended input module for larger systems |
