Product Overview

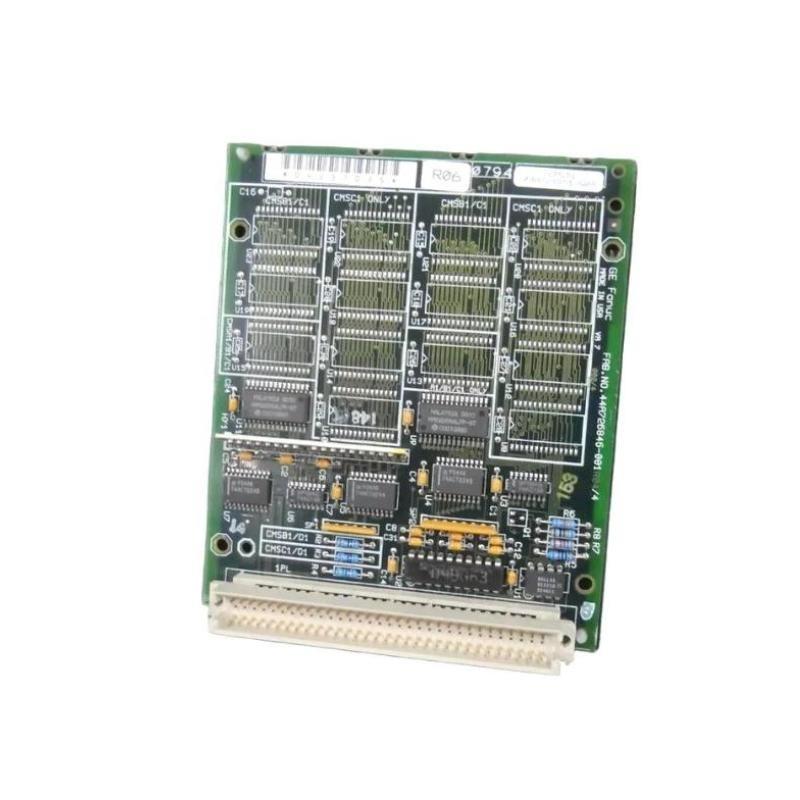

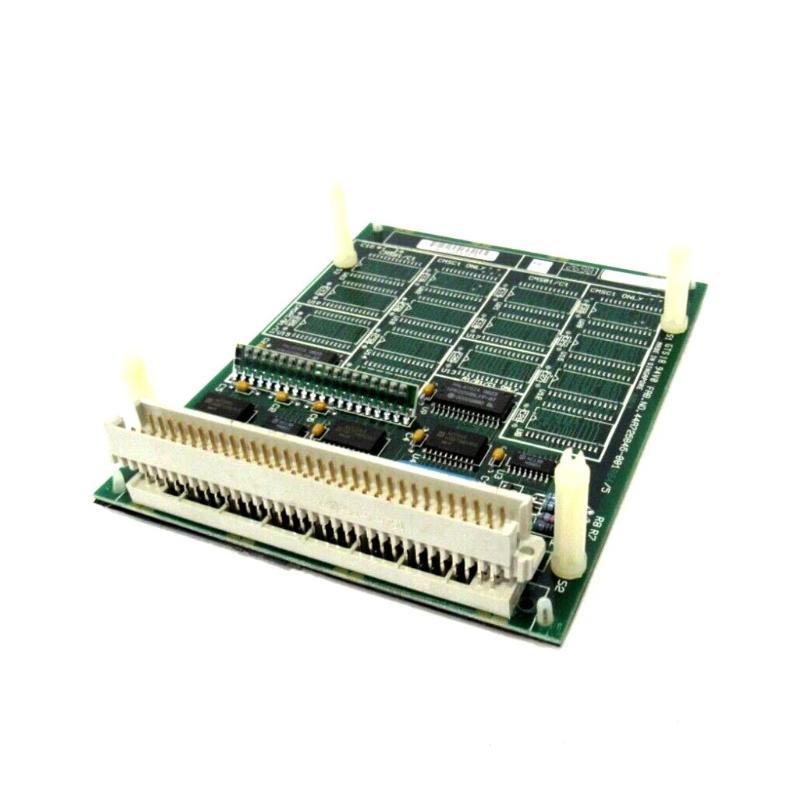

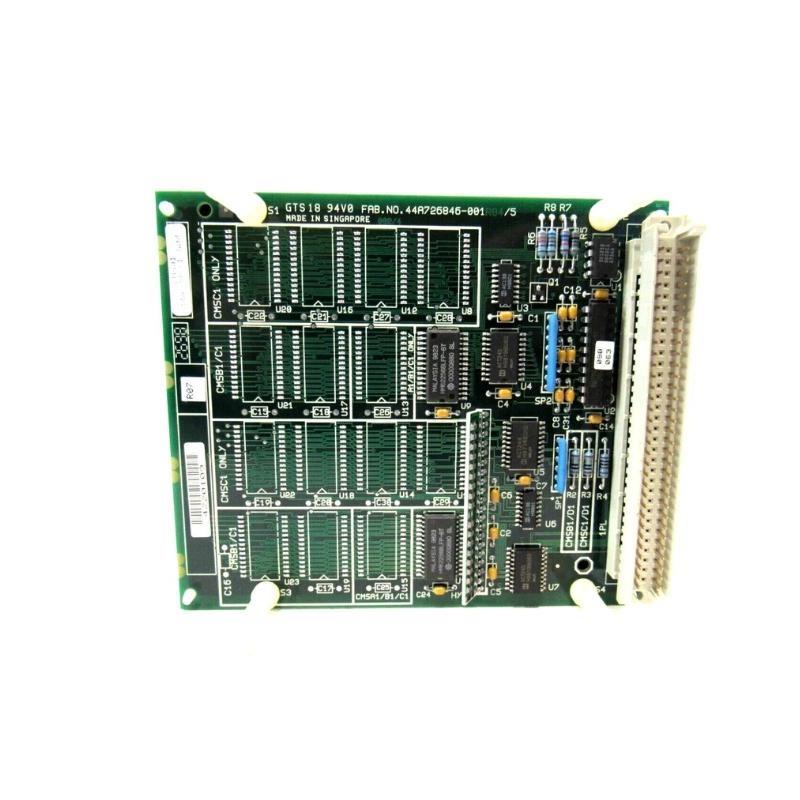

The GE Fanuc IC697MEM713 is a CMOS-based memory expansion module designed for the Series 90-70 PLC system. This module increases the logic and data storage capacity / compatible CPUs, including the IC697CPU771, IC697CPU772, and the IC697PCM711 Programmable Coprocessor Module. Installed as a daughterboard in the same slot as the CPU or PCM, the IC697MEM713 supplements the base memory, allowing larger programs and data sets to be stored efficiently.
Key Features
-
Expands logic and data memory capacity for Series 90-70 CPUs and PCM modules
-
Battery-backed memory retention ensures data preservation during power loss
-
Continuous background error checking for memory integrity
-
Installs directly in the CPU or PCM slot, no additional rack space required
-
Field-installable without specialized tools
-
可用 in multiple memory configurations: 64 KB, 128 KB, 256 KB, 512 KB
Technical Specifications
| Specification | Details |
|---|---|
| 型号 | IC697MEM713 |
| Series | Series 90-70 |
| Memory Capacity | 64 KB, 128 KB, 256 KB, 512 KB |
| Memory Type | CMOS RAM |
| Installation | Daughterboard in CPU/PCM slot |
| Memory Retention | Battery-backed via CPU/PCM |
| Error Checking | Background checksum by CPU |
| Dimensions | 120 × 80 × 15 mm |
| 重量 | 0.09 kg |
| Shelf Life | 10 years at 20°C (68°F) |
| Memory Retention Without Power | 6 months nominal |
常见问题 (FAQ)
1. What is the purpose / the IC697MEM713?
The IC697MEM713 expands the logic and data memory capacity / compatible GE Fanuc Series 90-70 CPUs and the Programmable Coprocessor Module.
2. How is the IC697MEM713 installed?
It is installed as a daughterboard directly into the same slot as the CPU or PCM, supplementing the baseboard memory.
3. Does the IC697MEM713 require an additional slot?
No, it installs directly into the same slot as the CPU or PCM, conserving rack space.
4. How is memory retention maintained during power loss?
Memory retention is maintained by the battery on the CPU or PCM, ensuring data preservation during power loss.
5. What memory capacities are available for the IC697MEM713?
The IC697MEM713 is available in 64 KB, 128 KB, 256 KB, and 512 KB configurations.
6. Is the IC697MEM713 field installable?
Yes, it is designed for easy installation without the need for specialized tools.
7. How long is the shelf life / the IC697MEM713?
The shelf life is 10 years at 20°C (68°F).
8. How long can the IC697MEM713 retain memory without applied power?
It should retain memory for six months nominal without applied power.
Related GE Fanuc 型号s
| 型号 | 描述 |
|---|---|
| IC697MEM735 | CMOS Memory Module |
| IC697MEM733 | CMOS Memory Module |
| IC697MEM732 | CMOS Memory Module |
| IC697MEM731 | CMOS Memory Module |
| IC697MEM719 | CMOS Memory Module |
| IC697MEM717 | CMOS Memory Module |
Popular GE Fanuc 型号s
| 型号 | 描述 |
|---|---|
| IC697CPU771 | 90-70 CPU Module |
| IC697CPU772 | 90-70 CPU Module |
| IC697PCM711 | Programmable Coprocessor Module |
| IC697MDL740 | 12/24 VDC Digital Output Module |
| IC697MDL750 | 12/24 VDC Digital Input Module |
