Product Overview

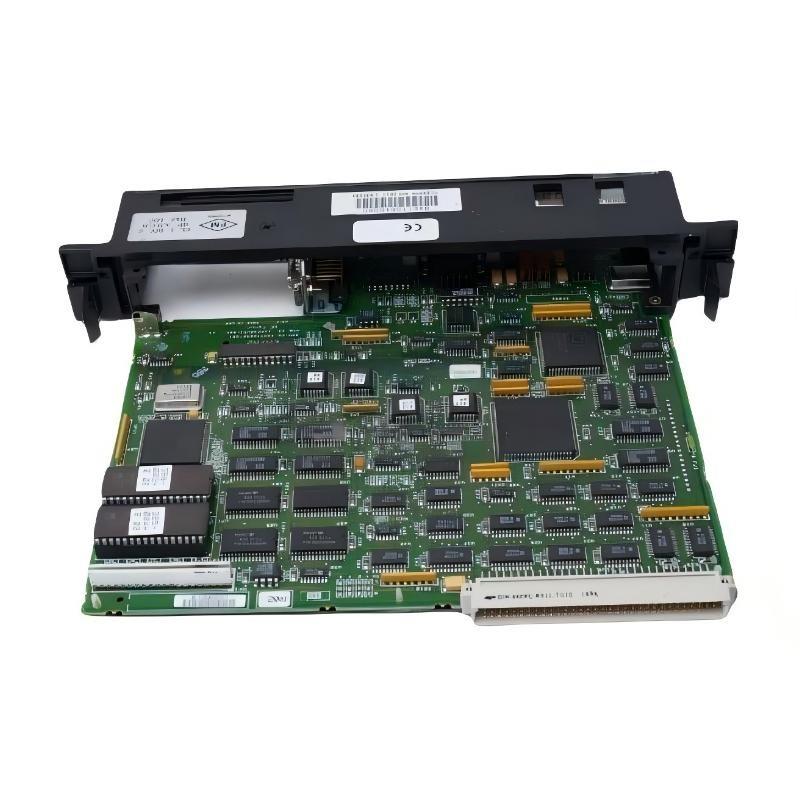

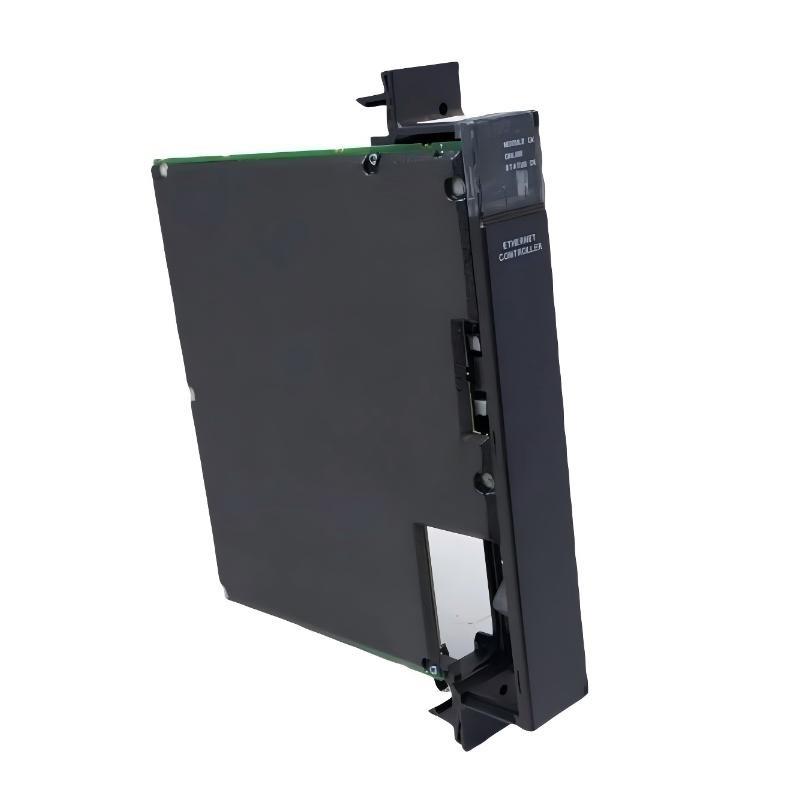

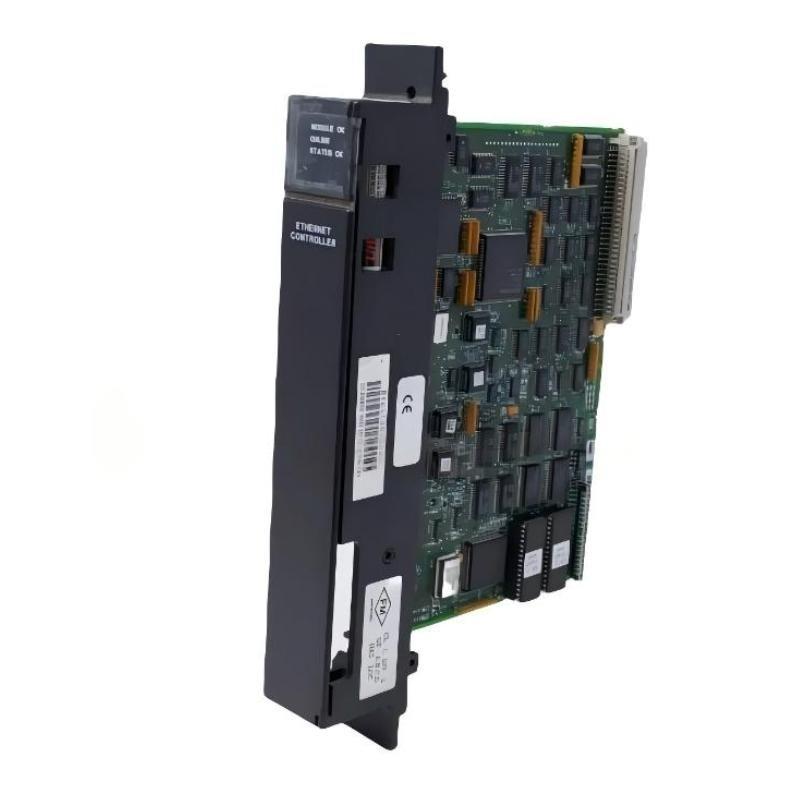

The GE Fanuc IC697CMM741 Ethernet Controller Module is a high-performance communication module designed for integration into Series 90-70 PLC systems. It provides Ethernet connectivity to PLC networks, enabling high-speed data exchange between PLCs, operator interfaces, SCADA systems, and other intelligent devices. This module enhances system performance by /floading communication processing from the main CPU, while supporting multiple industrial Ethernet protocols for flexible integration.
Key Features
-
High-speed Ethernet communication module for Series 90-70 PLCs
-
支持s multiple industrial Ethernet protocols including Modbus TCP and GE Fanuc SNP
-
Provides a dedicated network processor to /fload communication tasks from the CPU
-
Compatible with point-to-point, peer-to-peer, and networked system topologies
-
LED indicators for link status, activity, and errors
-
支持s s/tware configuration and monitoring via Logicmaster or CIMPLICITY
Technical Specifications
| Item | Specification |
|---|---|
| 型号 | IC697CMM741 |
| Product Type | Ethernet Controller Module |
| Compatible System | GE Fanuc Series 90-70 PLC |
| Network Type | 10/100 Mbps Ethernet |
| 支持ed Protocols | Modbus TCP, GE Fanuc SNP, Ethernet/IP (optional) |
| Communication Ports | 1 RJ-45 Ethernet port |
| Processor Type | Dedicated network communication processor |
| Power Consumption | 1.5 A at +5 VDC |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Diagnostics | LED indicators for link, activity, and fault |
| Firmware Upgrade | 支持ed via PLC programming tools |
| Mounting Type | Series 90-70 rack slot |
| Dimensions | 233 × 41 × 175 mm |
| 重量 | 0.56 kg |
Industry Applications
-
Industrial process automation and control
-
Manufacturing production lines
-
Power generation and distribution monitoring
-
Oil and gas automation and pipeline control
-
Building automation and SCADA networks
常见问题 (FAQ)
1. What is the main function / the IC697CMM741?
It provides Ethernet connectivity and network processing capability for Series 90-70 PLCs, enabling high-speed data exchange.
2. How many Ethernet ports are available?
The module has one RJ-45 Ethernet port for network communication.
3. Which protocols does the module support?
It supports Modbus TCP, GE Fanuc SNP, and optionally Ethernet/IP.
4. Can this module /fload communication tasks from the CPU?
Yes, it includes a dedicated network processor that handles communication, freeing the CPU for control operations.
5. Is the IC697CMM741 compatible with all Series 90-70 racks?
Yes, it is compatible with all standard Series 90-70 I/O rack slots.
6. How is diagnostics performed on the module?
LED indicators provide status information for link activity, network errors, and operational state.
7. Can the firmware be upgraded?
Yes, firmware updates can be applied through the PLC programming environment.
8. What network topologies are supported?
The module supports point-to-point, peer-to-peer, and networked configurations in Ethernet-based automation systems.
