Product Overview

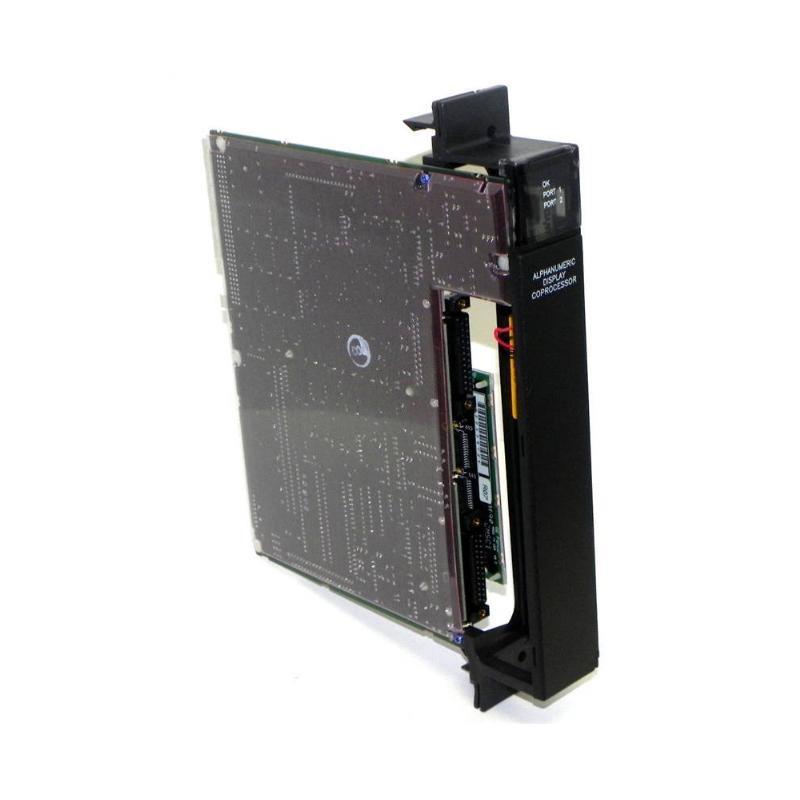

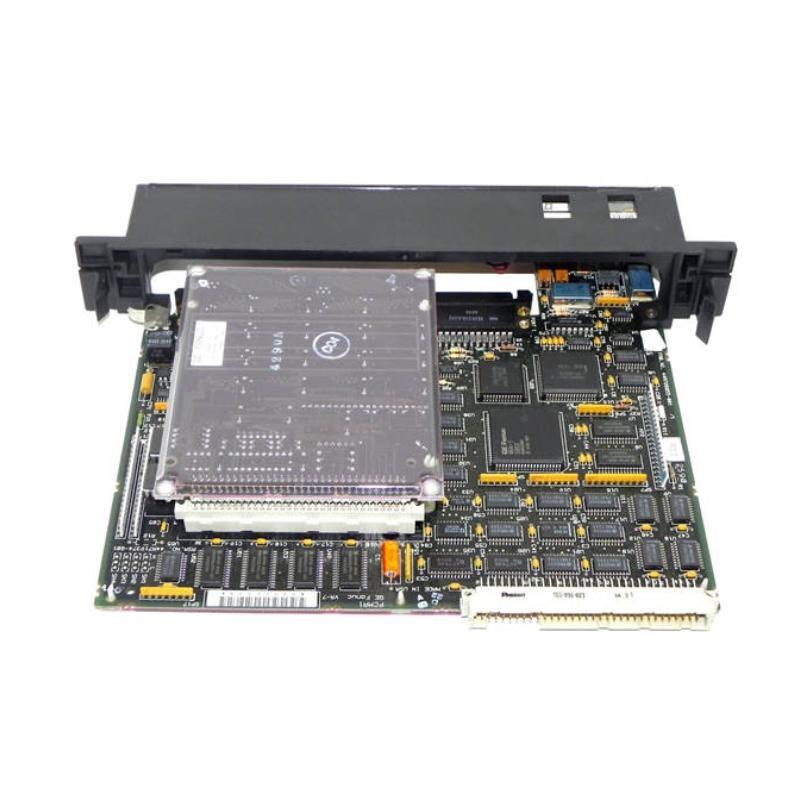

The GE Fanuc IC697ADC701 is a single-slot coprocessor module designed to enhance Series 90-70 / IC697 PLC systems by /floading display, alarm, and reporting tasks from the main CPU. It runs the Alphanumeric Display System (ADS) s/tware to provide human-machine interface (HMI) functions such as operator displays, alarms, logs, and screens independently / the control logic. The module communicates with the CPU over the backplane and provides serial ports for connection to operator terminals, PCs, or printers.
Key Features
-
Utilizes a 12 MHz 80C186 microprocessor architecture
-
High-speed access to PLC memory via backplane bus
-
S/tware-based configuration — no DIP switches or jumpers required
-
Pushbutton reset for restart or factory default initialization
-
Status LEDs: Module OK, Port I activity, Port II activity
-

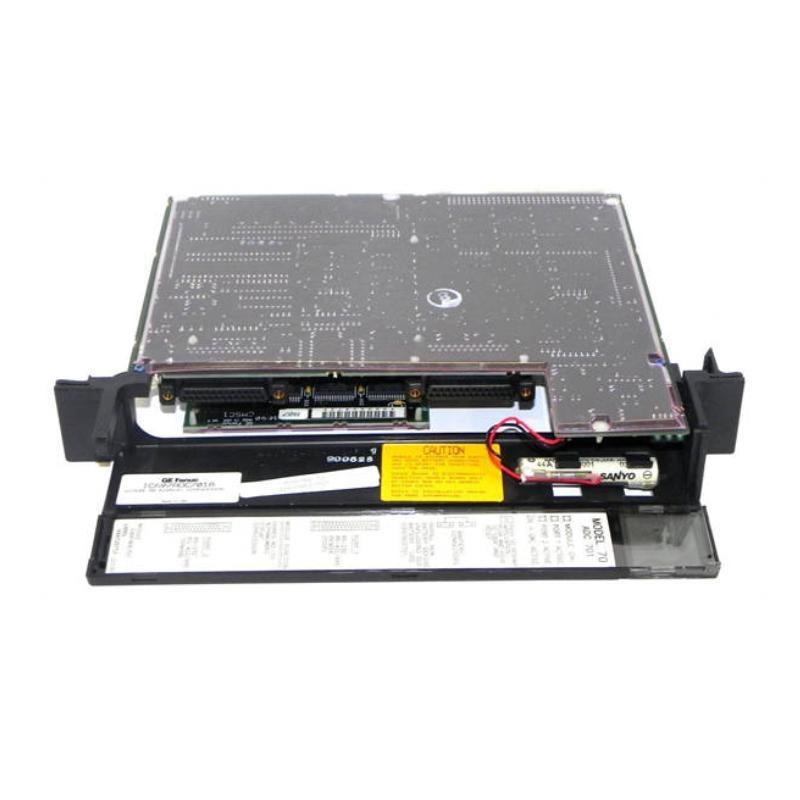

Battery-backed memory to retain data during power loss
-
支持s up to 63 ADC modules in one PLC system
-
Interfaces with OIT, Mini OIT, VT100, and IBM PC terminals
-
Printer logging capability via serial port
Technical Specifications
| Specification | Details |
|---|---|
| 型号 | IC697ADC701 |
| Type | Alphanumeric Display Coprocessor Module |
| Processor | 12 MHz 80C186 |
| Serial Ports | 2 Ports: RS-232 (Port 1), RS-422/RS-485 (Port 2) |
| Current from 5V Bus | 1.0 A |
| Battery Type | Lithium backup battery (IC697ACC701) |
| Battery Shelf Life | 10 years at 20 °C |
| Memory Retention | Approximately 6 months (without power) |
| Operating Temperature | –25 °C to +70 °C |
| Dimensions | 138 × 70 × 25 mm |
| 重量 | 0.68 kg |
常见问题 (FAQ)
1. What is the main role / the IC697ADC701 in a PLC system?
It performs display, alarm, logging, and operator interface tasks so that the main CPU can focus on control processing.
2. How many ADC modules can be installed in one PLC?
Up to 63 modules can be used within a single Series 90-70 PLC system.
3. How is the ADC configured?
Configuration is completed via s/tware (PCOP development tools), not with hardware switches.
4. What happens if the battery fails?
User memory may be lost. The diagnostic LEDs or startup messages will indicate low battery status.
5. What is the function / the pushbutton on the module?
A short press restarts the ADS s/tware; a long press (over 5 seconds) resets to factory defaults.
6. What types / terminals can it support?
It supports OIT, Mini OIT, VT100, and IBM PC/compatible terminals via TERMF.
7. Can it communicate directly with a printer?
Yes, the module can log alarms and reports directly to a printer through its serial port.
8. Does it require specific firmware compatibility?
Yes, newer ADS versions may need specific module revisions and compatible CPU firmware.
Related GE Fanuc 型号s
| 型号 | 描述 |
|---|---|
| IC697ADC701B | Earlier revision B version / the ADC module |
| IC697ADC701C | Revision C model supporting ADS 3.x |
| IC697ADC701D | Updated version for newer ADS s/tware releases |
| IC697CHS711 | Rack chassis used to mount ADC and CPU modules |
| IC697CPU771 | Series 90-70 CPU module commonly paired with ADC |
| IC697PCM711 | Programmable Coprocessor for auxiliary functions |
