Introduction

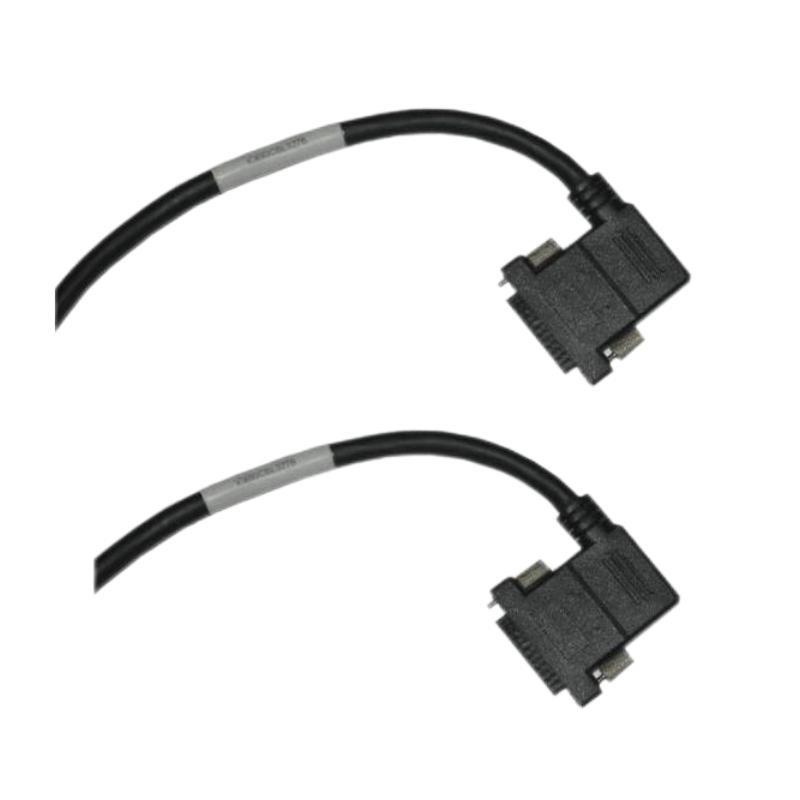

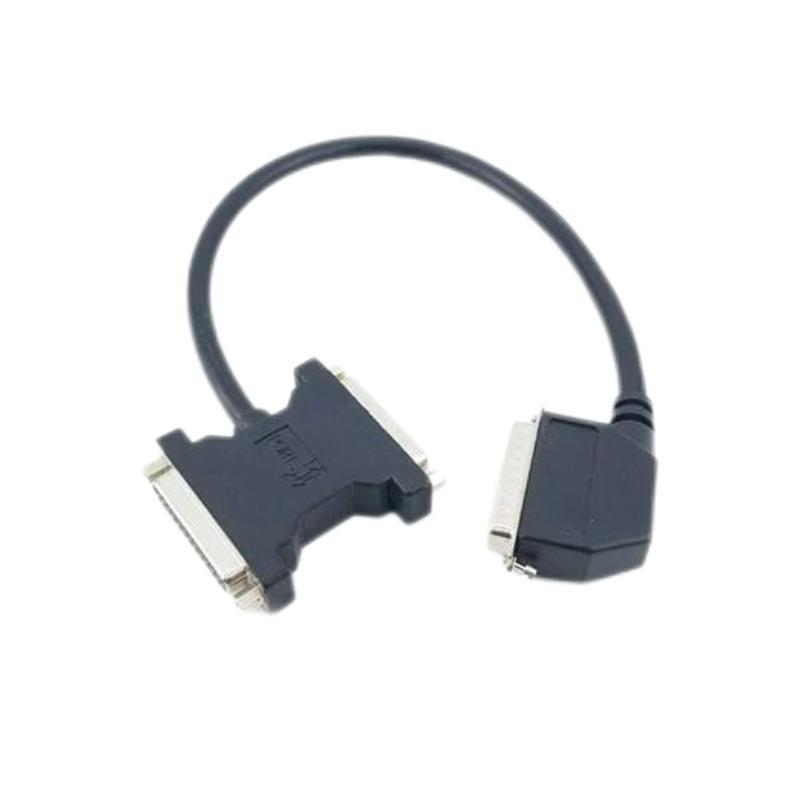

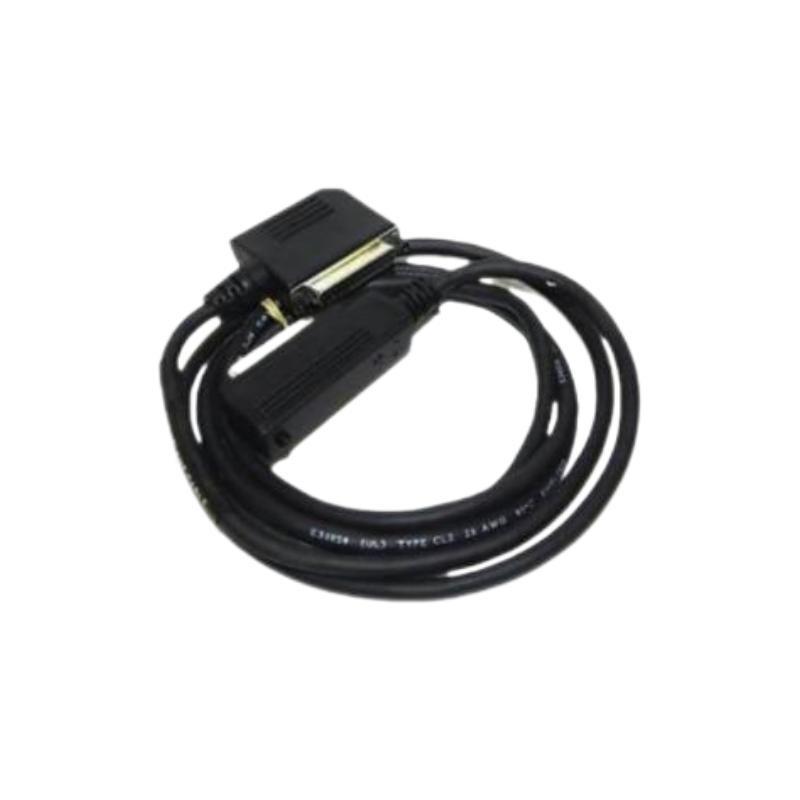

The GE Fanuc IC693CBK001 is a Backplane Expansion Cable Kit designed for Series 90-30 PLC systems. It provides the physical link required to interconnect an expansion baseplate with the main rack, ensuring reliable distribution / power and backplane data signals. From a practical installation standpoint, this kit is essential whenever a system requires additional I/O capacity beyond a single 90-30 rack.
Its mechanical design emphasizes durability, signal integrity, and ease / installation, making it suitable for both panel-mounted and enclosure-mounted architectures.
Technical Specifications
| Parameter | 描述 |
|---|---|
| 型号 Number | IC693CBK001 |
| Module Type | Backplane Expansion Cable Kit |
| Compatible Platform | GE Fanuc Series 90-30 |
| Included Components | Expansion cable + two keyed connectors |
| Cable Length | 305 mm (12 in) |
| Electrical Function | Carries backplane data, addressing, and power distribution signals |
| Connector Type | GE 90-30 keyed backplane connectors |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | –40°C to +85°C |
| Dimensions (Cable + Connector Assembly) | ≈ 305 mm (L) × 28 mm (W) × 18 mm (H) |
| 重量 | ≈ 0.10 kg |
| Installation | Between main rack and one expansion rack |
Applications
-
Increasing system capacity by adding additional Series 90-30 I/O bases
-
Panel or cabinet installations requiring distributed rack layout
-
Retr/its where the existing system requires more slot availability
-
Machine control or process skids with multi-rack arrangement
-
OEM systems utilizing compact controller/rack separation
Advantages
-
Simple expansion / Series 90-30 systems without additional communication modules
-
Robust mechanical connectors ensure reliable long-term operation
-
Compact cable pr/ile, suitable for tight cabinet routing
-
No configuration required, plug-and-play installation
-
Maintains full backplane performance, including addressing and timing
