Technical White Paper – Robust Power for PLC Systems

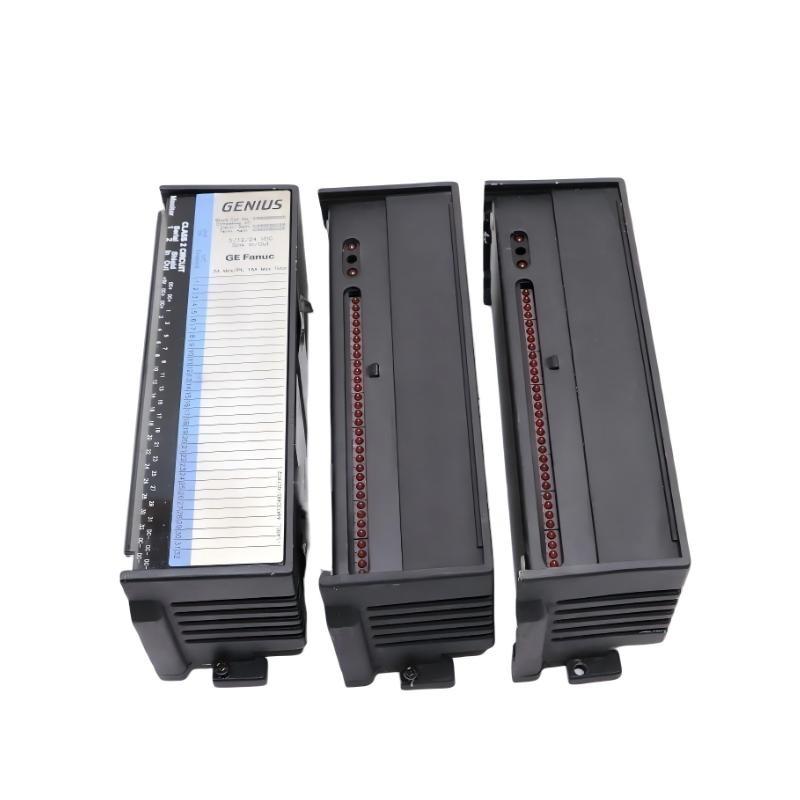

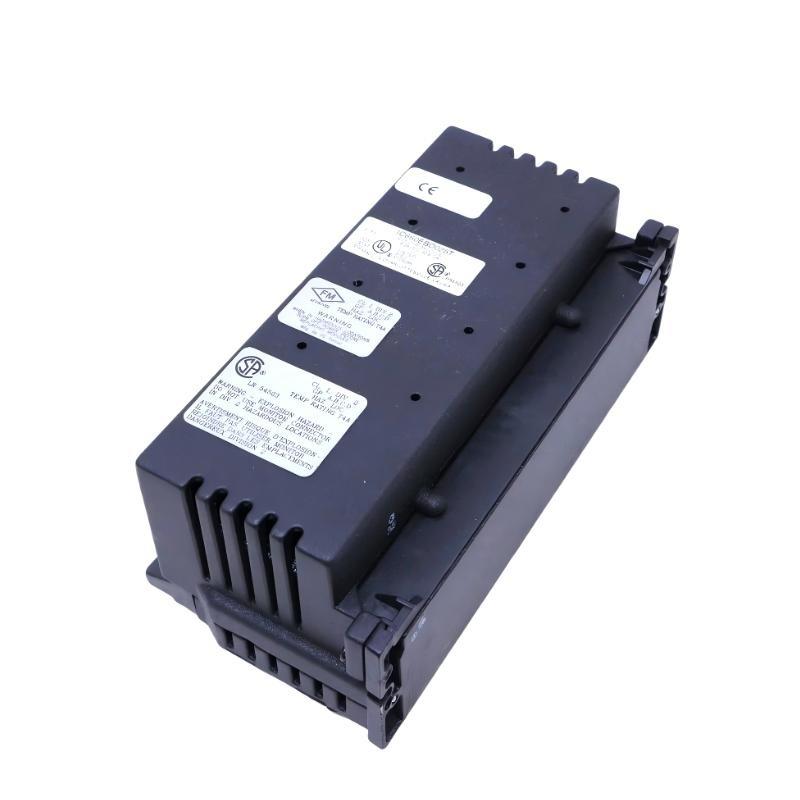

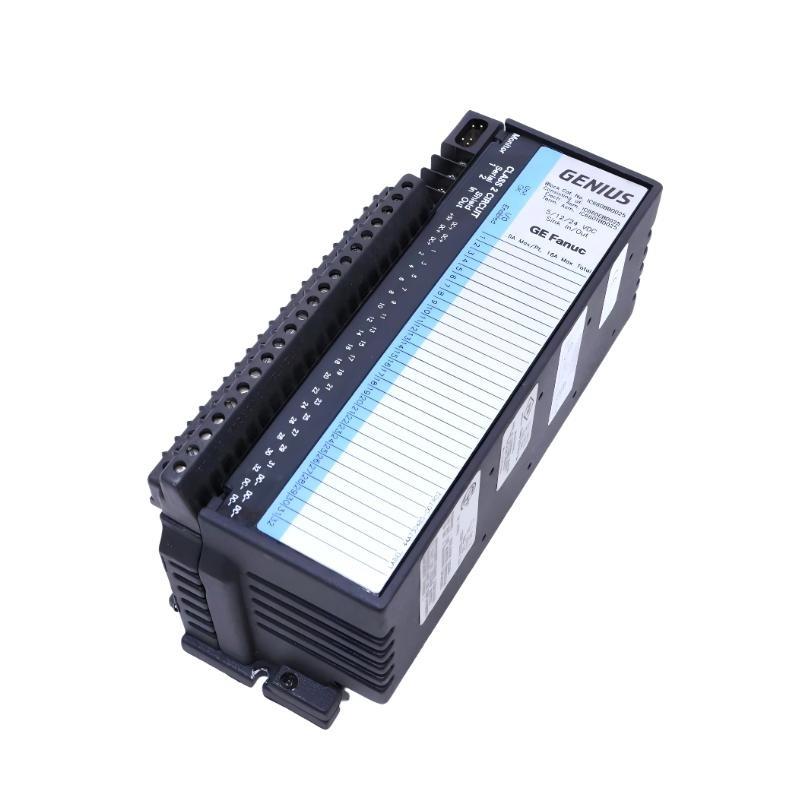

The GE Fanuc IC660BBD025 is a power supply module designed for GE Series 90-30 PLC systems, delivering stable 24V DC output to control and I/O modules. Built for industrial automation environments, this module ensures reliable operation / distributed PLC racks under varying loads and harsh conditions.
Engineered for critical industrial processes, the IC660BBD025 maintains voltage stability, integrates overcurrent and short-circuit protection, and provides easy monitoring via LED indicators. Its compact footprint allows flexible integration into control panels while maintaining high system reliability.
⚡ Technical Specifications
| Parameter | Specification |
|---|---|
| 制造商 | GE Fanuc |
| Series | Series 90-30 / IC600 Series |
| Module Type | Power Supply Module |
| Catalog Number | IC660BBD025 |
| Input Voltage Range | 100–240V AC ±10% |
| Output Voltage | 24V DC regulated |
| Output Current | 2.5 A max |
| Power Rating | 60 W |
| Efficiency | 85% typical |
| Overcurrent Protection | Yes, automatic shutdown and recovery |
| Short-Circuit Protection | Yes, electronic reset |
| LED Indicators | Power OK / Fault |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5–95%, non-condensing |
| Dimensions (H × W × D) | 120 mm × 35 mm × 110 mm (4.72 in × 1.38 in × 4.33 in) |
| 重量 | 0.45 kg (0.99 lb) |
| Mounting Type | DIN rail or panel mount |
| Certifications | CE, UL, cUL, RoHS compliant |
Applications – Reliable Industrial Power
The IC660BBD025 is ideal for systems where continuous and stable PLC operation is critical:
-
Process Control Plants – chemical, pharmaceutical, and food processing industries.
-
Manufacturing Lines – powering control modules and I/O components.
-
Energy and Utilities – providing reliable DC power in distributed control systems.
-
Water & Wastewater Facilities – powering remote racks in plant automation.
-
Building Automation – control modules for HVAC and lighting systems.
Its compact and rugged design allows flexible integration into both central and remote panels.
Advantages – Engineering Perspective
-
Stable 24V Output: Maintains consistent voltage under load fluctuations.
-
Overcurrent & Short-Circuit Protection: Minimizes downtime and equipment damage.
-
Compact Design: 保存s panel space, ideal for distributed racks.
-
LED Status Indicators: Easy on-site monitoring for power and fault conditions.
-
Wide Input Range: Compatible with standard AC mains voltages (100–240V AC).
-
High Efficiency: 85% typical efficiency reduces energy loss.
-
Robust Construction: Designed for industrial vibration, temperature, and humidity exposure.
-
Flexible Mounting Options: 支持s DIN rail and panel installation.
