Overview

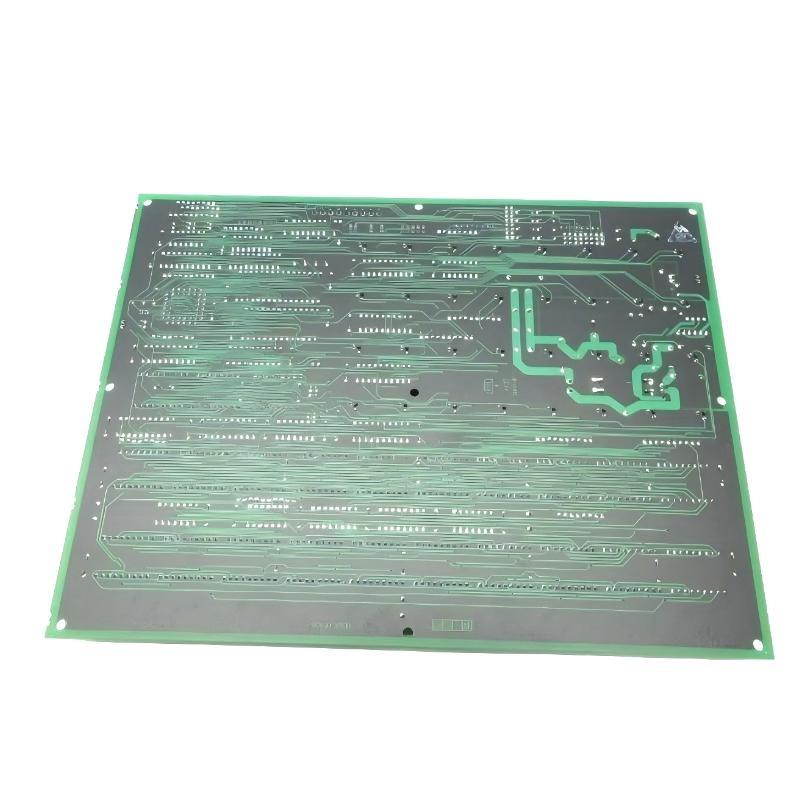

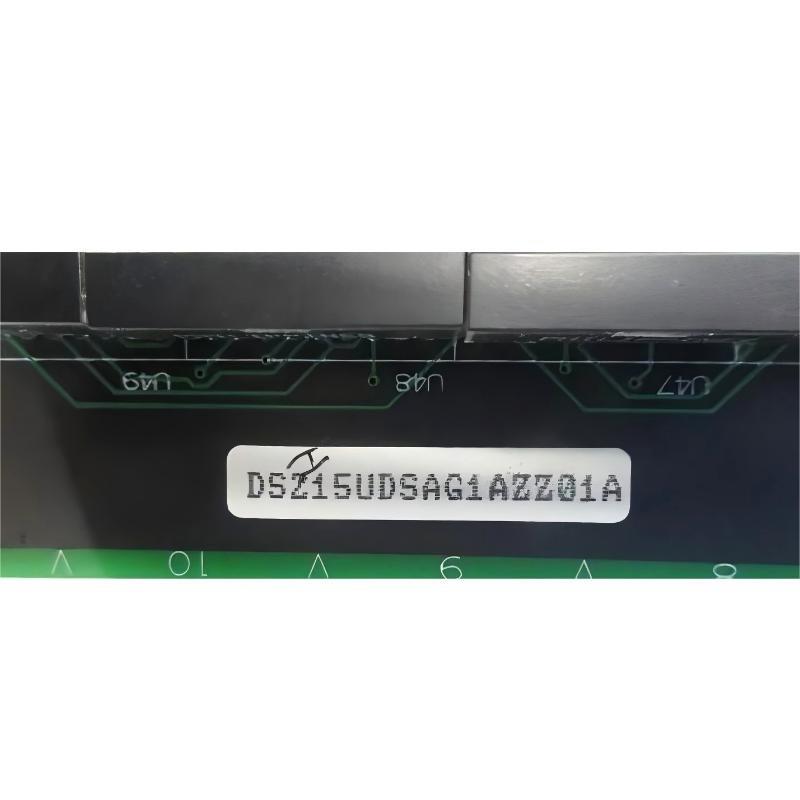

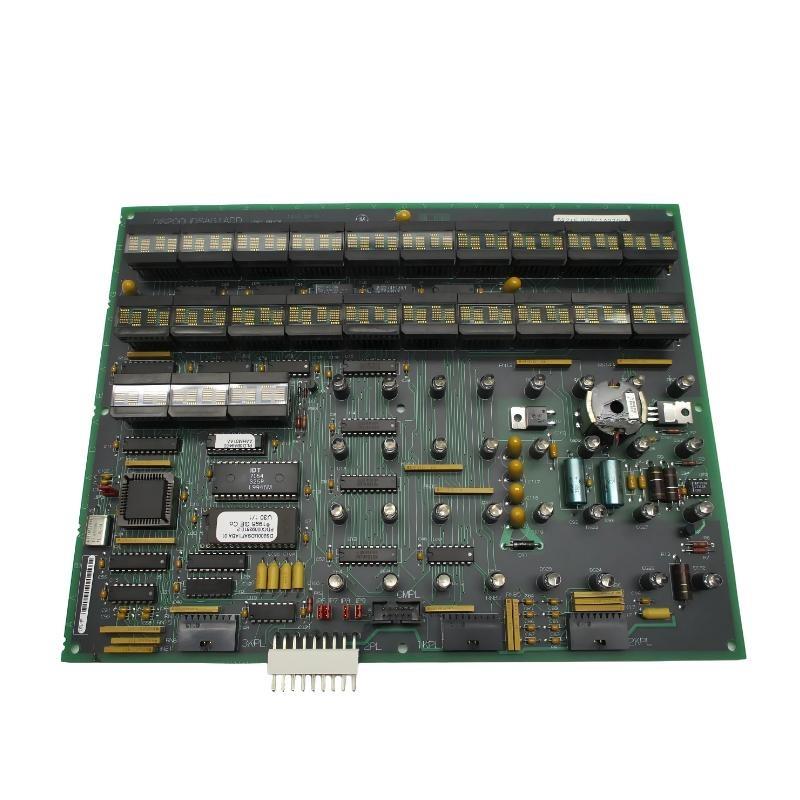

The GE DS215UDSAG1AZZ01A is a high-reliability digital I/O and overspeed protection module used widely in Mark V and Mark VI turbine control platforms. It consolidates critical digital inputs, processing logic, and protective response circuits into a single assembly, allowing the turbine system to react rapidly to abnormal rotational or operational conditions.
This module is favored in turbine control retr/its due to its robust component design, predictable behavior under thermal load, and long-term stability even in high-vibration enclosures. Rather than focusing on theoretical capabilities, this description emphasizes practical field performance—what engineers typically observe during installation, commissioning, and maintenance.
Technical Specifications
| Specification | 描述 |
|---|---|
| Module Type | Digital I/O & Overspeed Protection Module |
| System Platform | GE Mark V / Mark VI |
| Digital Inputs | 24 VDC logic-level inputs, optically isolated |
| Protection Features | Overspeed detection, fault-state annunciation, latch logic |
| Internal Processing | ASIC-based signal conditioning and logic sequencing |
| Input Power | 24 VDC nominal |
| Operating Temperature | 0…+60°C |
| Storage Temperature | –40…+85°C |
| Vibration Rating | Turbine-grade industrial rating |
| Dimensions | Approx. 330 × 160 × 40 mm |
| 重量 | ~1.25 kg |
| Mounting | Standard Mark V / VI chassis-mount configuration |
Applications
-
Gas and steam turbine overspeed protection
-
Safety logic processing in turbine control systems
-
Redundant digital input acquisition
-
Retr/it or replacement in aging Mark V enclosures
-
High-reliability system monitoring in power generation plants
-
Protection logic bridging between controllers and field devices
Advantages
-
Fast overspeed response, reducing turbine risk in failure scenarios.
-
Isolated digital channels that improve noise imm件y and prevent false triggering.
-
Field-proven reliability, especially in older 件s with continuous duty cycles.
-
Stable thermal performance, allowing operation under dense rack thermal loads.
-
Predictable diagnostics, making troubleshooting more straightforward for plant engineers.
-
Mechanical durability, supporting long-term service in high-vibration turbine compartments.
