产品介绍

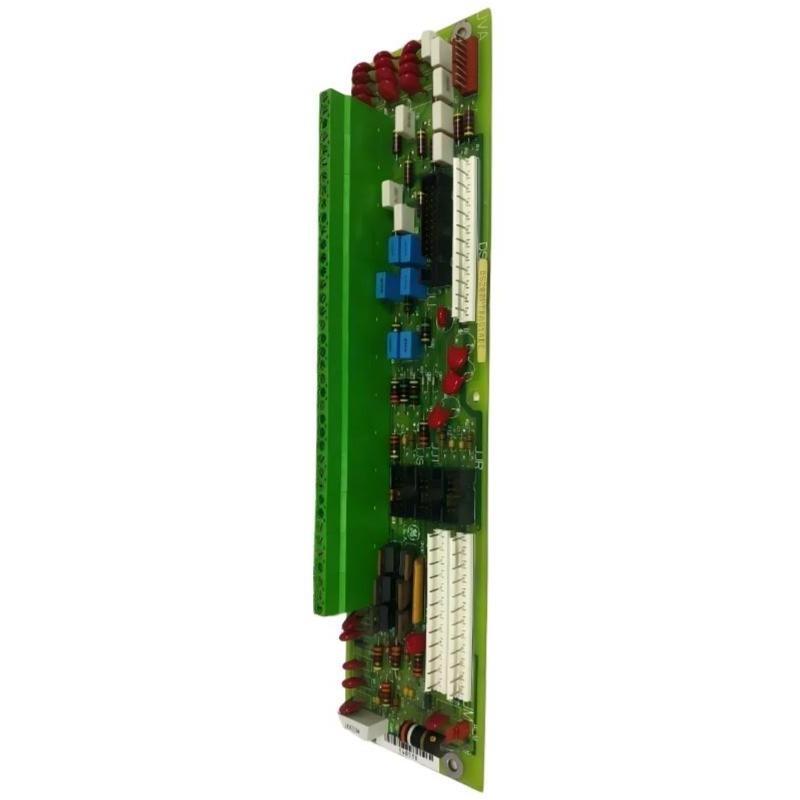

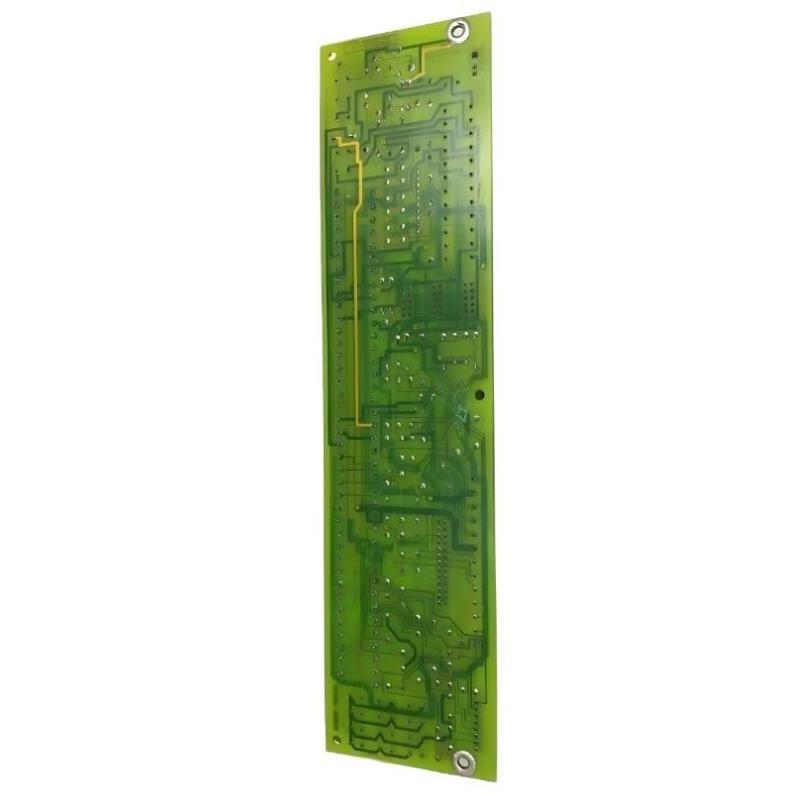

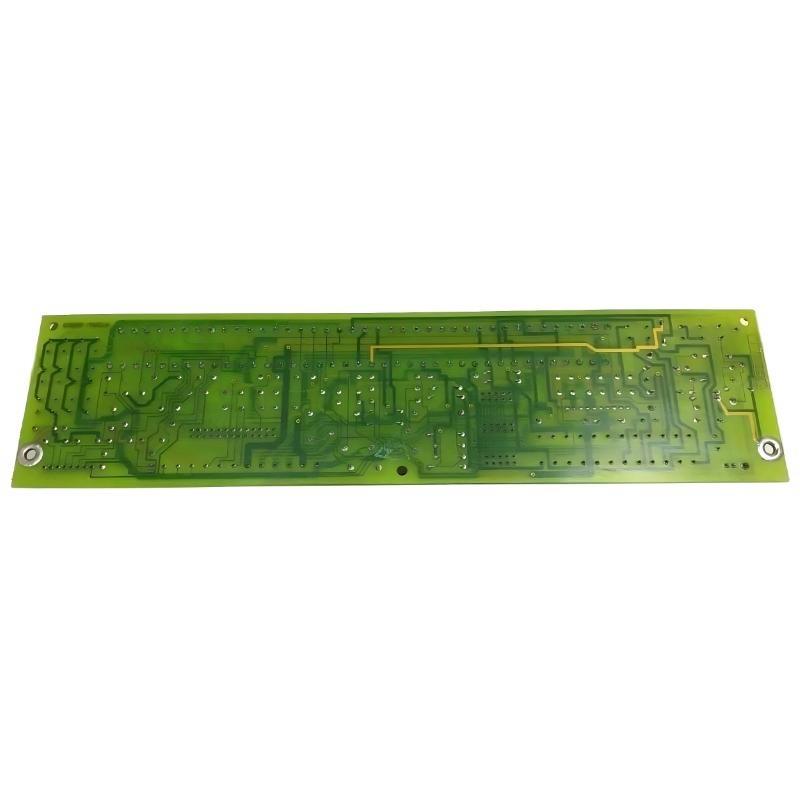

The GE DS200PTBAG1AEC Mark V Termination Board is a precision industrial interface module designed to provide organized termination and distribution / signals within GE Mark V turbine and drive control systems. It serves as a key connection point for discrete, analog, and relay signals, ensuring secure and reliable communication between control boards and field devices.
This board is engineered to simplify complex wiring tasks in control cabinets by consolidating multiple signals into a structured and accessible layout. Its robust mechanical construction guarantees stable connections, while clear labeling supports efficient installation, troubleshooting, and maintenance.
The DS200PTBAG1AEC is suitable for continuous-duty operation in industrial environments, delivering reliable signal integrity and helping maintain the stability and performance / critical control systems.
产品规格
| Parameter | 描述 |
|---|---|
| Product Type | Termination Board |
| System Series | GE Mark V Control System |
| Primary Function | Signal termination and distribution for control modules |
| Connection Method | Screw-type industrial terminals |
| Signal Routing | Structured point-to-point wiring interface |
| Electrical Interface | Passive interface between control boards and field devices |
| Mechanical Design | Durable PCB structure with secure terminal mounting |
| System Compatibility | GE Mark V turbine and drive control platforms |
| Installation Location | Control cabinet terminal section |
| Diagnostics 支持 | Clear labeling for simplified troubleshooting |
| Dimensions | 260 × 100 × 25 mm |
| 重量 | 0.522 kg |
Applications
• Relay and analog signal termination, providing organized routing for multiple control modules.
• Turbine and generator control cabinets, ensuring secure and structured signal connections.
• Industrial drive systems, supporting reliable interface / discrete and analog signals.
• Control system retr/its and expansions, simplifying integration without major rewiring.
• Maintenance-friendly installations, facilitating fast identification, inspection, and troubleshooting.
Advantages
• Improved wiring organization, reducing miswiring and installation errors.
• High mechanical stability, ensuring secure connections under vibration and long-term operation.
• Enhanced maintainability, with clearly labeled terminals for quick inspection.
• Seamless system integration, fully compatible with GE Mark V architectures.
• Reliable signal continuity, supporting stable operation / connected control modules.
• Reduced downtime risk, thanks to organized layout and accessible wiring.
