产品介绍

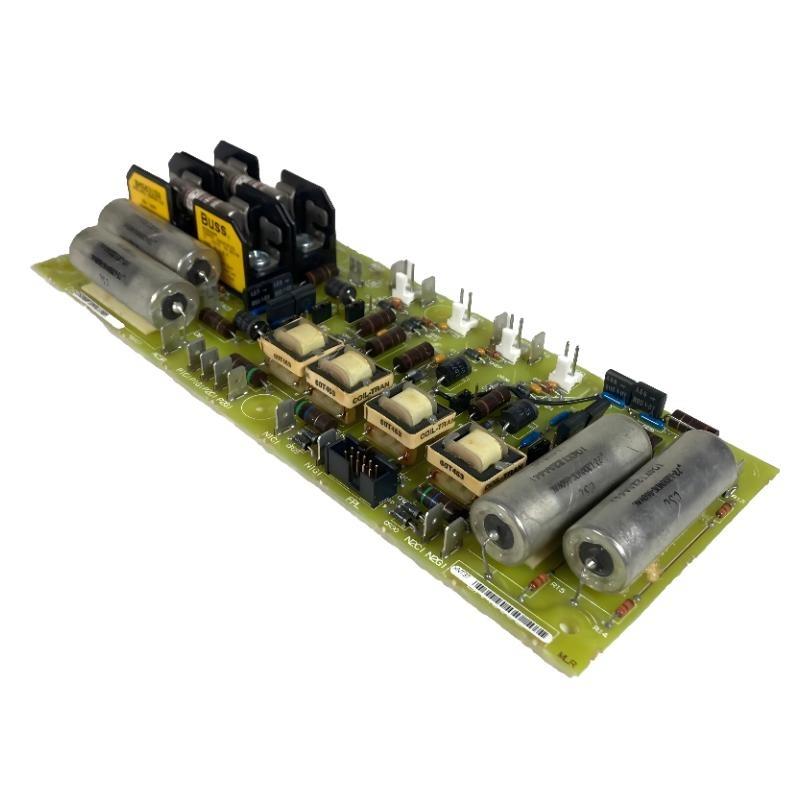

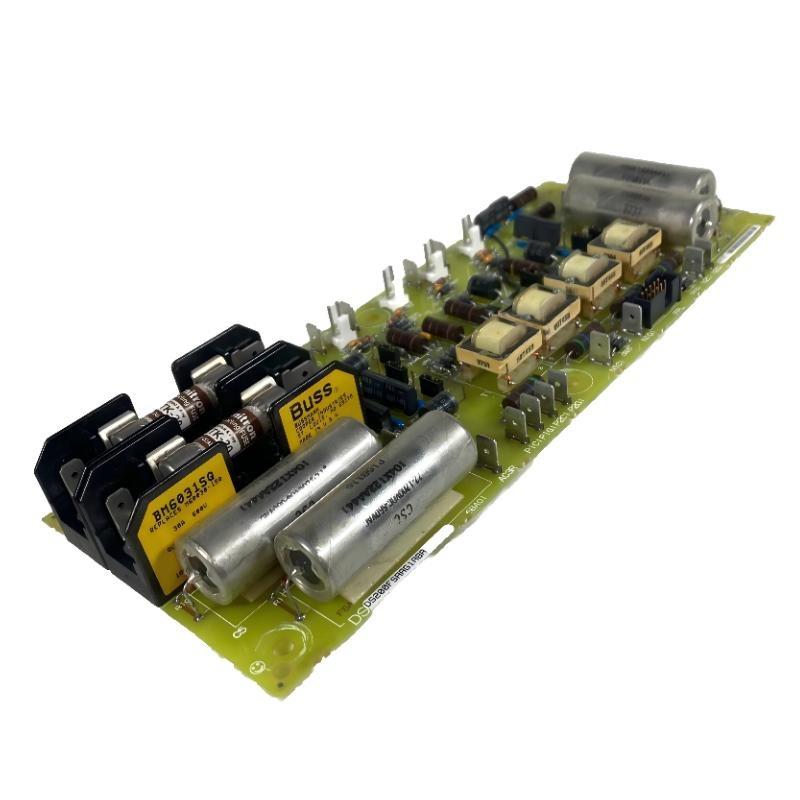

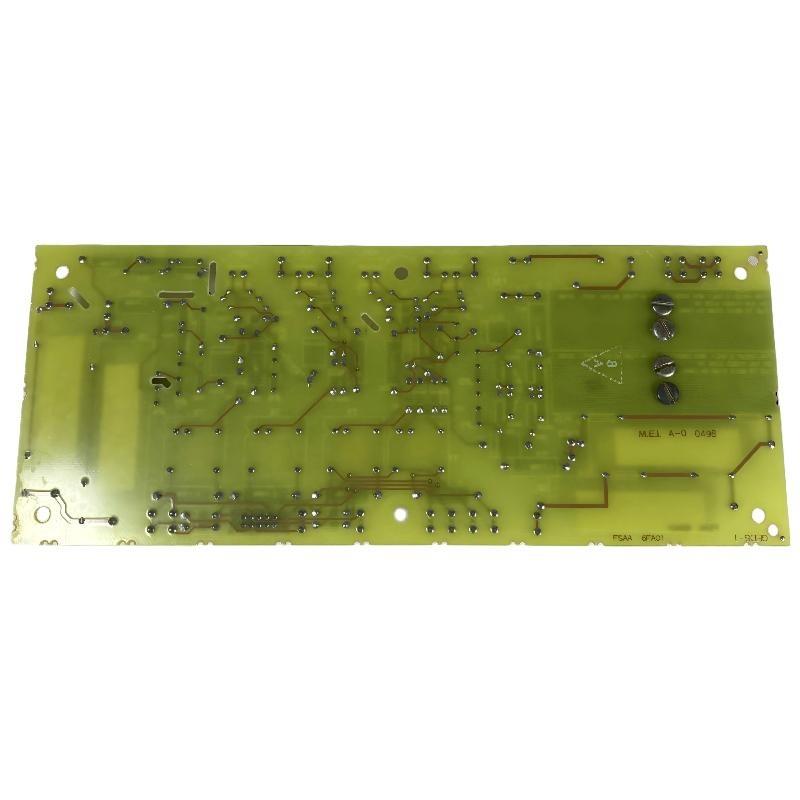

The GE DS200FSAAG1ABA Field Supply Gate Amplifier Board is a preciscontrol and amplify gate signals for power devices in DS200 series dr. This board ensures accurate switchi under deman
It is widely used in industrial drive sys to managehigh-speed gate signals foreffi / the overall drive system. The board is suitable for both new installations and retr/it applications, providing stable and precise gate control in distributed automation networks.
产品规格
| Parameter | 描述 |
|---|---|
| Product Type | Field Supply Gate Amplifier Board |
| Series | DS200 Series |
| Functionality | Amplifies and conditions gate signals for power devices in DS200 drives |
| 支持ed Devices | IGBTs, power transistors, and other field power modules |
| Interface | Direct connection to DS200 drive control modules |
| Protection Features | Overvoltage, overcurrent, and fault signaling for safe operation |
| Diagnostics | LED indicators for signal activity and fault detection |
| Material | FR4 PCB with industrial-grade components and connectors |
| Compatibility | Compatible with DS200 series drives and auxiliary modules |
| Operating Environment | Designed for standard industrial operating conditions |
| Dimensions | 180 × 120 × 60 mm |
| 重量 | 0.481 kg |
Applications
• Gate Signal Amplification for power devices in industrial drive systems
• High-Speed Switching Control ensuring precise operation / IGBTs and power transistors
• Field Device Integration connecting external power modules to DS200 drive systems
• Industrial Automation Systems requiring reliable amplification / drive control signals
• Retr/it Projects upgrading existing DS200 installations with improved gate control
• Distributed Control Environments where accurate signal amplification is critical for system stability
Advantages
• Precise Gate Control delivering consistent signal amplification for power devices
• High Reliability industrial-grade construction for stable operation under vibration and electrical stress
• Integrated Protection Features for overvoltage, overcurrent, and fault detection
• Diagnostic 支持 via LED indicators for quick troubleshooting and status monitoring
• Seamless Integration with DS200 drives and auxiliary modules
• Flexible Installation suitable for new builds or retr/it applications in industrial control cabinets
