What This Board Does

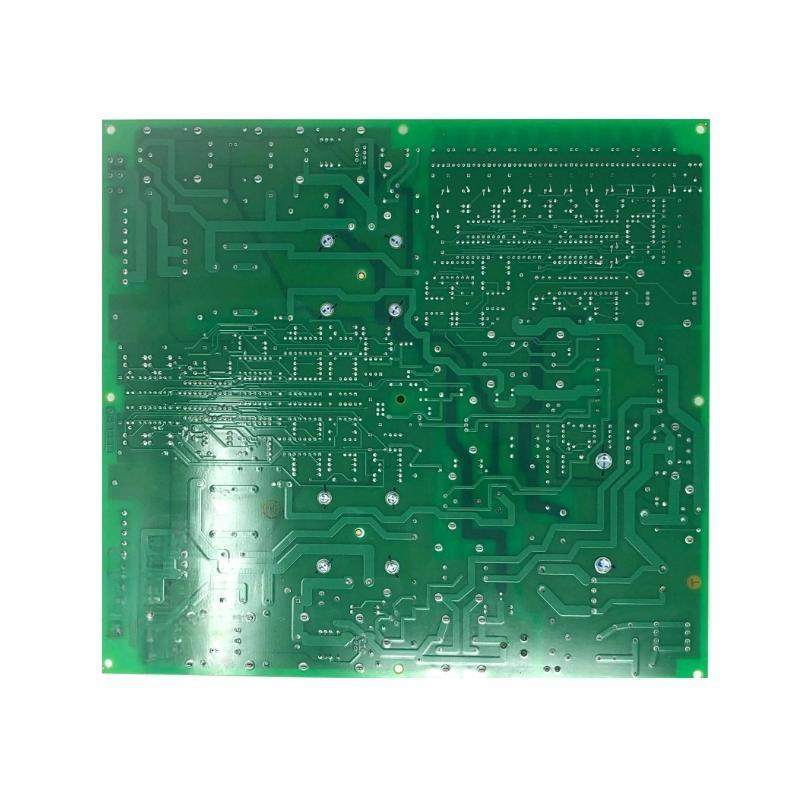

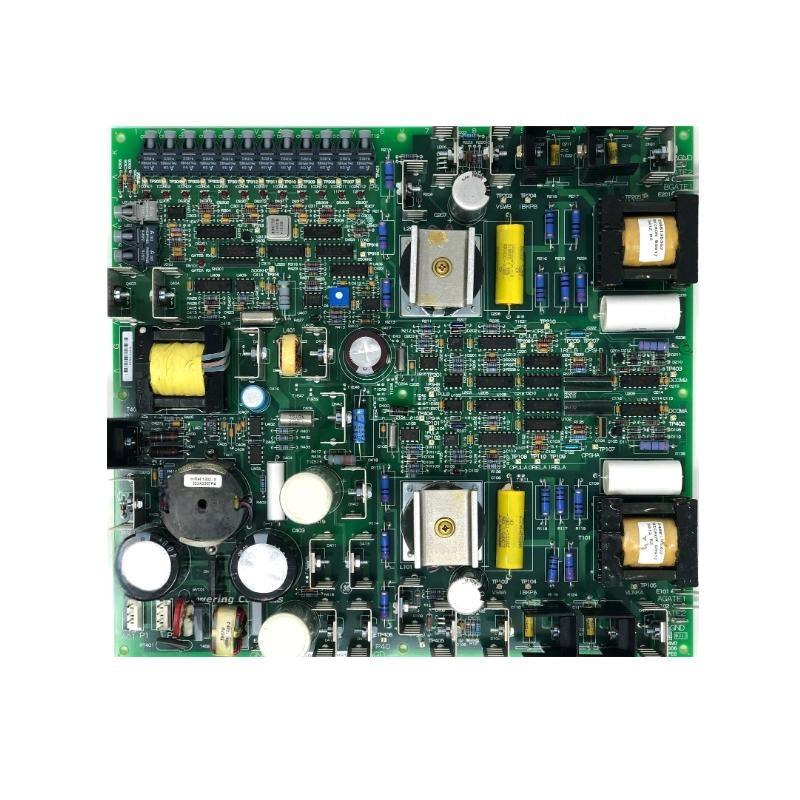

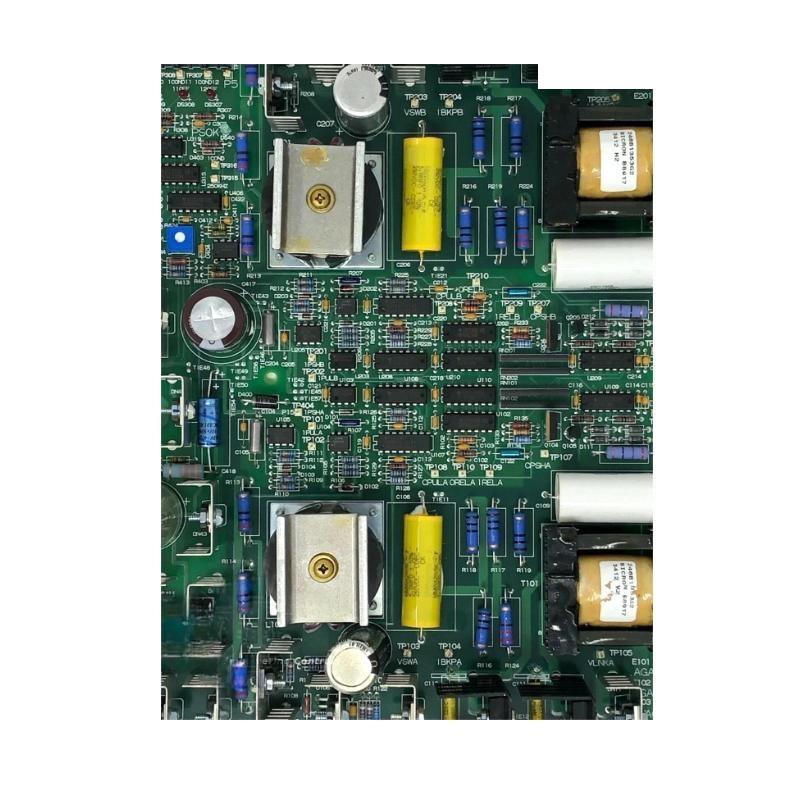

The GE DS200FGPAG1ALD is an advanced field gate pulse amplifier driver board designed for GE DS200 series drive control systems. It delivers high-current gate pulses required to reliably switch power devices in inverter and frequency converter applications. This ensures rapid, precise turn-on and turn-/f / semiconductor devices like IGBTs and MOSFETs, enhancing efficiency and thermal performance in heavy-duty industrial drives.
Engineered for rugged, high-throughput environments, this module is ideal when dependable gate drive performance matters most.
Technical Specifications & Physical Attributes
| Specification | 描述 |
|---|---|
| Module Type | Field Gate Pulse Amplifier Driver |
| Compatible Systems | GE DS200 Drive & Control Systems |
| Primary Function | High-current gate pulse generation |
| Signal Output | Amplified drive pulses for power devices |
| Isolation | Electrical isolation between logic and power stages |
| Mounting Style | Rack-mounted or panel-integrated installation |
| Operating Temperature | –10°C to +60°C |
| Storage Temperature | –25°C to +85°C |
| Humidity Range | 5–90% RH, non-condensing |
| Dimensions (H × W × D) | 180 mm × 62 mm × 150 mm |
| 重量 | Approx. 0.78 kg |
| Construction Quality | Industrial PCB with reinforced connectors |
Where This Board Is Used
-
High-power inverter drive systems
-
Industrial motor control cabinets
-
Semiconductor gate pulse management in VFDs
-
Drive subsystem retr/its and upgrades
-
Replacement / aging amplifier driver boards
-
Sites requiring high current, high-speed gate switching
Module Strengths & Benefits
-
High Current Gate Drive: Provides strong pulse output to ensure reliable switching.
-
Rugged Industrial Design: Built for extended duty in harsh electrical environments.
-
Electrical Separation: Galvanic isolation enhances signal safety and control integrity.
-
Compatibility with Legacy Equipment: Designed for smooth integration into DS200 systems.
-
Service-Ready Layout: Accessible connectors and labeling simplify maintenance.
